Product Overview

Description


Overview

        The AFC Series single phase AC power sources are simple but can  provide  excellent performance. Switch-mode technology and a direct coupled output make these sources efficient.  Applying model IGBT/SPWM switch mode technology, the output capacity of these units can be made from 500VA to 1000kVA.
         Our AFC Series are made for tests of industrial equipments, household applications and so on. The frequency can  adjust itself to 400 Hertz for applications such as the military/avionics equipments and for the 400 Hz electronic operations which are in an aircraft or a military vessel. With dual voltage ranges of 0-150 volts or 0-300 volts, the adjustable frequency band of 45 to 400 Hz in conjunction can provide full capabilities for testing and operating electronics.

         Also, Built-in safety features protect the instrument, the operator, and  ensure a safe work environment.



Specs
\t
AFC-310
\t
Output Capacity
\t
10KVA
\t
Input
\t
Voltage
\t
208, 220, 240 (3W+G), 380, 415, 480V (4W+G) ± 10%
\t
Phase
\t
3Ø4W + Ground
\t
Frequency
\t
50/60Hz±5%
\t
Output
\t
Voltage
\t
Line to Neutral
\t
Line to Line
\t
0-150V/0-300V Selectable
\t
0-260V/0-520V Selectable
\t
Resolution
\t
0.1V
\t
Max  Current
\t
150V Range
\t
27.6A
\t
\t
300VRange
\t
13.8A
\t
Frequency
\t
50,60,45-500Hz(Optional)
\t
\t
Resolution
\t
0.1Hz
\t
Load Regulation
\t
≤1％
\t
Waveform Distortion
\t
≤1％(full load 2％)
\t
Crest Factor
\t
≥3:1
\t
Efficiency
\t
≥85％(at full load )
\t
Protective Design
\t
Over Load
\t
Over Current
\t
Short Circuit
\t
Over Temperature
\t
Phase Deficient
\t
Low-Voltage Protection
\t
Alarms
\t
\t
Displays and Control
\t
3 Digit LED Meters
\t
Voltage
\t
Current
\t
Frequency
\t
Power/Powe Factors(Optional)
\t
interface
\t
RS485/RS232(Optional)
\t
Mechanical Specification
\t
Dimension(W*H*D)
\t
510*780*710
\t
Weight(KG)
\t
200
\t
Working Environment
\t
Temperature
\t
0-40℃/32-104℉
\t
Relative Humidity
\t
10-90％, non-condensing
Key Features

1) Simple but practical. Easy to operate.

2) Low Voltage Distortion.

3) Safty Protections.

4) Wide optional output voltage can be choosed.

5)Applying IGBT/PWM technology.

6) Both RS232 and RS485 are Optional.


7)LED display: Voltage, current and frequency can be showed.

Applications

AC Test Power

Our AFC Series AC power sources provide the advanced features that your application requires at a price that you can afford. The AFC Series programmable AC power sources are easy to use instruments which provide precisely controlled frequency and voltage conversion.

Frequency/Voltage Conversion

The AFC Series AC Power Source allows you to convert a series of data from one frequency to another. Conventional transformers can be supplied in voltage ranges from 0 to 300V and in power ratings from 500 to 100kVA.

Export/Import Product Development and Test

AFC Series designs and supplies a variety of High Voltage AC sources for any test voltage and power.  With high reliability and availability, the AFC Series can be used in many testing equipments including industrial testings,  household applications, laboratory testing unit and so on.  High or low voltage can be choosen by yourself to  adjust the equipments.

Avionics Power

Generally, 400Hz, 115Vac single phase is the base requirement to power up shipboard or airborne equipment which the AFC Series can provide. Moreover, the the AFC Series can be able to power up a larger stuff due to its good quality.

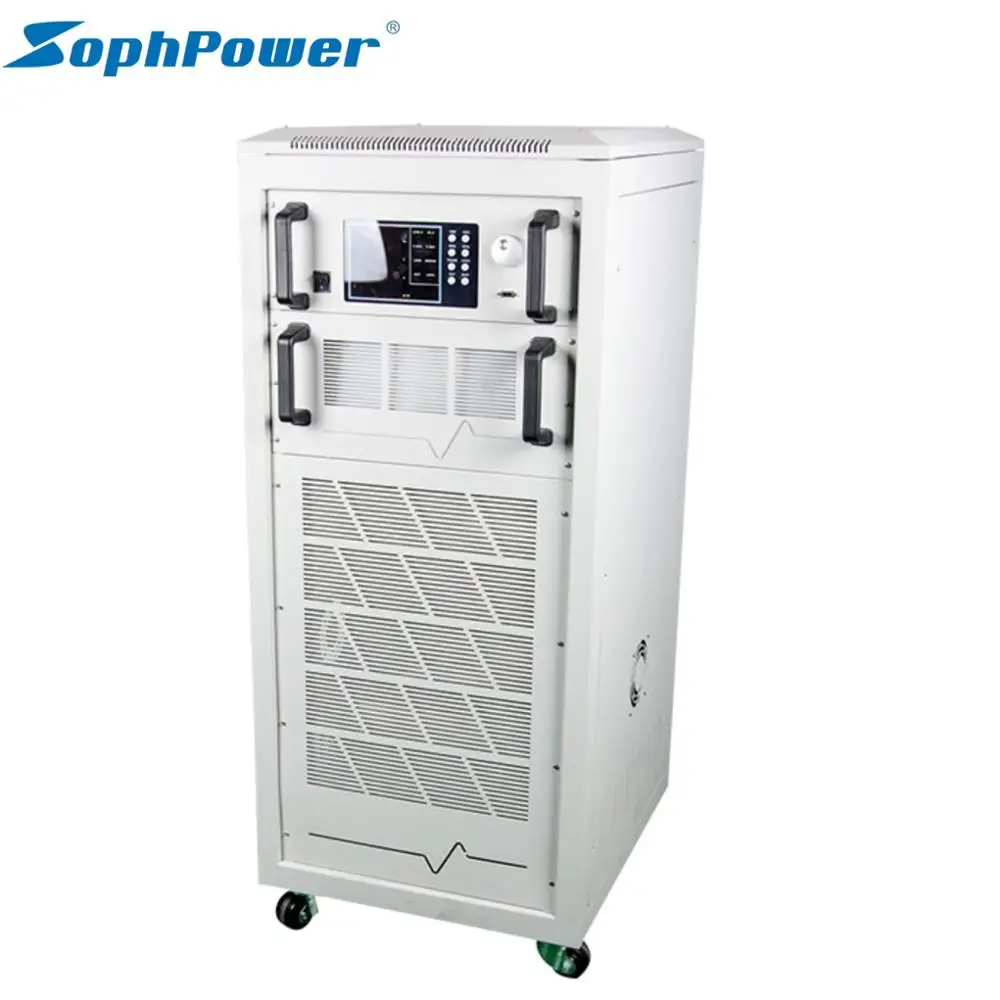

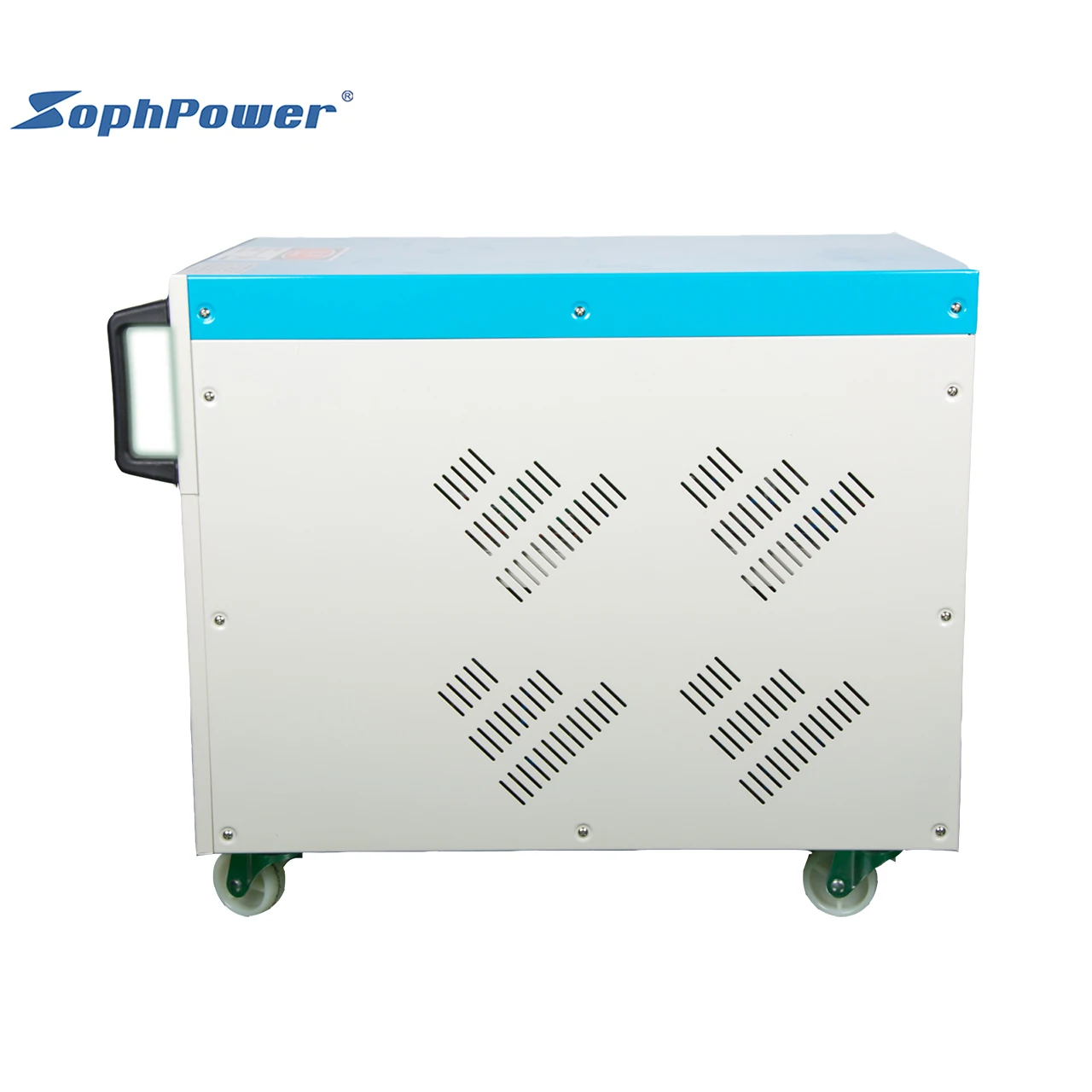

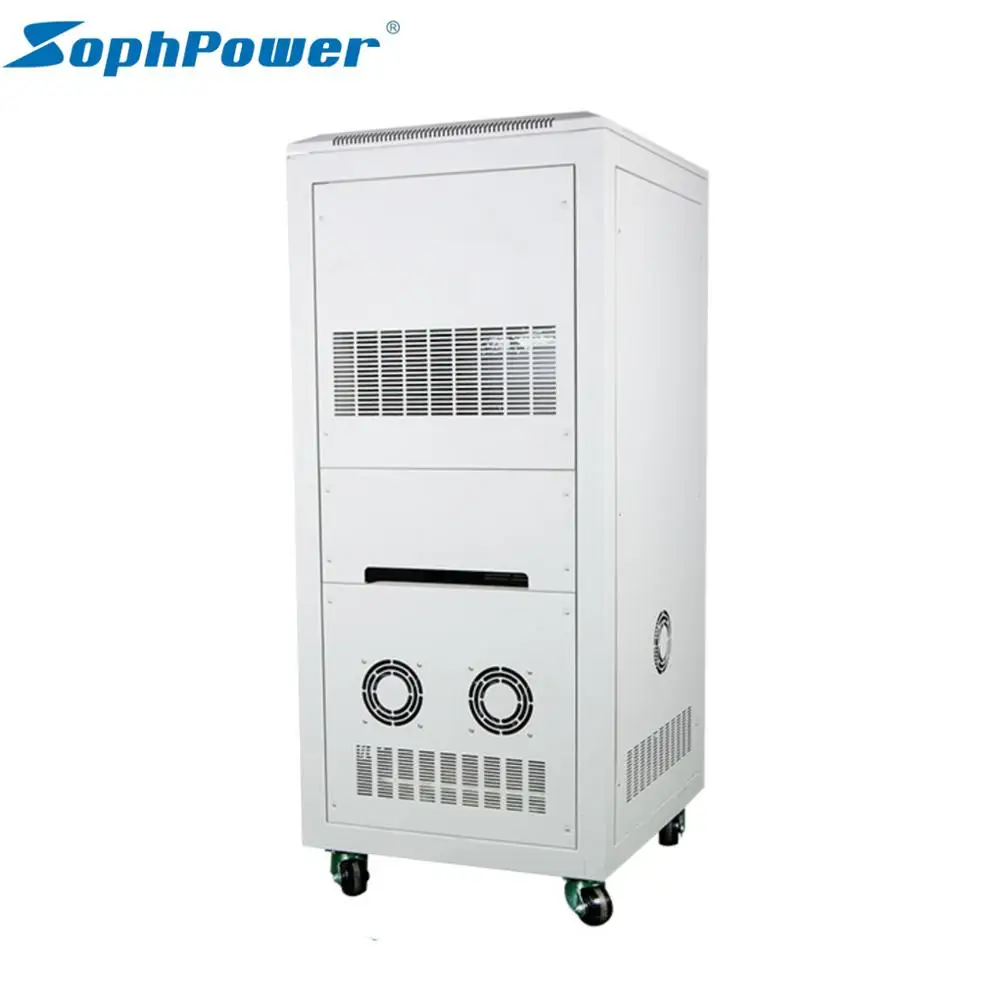

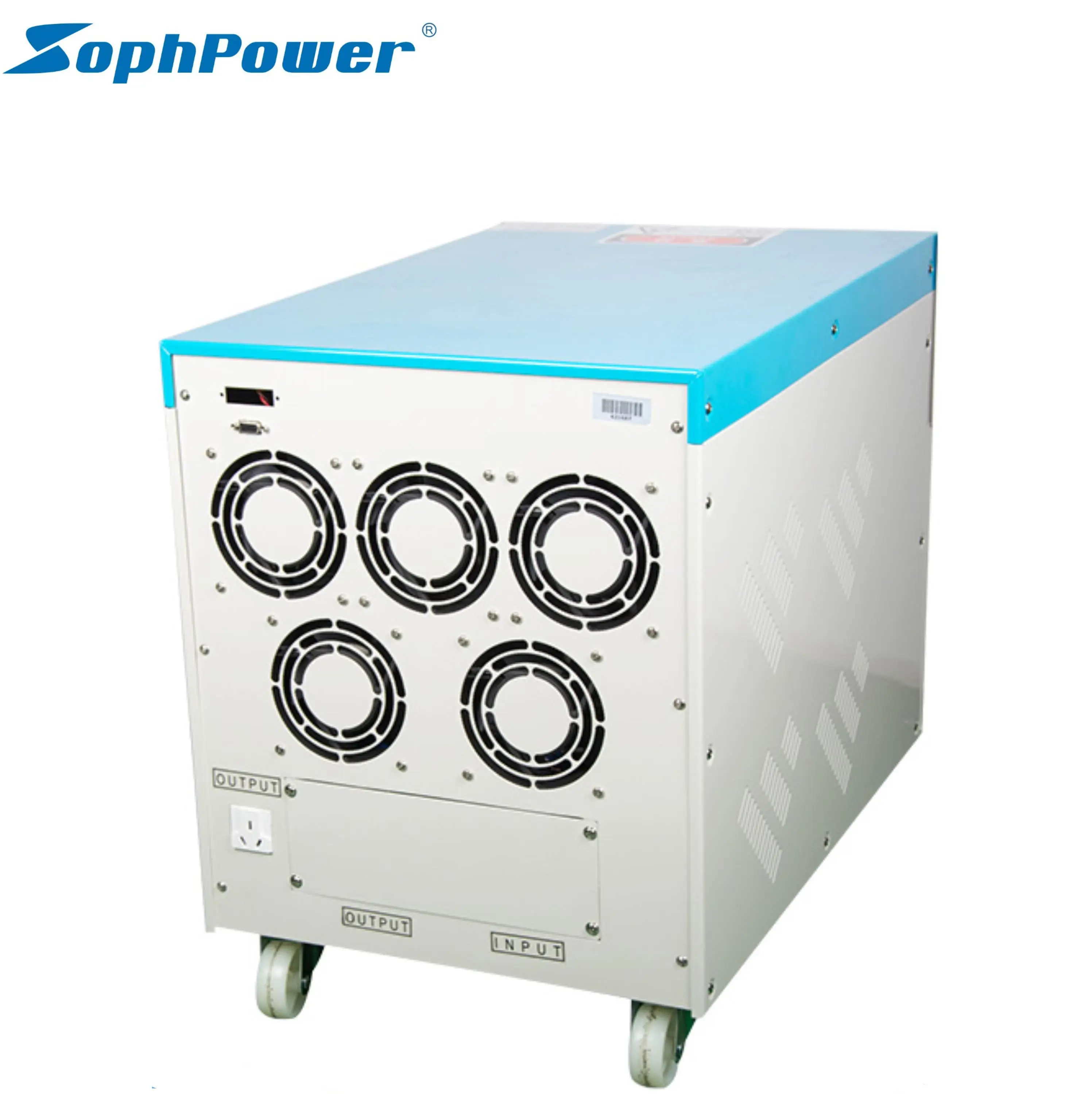

Photos
Related Products

                         ACF-150 5KVA programmable frequency converter/ AC Power Source




                          AFC-230 30kVA Frequency Converter/Ac Power Source

                           AFC-250 50kVA 50/60Hz AC Power Source Frequency Converter


                       AFC-375 75kVA 50/60Hz AC Power Source Frequency Converter

FAQ

Q1. What is your terms of packing?

A: Generally, the inner is film, outer packing is standard export carton or wooden case.


Q2. What is your terms of payment?

A: T/T 30% as deposit, and 70% can be paid before delivery. We'll show you the photos of the products and packages before you pay the balance.


Q3. What is your terms of delivery?

A: EXW, FOB, CIF or Express


Q4. How about your delivery time?

A: Generally it  takes 10-20 working days after receive your deposit or full payment. The specific delivery time depends on the items and the quantity of your order.


Q5. Can you produce according to the samples?

A: Yes, we can produce by your samples or technical drawings.


Q6. Do you test all your goods before delivery?

A: Yes, we will test precisely before delivery.


Q7: How do you make our business long-term and good relationship?

A:1. We keep good quality and competitive price to ensure our customer's benefits ;

    2. We  sincerely do business and make friends with every customers  no matter where they come from.



Q8: Are you a trading company or manufacturer?


A: We are a manufacturer located in Dongguan specilized in frequency converter for years.
