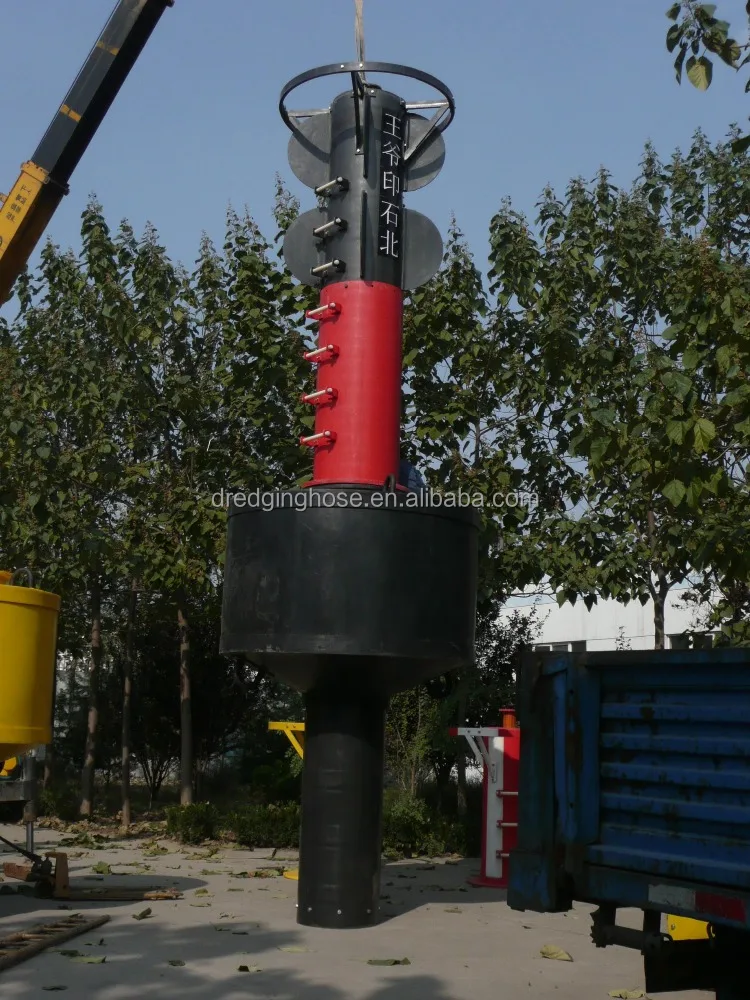

Isolated Danger Mark Buoys



An isolated danger mark buoy is used to indicate a hazard to shipping, and it is placed on, or near to the hazard, thus the vessel should keep away from the buoy when navigating.



Isolated danger mark is located or moored above a solitary hazard or as close as possible to a dangerous place, which indicating the position of a hazard. Ships should take the navigation information for reference and sail by avoiding the mark.

Diameter (mm)	Buoying Depth (m)	Freeboard (mm)	Focal Plane Height (mm)	Net Weight (kg)	Height (mm)	Reserve Buoyancy (kg)
800	2-10	450	1580	195	2628	230
1200	3-15	510	2040	550	3380	570
1500	4-20	632	2524	681	4300	1012
1800	6-30	722	3031	1686	5134	1546
2100	8-40	800	3518	1900	5757	2450
3050	15-60	1114	5164	3490	7610	7646
3500	20-70	1240	6090	3863	8520	11380
