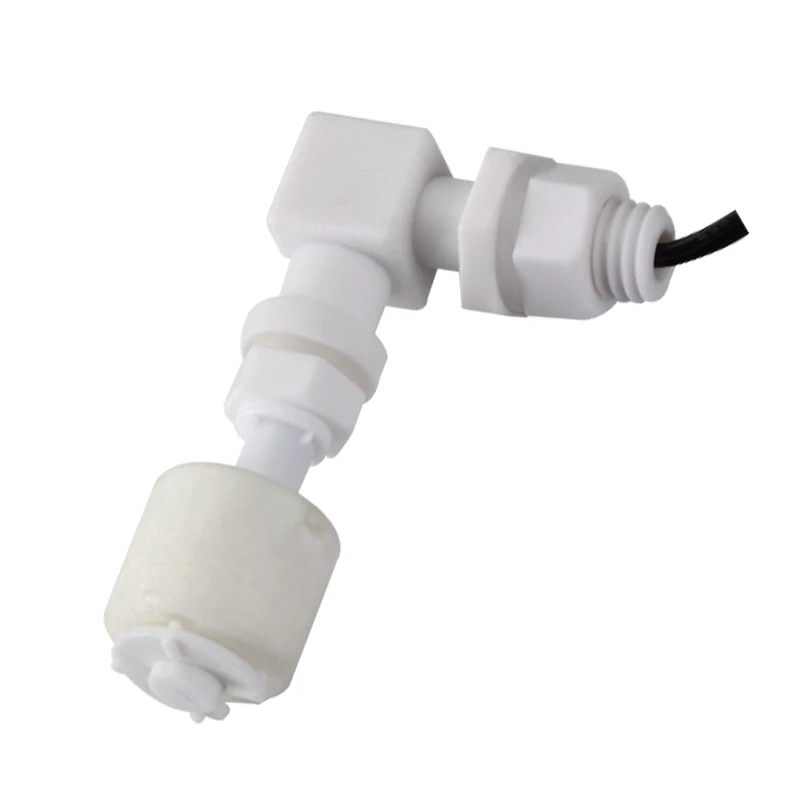

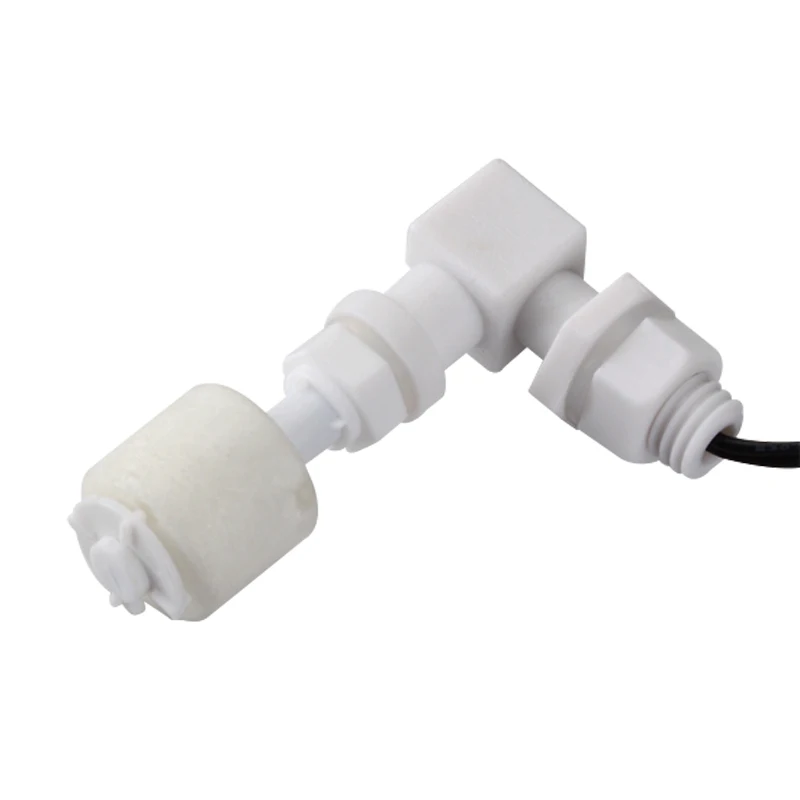

MR0835 P Side Boiler Water Level Sensor Float Level Switch
- Category: >>>
- Supplier: Ningbo Mingrui Sensors Co. Ltd.
Share on (60579230283):
Product Overview
Description
product description
Side Mounted Level Switch
We are a professional source factory,
with good product quality and cheap price
MR0835-PP

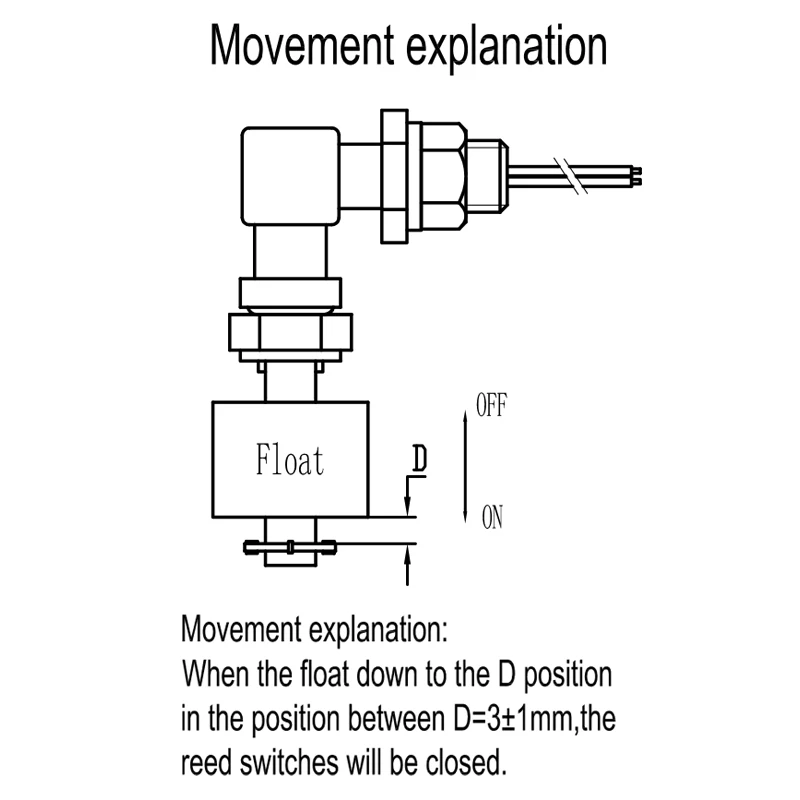

Movement explaination:When the float ball rises or falls with the liquid to the level of the switch, The magnetic force of magnet which inside of the float ball will cause the reed switch to turn ON. When the float ball move away from the reed switch, the reed switch will turn OFF.

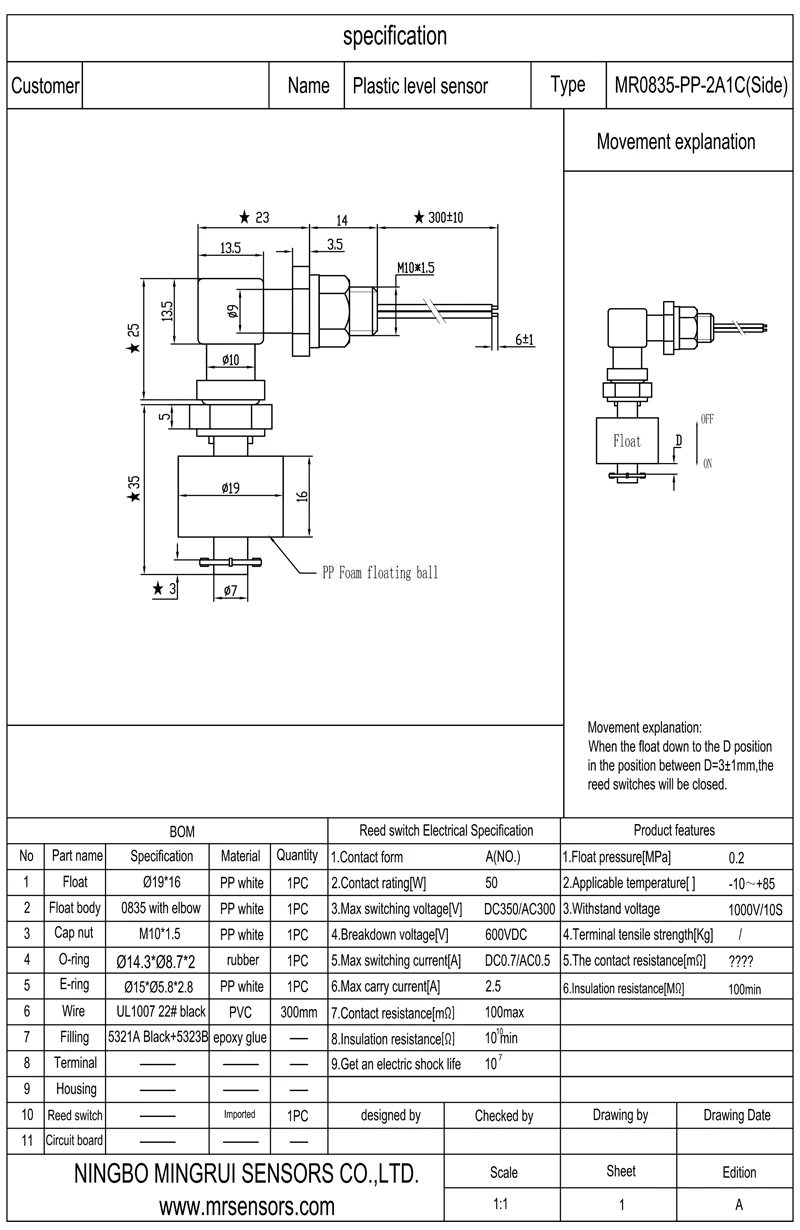

Model | MR0835-P | ||||
Installation | Top or bottom perpendicular instal | ||||

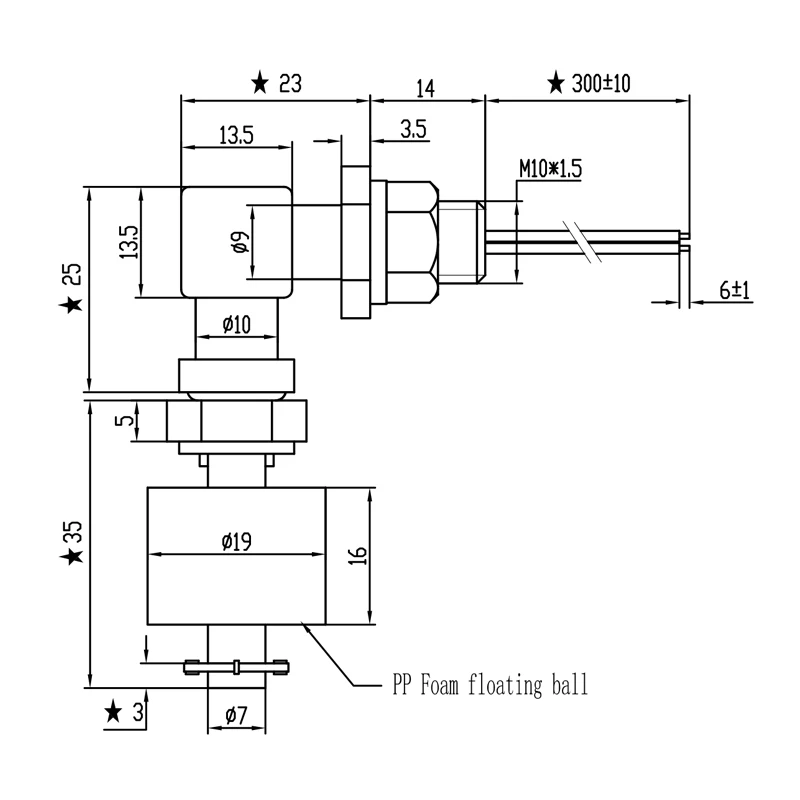

Mounting dimension | M8 | ||||
Operating characteristic | N.O/N.C (optional) | ||||
Material Specification | Electrical Specification | Physic Specification | |||
Float ball | PP | Contact form | 1A | 2A | Min shock: 30G on board |
Float body | POM | Max contact rating | 10W | 50W | Min Vibration: 1.5mm (10-55HZ) |
Cap nut | POM | Max switching voltage | 100VDC | 220VDC | Temp Rating: -10-+85°C |
O-ring | Silicon | Max breakdown voltage | 200VDC | 300VDC | Max pressure: 0.2MPa |
E-ring | POM | Max switching current | 0.5A | 1.5A |
|
Filling | EPOXY(ROHS) | Max carry current | 1.0A | 3A |
|
Wire | UL1007/UL1015 22AWG /24AWG | Max contact resistance | 100Ω | 100Ω |
|
Working Life | 100,000,000 |
| |||
where to use
Water fountain,air cindition,humidifier,bathroom equipment,sale machine,oil tank and chemical liquid level control.It will be widely applied in motor vehicles,industrial equipment,agricultural equipment and household appliances in the future.
