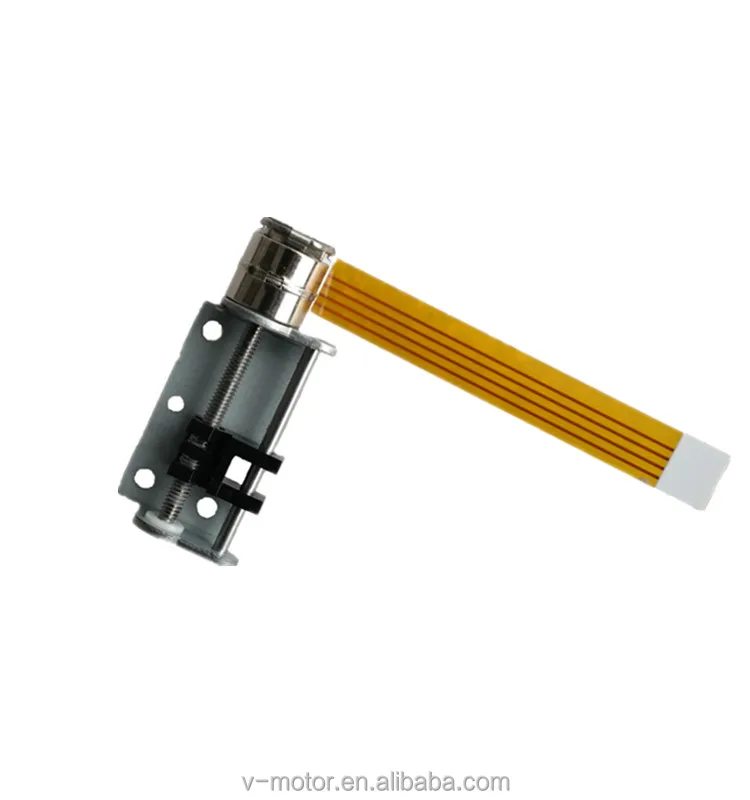

VSM0806 5V 8mm micro stepper motor 2 phase 4 wire 18 degree pm stepper motor with 16mm stroke

Product Overview

Description

Product Feature:



This product is a precision micro step motor, the output shaft with a pitch of 0.4mm of the screw, through the screw and the screw rod supporting the turn of the screw into a thrust.
Motor basic step angle is 18 degrees, the motor running 20 steps every week, so the resolution of displacement can reach 0.02mm, to achieve the purpose of precision control.
Actuator aspects using subdivision drive way to meet.
Because of its small size, high precision, easy to control and other excellent characteristics, so this micro stepper motor is widely used in the camera, optical instruments, lenses, precision medical devices, automatic door locks and other fields.
The motor input part of the FPC, but can according to the customer demand can be changed to a connecting line needle, PCB and other forms.
The mounting bracket can be changed according to the customer's request.

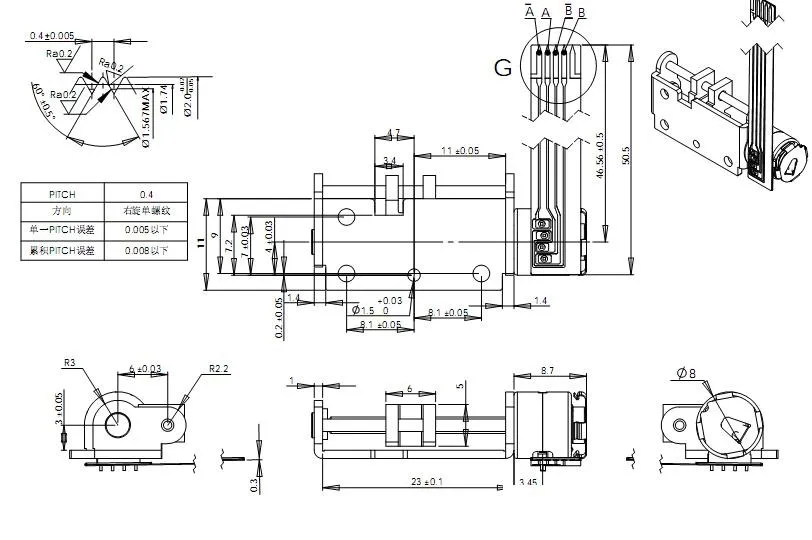

Motor typical out line:

Typical motor spec:



1. RATED VOLTAGE :                                  3.3 V DC

2 .COIL RESISTANCE :                                 20 Ω±10%

3. NO. OF PHASES :                                     2 PHASES

4. STEP ANGLE :                                         18°/ STEP

5. MAX. STARTING FREQUENCY :               800 PPS min. (AT 3.3 V DC)

6. MAX. SLEWING FREQUENCY :                2000 PPS min. (AT 3.3 V DC)

7.PULL IN  TORQUE :                                   1.5 gf-cm max. (AT 500 PPS  3.3 V DC)

8.PULL  OUT TORQUE :                                2.0 gf-cm min. (AT 500 PPS,  3.3 V DC)

9. INSULATION CLASS :                                CLASS E FOR COILS

10. INSULATION STRENGTH :                       100 V AC FOR ONE SECOND (3mA MAX)

11. INSULATION RESISTANCE :                    1.0 MΩ (DC 100 V)

 12. OPERATING TEMPERATURE RANGE :   -10 ~+60 ℃

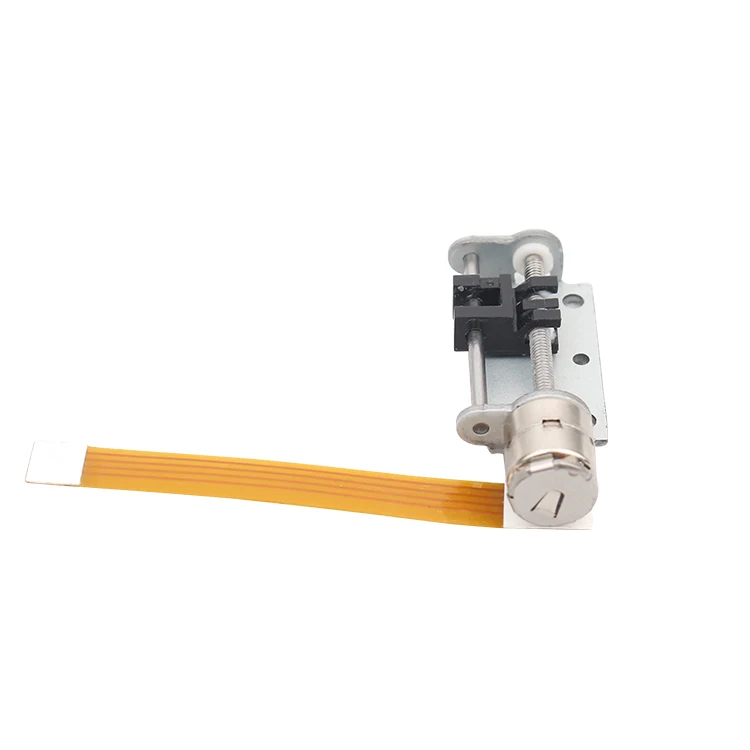

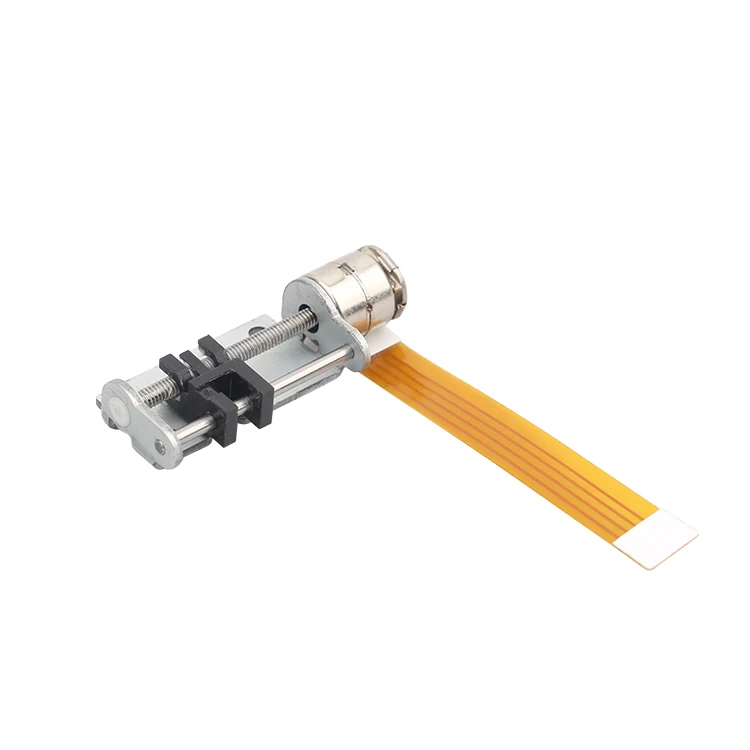

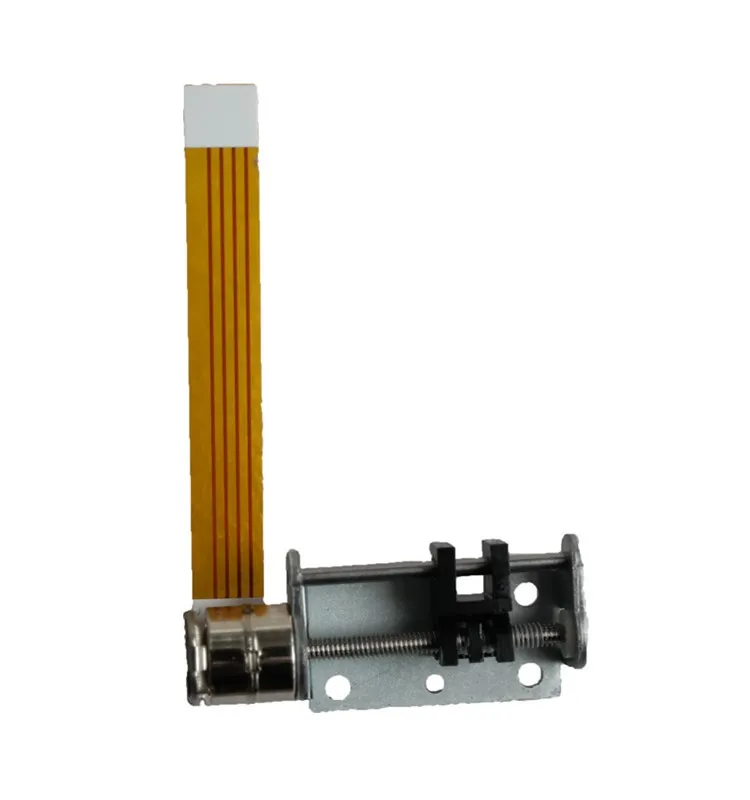

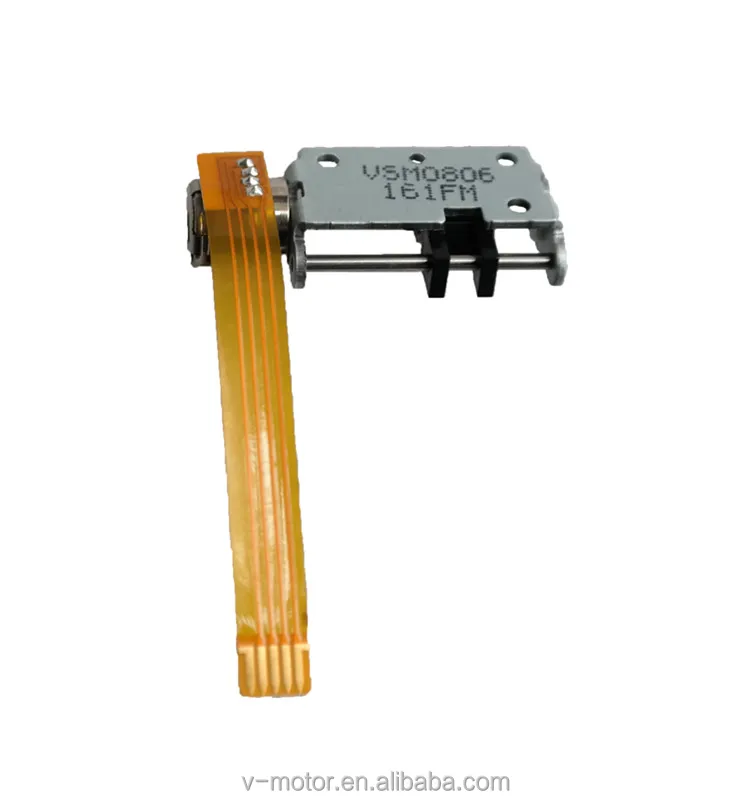

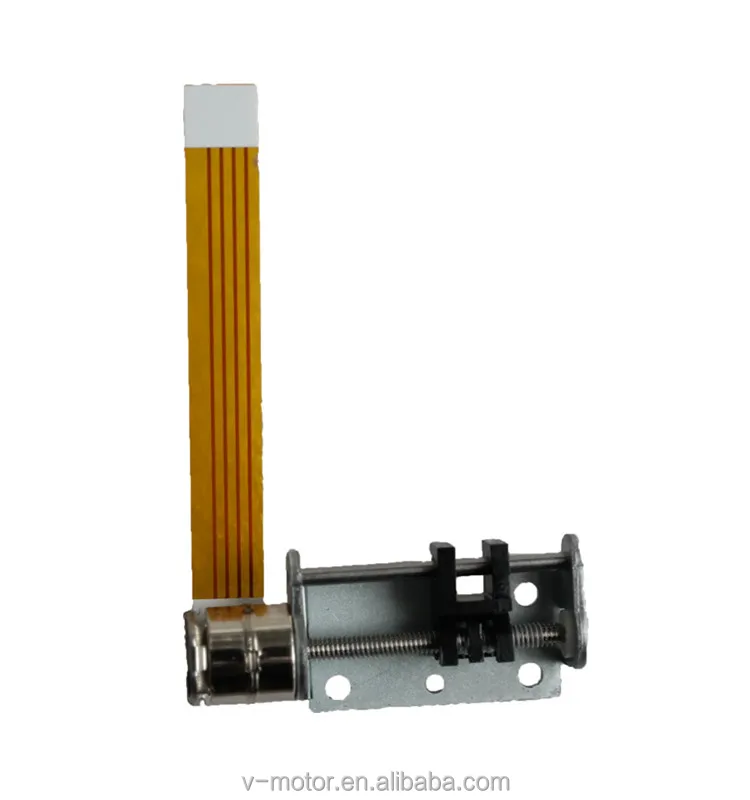

Product detail photos:



Packing detail:
