High quality dust control water mist sprayer for demolition and construction

Product Overview

Description



High quality dust control water mist sprayer for demolition





Coal in mining, transportation, loading & unloading, transshipment, and piled up will generate floating dust in different degree, especially diffused and polluted by the wind easily.



Sprayer generated 30-150 um water mist, through high winds transport water mist to dust zone,

dust adhesion for settlement to control pollution.



Effective to control dust not to diffuse outside, purify on-site air and improve air humidity, reduce on-site work temperature.

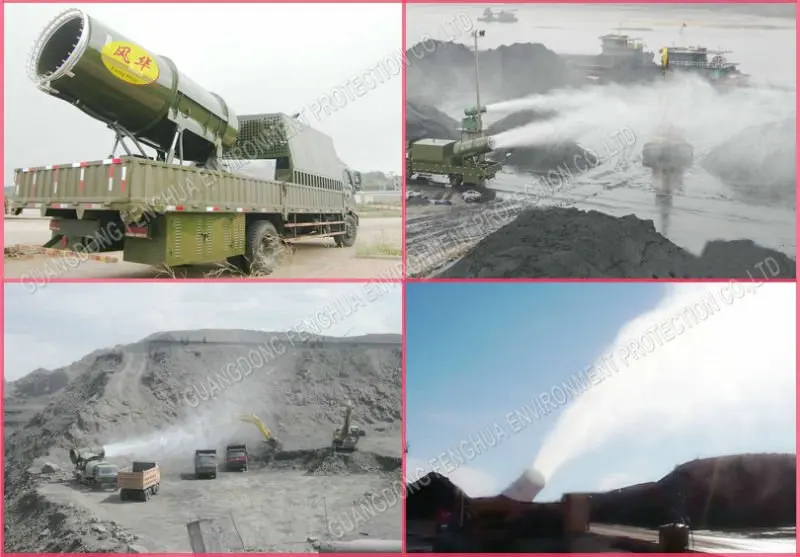

Sprayer apply to dynamic dust pollution control, widely used in open mining, transport station, coal washery, steel mill, ports, docks, power plant,

and wide coverage area in dust control, water consumption is only about 20% of traditional sprinkler, and the effect is very significant!



More Avantages than Tradictional Sprinklers which only for roadbed, it is widely used for air dust pollution, dust control. 320°Rotation, wide coverage area, high speed, water throw range from 60-200 Metres! Patented Modern Environment Protection Product.



Main Technical Parameters

TYPE	DS-120
Certificate	CE/CCC/ISO9001:2008
Throw	≥120m
Volume Flow	150L-200L/min
Fog Droplet Size(adjustable )	50-300μm
Water Pressure(Mpa)	2.5-3.5Mpa
Motor/rpm	2900
Horizontal Rotation Angle(adjustable )	320°
Pitching Angle(adjustable )	-10°~40°
Coverage Area	32153.6m2
Total Power	77KW
Product Size(L*W*H)	2950*1540*2750mm
Net Weight	2300kg
Fan Volume	4000m3/min
Fan Pressure	1200Pa
Warranty	1year
MOQ	1
Payment	Deposit received by T/T; L/C at sight, ect
