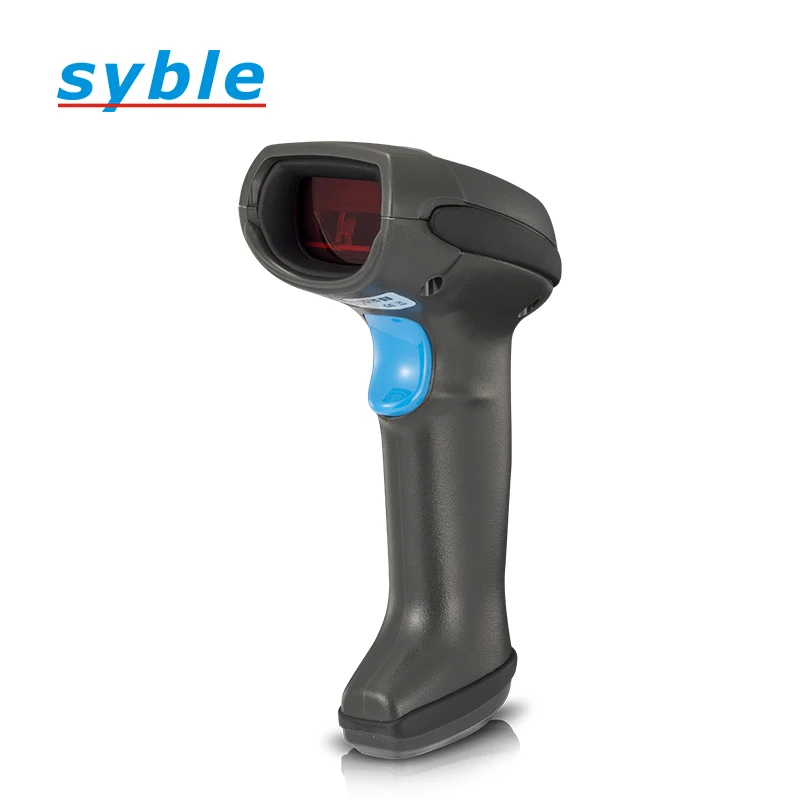

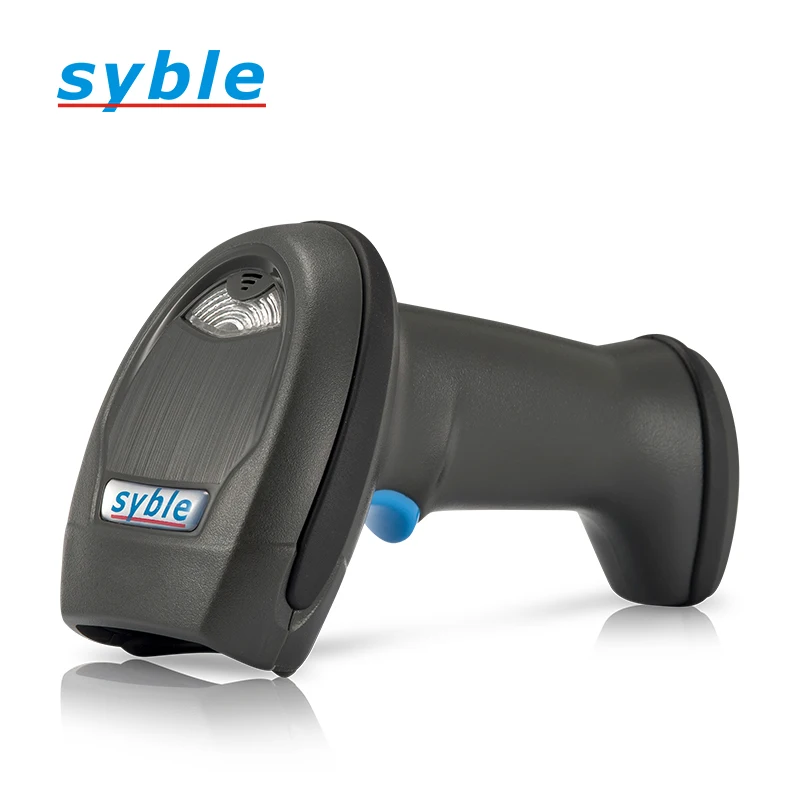

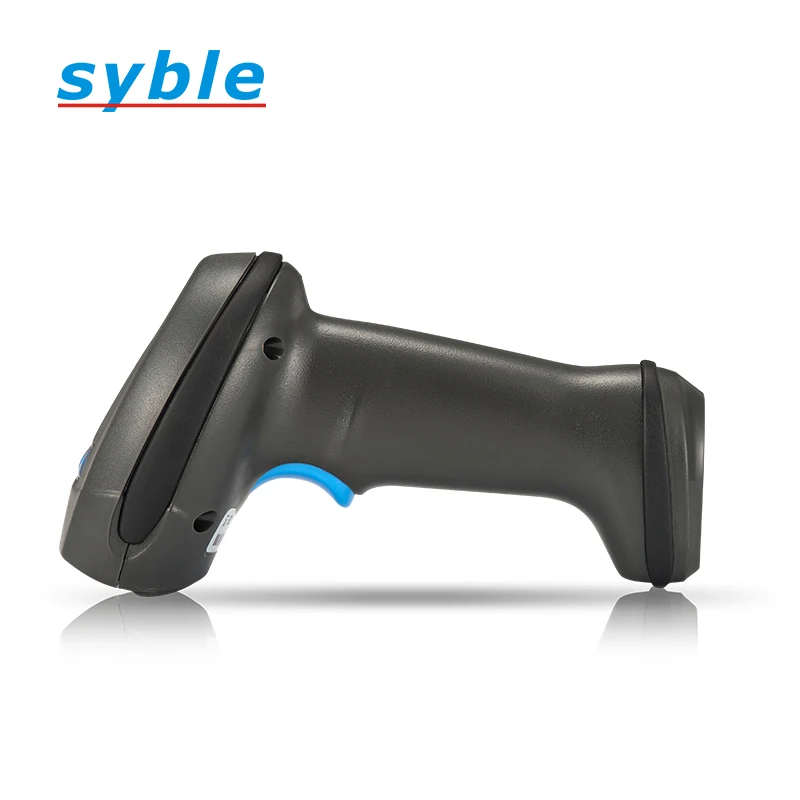

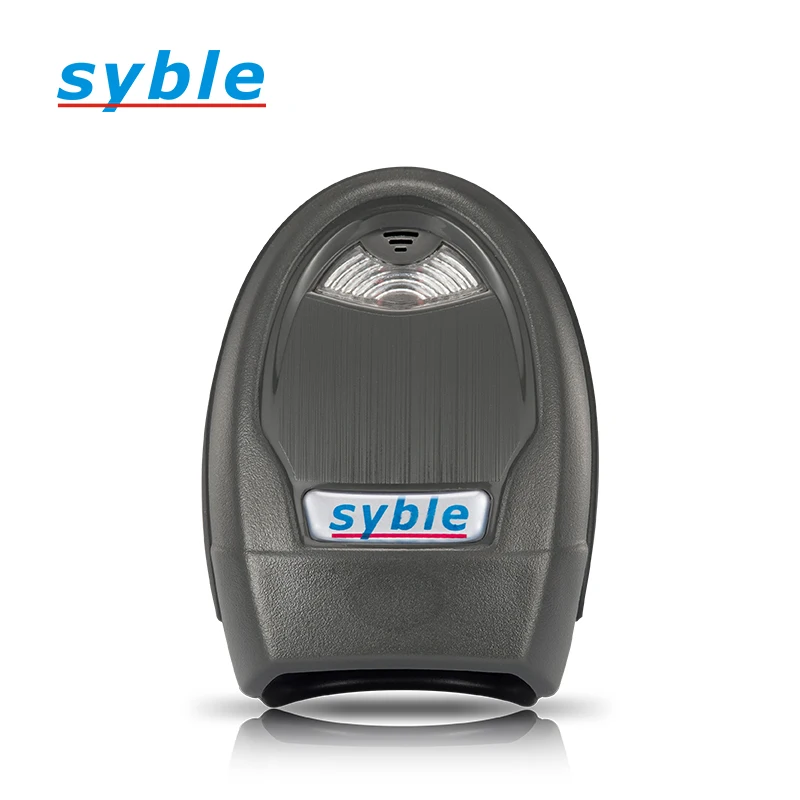

1D Laser Barcode Scanner USB connection
We use 32bit processor and the reading rate reach 300 times per second ,and the rugged case can stand many times 3m drop to concrete ,beside we offer 2 years warranty on the Barcode Scanner and 6 month on the cable against defects .it is suitable for a various range of use in retail ,logistic ,healthcare etc environments ,this single line barcode scanner definitely is your best choice special for project bid
Model XB-2178G
special Features:
1. With years of export experience along with excellent quality, advanced services and competitive prices, Syble has won numerous customers' trust and support.
2. XB-2178 has all the features of 1D; handhled; laser barcode scanning; usb kit; stand(optional); manually, automatically and successively scanning(optional); can read inverse barcodes, etc.

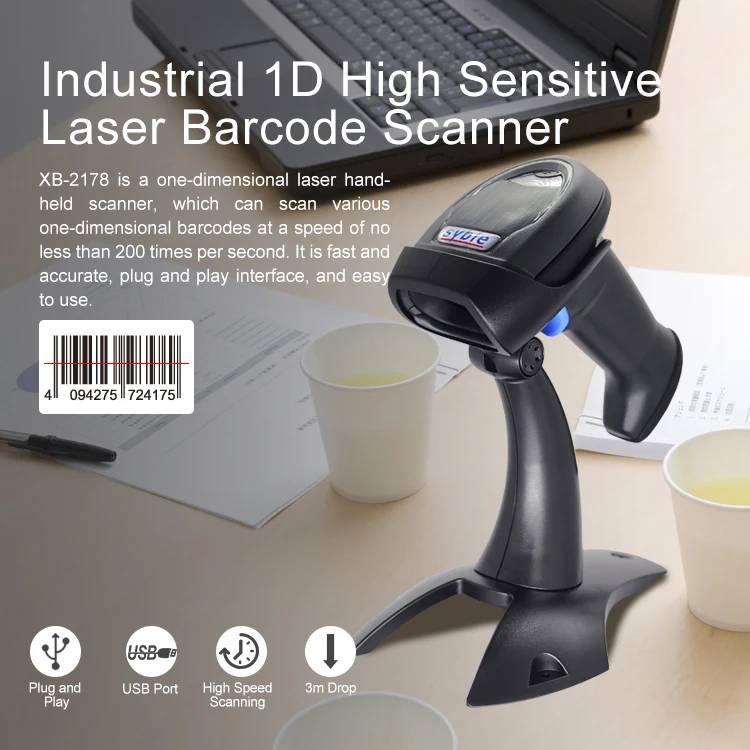

3. XB-2178 is one of our longest selling barcode scanners, a gun-type laser scanner that offers speed, reliability and long scan range at the same time.
4. With stand can have the auto sensing and scanning fuction for hands free usage.
Technical Specifications:
| Performance Parameters | |
Light Source: | 650nm safe visible laser diode |
Decoded Capability: | 1D: EAN-8, EAN-13, UPC-E, CODE39, CODE93, CODE128, EAN128, Codebar, Industrial 2 of 5, Interleave 2 of 5, Matrix 2 of 5, MSI, China Post Code and all 1D barcodes |
Scanning Principle: | single laser |

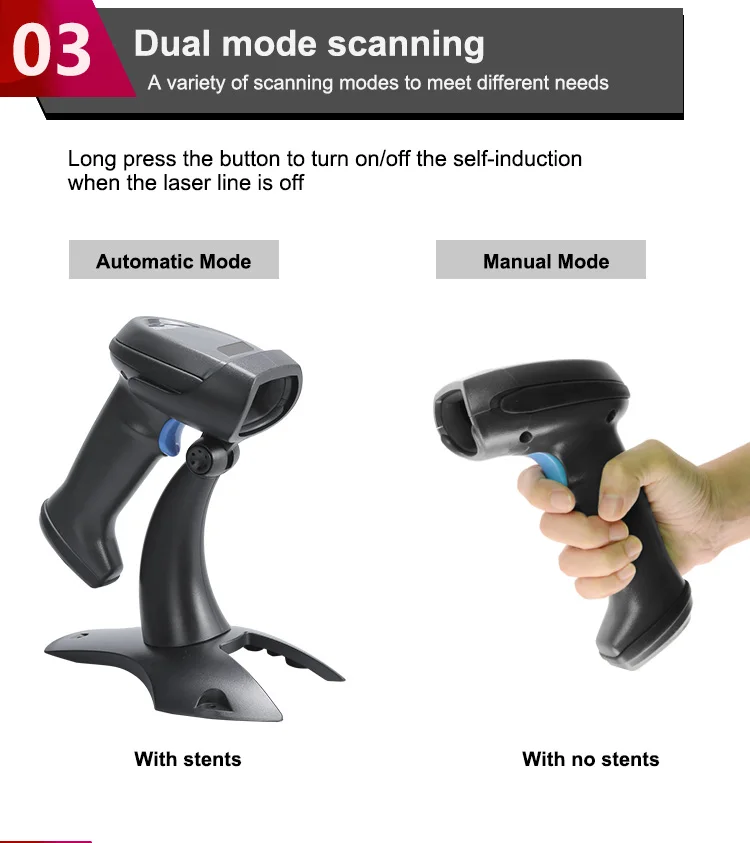

Scanning Method: | manually, automatically and successively Scanning |
Scanning Speed: | ≥ 300 scans / second |
Scanning Angle: | Yaw 65°, Rotation 30°, Pitch 55° |
Scanning Precision: | 3mil and 4mil (0.1mm) |
Depth of Scanning Field: | 0-280mm |
Error Rate: | <1/5million |
Communication Interface: | USB-HID, RS232 |
Physical Parameters | |
Dimension: | 176*100*72mm |
Weight: | 249g |
Connecting Cable Length: | 2m |
Housing Materials: | ABS+PC |
Environmental Parameters | |
Operating Temperature: | -20°C~40°C |
Storage Temperature: | -40°C~70°C |
Operating Humidity: | 5~95% relative humidity, non-condensing |
Lux: | 3000~8000lux(sunlight) |
IP Level: | IP54 |

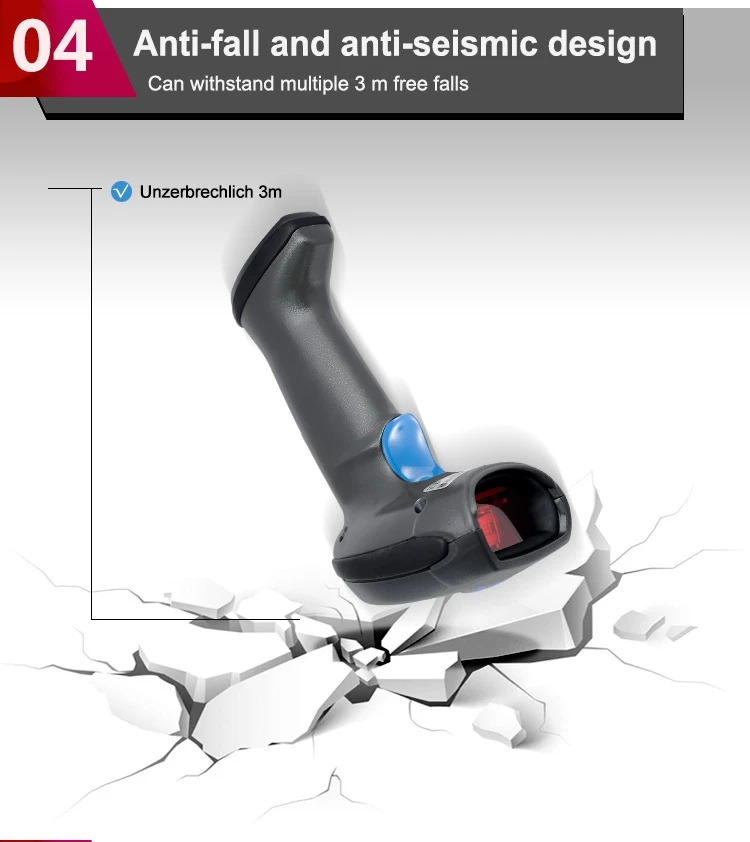

Drop Resistance: | withstands multiple 3m drops onto concrete |
Electrical Parameters | |
Input Voltage: | DC 5V |
Operating Current: | 85mA |
Safety Standards | |
EMC | CE EN55022 B, FCC Part 15 Class B, VCCI, BSMI |
Laser safety: | CDRH Class IIa,IEC 60825-1 class 1 |
Approval Certificates: ISO9001, RoHS, CE, FCC, etc | |






| XB-2178 1D Auto Sensing Laser Handheld High Quality Barcode Scanner | |
| Export Port: | Port of Guangzhou, China |
| Lead Time: | 3 - 15 Working Days |
| Warranty: | 2 years |
| List per Unit: | 1* Barcode Scanner |
| 1*Stand(optional) | |
| 1*2m Cable | |
| 1*User Manual(English Version) | |
| 1*Certificate of Conformity & Warranty Card | |
| Dimensions per Unit: | 10*7.8*21.5 CM |
| Weight per Unit: | 0.354KG |
| Units per Export Carton: | 50 Units |
| Export Carton Dimensions: | 53*50*47.5 CM |
| Export Carton Weight: | 20KG |
