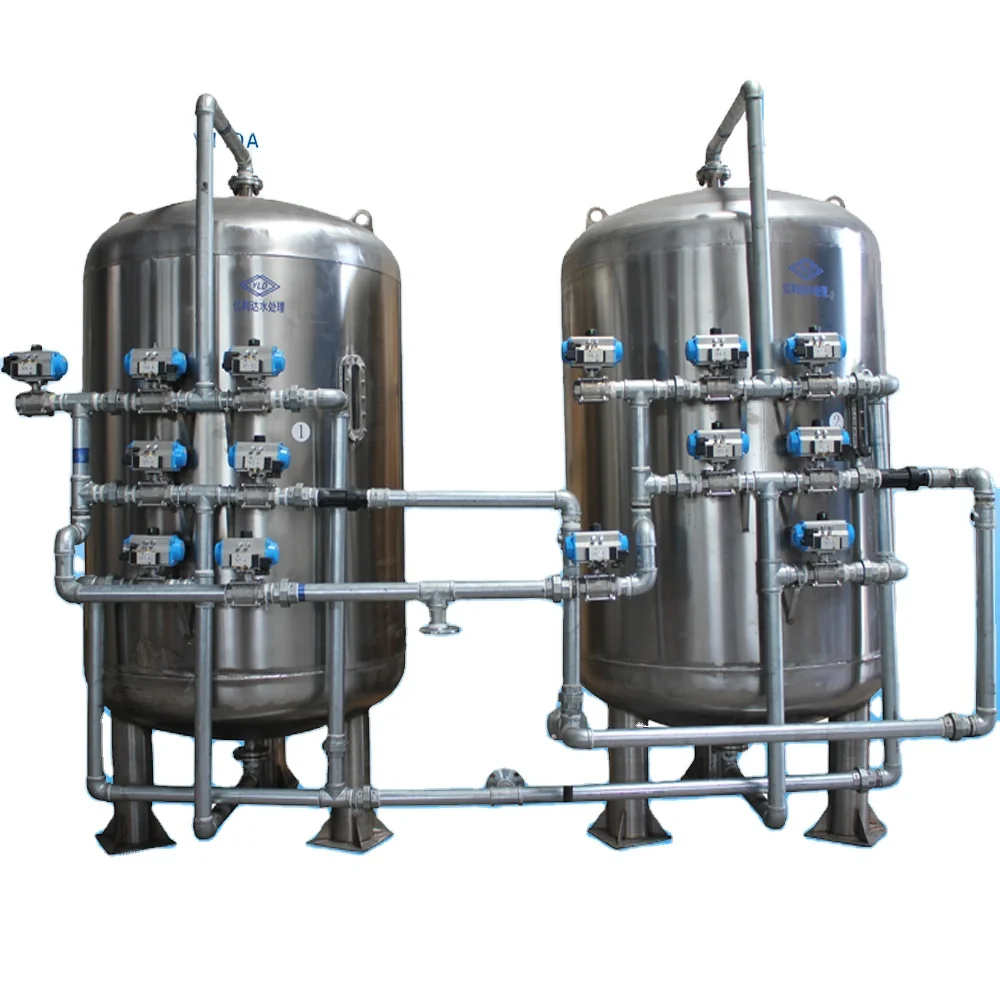

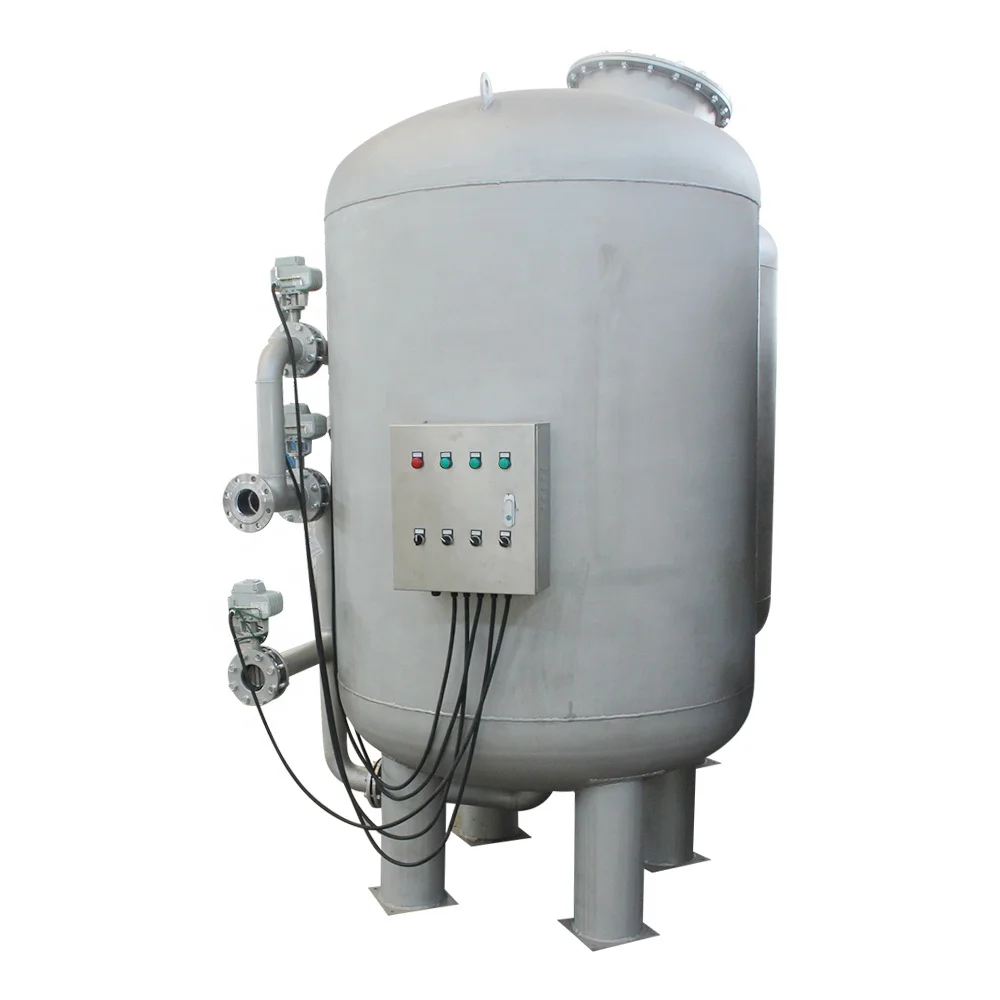

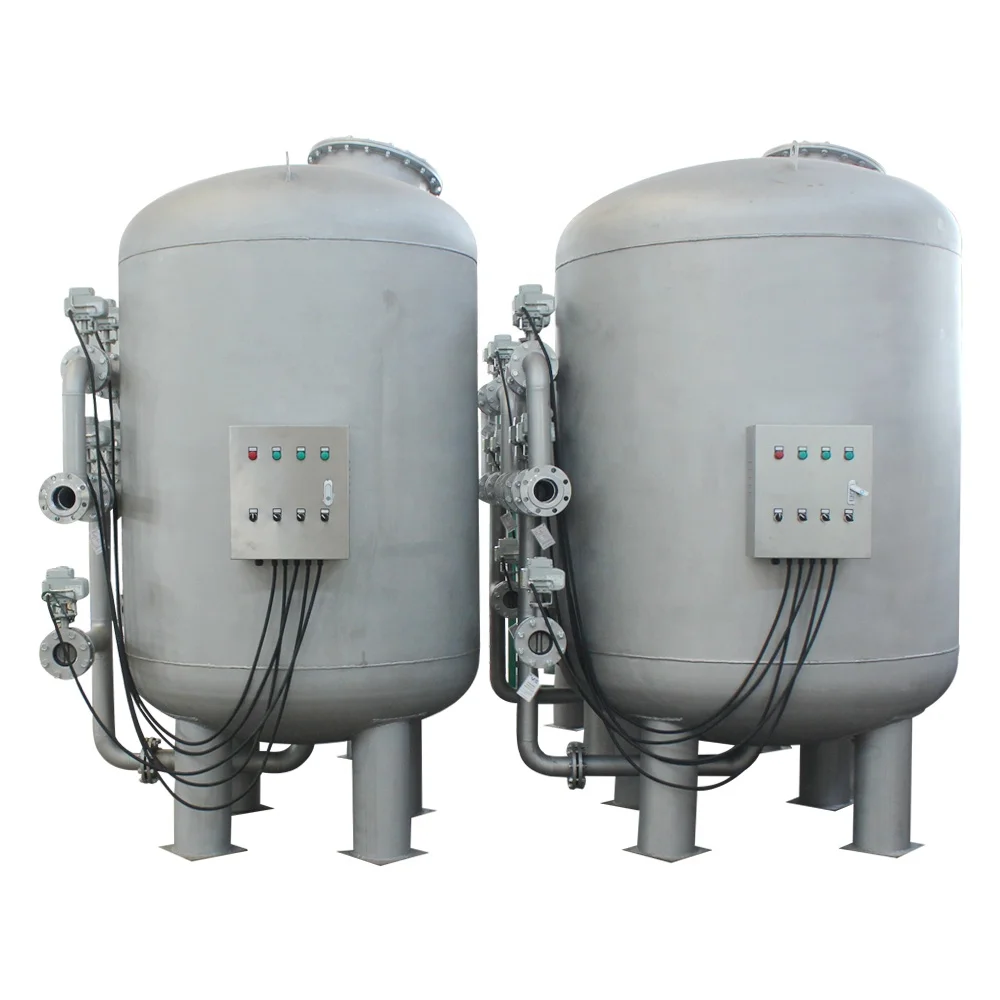

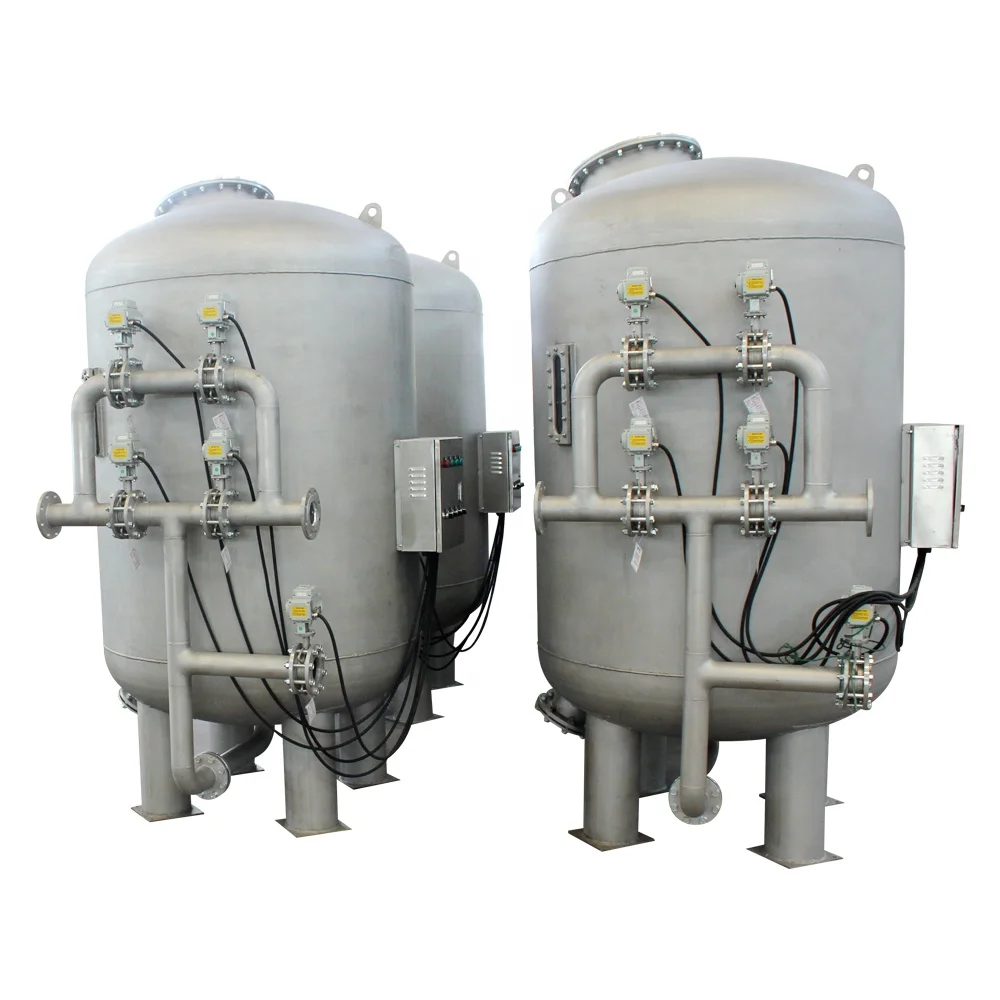

Мультимедийный фильтр из нержавеющей стали
- Category: Water Filter >>>
- Supplier: Jiangsu YLD Water Processing Equipment Co. Ltd.
Share on (60579481937):
Product Overview
Description
Product Description
Stainless Steel Pressure Vessels Water
Treatment Sand/ Activated Carbon filters

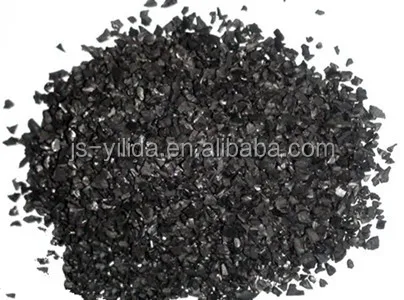

Activated Carbon filter mainly remove s remained chlorine(exceeding 98%) from water with the porous and adsorbing nature of activated carbon, and can also effectively remove organic,colloid, heavy metal,pigment and odor. The equipment can be used for the pre-treatment phase for reverse osmosis, ultrafiltration and ion exchange system, and can improve the quality of input water of various water treatment equipment and assure the sffective and stable work of follow-up equipment.

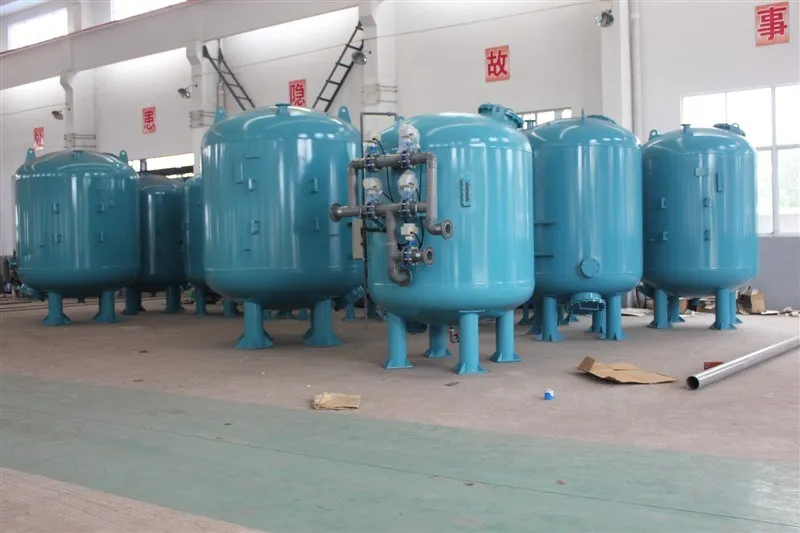

Stainless Steel Pressure Vessels Water
Treatment Sand/ Activated Carbon filters
The filter housing material can be MS/ carbon steel Q235/Q345, stainless steel 304/316, FRP/fiber glass material. It
depends on customer's request according to different
water quality.
Stainless Steel Pressure Vessels Water Treatment Sand/ Activated Carbon filters
Application
Water treatment plant
Feed water of RO plant
Post treatment of wastewater treatment plant
Pretreatment of ion exchange based plant
Iron removal &Fluoride removal
Fountain, Water bodies and swimming pool
Rain water harvesting.
Gardening & washing application.
River& lake water treatment.
Process water.
Stainless Steel Pressure Vessels Water Treatment Sand/ Activated Carbon filters Main Features
Non corrosive and cost effective solution
Suitable for residential, large commercial and industrial applications
Consists of a multiple layer of sand with a variety in size and specific gravity
Available in different sizes and materials both hand operated or fully automatically
Suitable for residential, large commercial and industrial applications
Consists of a multiple layer of sand with a variety in size and specific gravity
Available in different sizes and materials both hand operated or fully automatically
Working Principle
HOW IT WORKS?
Raw water is passed through the pressure sand filter, the filter media is supported on gravel bed that consists of multiple layers of Graded quartz sand, Fine sand, Super fine white sand and pebbles of progressively larger sizes. During the filtration cycle the filter bed retains the dirt and suspended particles from the water and accumulates within the filter the water and accumulates within the filter bed. As the filtration progress the filter media gets loaded with retained suspended particles, this results in a continuous increase of pressure drop across the filter, when a predetermined pressure drop level is achieved the filter is shut down for cleaning.
BACK WASH
As the filtration progress the filter media gets loaded with the retain the suspended particles, this results in a continuous increase of pressure drop across the filter, when a predetermined pressure drop level is achieved the filter is shut down for cleaning. The filter media is cleaned by backwash system. After backwashing the filter is rinsed with raw water and after the required quality of water is achieved the filter is put back into service. Depending on the filtered water quality required backwashing is either done with raw water or with filtered water.
Technical Parameters
Our Service
Pre-Sales Service
Email:lucy(AT)jsyld.com.cn
Whatsapp:+86 15295068302
Mobile:+86 15295068302
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.

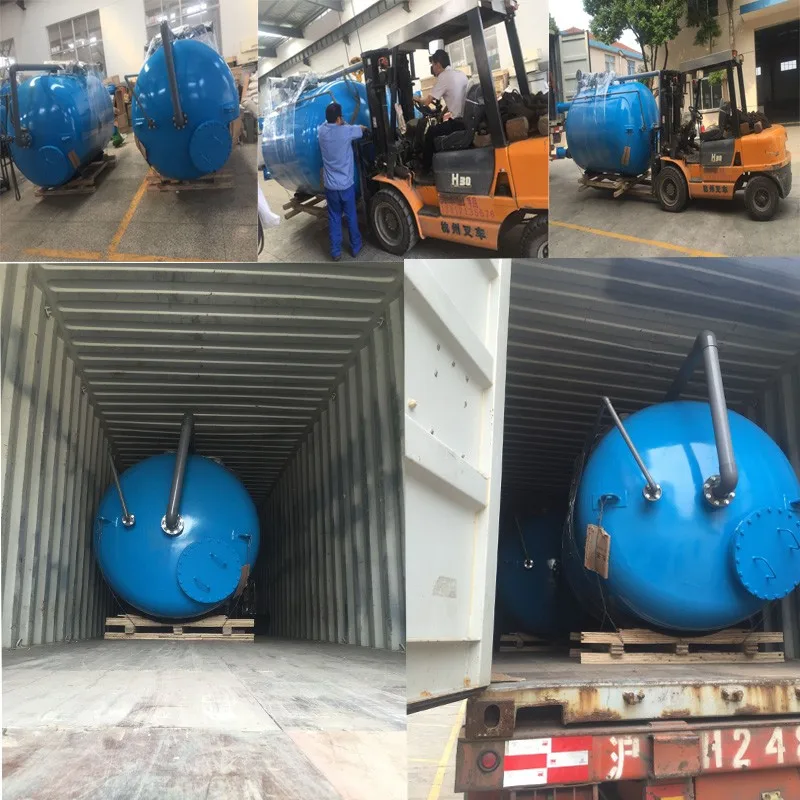

Packing & Delivery
Package: wooden cases into container
Delivery: 20 working days after deposit received in advance
Shipping methods: FOB Shanghai or by air
