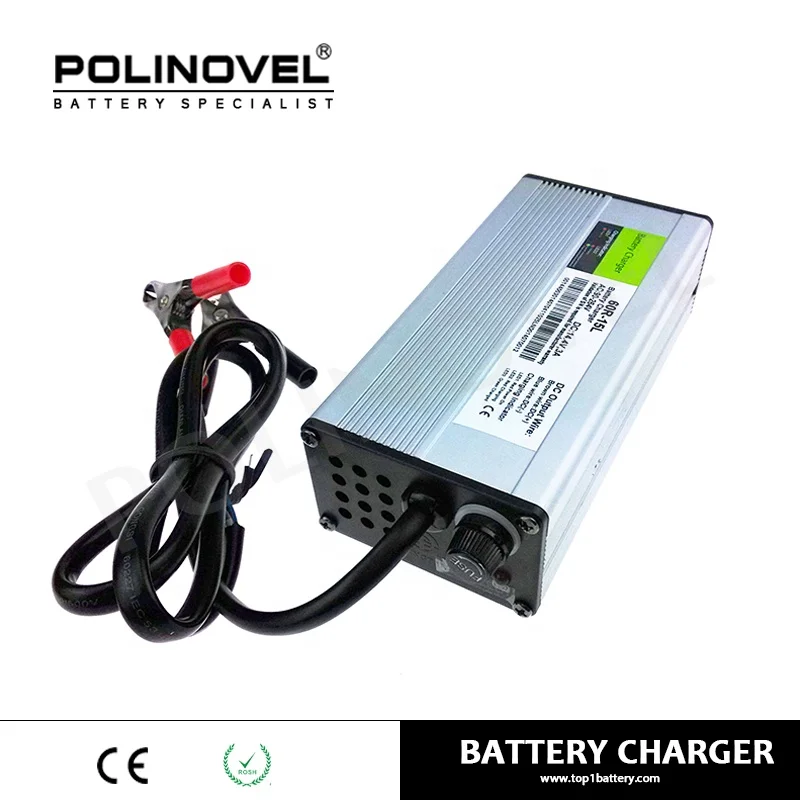

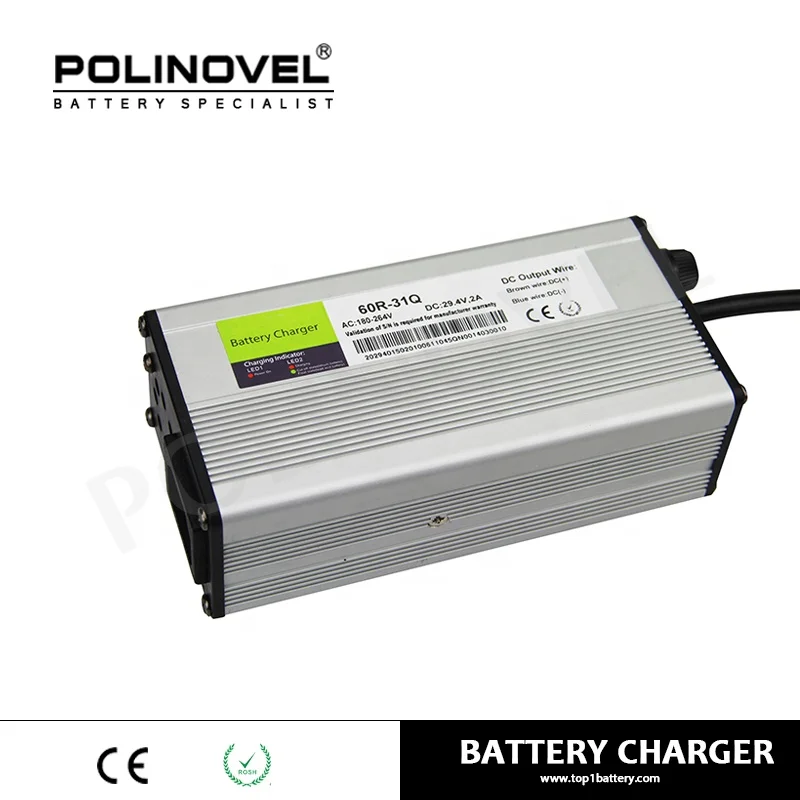

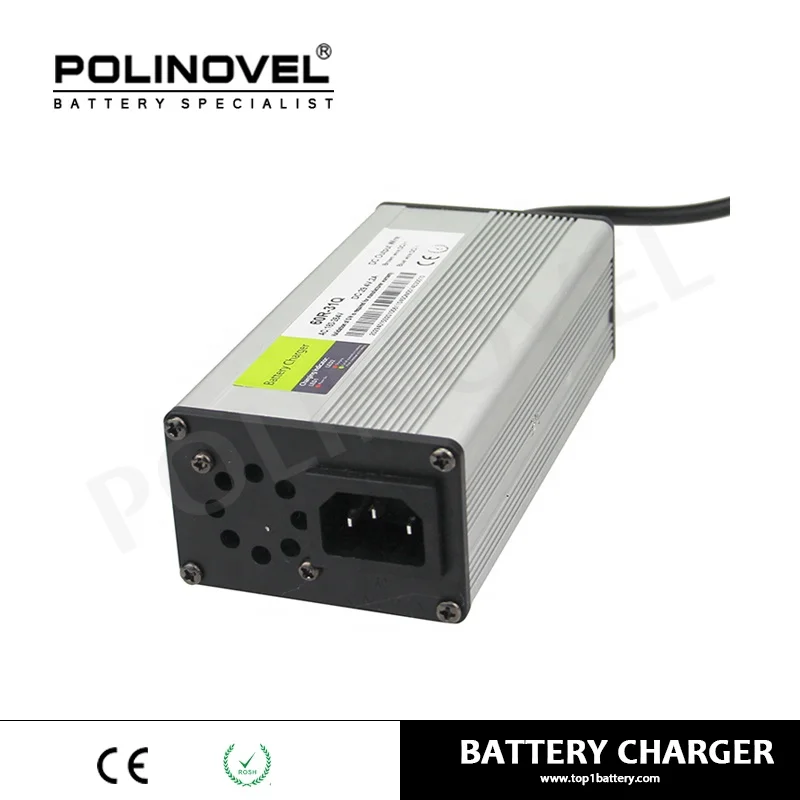

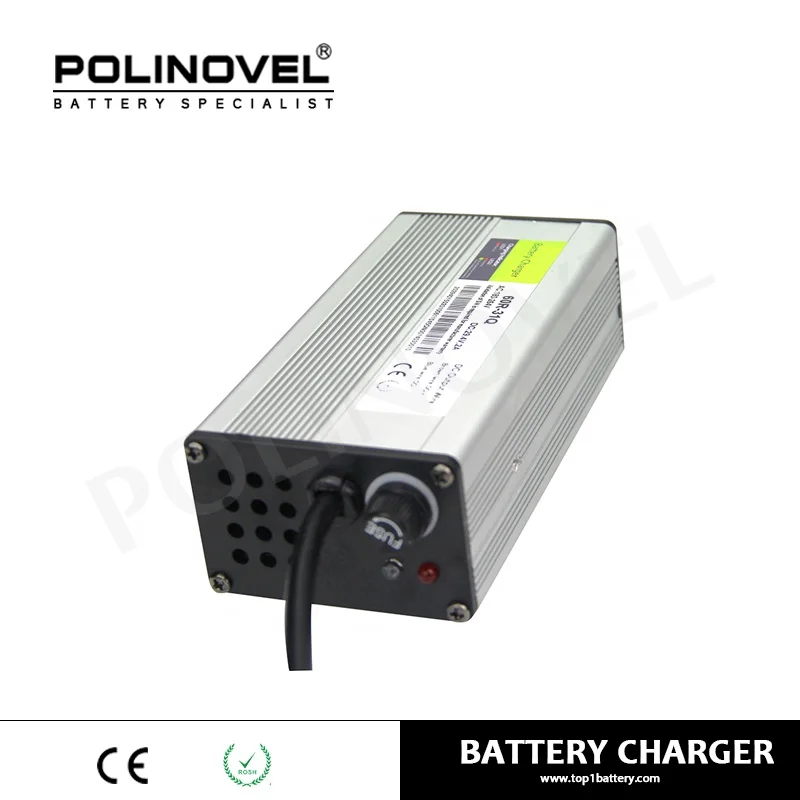

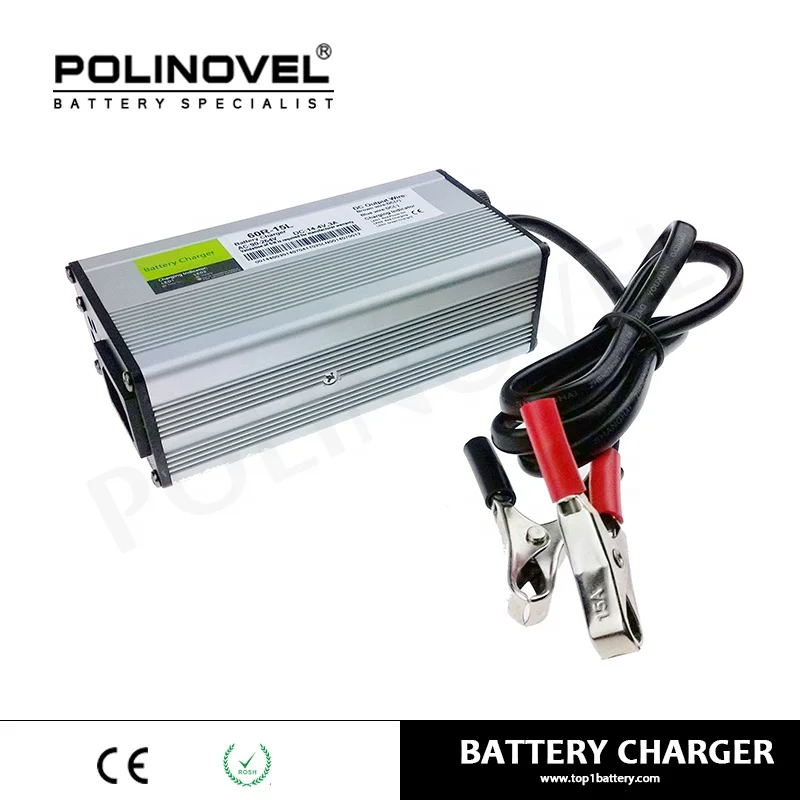

Polinovel Lithium Lifepo4 12V 24V 36V Battery Charger

Product Overview

Description

Polinovel Lithium Lifepo4 12V 24V 36V Battery Charger











Model	60R-15L	60R-31L	60R-45L	60R-60L
Max output voltage	14.6V±0.2	29.2V±0.2	43.8V±0.2	58.7V±0.2
Output current	2A±5%	2A±5%	1.3A±5%	1A±5%
Battery specification	4S	8S	12S	16S
Max output power	90W
Input voltage	90-132Vac,  180-260Vac,  90-260Vac
Shell material	Aluminum
Outline dimension	140x70x45mm
Input socket	IEC Standard
AC wire	1.5m length
DC wire	1.0m length
Net weight	0.4kg
Humidity	5~95% (with package)
Altitude	≤3000m (work normally)





♦ Software over voltage protection: The charger output voltage does not exceed set the maximum charging voltage of the battery.



♦ Current limiting protection: The charger output current does not exceed set battery charge current at CC mode.



♦ Short circuit protectoin: Short circuit protection will be automatically recovery after remove the condition.



♦ Reverse polarity protection: When output wires are reversely connected to the battery, the charger will not operate and will work normally when DC wires are correctly connected.





*Above are the more common using typs of connector, we can also provide other connectors as per customer's request to fit with the battery.
