Laboratory 25mm Mini SJ25 Single Screw Extruder

Description of SJ25 single screw extruder:
This kind of single screw extruder can be used for PP, PE, ABS etc.material, it include Hopper Dryer, Gear Box, Screw, Single Screw Electric Box, Motor and other components. Equipped with different mould and auxiliary equipments, it could produce plastic pipe, sheet, board, granules and so on.

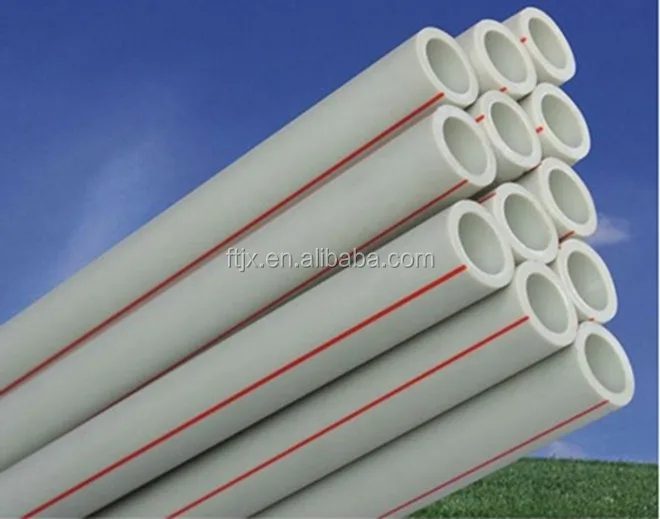

SJ 25 Single Screw Extruder can make color line on PE, PPR, PVC Pipes, ususally as auxiliary machine order.
Main advantage of plastic single screw extruder:
1. High capacity in plasticizing
2. Lower power consumption
3. Adopt evolvent gear drive, low noise, work stable and durable.
Main technical parameter:


SJ25 Single Screw Extruder



          Screw
Diameter
25mm
L/D
25:1
Material
38CrMoAlA
Max. Rotating Speed(rpm)
20-120rpm
Surface Treatment
Nitride processing, Thickness: 0.6~0.8mm, Polishing



       Barrel
Material
38CrMoAlA
Inner Processing
Nitride with thickness: 0.6~0.8mm
Heating Zones
2
Heating Mode
Air blow
Cooling Power
0.04kw*2pcs=0.08kw
Driving Motor
Motor Power
AC 3KW
Inverter
ABB
Contactor
Schneider
Air Switch
Schneider
Indicator Lamp & Button
Schneider
Relay
Omron
Temperature Controller
RKC or Omron
Output Capacity
           4~5kg/h
Model
L/D
Output(kg/h)
Speed of Screw
Rotation(r/min)
Drive power(kw)
Center Height(mm)
SJ-25
25/1
5
20-120
2.2
1000
SJ-30
25/1
10
20-180
5.5
1000
SJ-45
25-33/1
50-150
20-150
7.5-22
1000
SJ-65
25-33/1
60-250
20-150
22-90
1000
SJ-75
25-33/1
200-350
20-150
55-110
1100
SJ-90
25-33/1
180-550
20-110
37-185
1000-1100
SJ-120
25-33/1
320-800
20-90
75-280
1000-1250
SJ-150
25-33/1
400-1200
20-75
90-350
1000-1300
Detailed Images

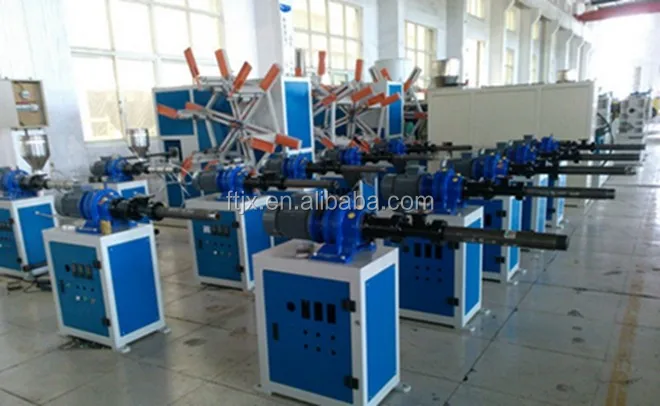

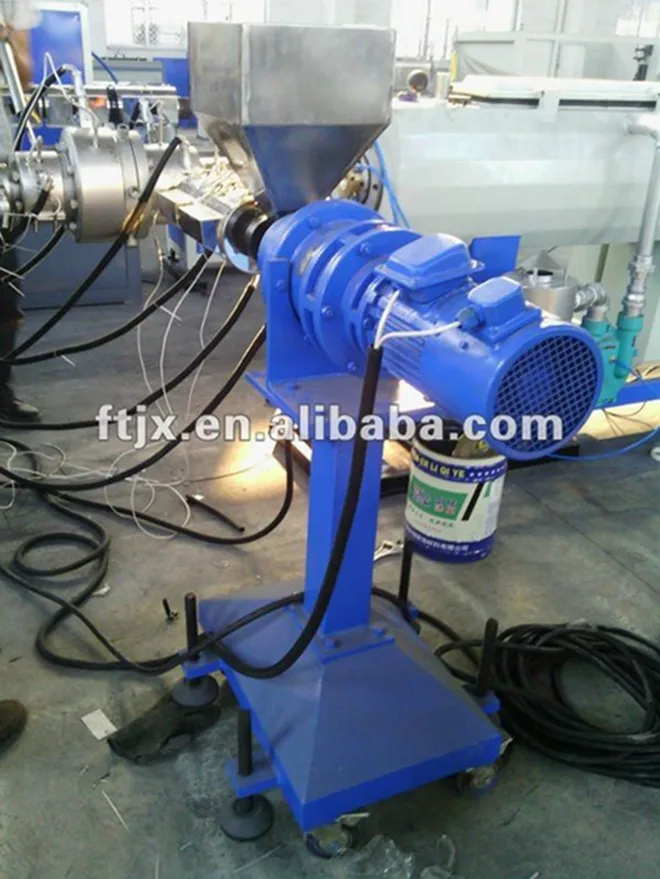

SJ25 Single Screw Extruder--co-extruder markline extruder

Certifications
Packing & Delivery
FAQ

1.Q: Are you factory or trading company?
A: We are professional manufacturer of plastic machinery since 2004.
2.Q: How long is the guarantee?
A: 1 year after the machines arrive in customer’s factory.
3.Q: Payment term:
A: Loading Port: Shanghai by sea or by train.
T/T, L/C, West Union, or Cash.
4.Q: If need more information?
A: Please contact:

Our Service

Turn key project
Technical documents
We will offer you all necessary documents, e.g. general layout plan, water scheme, electrical diagram and user manual after the contract is executed.
Arrangement for inspection, installation and testing work
After being informed machines ready for inspection, customer can send engineers to our factory.
After the machines are delivered to customer’s factory, we will send one or two technicians to the factory after preparation work is completed. Technicians will be responsible for guide on-site installation and testing machines.
Meanwhile technicians will give free training lessons to labors in customer’s factory.
Beyond one year quality guarantee period, we will provide after-sell service for all the life.

If you are interested in Plastic Single Screw Extruder, please contact me freely!

Our factory is near shanghai, about 120km. Welcome you to visit the factory anytime!
