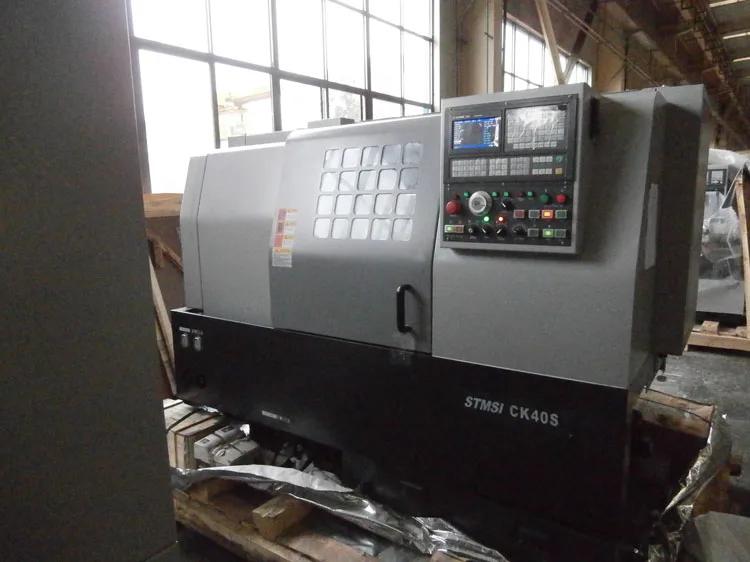

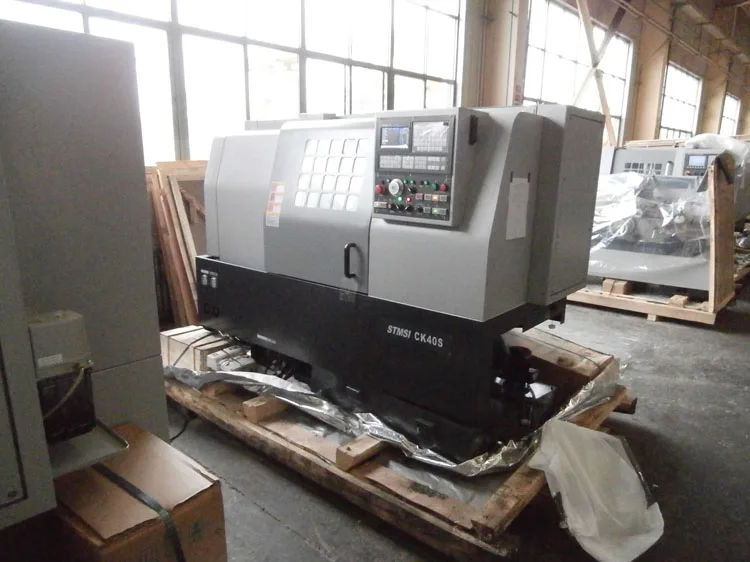

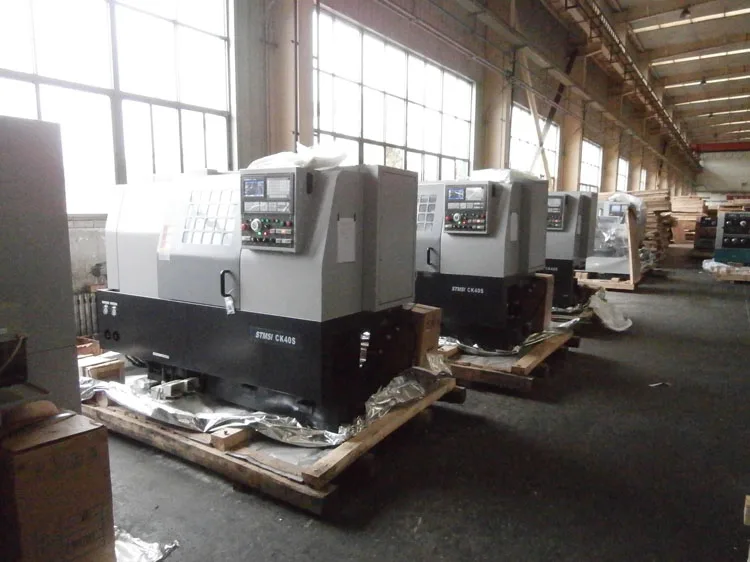

CK 40 turning center slant bed lathe cnc turning
- Category: >>>
- Supplier: Yancheng C&J Machinery Co. Ltd.
Share on (60579836042):
Product Overview
Description
CK-40 turning center slant bed lathe cnc turning
MAJOR SPECIFICATIONS
Item | Unit | CK30 | CK35 | CK40 | CK50 | |
Capacity | Max. swing over bed | mm | Φ300 | Φ350 | Φ400 | Φ500 |
| Max. swing over slide | mm | Φ120 | Φ80 | Φ260 | Φ320 |
| Max. turning length | mm | 300 | 250 | 400 | 500 |
| Max. bar dia. | mm | Φ41 | Φ41 | Φ42 | Φ51 |
Spindle | Hydraulic chuck dia. | mm | Φ160 | Φ130 | Φ165 | Φ210 |
| Spindle nose |
| A2-5 | A2-5 | A2-5 | A2-6 |
|
|
| (GB/ | (GB/ | (GB/ | (GB/ |
|
|
| T5900.1) | T5900.1) | T5900.1) | T5900.1) |
| Spindle thru-hole | mm | Φ30 | Φ30 | Φ57 | Φ62 |
| Spindle speed | r/min | 4200 | 4500 | 70-3000 | 60-2250 |
| Power of main motor | kW | 4 | 5.5 | 7.5 | 15 |
Tailstock | Quill dia./travel | mm |
|
| Φ70/80 | Φ90/100 |
| Quill taper hole | MT No. |
|
| 4 | 5 |
Carriage | Slant angle | DEG | 45° | 45° | 45° | 45° |
| Travel X/Z | mm | 280/320 | 250/250 | 165/410 | 210/550 |
| Rapid traverse X/Z | m/min | 12/16 | 12/16 | 12/16 | 12/16 |
| Number of station |
| Gang tools | Gang tools | 8/12 | 8/12 |
| Tool size (turning/boring) | mm | 20×20/Φ32 | 20×20/Φ32 | 20×20/Φ32 | 25×25/Φ40 |
Others | Power source | kVA | 35 | 35 | 35 | 35 |
| Size | mm | 2000x1700x1600 | 3200x1700x1910 | 2370x1670x1970 | 2850x1810x1850 |
| Gross weight | kg | 2000 | 2200 | 3000 | 4500 |
Optional Accessories
1.8 position motor-driven hydraulic turret.
2.Pneumatic chuk and hydraulic chuck.
3.Pneumatic tailstock and hydraulic tailstock
4.A.C.spindle servo motor(The speed can reach 6000rpm)

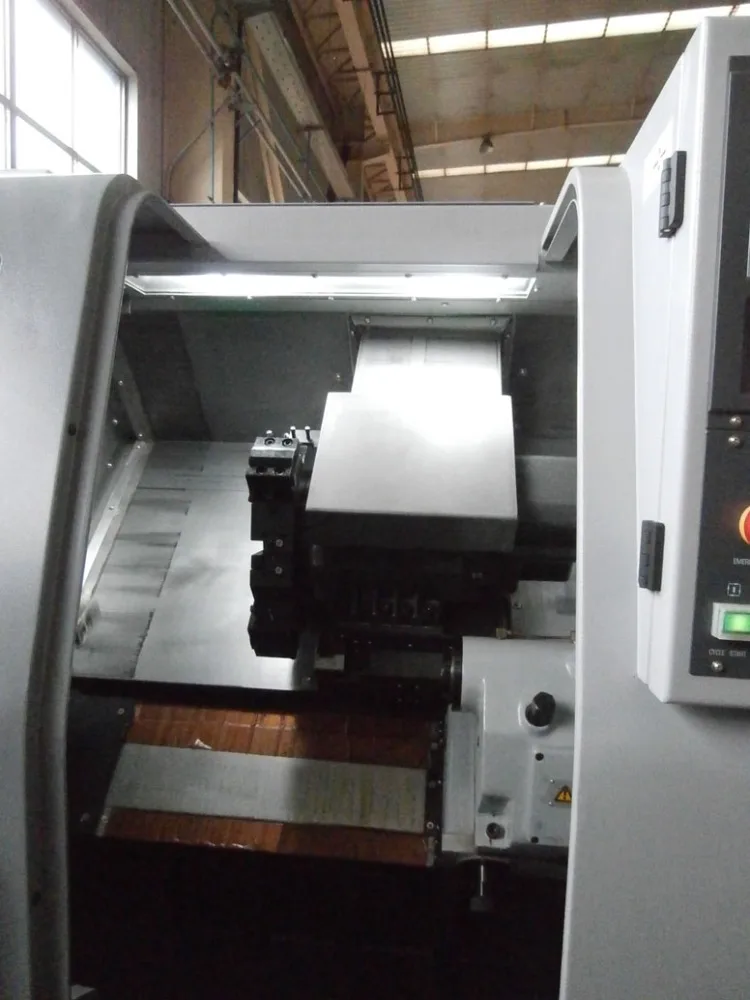

Straight line rail
Casing base with slanting bed, strong rigidity, high precision and high speed automatic lubrication system and totally closed athe encloser can be fix with Siemens and Fanuc controlling system or other domestic CNC systems can be outfitted with hydraulic chuck and hydraulic
