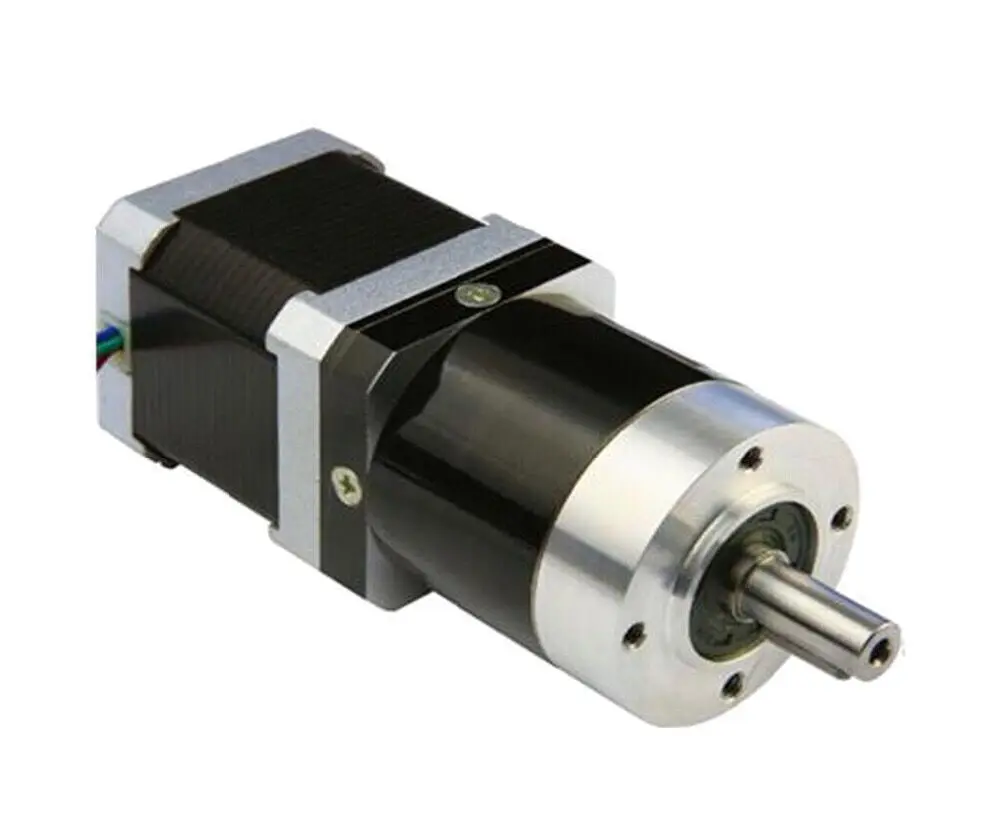

hybrid 2 phases nema17 stepper motor with gear reducer
- Category: >>>
- Supplier: Shenzhen DVS Mechatronics Co. Ltd. [Guangdong China]Shenzhen
Share on (60579848199):
Product Overview
Description
Product Description
Item | Specifications |
|
Stepping accuracy | 5% | |
Temperature rise | 80℃ Max. | |
Ambient temperature | -20℃~+50℃ | |
Insulation resistance | 100MΩMin 500VDC | |
Dielectric strength | 500V AC 1minute | |
Allowable radial load | 0.06mm Max. (450g load) | |
Allowable thrust load | 0.08mm Max. (450g load) |
Specification
Model | Step Angle | Length | Torque | Current | Inductance | Rotor Inertia | Weight | Leads |
Unit | (°) | L(mm) | N.m | A | mH | g.cm2 | Kg |
|
DV442HB33 | 1.8° | 33 | 0.16 | 0.95 | 4.2 | 38 | 0.2 | 6 |
DV42HB38 | 38 | 0.26 | 1.2 | 3.3 | 54 | 0.2 | 6 | |
DV42HB47 | 47 | 0.317 | 1.2 | 3.3 | 68 | 0.35 | 6 | |
DV42HB60 | 60 | 0.65 | 1.2 | 6 | 102 | 0.5 | 6 |
§ Only the representation of the products and we can design according to clients’ requirement.

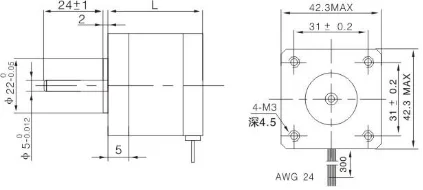

Dimension

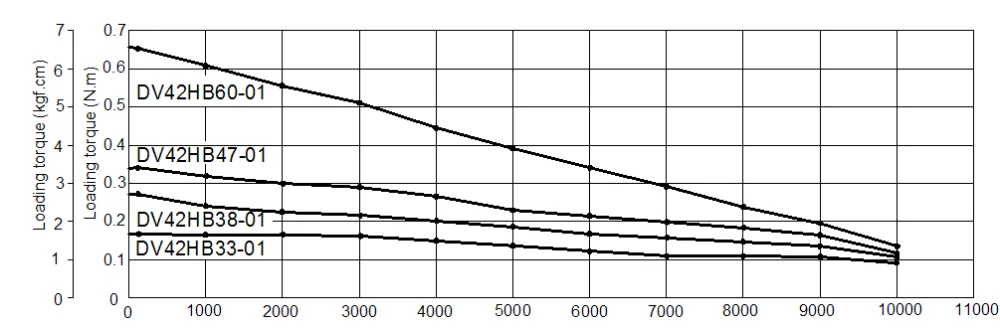

Characteristics
