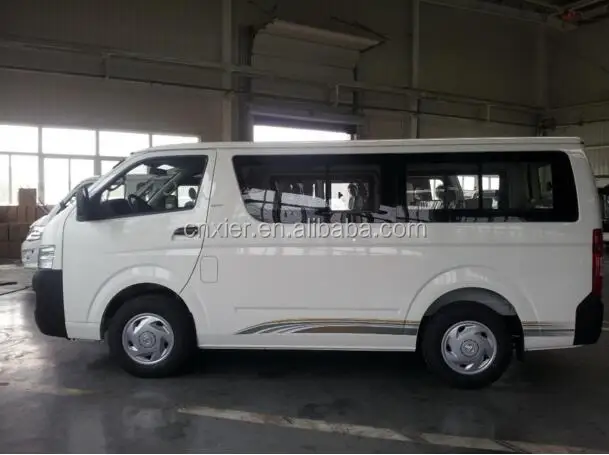

FOTON VIEW C2/CS2 minibus

Product Overview

Description

chassis	model		BJ6489B1PDA-2
	manufacturer		FOTON
	axle		2
	wheel base(mm)		2570
	wheel track(front/rear mm)		1470/1465
	tire size		195R15C
	wheel hub		steel+hubcap
	tire quantity		4
engine	model		4JB1T
	manufacturer		FOTON
	delivery capacity(ml)		2771
	fuel		DIESEL
	rated power(Kw)		68
	emission standard		EURO 2
transmission	5MT
frame	front	type	independent suspension
		quantity
	back	type	steel plate spring
		quantity	4
car load	dimension parameters	overall dimensions(mm)	5050x2030x1980
		L*W*H
		BOX  dimensions(mm)
		L*W*H
	quality parameters	approach angle/departure angle(°)	15/16.5
		curb weight(Kg)	2005
		gross weight(Kg)	3020
	max. speed(km/h)		120
	Persons in cab (persons)		3
seats	15(3+3+3+3+3)
radio	radio+AUX+USB
heater,A/C	front and rear A/C, front heater
window	front door manual open shut, rear sliding window
