Round ccoin 80ton mechanical power press,metal stamping machine, steel punch machine

Product Overview

Description

Round coin 80ton mechanical power press , metal stamping machine, steel punch machine

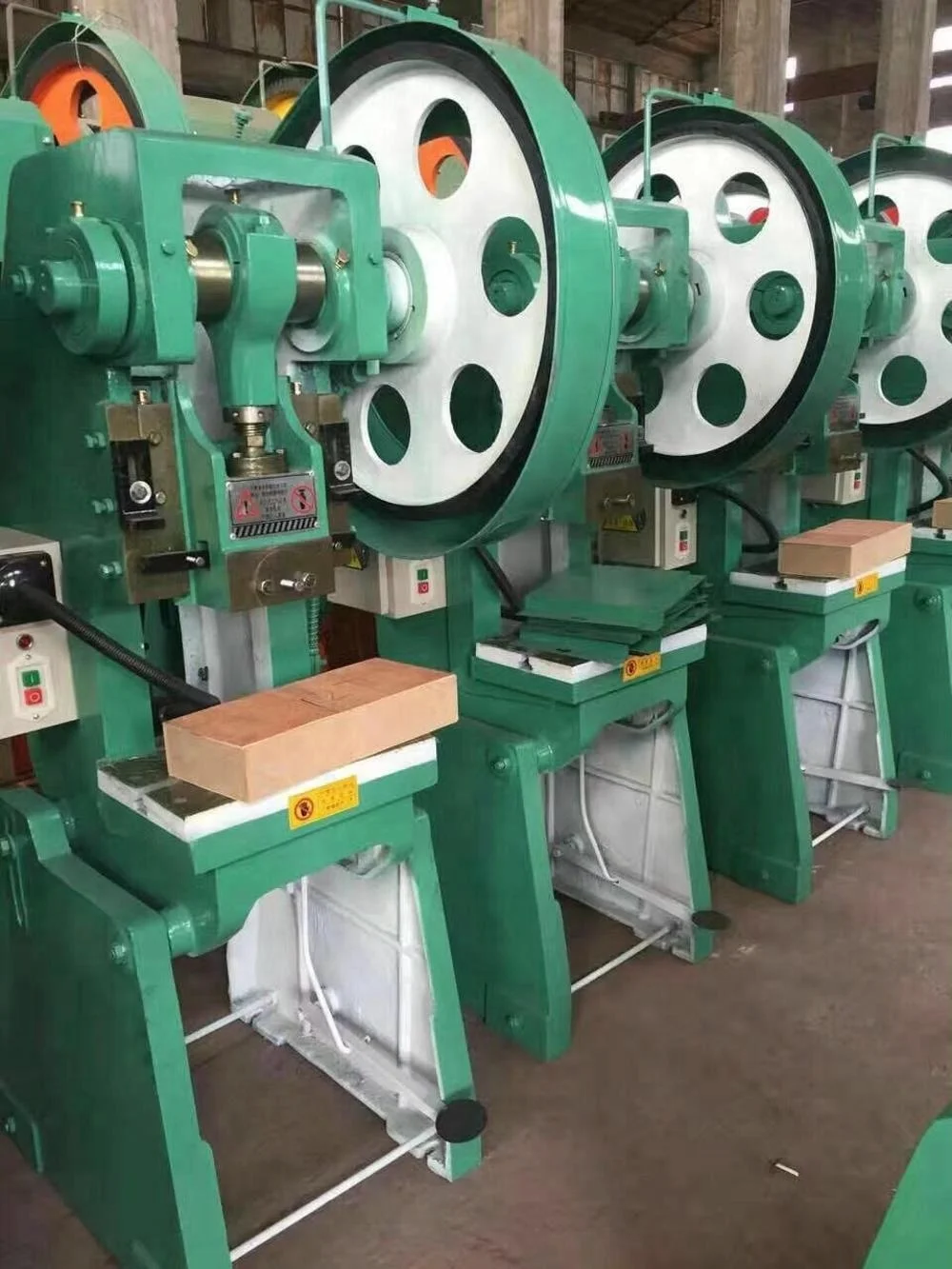

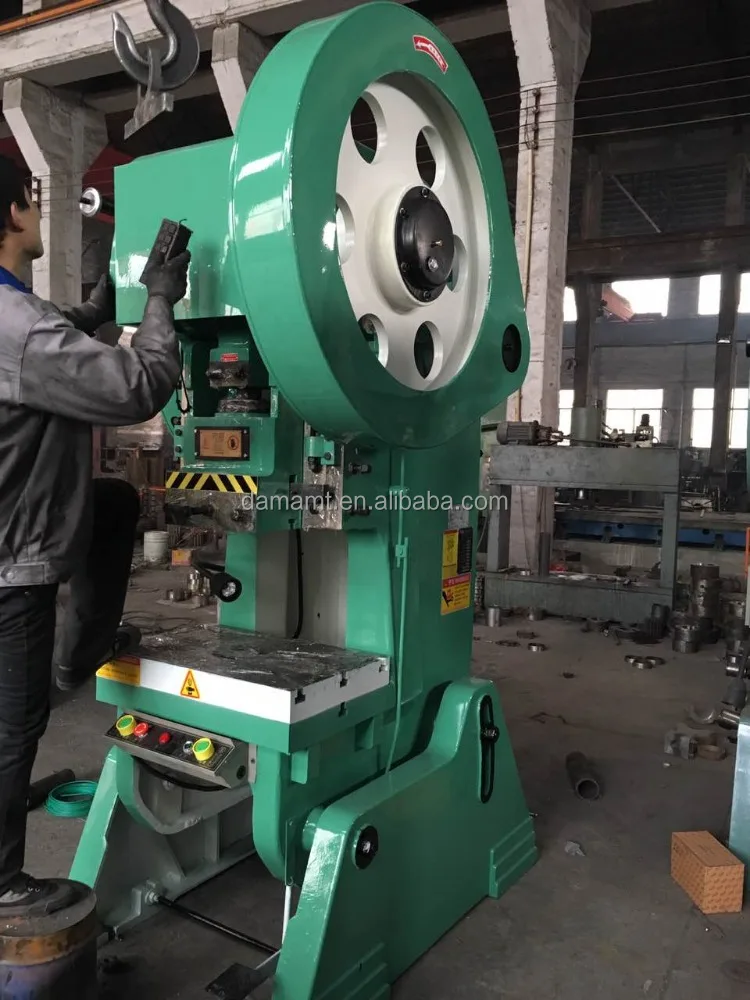

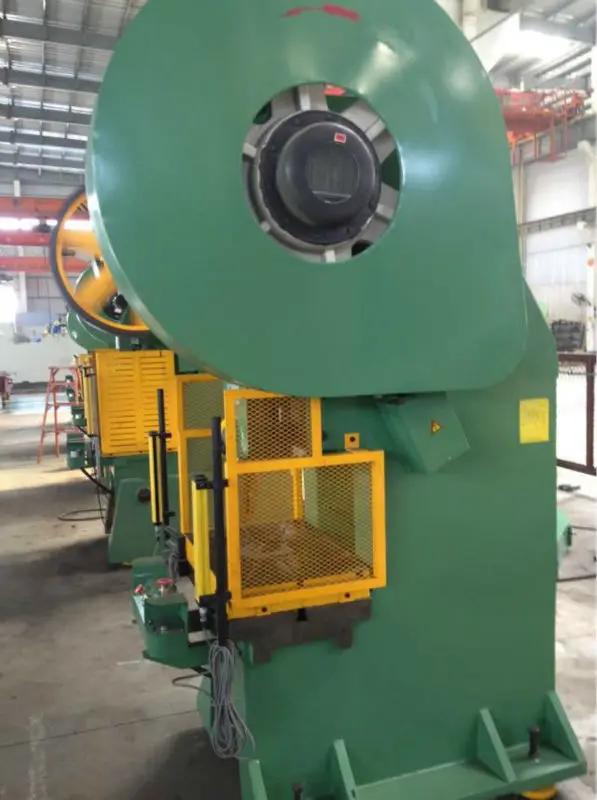

Photo of mechanical power press:

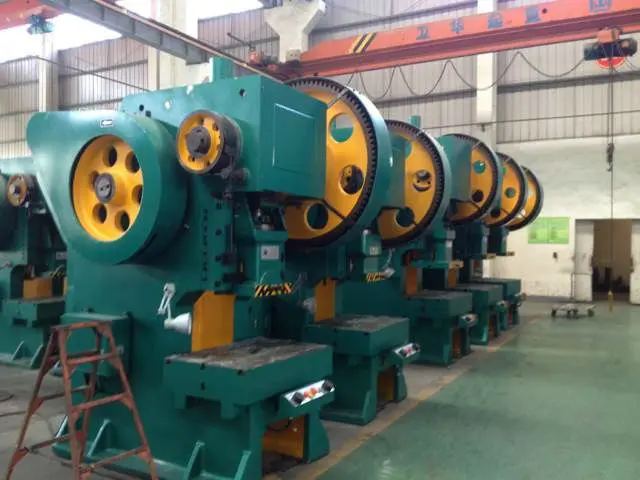

Photo of mechanical power press:

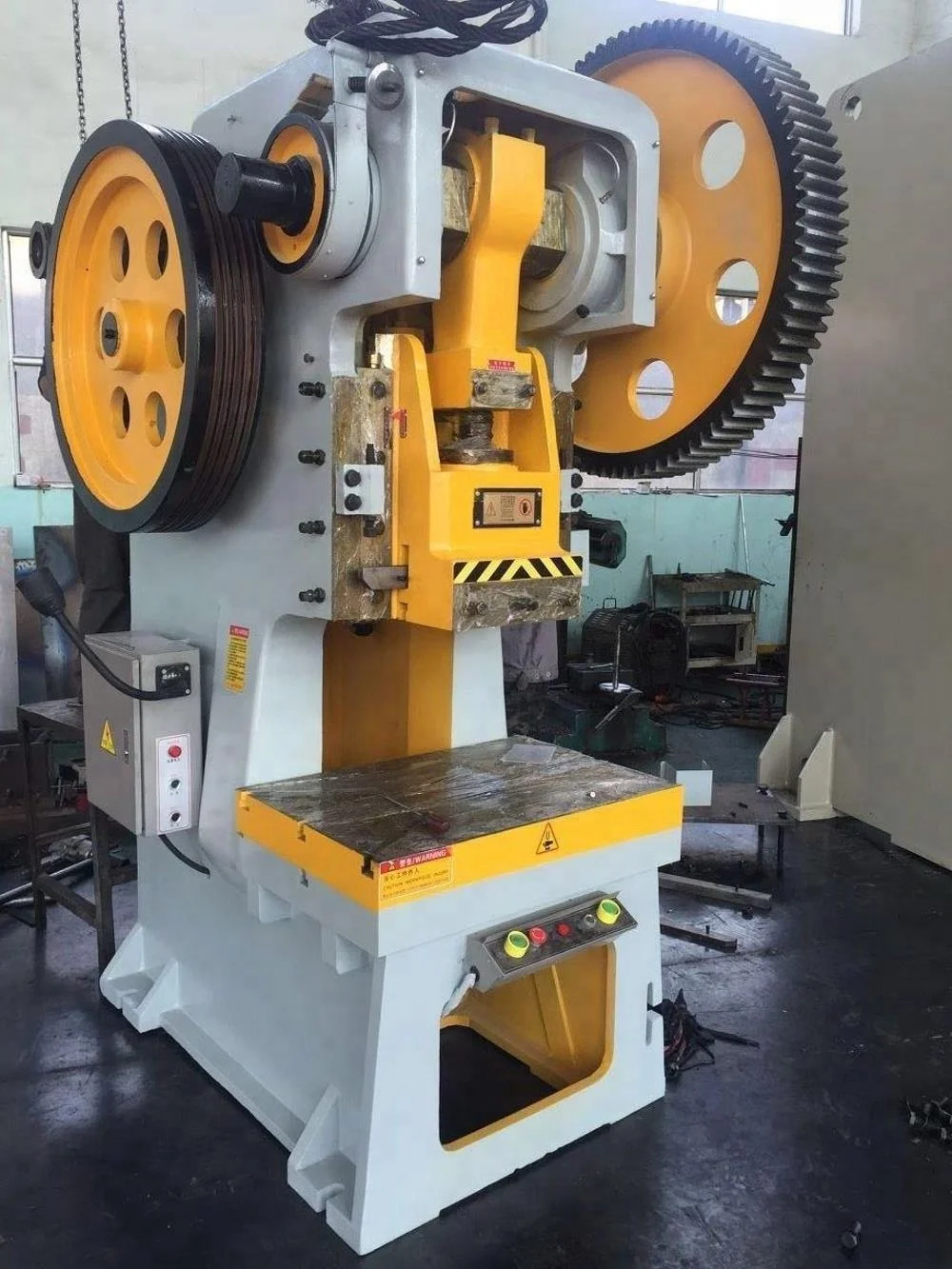

photo of mechanical power press:

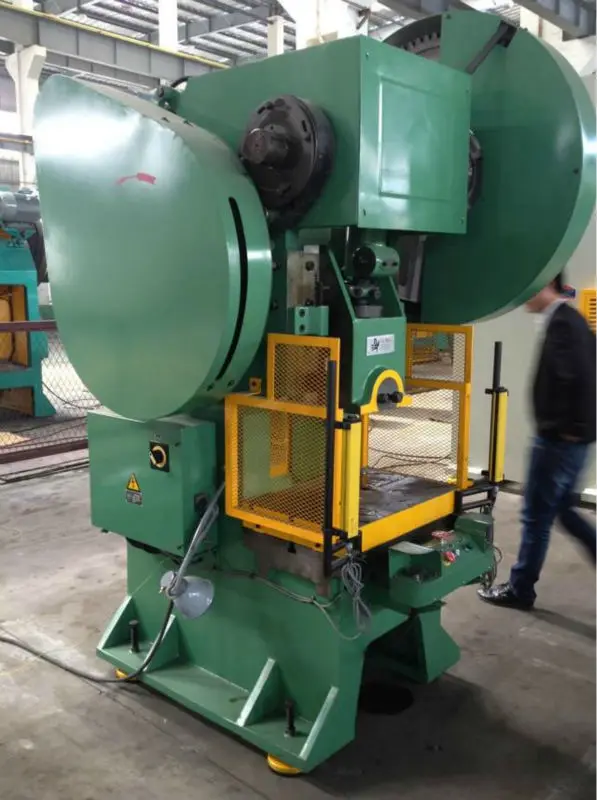

photo of mechanical power presses:

Details of mechanical power press:





Specifications of mechanical power press:

1.High precision ,wide application

2. ISO certification

3.High performance

4.Easy to operation



The machine of whole structure and characteristics :

1. J23 Series High Precision Presses mechanical power press is one of the new generation of plate

process and developed by Maanshan  Dama  Machinery manufacturing Co;Ltd . ,The punching machine is for cutting, punching, blanking, bending and light stretching work.

2.C Type Steel welded frame, high rigidity and less deformation Compact,wide body frame eliminating vibration for improved ide life and machine.

3. Rigid construction guarantees exact die mating,Six side long rectangle guides of the slide with high moving precision and high accuracy, extending the service life of the die.

4. Highly advanced, rigidly supported gears, operate in oil bath without any noise saves space, reduces, shaft deflection, increases gear life.

5. High accuracy, high efficiency, simple and convenient operation, good performance, favorable price and best service.



Features of mechanical power press:

J23 series mechanical power press are general open tilting power press with simple structure,

reliable performance and easy operation .J23 punching machine can adopt rigid turn-key clutch .

2.So, it is convenient for operation and maintenance .J23 mechanical power press can also adopt

emergency stop service to make the slider block suddenly stop on the range of 0- 135 degree,and the photoelectrical protector device is optional .

3.J23- 100 and J23- 125 mechanical power press are special among the J23 series .

Their main body is cast in iron .The cranked axle is settled vertically .Eccentric sleeve makes easy adjustment .And there is also pneumatic friction.Therefore ,J23- 100 and J23- 125 mechanical power press enable to work with small impact and sationarity and make slider block stop at any position



Details specification and parameter of mechanical power press:



Model   and specification	J23-16	J23-25	J23-40	J23-63	J23-80	J23-100
Nominal pressure (kn)	160	250	400	630	800	1000
Slipper stoke (mm)	50	70	80	80	100	100
Slipper stoke times(time/min)	110	65	50	50	50	40
Max closing height (mm)	170	200	220	250	270	300
Height adjustment(mm )	30	30	45	5	60	80
Distance between slipper centre and machine(mm)	160	200	200	250	260	310
Worktable dimension(mm)	320*460	350*520	390*630	420*650	470*750	570*860
Size of die handle bore (mm)	40*60	40*60	50*70	50*70	60*80	60*80
Worktable thickness(mm)	45	50	70	70	80	80
Slipper underside bore (mm)	120*180	170*220	210*250	240*280	260*300	360*400
Motor(kw)	1.5	3	4	5.5	5.5	7.5
Dimension(mm)	1130*830*1890	1120*860*2200	1600*1100*2250	1740*1100*2650	1765*1265*2650	1940*1490*2850

punching machine | punching machine | punching machine | punching machine | punching machine | punching machine | punching machine | punching machine | punching machine | punching machine | punching machine | punching machine | punching machine | punching machine

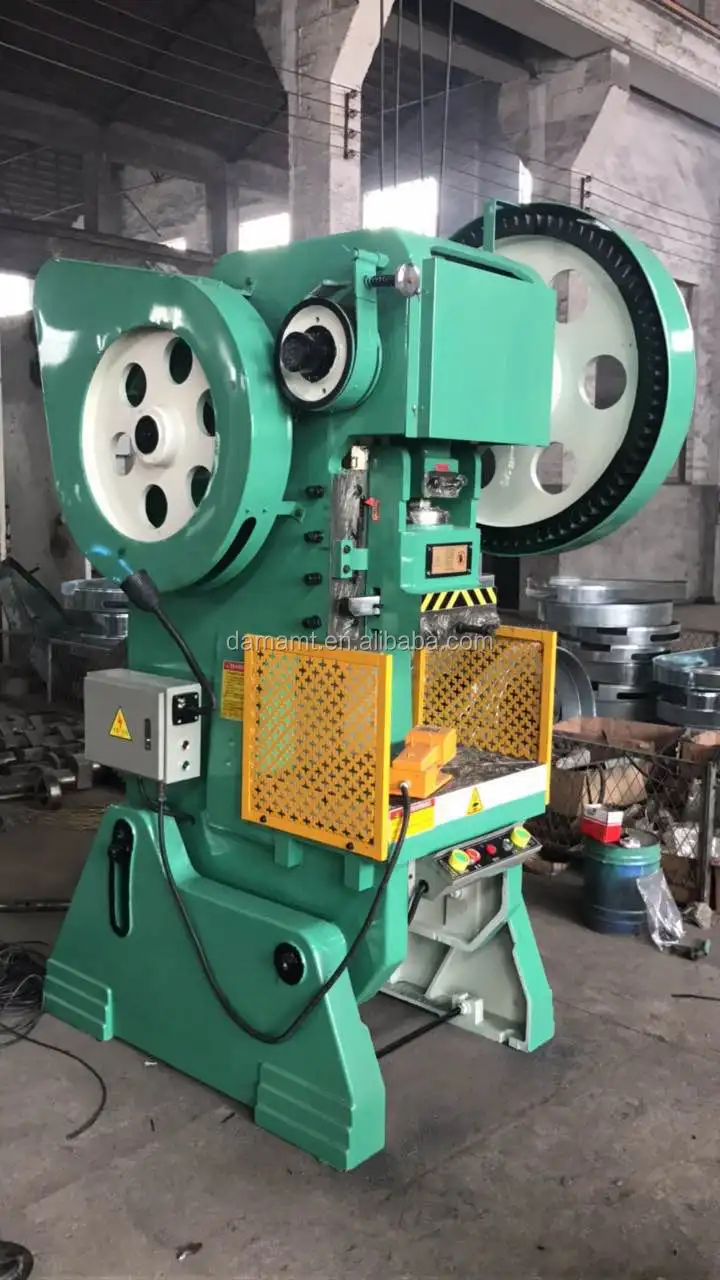

Photo of mechanical power press:

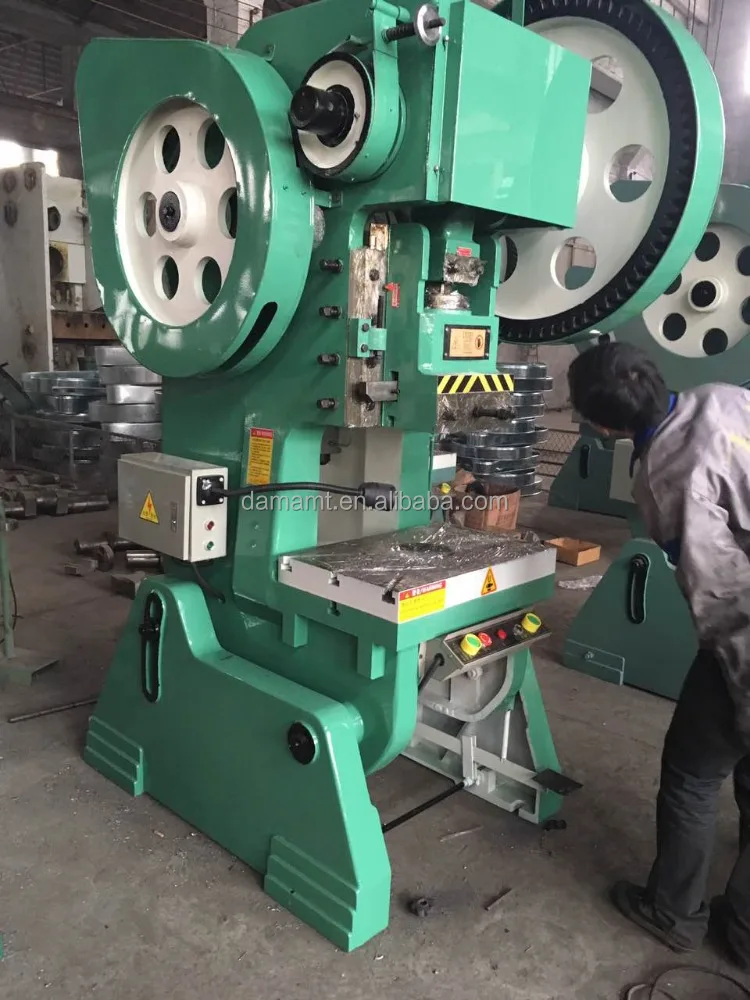

 Photo of mechanical power press:

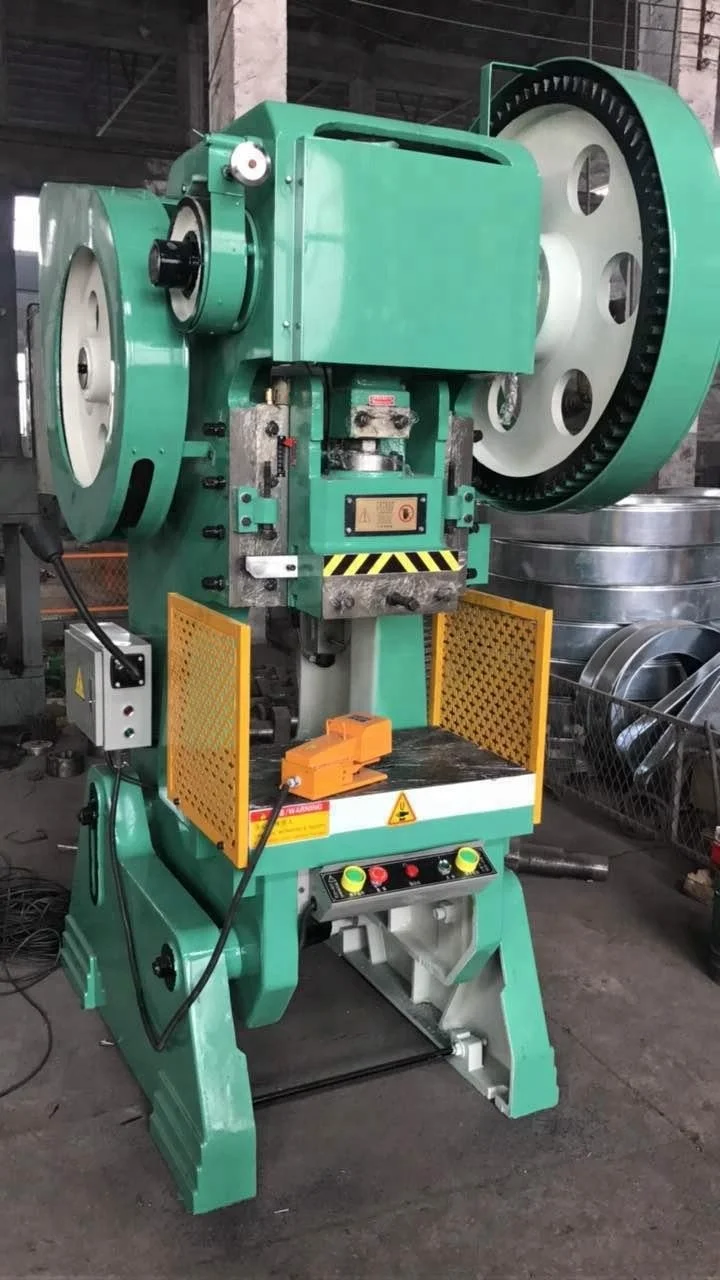

Photo of mechanical power press:
