Product Overview
Description
Factory Outlet After-sales Guarantee Ladder-type hopper prefabricated concrete mixing plant for sale ready mixed concrete mixing plant concrete admixture mixing plant malaysia concrete batching mixing plant for sale
Product Description

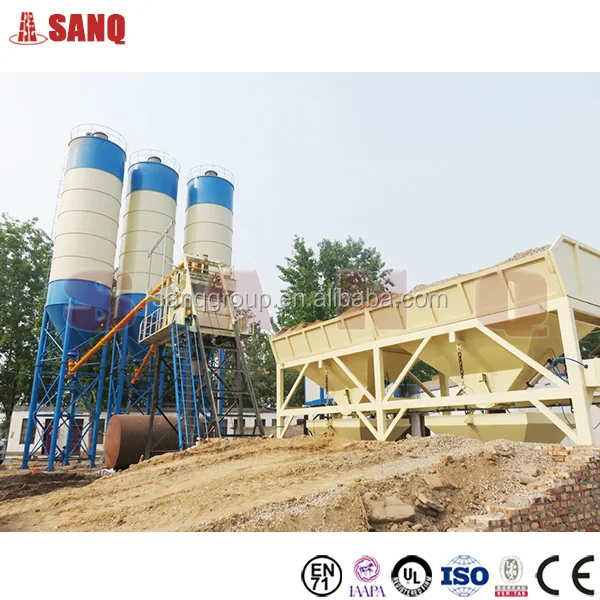

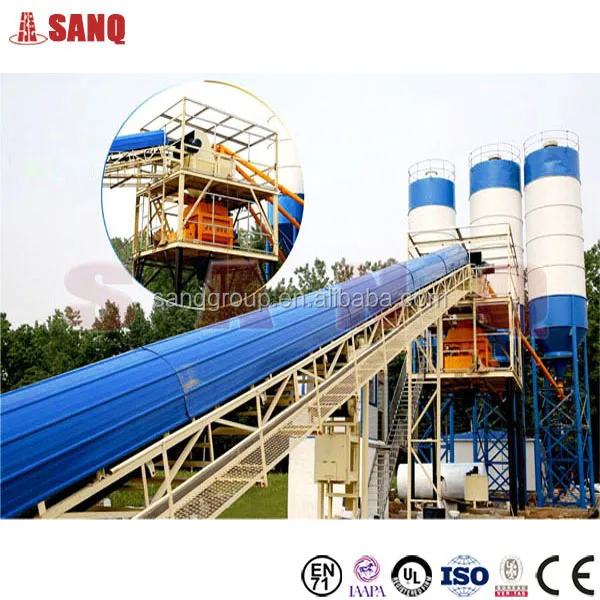

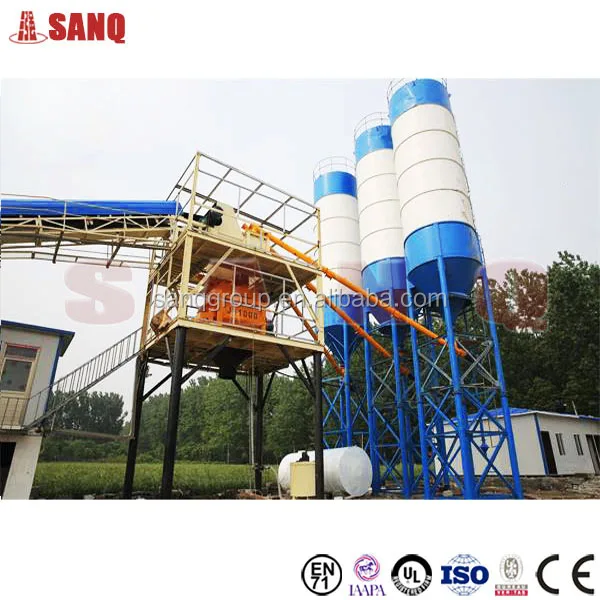

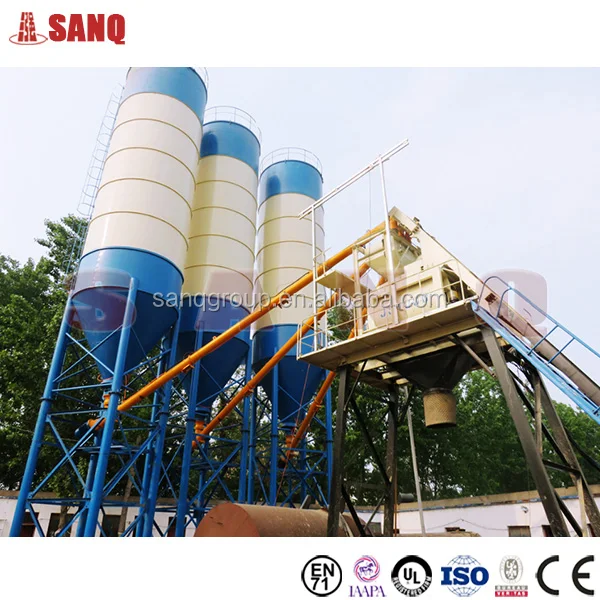

HZS60 concrete batching plant is composed of JS1000 concrete mixer , PLD2400 concrete batching plant , , batching system, electrical control and steel structure. Our concrete mixer is ideal concrete equipment for building project , building ground and precast product factory. Our company design the concrete mixing plant based on more than 30years experience, proved by global market customers, our design is scientific, economical , and minimize the mechanic damage.
Features of HZS60 concrete mixing plant :
1. It adopts JS1000 concrete mixer which has excellent mixing performance and high efficiency.
2.The batching machine is adopts PLD2400-IV, is measuring nicety and high produce efficiency.
3.The forced water supply system spray equably and has washing function for the mixing system.
4. Environment protection by dust collection system and anti-noise design.
5. Various control system adopt for easy operation.
Factory Outlet After-sales Guarantee Ladder-type hopper prefabricated concrete mixing plant for sale ready mixed concrete mixing plant concrete admixture mixing plant malaysia concrete batching mixing plant for sale
Technical Parameter:
| MODEL | HZS60 |
| Productivity in theory | 60m³/h |
| Mixer | JS1000 |
| Mixer power | 37KW |
| Maximum aggregate diameter | 80mm |
| Aggregate bins volume | 3X13m³ |
| Aggregate feeding method | Conveying belt |
| Batcher | PLD1600 |
| Aggregate weighing | 3000kg ±2% |
| Cement weighing | 600kg ±1% |
| Fly-ash weighing | 400kg ±1% |
| Water weighing | 400kg ±1% |
| Additive weighing | 50kg ±1% |
| Overall dimension(during operating) | 33800mm x 14800mm x 10800mm |
| Total power | 142kw |
| Total weight | 46000kg |
| Discharging height | 3.8m |
| Control system | Fully automatic PLC control |
| Cement silo(optional) | Section screw cement silo.50T/60T/100T/200T |
| Cement screw(optional) | LSY219 and LSY273 |
CAD Drawing
Detailed Images

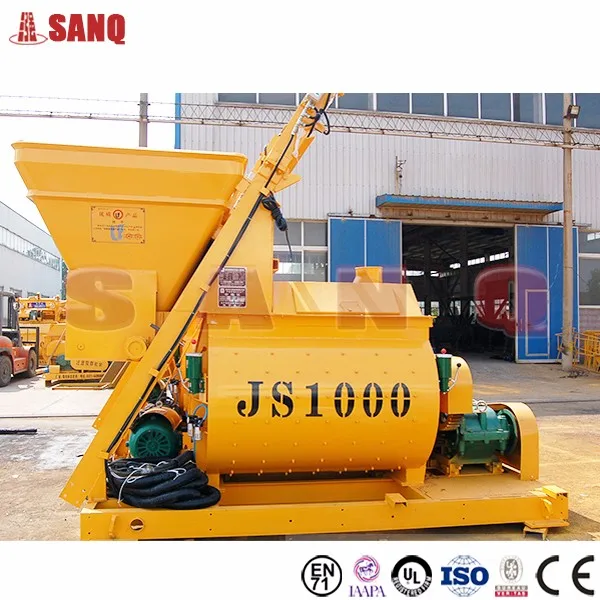

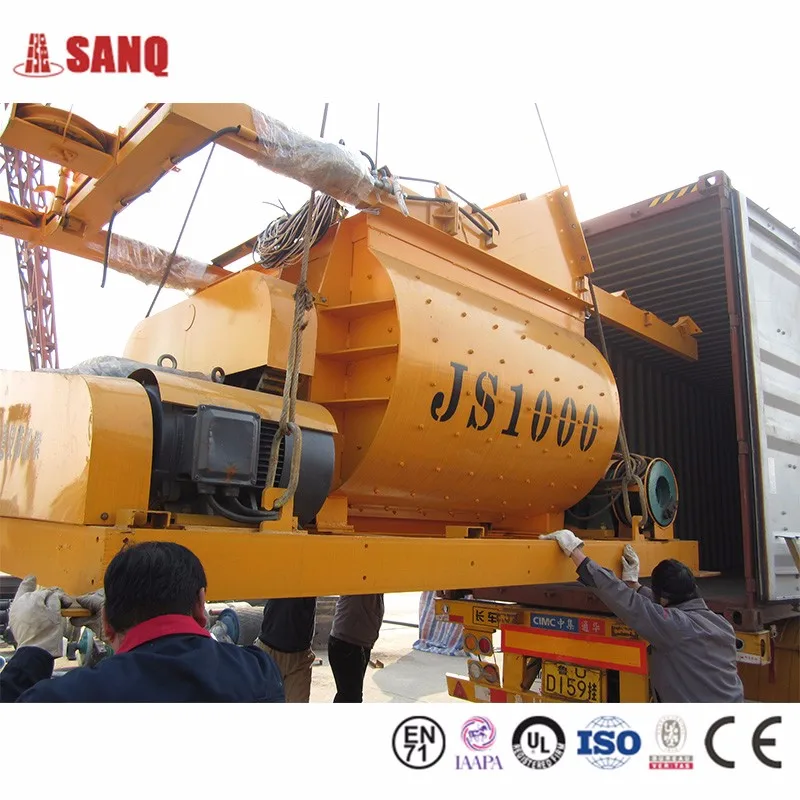

JS1000 Concrete Mixer
JS Series Twin Shaft Concrete Mixer is usually applied in concrete batching plants as the main mixer. It has stronger mixing effect and higher mixing efficiency than self-falling concrete mixer. It also belongs to forced concrete mixer and can be used to mix hard-dry concrete and light aggregate concrete.

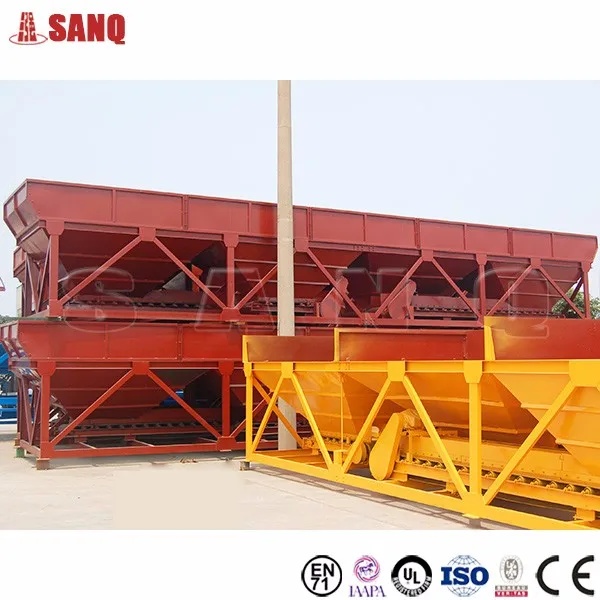

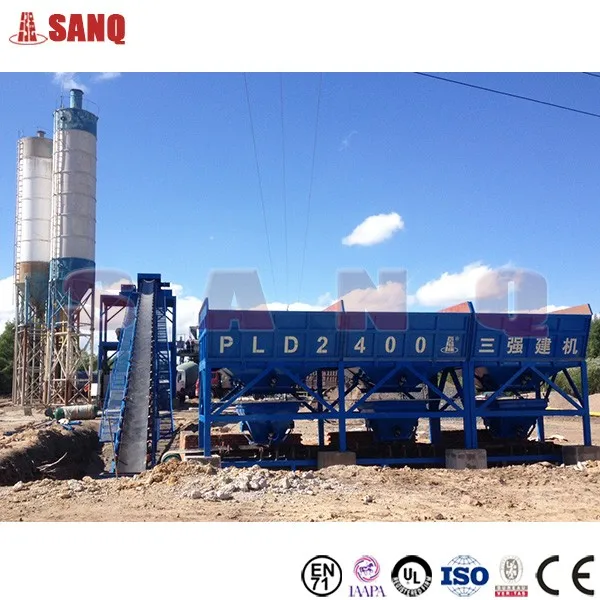

PLD2400 Concrete Batching Machine
PLD Series Concrete Batching Machine is matched to concrete batching plant, which includes aggregate supply system, weighing system and electrical control system. The feeding device is driven by belt. The batching system is controlled by sensor.

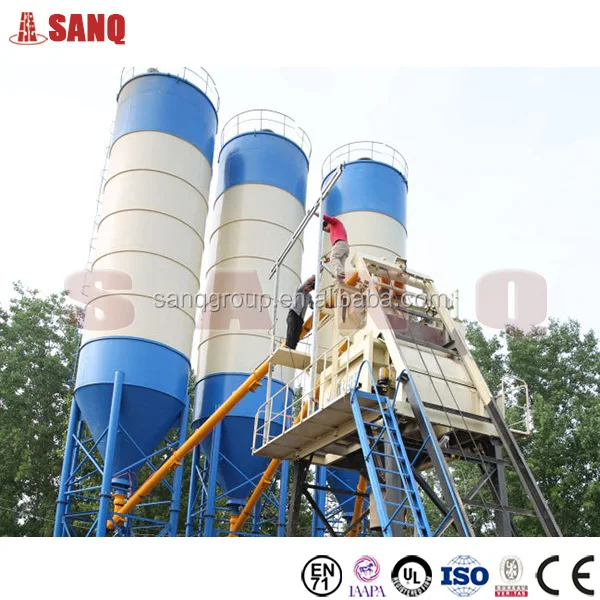

Cement Silo
We provides bolted type and welded type cement silos in various capacities and dimensions . 50 ton, 100 ton, 200 ton, 300 ton etc.
Control System
Sanqgroup Programmable Controller can control the production process with high reliability and stability. It can control the discharging and mixing and automatic control of the whole concrete production process. Moreover, It also can dynamically show the process of weighing and discharging.

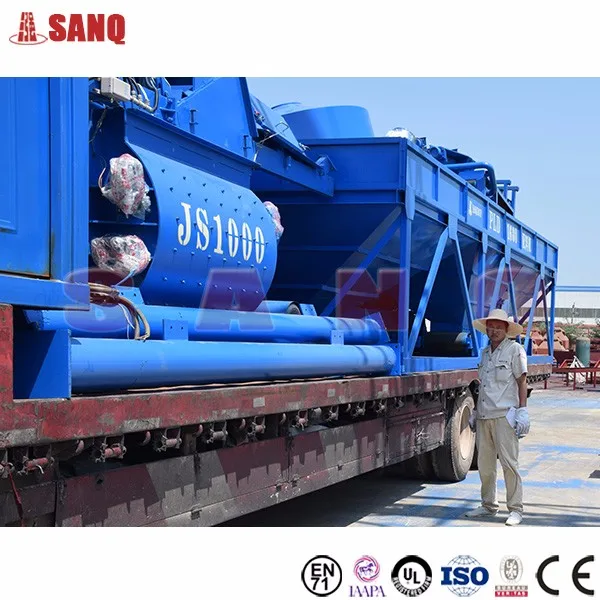

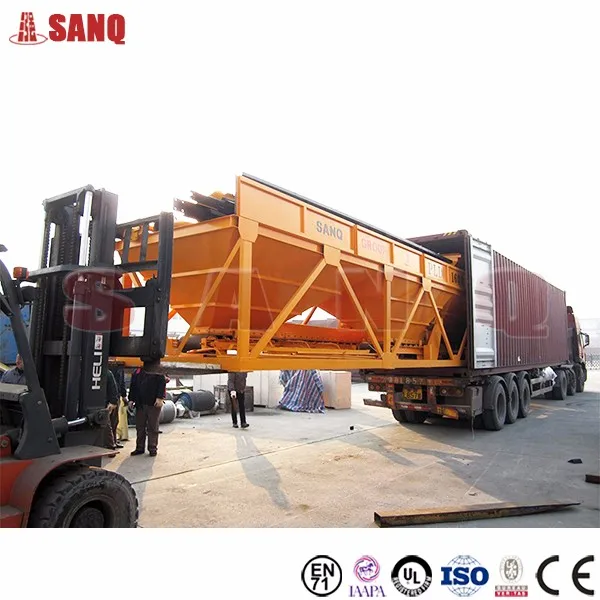

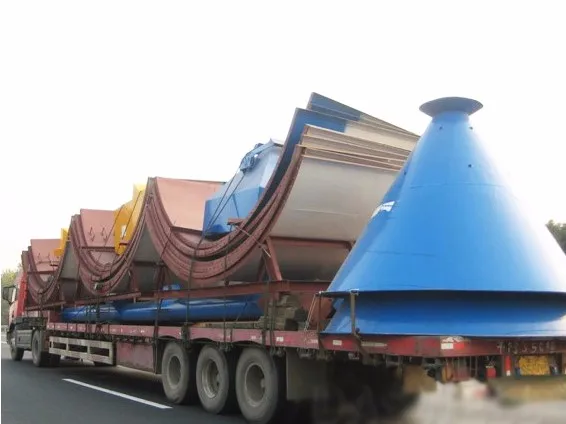

Packaging & Shipping
Certifications

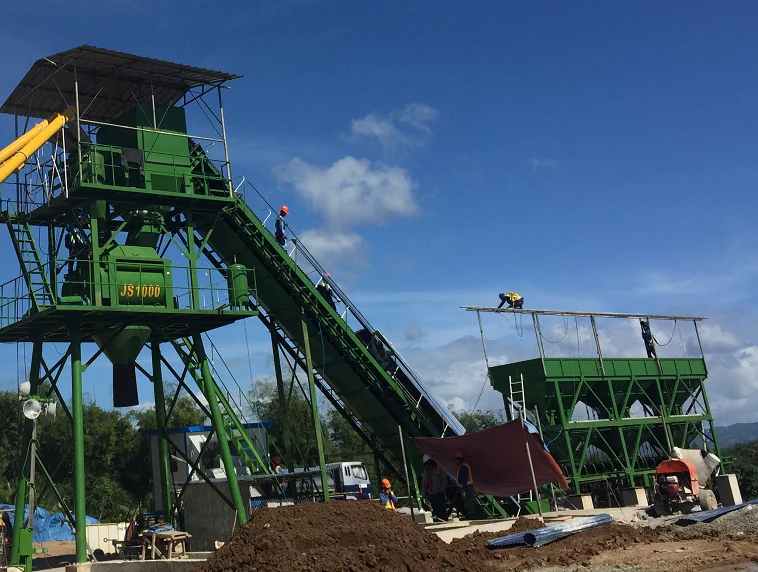

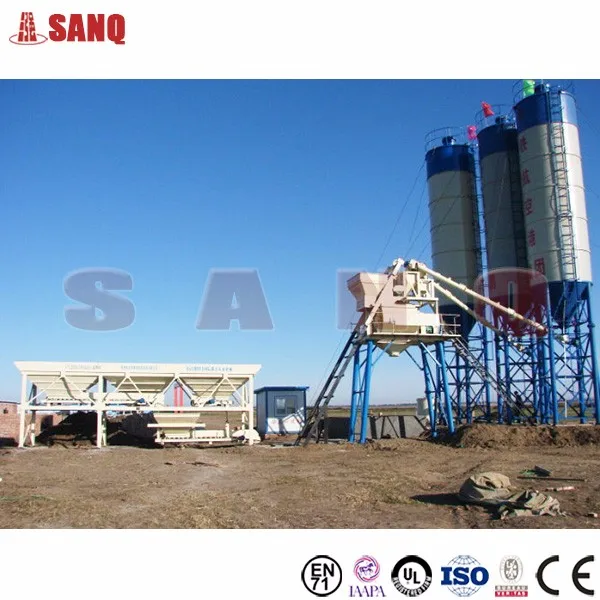

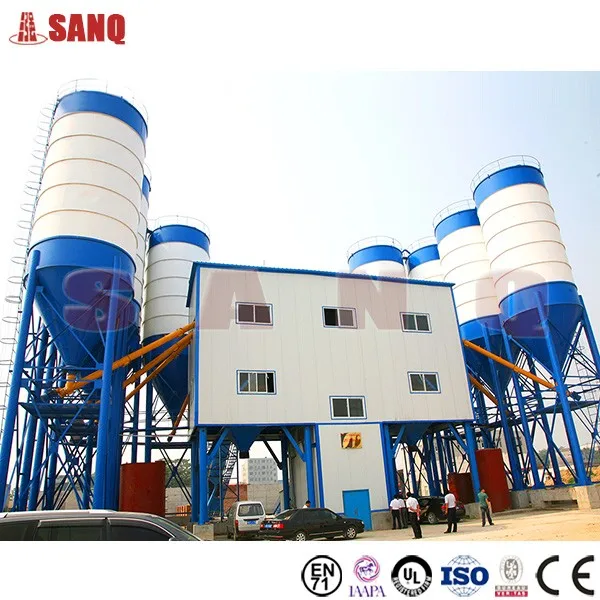

Successful Case
Our Services
- 24 hours on line sercvice
- Regular after-sale visit
- All after -sale service problem will be solved in 72 hours
- Accessories gloabally supply
- Lifetime technique suport
- Enginnerserve overseas avaiable

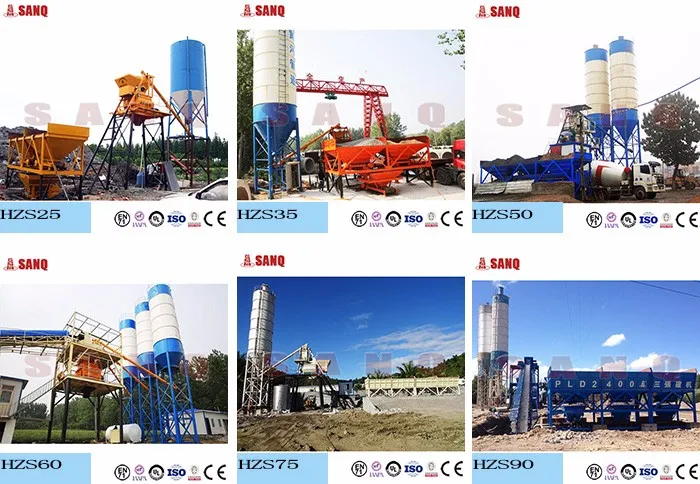

Related Products
