Product Overview

Description

Silo Top Dust Collector



  dust extraction units,the dust collection,automatic cleaning

Features

• Maintenance height = 1,080mm • High filtration efficiency low dust emission level • Maintenance easy • No tools required for filtering element removal. Complete replacement of filter media by only one person within a few minutes

Technical Data

Product model	SV-V2	SV-J1
Filtration area	24m2	24m2
Wind capacity	1500m3/h	1500m3/h
Filtration efficiency	99.9%	99.9%
Noise	under 85dB	under 75dB
Cleaning method	Vibration cleaning intermittent working way	Pulse air-jet cleaning continuous working
Compressed air	-	4-6 bar
Control panel power	380V/50Hz	220V/50Hz
Structure	Stainless steel	Stainless steel
Connecting way	Flange connection	Flange connection



Type

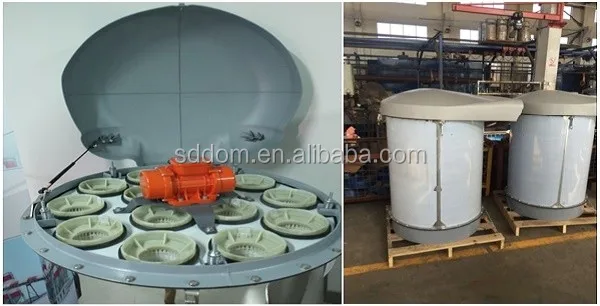

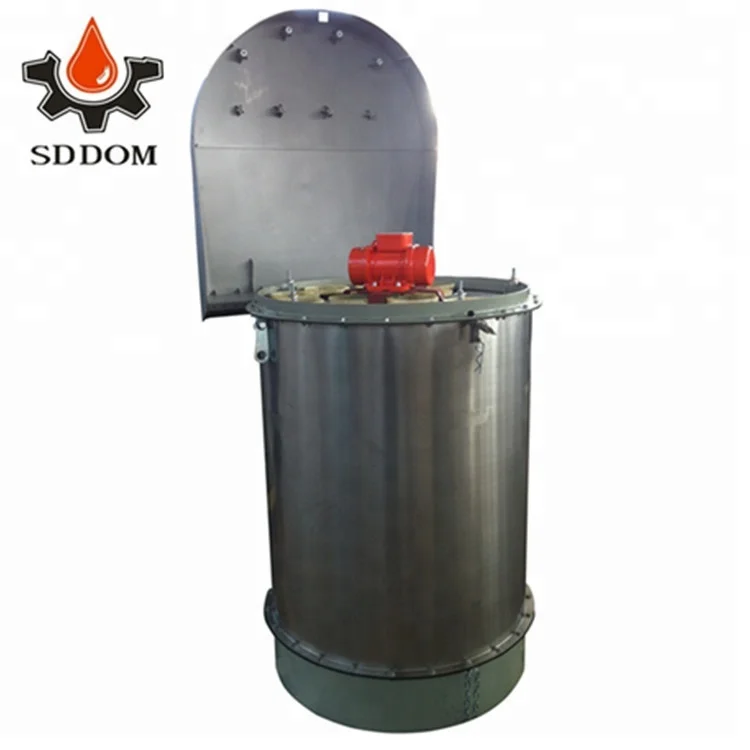

No.1 Vibrating Type

Vibrating type is used on top silo.Dust separated from the air flow by filter cartridge drops back into the silo after vibration.

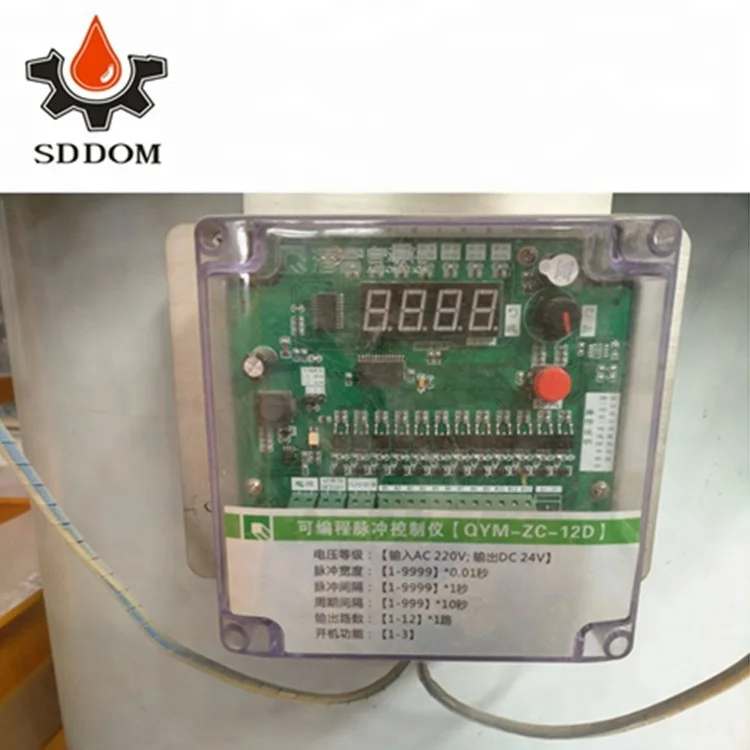

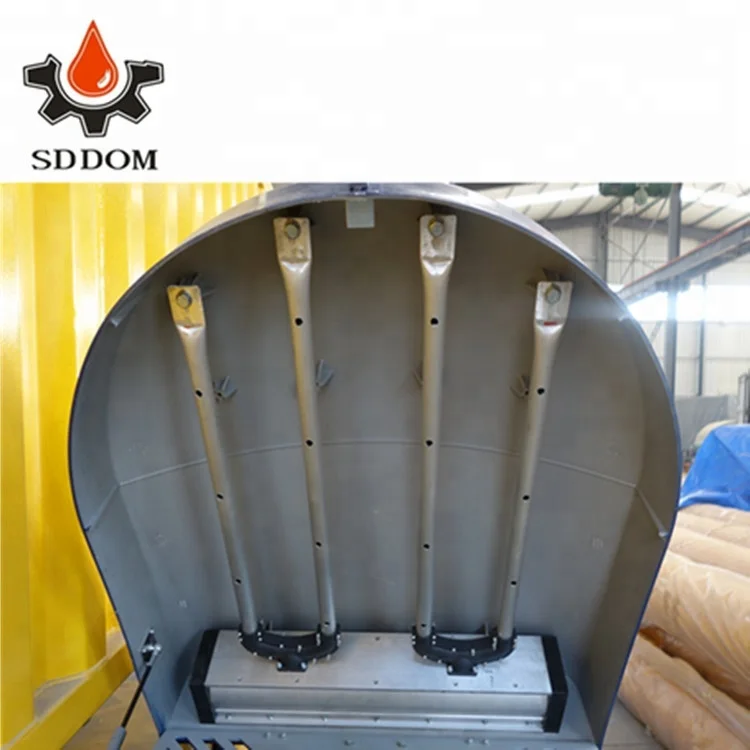

No.2 Air-Jet Type

Dust separated from the air flow by filter cartridge drops back into the silo after an integrated automatic reverse air jet cleaning system inside the weather protection cover has removed it from the filter cartridge. The air jet cleaning system is integrated in the hinged weather protection cover.It is used on ground.

No.3 Dust Collector With Drive motor and collector hopper

Dust separated from the air flow by filter cartridge drops back into the dust collector hopper after an integrated automatic reverse air jet cleaning system inside the weather protection cover has removed it from the filter cartridge. The fan system provide negative pressure which help to keep air filtration more efficient.

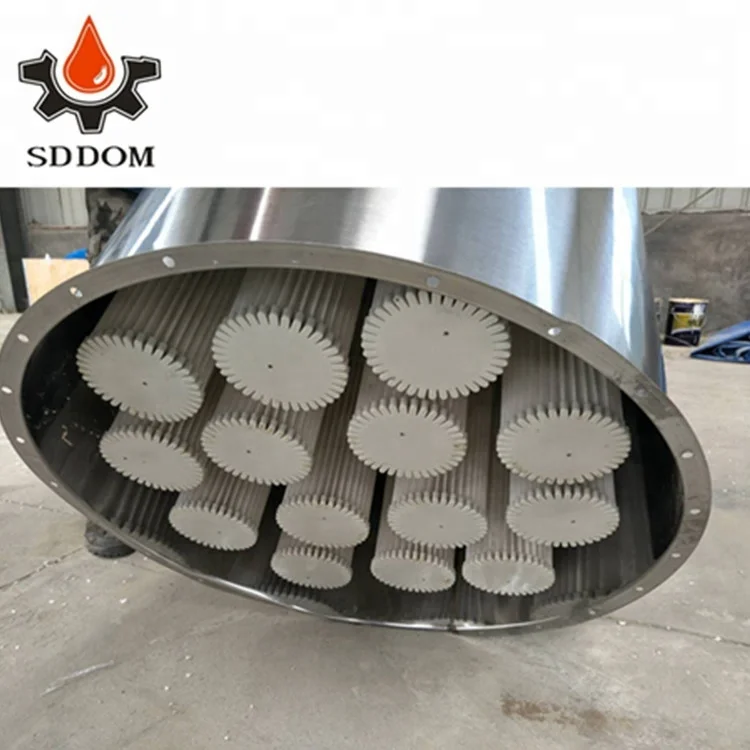

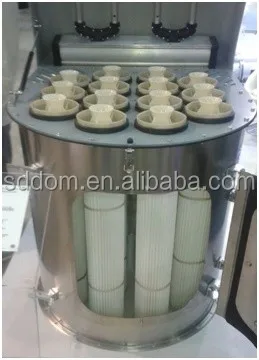

No.4 Filter Inside

Filter inside is folded PET filter.

Thickness of the filter is only 0.2mm,easy to clean and have long working life.

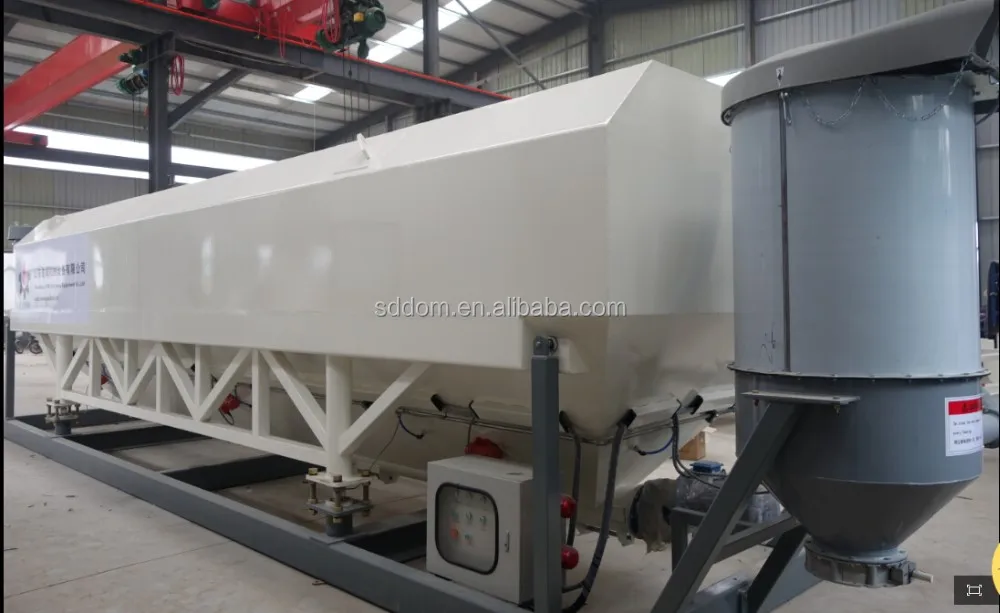

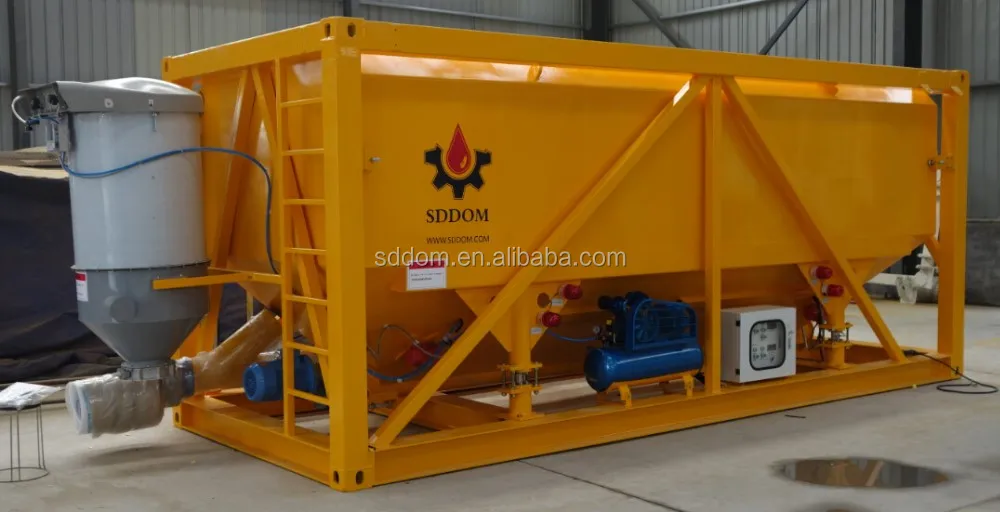

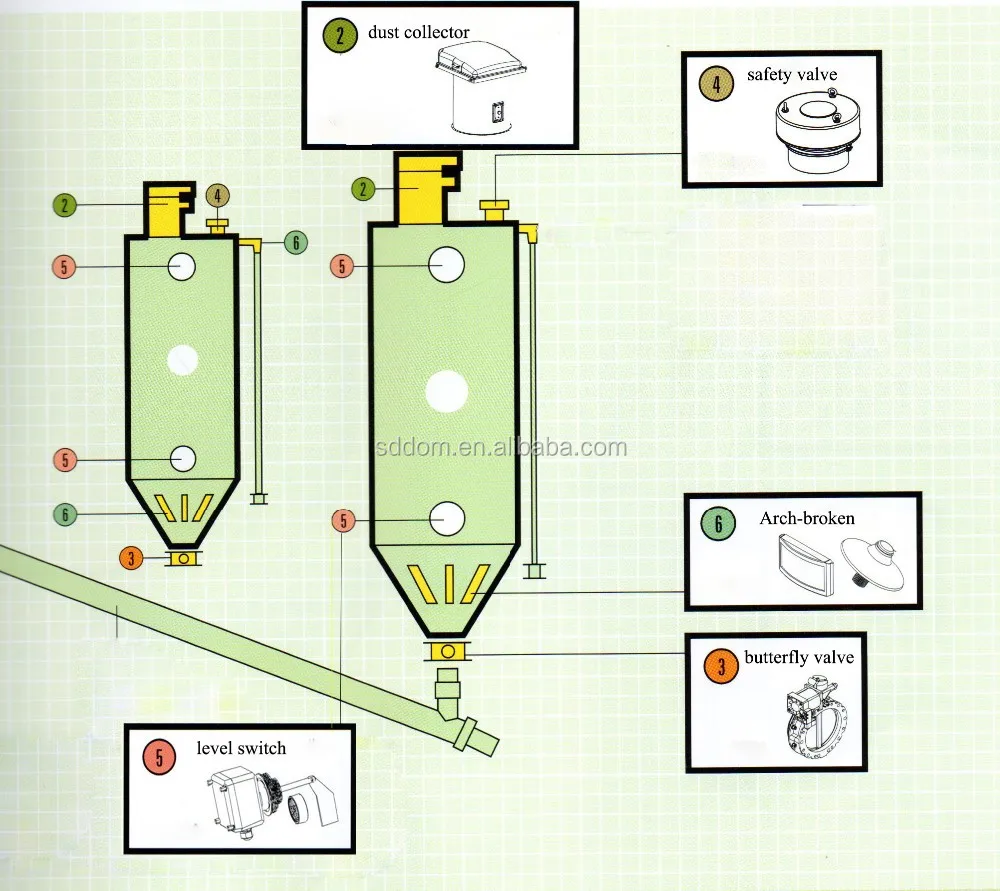

Used On Cement Silo
