Product Overview
Description
Product Description

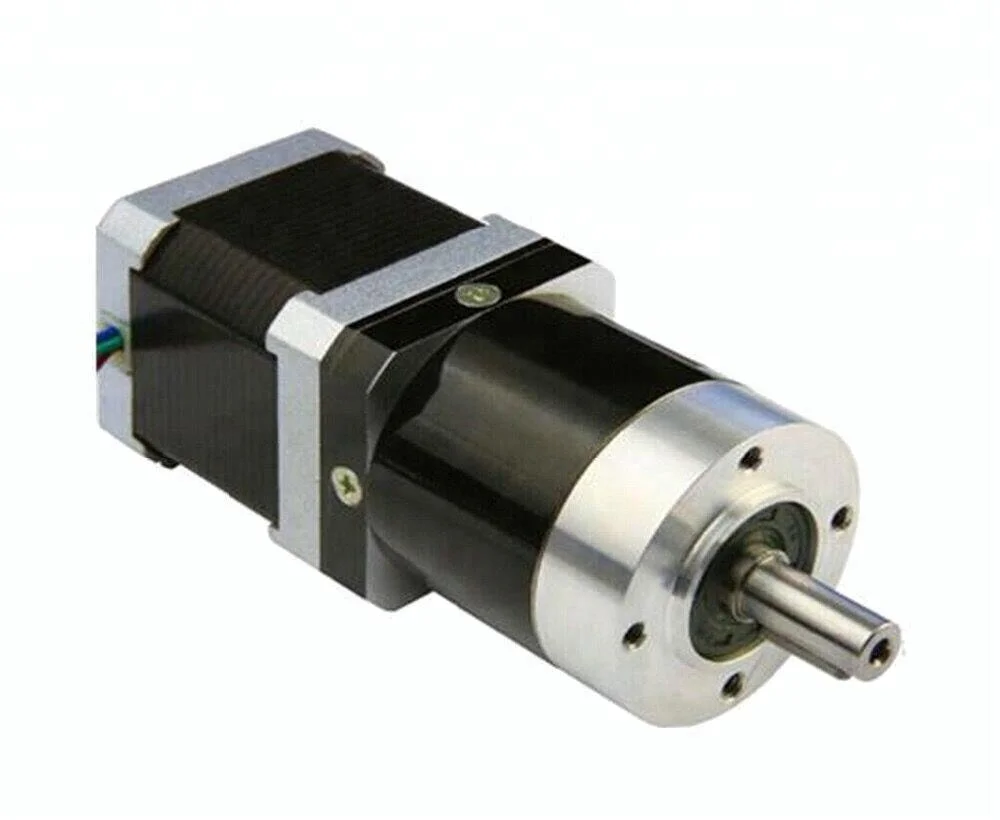

Motor length 76mm Torque 2 phase stepper motor
Item | Specifications |
|
Stepping accuracy | 5% | |
Temperature rise | 80℃ Max. | |
Ambient temperature | -20℃~+50℃ | |
Insulation resistance | 100MΩMin 500VDC | |
Dielectric strength | 500V AC 1minute | |
Allowable radial load | 0.06mm Max. (450g load) | |
Allowable thrust load | 0.08mm Max. (450g load) |
Specification
Model | Step Angle | Length | Torque | Current | Inductance | Rotor Inertia | Weight | Leads |
Unit | (°) | L(mm) | N.m | A | mH | g.cm2 | Kg |
|
DV57HB41 | 1.8° | 41 | 0.39 | 2.0 | 1.4 | 120 | 0.45 | 4/6 |
DV57HB51 | 51 | 0.72 | 3.0 | 0.9 | 275 | 0.65 | 4/6 | |
DV57HB56 | 56 | 0.9 | 3.0 | 1.1 | 300 | 0.7 | 4/6 | |
DV57HB76 | 76 | 1.35 | 3.0 | 1.6 | 480 | 1.03 | 4/6 | |
DV57HB84 | 84 | 1.8 | 3.0 | 3.0 | 520 | 1.15 | 4/6 |
§ Only the representation of the products and we can design according to clients’ requirement.

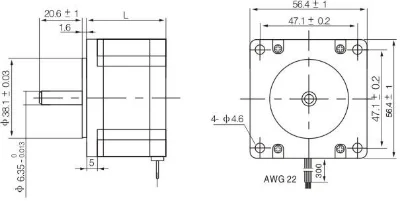

Dimension

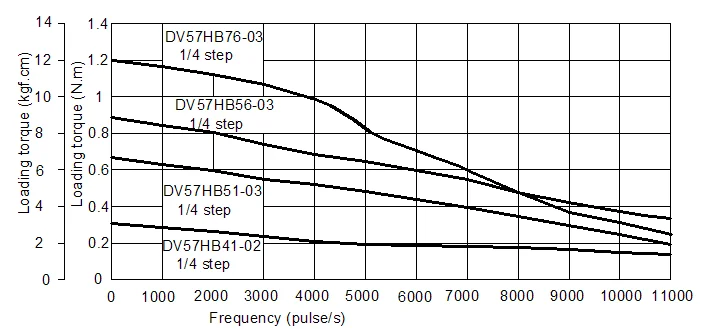

Characteristics
Connection
