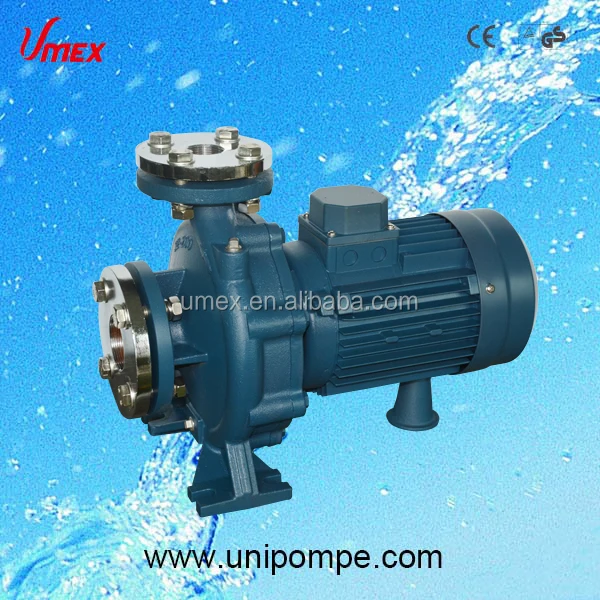

2SCM series double impeller electric standard centrifugal water pump

8Flow rate up to 250 l/min (15 m³/h)

8Head up to 70m

8Manometric suction lift up to 9m
8Liquid temperature up to +60°C
8Environment temperature up to +40°C

8These pumps are suitable for handling clean water without abrasive particles and liquids that are chemically non-aggressive to the pump components. Reliable, economical and simple to use, they are suitable for domestic use and in particular for distributing water in combination with small pressure sets, for irrigating gardens. The pumps must be installed in a covered area, protected against the inclement weather.

8Two –pole induction motor (n=2850rpm)
8Insulation Class B
8Protection grade IP44

8Pump body: Cast iron, with threaded opening ISO 228/1.
8Motor support: Cast iron
8Motor housing: Aluminum
8Impeller: Brass
8Shaft with rotor: Carbon steel or stainless steel
8Mechanical seal: Ceramic/ Graphite
8Bearing:  NSK, C&U, or local quality.

8Three-phase 220/380V-50Hz (60hz), single phase 220V/60Hz, 110V/60Hz, 127V/60Hz & 110V/220V/60Hz are available on request.

Q2.Why did you choose us?

 A:We have more than 10 years of experience in desjgning, manufacturing and trading a wide variety of pumps and pump fittings.

Q3.How does your factory do regarding quality control?

A:Quality is priority, and we will do 100% quality inspection before shipment.

Q4.Can we use our own logo and design?

A: Yes, you can. We'll produce pump on your brand and according to your design.

Q5.What's the delivery time of your products?

A: Usually the delivery time is 30-45 days after confirming order and detail. Delivery time is depend on your  purchasing quantity and production season.

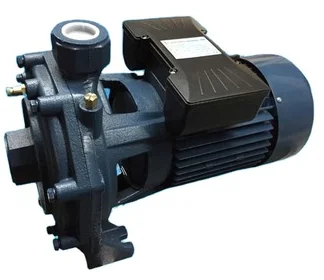

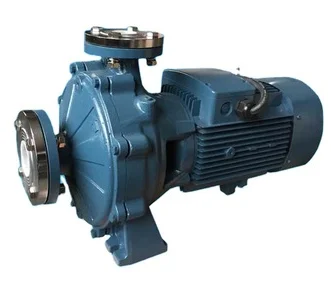

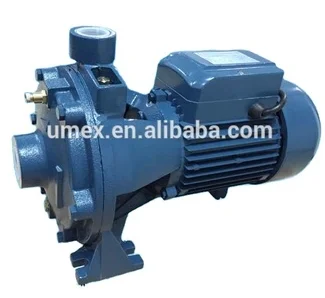

            2CHm25/140M                                      2CPM160/160                                       STN series
