Product Overview
Description

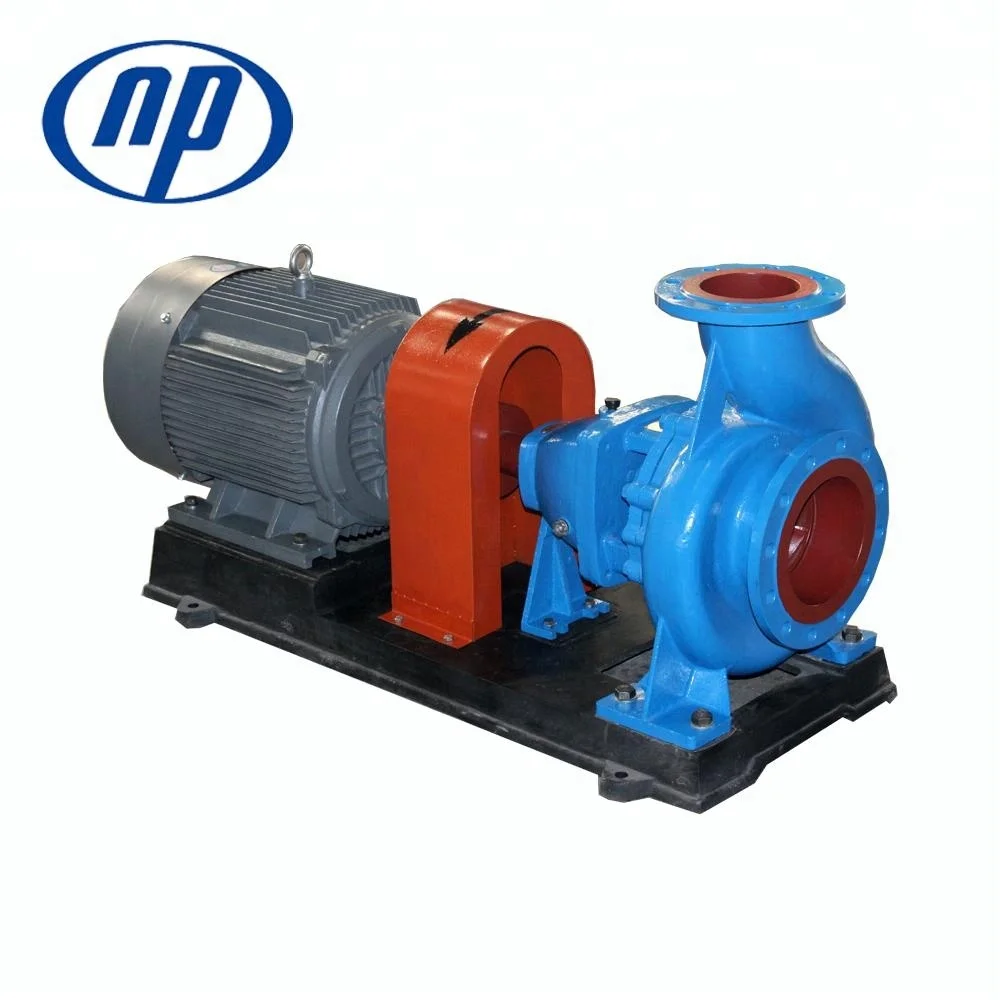

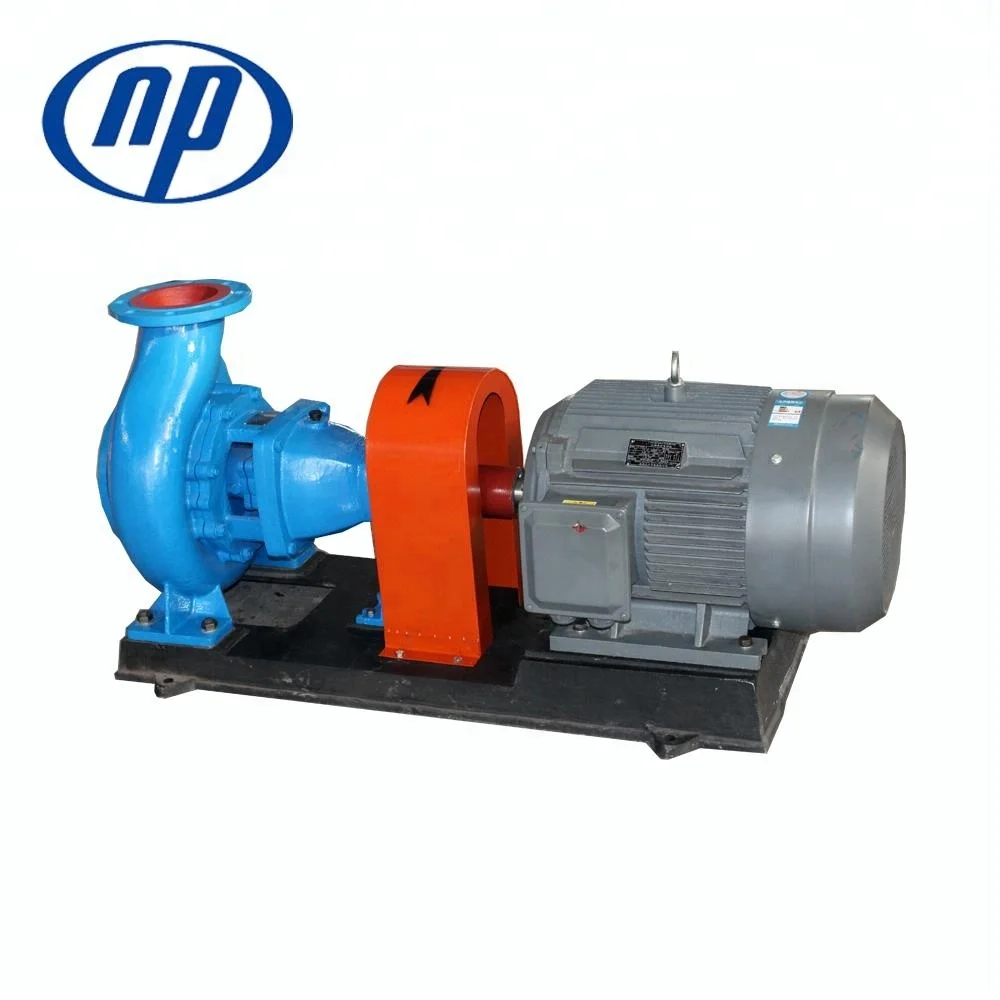

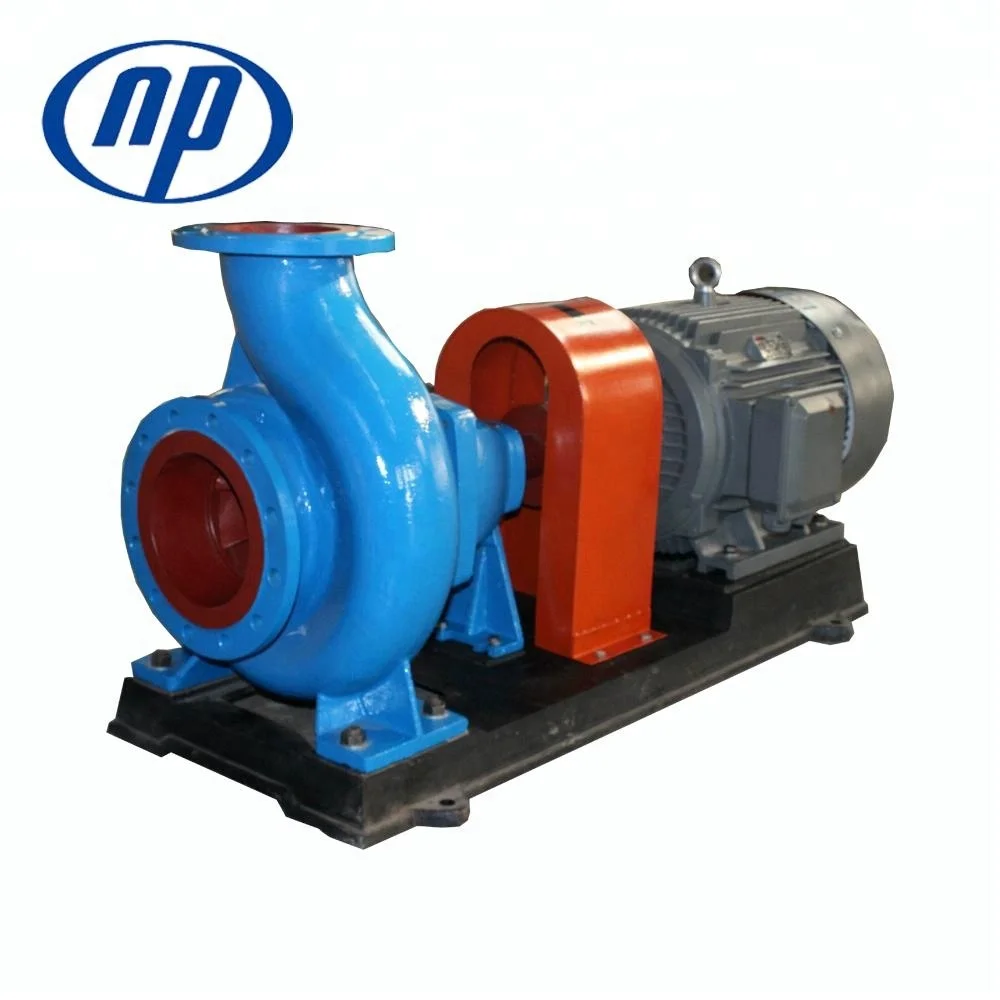

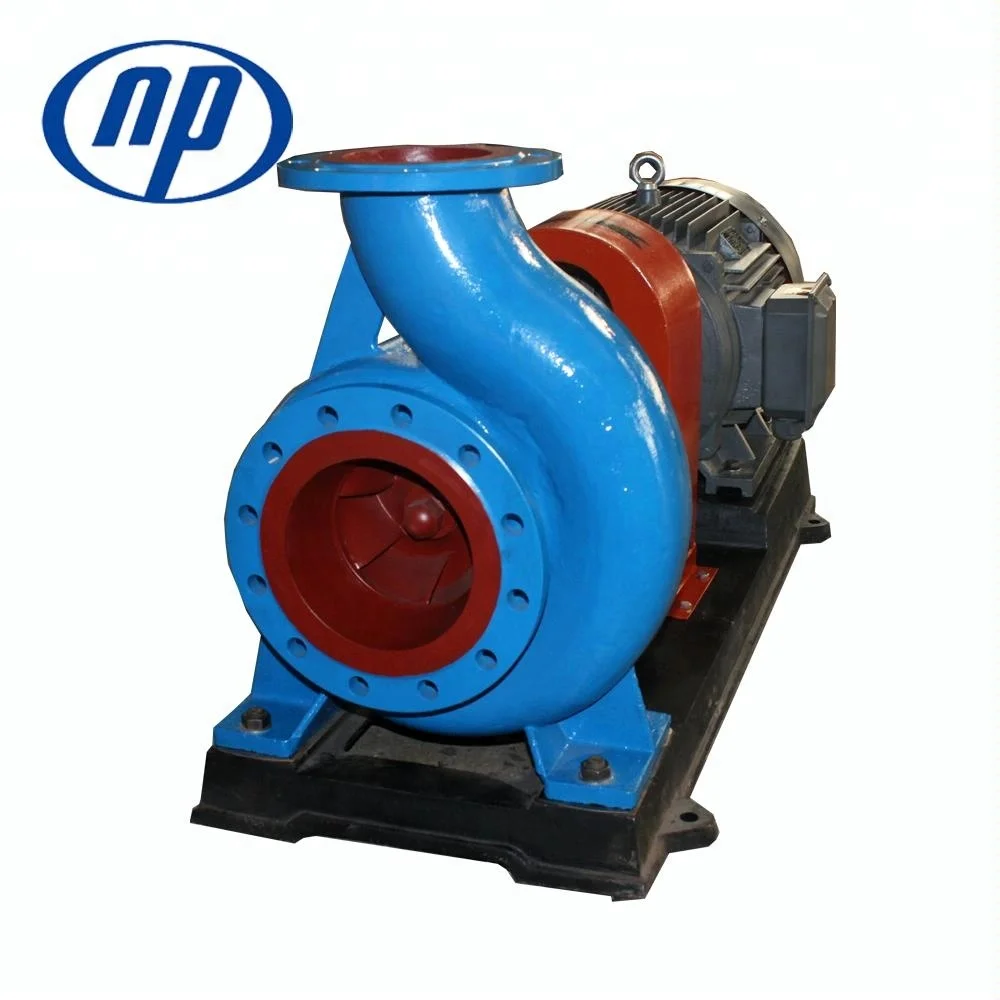

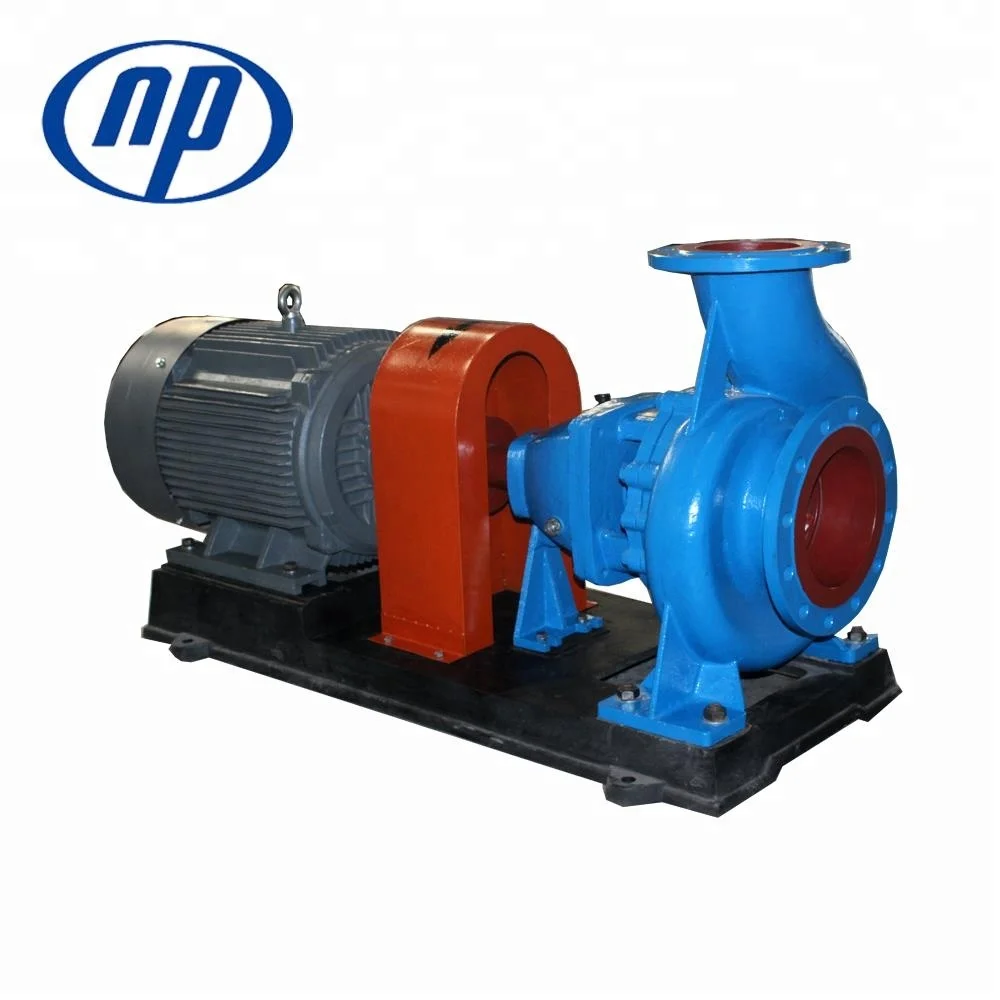

IH series SS316 Corrosion Resistance Stainless Steel Salt Water Pump
Product Description

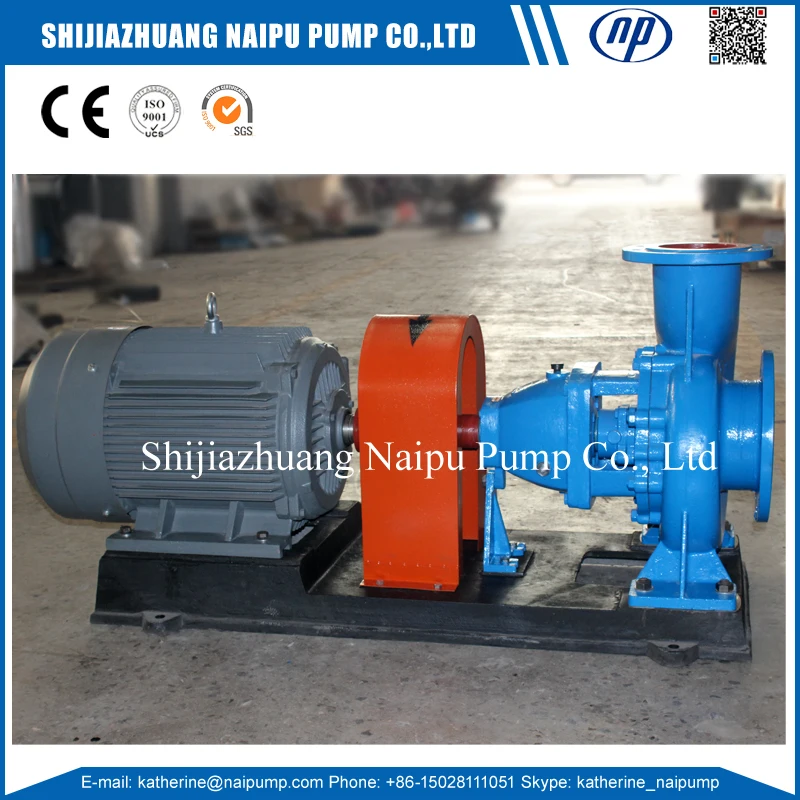

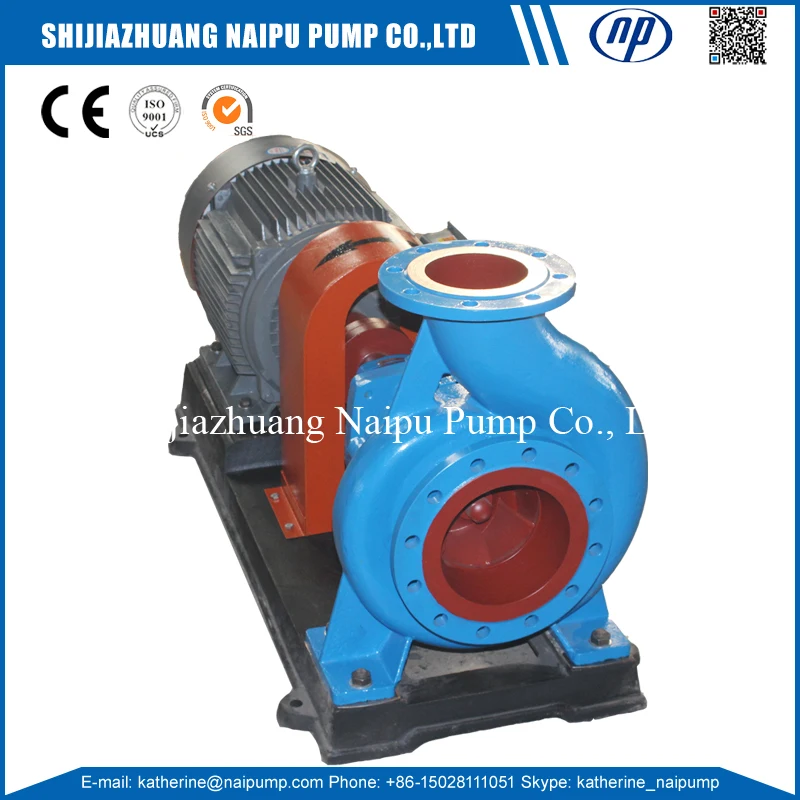

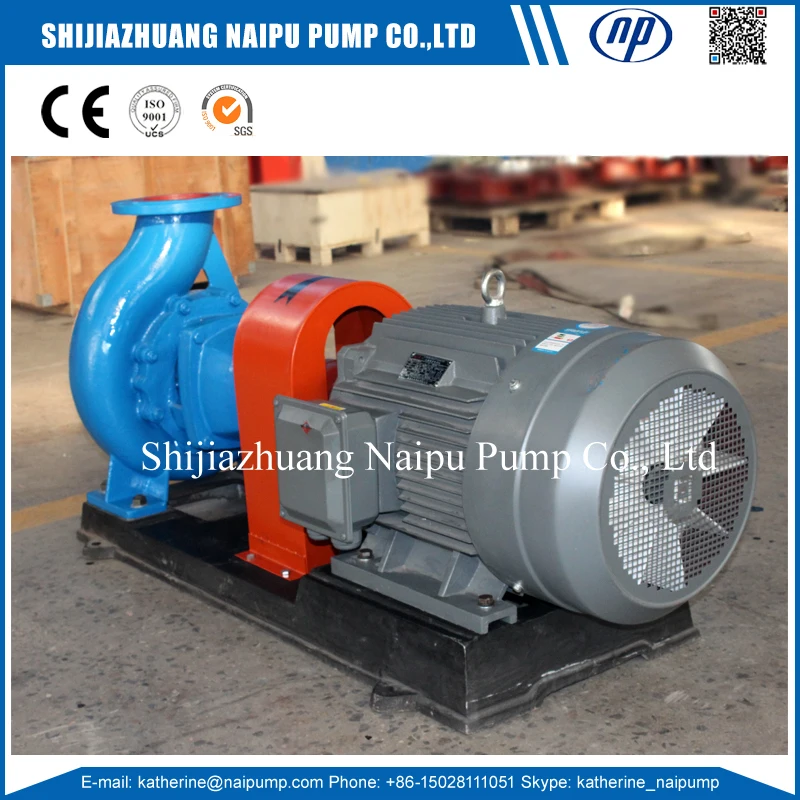

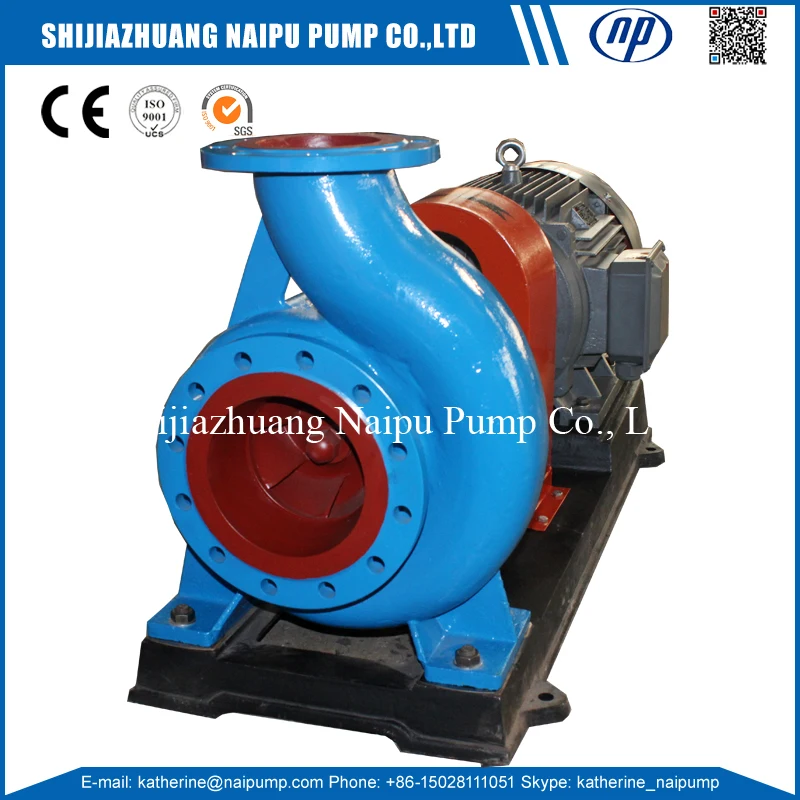

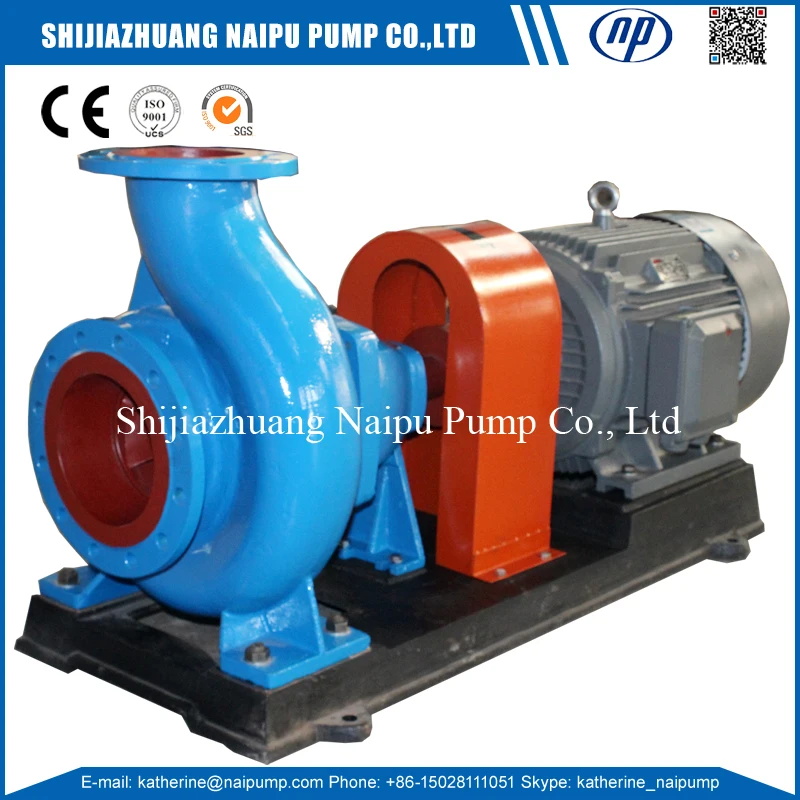

IH stainless steel water pump
NP-IH Series are single-stage single suction horizontal end suction centrifugal pumps designed for clean water or similar liquids in water supply and drainage applications in municipal, industrial and agricultural irrigation projects.
Centrifugal Water Pump Features
Designed in accordance with ISO2858 International Standard.
Back slide cover construction facilitated service and repairing work. Rotor may be easily pull
out without having to disturb suction and discharge pipes.
Soft packing for shaft sealing.
Flexible spacer coupling.
Water Pump Performance Data
Flow Range: 6.3 ~ 400m3/hr
Head Range:5 ~ 125m
Suction Dia.: 50 ~ 200
Pump Speed: 1450/2900 rpm
Fluid Temp.: up to 80°C
Pump Parameters

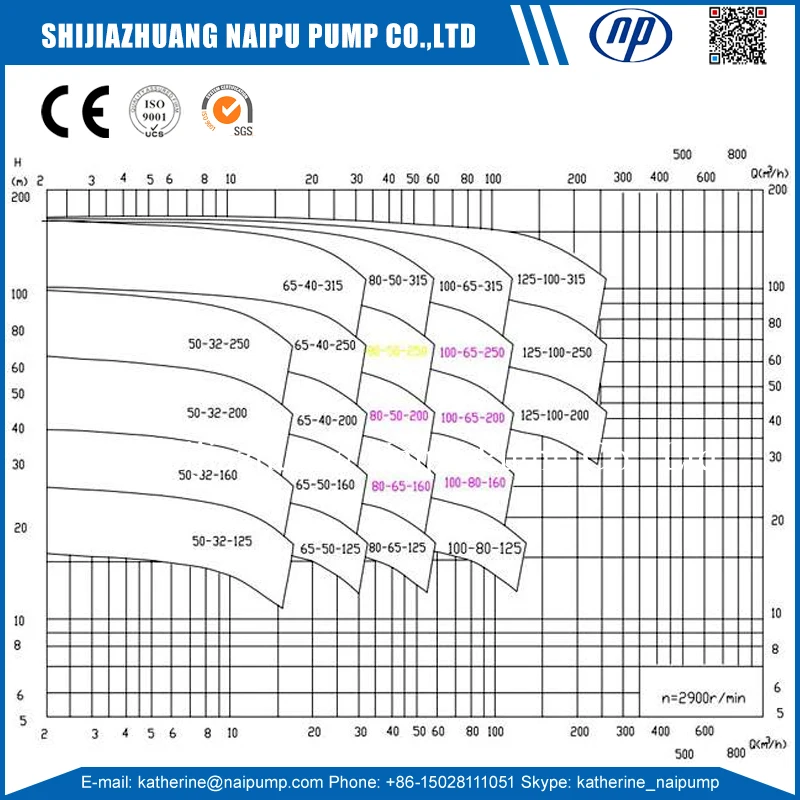

IS Water pump selection chart
( Note: Approximate performance for clear water,to be used for primary selection only.)
Model Nomenclature
e.g. IS80-65-160
IS — Single Stage End Suction Centrifugal Pump
80 — Suction Dia. (mm)
65 — Discharge Dia. (mm)
160 — Impeller Dia. DN (mm)
Pump performance parameters
| Type | Speed(rpm) | Capacity(m3/h) | Head(m) | Eff.(%) | Motor power(kw) | NPSHr(m) |
| IH50-32-125 | 2900 | 7.5-15 | 22-18.5 | 47-60 | 2.2 | 2-2.5 |
| 65-50-125 | 2900 | 15-30 | 21.8-18.5 | 58-68 | 3 | 2-2.5 |
| IH85-68-125 | 2900 | 30-6 | 36-29 | 61-72 | 7.5 | 2.5-3 |
| IH100-80-125 | 2900 | 60-120 | 24-16.5 | 67-74 | 11 | 4-5 |
| IH125-100-200 | 2900 | 120-240 | 57.5-44.5 | 67-80 | 45 | 4.5-5 |
| IH150-125-250 | 1450 | 120-240 | 22.5-17.5 | 71-78 | 18.5 | 4.5-5 |
| IH200-150-400 | 1450 | 240-460 | 55-45 | 74-81 | 90 | 3-4.5 |
Product Construction

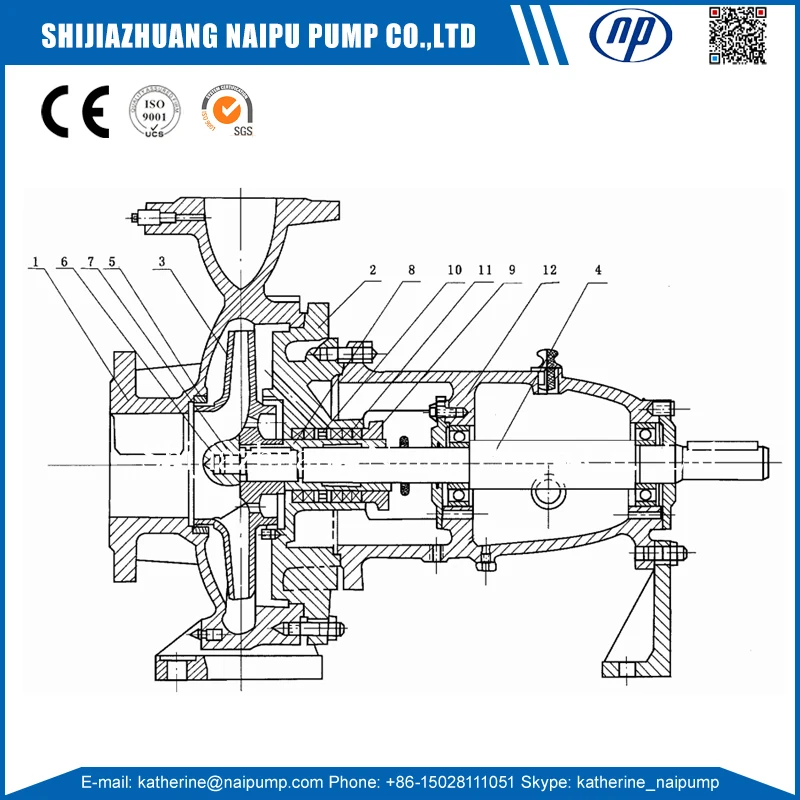

1. Water pump construction drawing
2. Main part number at the drawing
| 1: Pump casing 2: Pump cover 3: Impeller 4: Shaft 5: Wear ring 6: Impeller cap | 7: Braking pad 8: Shaft sleeve 9: Packing gland 10: Seal cage 11: Packing 12: Cantilever bearing assembly |
Related Products
We can produce many kinds of centrifugal slurry pump for mining, sand and other solids slurry transporting.
 |  |

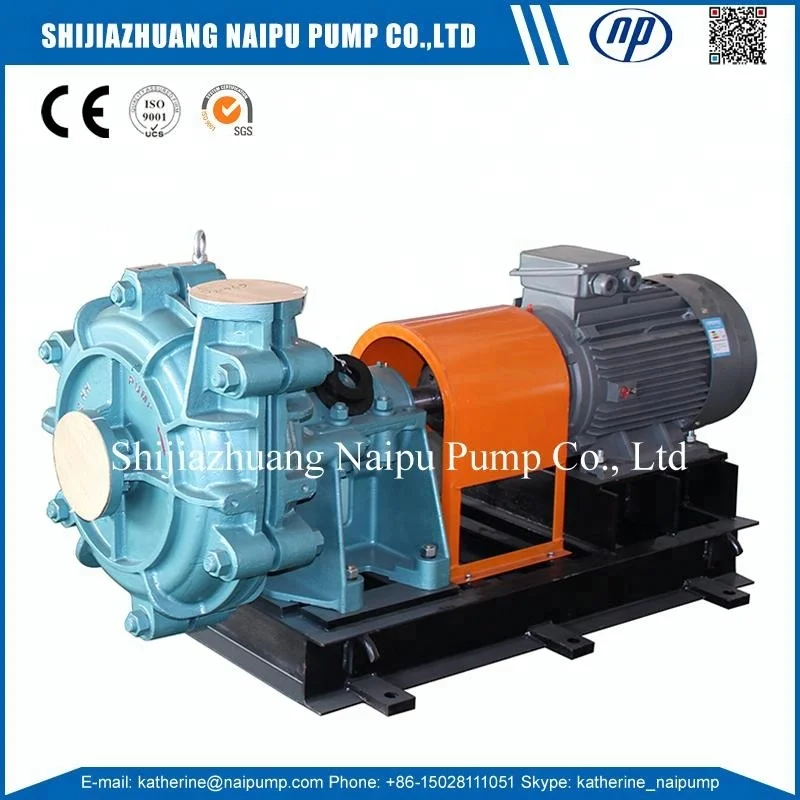

| A05 HH Slurry Pump | IS Water Pumps |
 |  |
| Cr27 Horizontal Slurry Pump | A05 Horizontal Slurry Pump Casing |
Certifications
CE, SGS, ISO9001 Certification
