The brief description of Multi-functional puff snack extruder lab twin screw extruder:

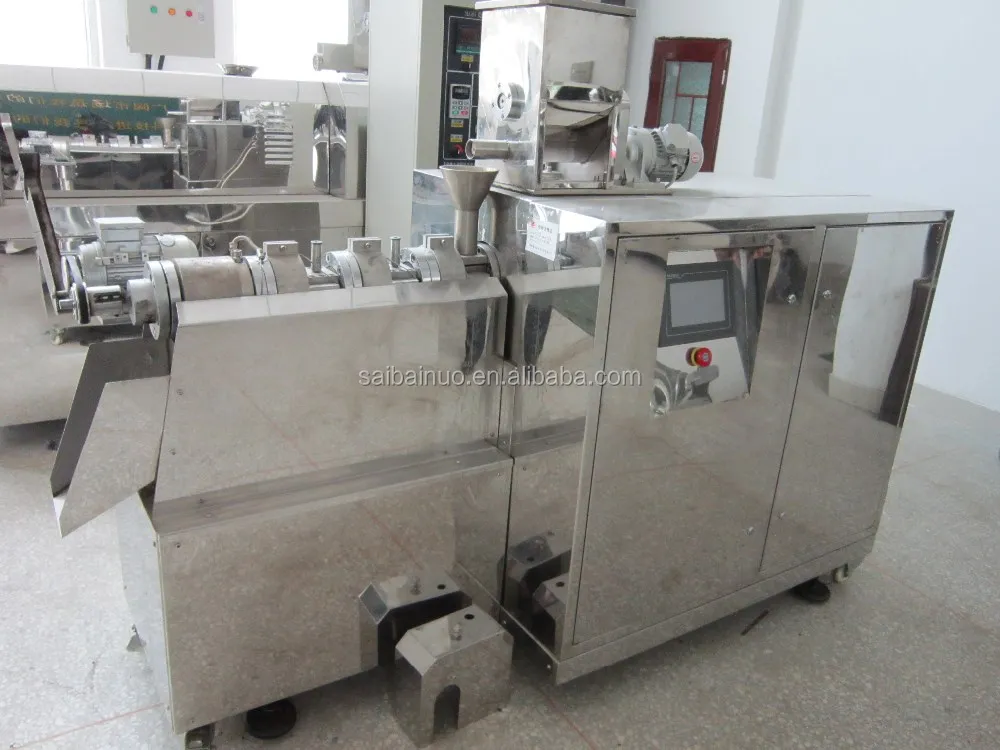

(1) Lab twin-screw food extruder SYSLG30 is special for universities, research institutes and large and medium-sized enterprises engaged in various extrusions, extruded maturation, extruded variability study omnipotent models. It has gone through four generations of improvements to adapt to cereals; potato starch, protein, chemicals, plastics, rubber and other raw materials are vastly different for a variety of experiments. Powerful, easy to operate and simply of parameters adjustment, test data accurate, easy maintenance .
(2)Pls note that all of our other food extruder are desgining according to the lab type. Our other food extruder include 1ton,500kg/h,250kg/h,100kg/h production cpacity food extruder.
Name: | Parameters | Name: | parameters |
Engine power | 4-5.5KW | Feeding speed control | Inverter speed-control |
Engine speed-control | Inverter speed-control | Heating way | Electric heating band |
Screw diameter | ∮30mm | Cooling way | Water cooling |
Screw central distance | 26mm | Temperature scope | 20℃-300℃ |
Screw Speed range | 0-500rpm | Temperature precision | ±1.0℃ |
Screw mode | Building block-combined type | Temperature measuring | 4 points |
First series L/D | 11.6 12.7 23 | Output | 5-10KG/H |
Material of screw | 38CrMoAl Nitriding | Material of cover | Mirror finishing S.S.304 |
Pressure scope | 0-30MPa | Control system | PLC, Touch screen |
Pressure precision | 0.1MPa | Motor Brand | Siemens |
Cutting speed control | Inverter speed-control | Inverter Brand | Delta |
Extruder:
Name: Cutting system
Motor:Siemens 0.37kw
Speed control: Inverter
Speed range: 0-1440rpm
Blade Material: Alloy steel
Totally it can fix four blades, this system will cut down the product from the mould.
Name: Touch Screen PLC Control System
Touch screen: Siemens
1. Set all parameters by this screen(speed of screw, speed of raw material feeding, speed of cutting, temperature of the barrel, control the pressure)
2.Display all parameters
3.Download the testing data by USB

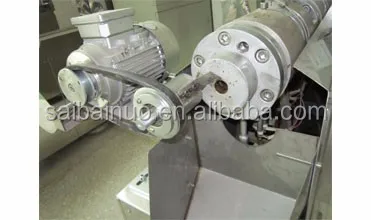

Name: Main Motor and Gear box
Motor: Siemens 4-5.5kw
1.This is main motor, Connect to gear box input shaft directly.
2.The speed is controlled by Inverter
3.The gear box have recycle oil lubrication system suitable for long time work.
Name: Raw Material Feeder
Motor: Siemens 0.37KW
Raw material: S.S.304
Speed: Controlled by Inverter
Volume: 10L (store 4-5kg raw material)
It uses the screw to feed the raw material into Extruder.

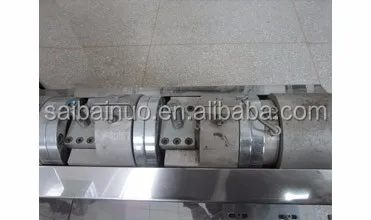

Name:Heating and Cooling System of Barrel
Heating: electricity heating
Cooling: water cooling
Temperature range: 20-300℃
Heating power: 6KW
Heating and cooling are controlled by the PLC automatically. The temperature accuracy is ±1℃

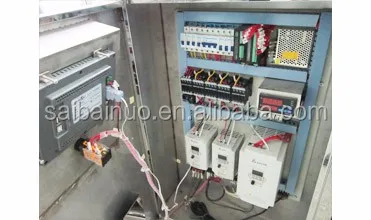

Name: Electric Devices
Inverter: Delta
Breaker: Siemens
PLC: Siemens
Switch: Siemens
All parts we use world famous Brand
Name: Double Screw
Type: Building block combined type screw
Material: 38CrMoAl nitriding
Hardness:60HRC
Diameter: 30mm
It is combined by pieces screw, we can adjust the pieces screw to change the pressure and pushing speed of the screw. It is very convenient for Lab to test various raw material
1. Series of twin-screw extruder consists of feeding system, extrusion system, rotary system, heating system, drive system and control system;
2. Feeding system, drive system and rotary system of the extruder all adopt frequency conversion speed adjusting system, so possessing strong power flow and balanced operation;
3. Automatic lubrication and forced cooling ensure the safe operation of the extruder;
4. According to different material to choose single or twin screw feeding system;
5. Because of special process used, the screw is anti-friction, anti-fatigue and has long service life;
6. Different screw diameter ratio structure meets different process requirement.
Together with our customer:
Talk about the details of the machine, show our factory to customers:
Certifications
Our Service
Our Services:
Pre-sale services:
1) Provide the free consultation of the equipment;
2) Provide the standard device and the flow chart;
3) According to the clients' special requirement, offering the reasonable plan and free design helping to select the equipment;
4) Welcome to visit our factory or the domestic clients' factory.
Services during the sales:
1) Help client design the factory and offering professional advice, free engineering drawing for the Factory layout;
2) Inspect the machine before leaving the factory;
3) Oversea install and debug the equipment;
4) Train the first-line operator;
5) Provide the basic formula.
After sale services:
1). At least 1 year from the date of completion of the commissioning;
2). Free consultation service before, during, and after sales;
3). Free project planning and design services;
4). Free debugging of equipment until everything is functional;
5). Free management of equipments' long distance shipping;
6). Free training of equipment maintenance and operating personally;
7). Free new production techniques and formulas;
8). Provide 1 year complete warrantee and life-time maintenance service.
Packing & Delivery
Packaging & Shipping:
1).Packaging: daub coal oil on the surface to protect the machine from moisture, Then cover with plastic film.Finaly pack them with wooden case.
2).If you want to know the transportation cost: by air-please tell me your airport name; by express-please tell me your detailed address(including zip code,house number,street,city,country); by ship-pls tell me your delivery port.
