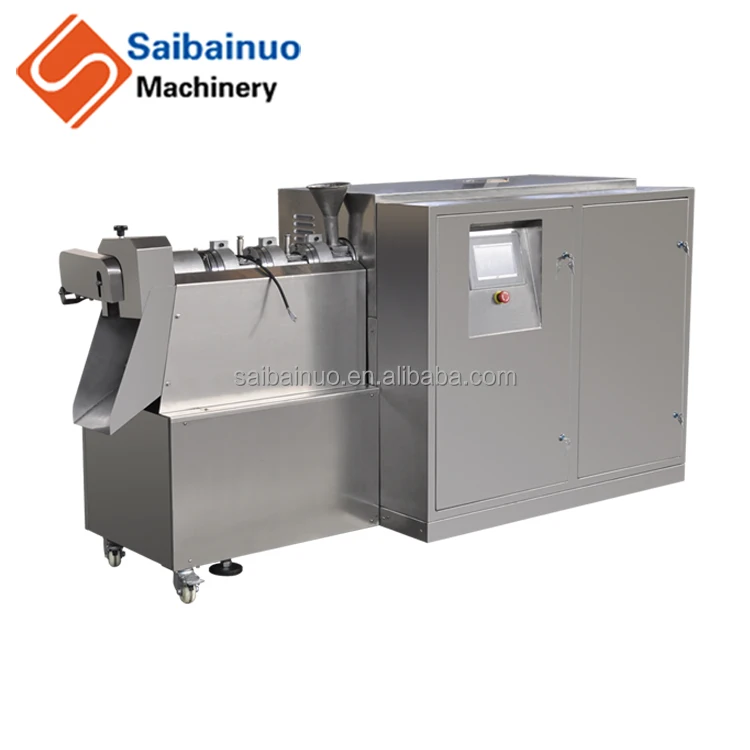

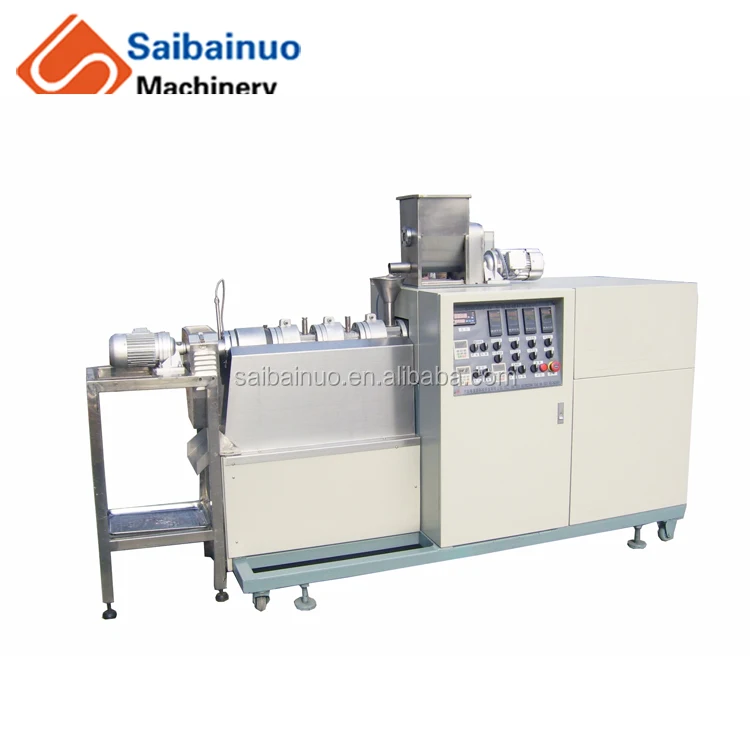

International lab extruder for making pet pellet food
- Category: >>>
- Supplier: Jinan Saibainuo Machinery Co. Ltd.
Share on (60580701833):
Product Overview
Description
Product Description
The brief description of International lab extruder for making pet pellet food:
1.The main extruder adopts frequency speed controlling with high automation and stable per-formation.
2.The screws are made of the alloy steel and special craft,durable usage,high pressure,the screw life is longer.Adopting the building block structure and combining willingly according to the different demand.
3.The forced lubrication system,so that it can guarantee the equipment transmission life is longer.
4.Auto-temperature control system, make the temperature controlling more direct viewing and the parameter more precise.
5.Self-cleaning ,when stopping ,it can be cleaned without desassembling.
6.According to different screw design rate to full different technology request.
7.This equipment has the wide material,multi-shape products and flexible collocations.We can produce the different products according to the different models.
Name: | Parameters | Name: | parameters |
Engine power | 4-5.5KW | Feeding speed control | Inverter speed-control |
Engine speed-control | Inverter speed-control | Heating way | Electric heating band |
Screw diameter | ∮30mm | Cooling way | Water cooling |
Screw central distance | 26mm | Temperature scope | 20℃-300℃ |
Screw Speed range | 0-500rpm | Temperature precision | ±1.0℃ |
Screw mode | Building block-combined type | Temperature measuring | 4 points |
First series L/D | 11.6 12.7 23 | Output | 5-10KG/H |
Material of screw | 38CrMoAl Nitriding | Material of cover | Mirror finishing S.S.304 |
Pressure scope | 0-30MPa | Control system | PLC, Touch screen |
Pressure precision | 0.1MPa | Motor Brand | Siemens |
Cutting speed control | Inverter speed-control | Inverter Brand | Delta |

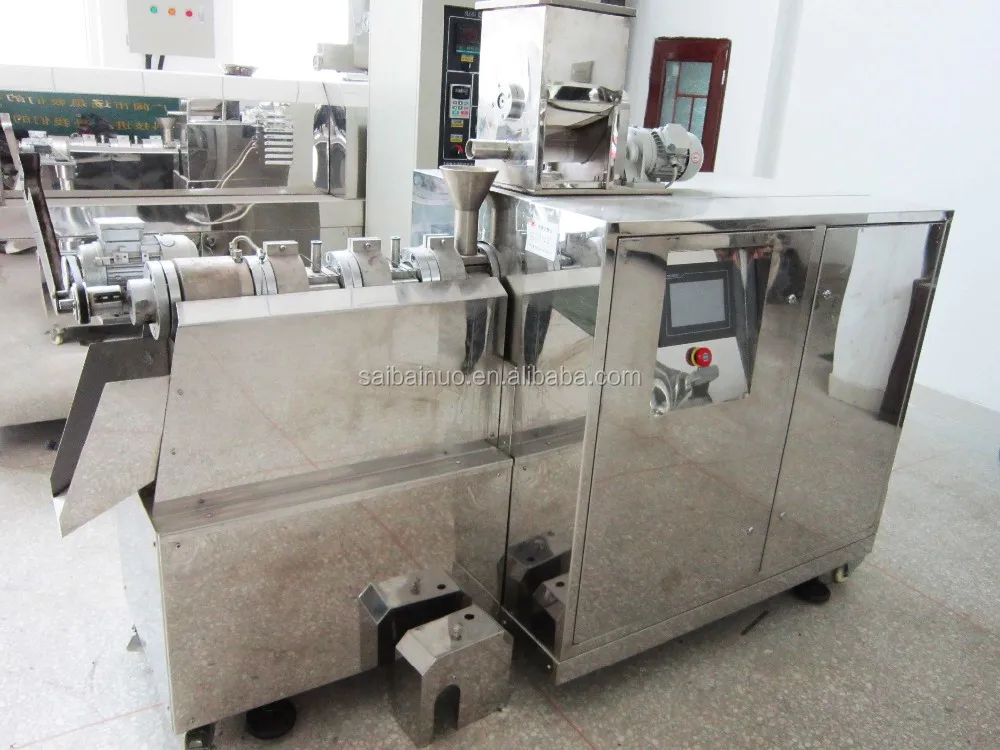

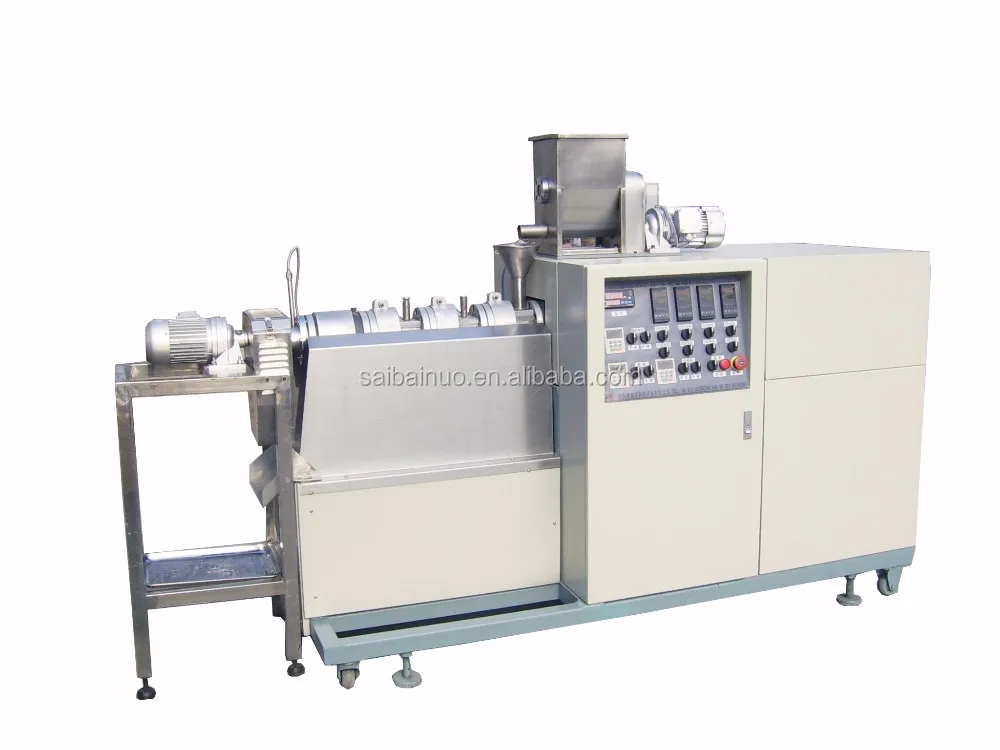

Extruder:

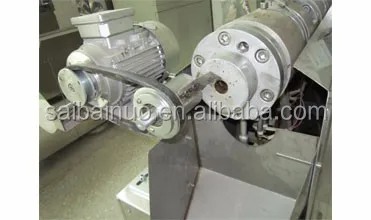

Name: Cutting system
Motor:Siemens 0.37kw
Speed control: Inverter
Speed range: 0-1440rpm
Blade Material: Alloy steel
Totally it can fix four blades, this system will cut down the product from the mould.

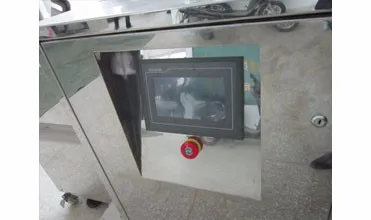

Name: Touch Screen PLC Control System
Touch screen: Siemens
1. Set all parameters by this screen(speed of screw, speed of raw material feeding, speed of cutting, temperature of the barrel, control the pressure)
2.Display all parameters
3.Download the testing data by USB

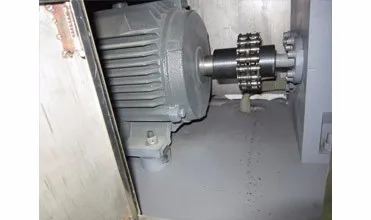

Name: Main Motor and Gear box
Motor: Siemens 4-5.5kw
1.This is main motor, Connect to gear box input shaft directly.
2.The speed is controlled by Inverter
3.The gear box have recycle oil lubrication system suitable for long time work.

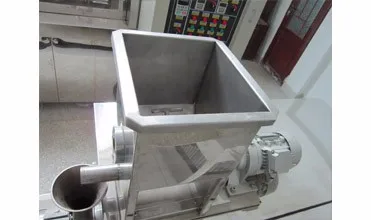

Name: Raw Material Feeder
Motor: Siemens 0.37KW
Raw material: S.S.304
Speed: Controlled by Inverter
Volume: 10L (store 4-5kg raw material)
It uses the screw to feed the raw material into Extruder.

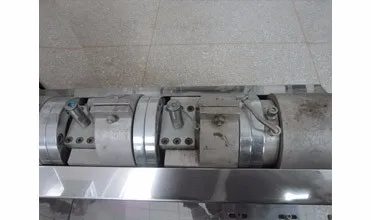

Name:Heating and Cooling System of Barrel
Heating: electricity heating
Cooling: water cooling
Temperature range: 20-300℃
Heating power: 6KW
Heating and cooling are controlled by the PLC automatically. The temperature accuracy is ±1℃

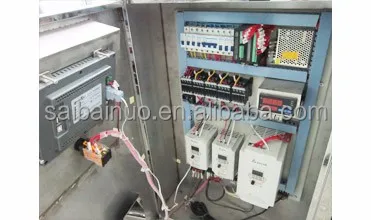

Name: Electric Devices
Inverter: Delta
Breaker: Siemens
PLC: Siemens
Switch: Siemens
All parts we use world famous Brand

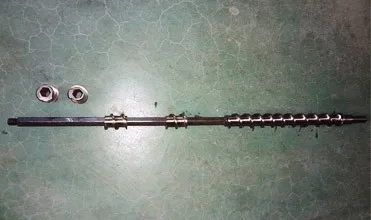

Name: Double Screw
Type: Building block combined type screw
Material: 38CrMoAl nitriding
Hardness:60HRC
Diameter: 30mm
It is combined by pieces screw, we can adjust the pieces screw to change the pressure and pushing speed of the screw. It is very convenient for Lab to test various raw material
Laboratory Extruder adopt corn, rice, wheat, oat, barley etc as ingredients to make puffed snack. Through friction of screw and barrel, the grains are cooked in the extruder. Forming is at the die face cutter. The product shape is determined by
a combination of the die aperture, including ball, tube, stick, ring, fruit loop, star, wheel and flower etc.
Together with our customer:

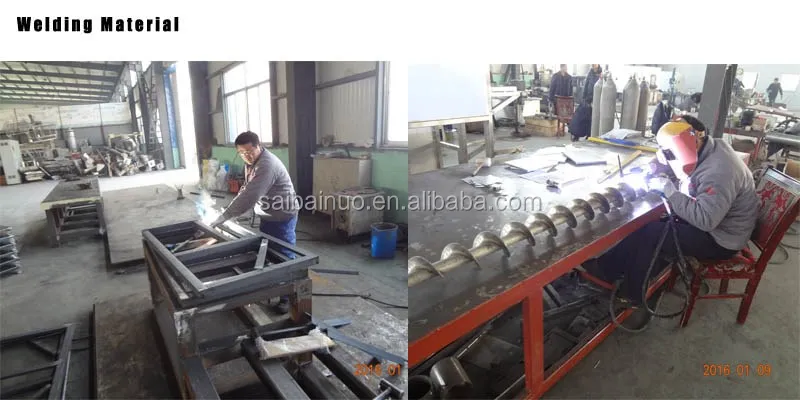

Talk about the details of the machine, show our factory to customers:
Certifications
Our Service
Our Services:
Pre-sale services:
1) Provide the free consultation of the equipment;
2) Provide the standard device and the flow chart;
3) According to the clients' special requirement, offering the reasonable plan and free design helping To select the equipment;
4) Welcome to visit our factory or the domestic clients' factory.
Services during the sales:
1) Help client design the factory and offering professional advice, free engineering drawing for the Factory layout;
2) Inspect the machine before leaving the factory;
3) Oversea install and debug the equipment;
4) Train the first-line operator;
5) Provide the basic formula.
After sale services:
1). At least 1 year from the date of completion of the commissioning;
2). Free consultation service before, during, and after sales;
3). Free project planning and design services;
4). Free debugging of equipment until everything is functional;
5). Free management of equipments' long distance shipping;
6). Free training of equipment maintenance and operating personally;
7). Free new production techniques and formulas;
8). Provide 1 year complete warrantee and life-time maintenance service.

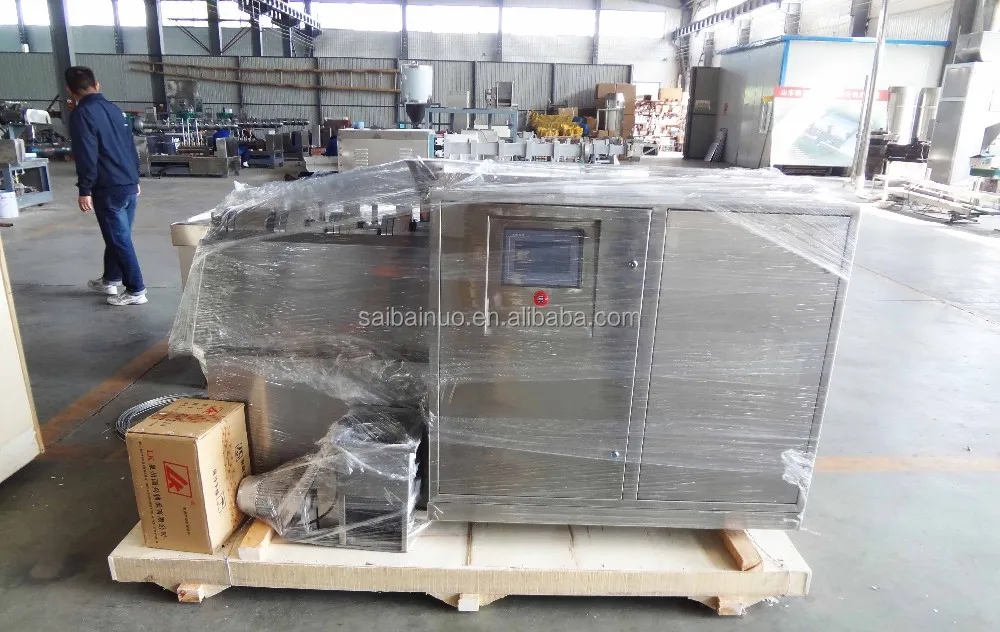

Packing & Delivery
Packaging & Shipping:
1).Packaging: daub coal oil on the surface to protect the machine from moisture, Then cover with plastic film.Finaly pack them with wooden case.
2).If you want to know the transportation cost: by air-please tell me your airport name; by express-please tell me your detailed address(including zip code,house number,street,city,country); by ship-pls tell me your delivery port.
