Runtx 3 ton 4WD all Rough Terrain forklift
- Category: Forklifts >>>
- Supplier: Xiamen Runtx Machinery Co. Ltd.
Share on (60580740403):
Product Overview
Description
Products Description

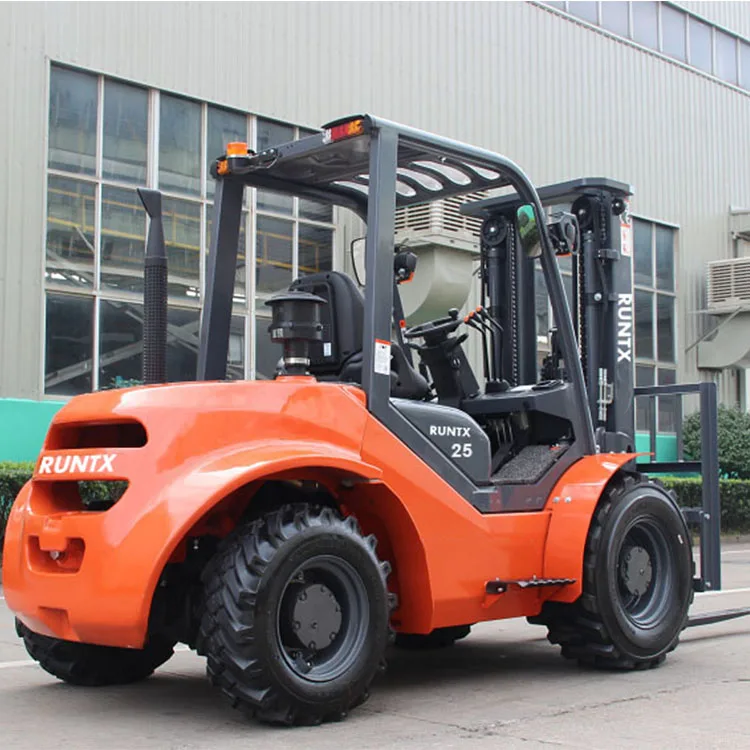

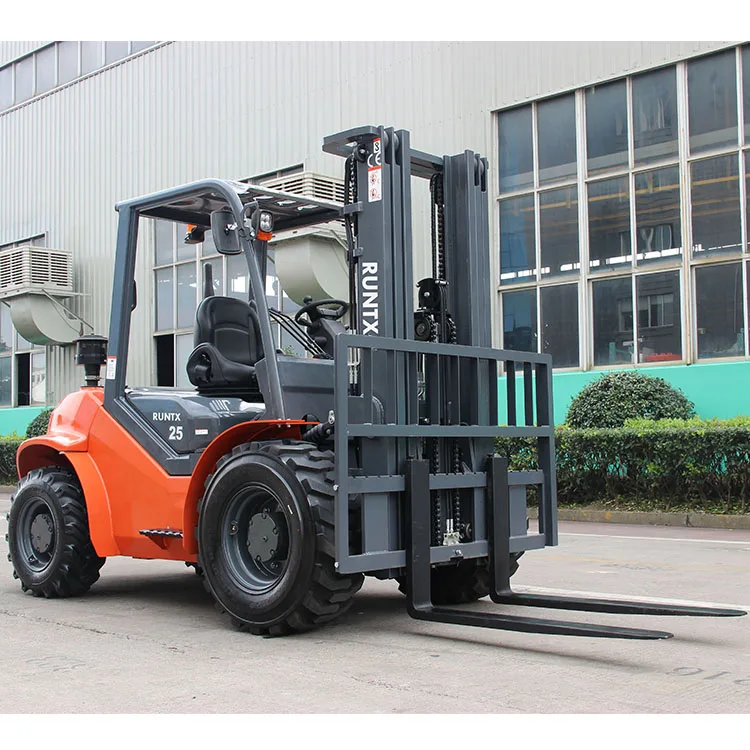

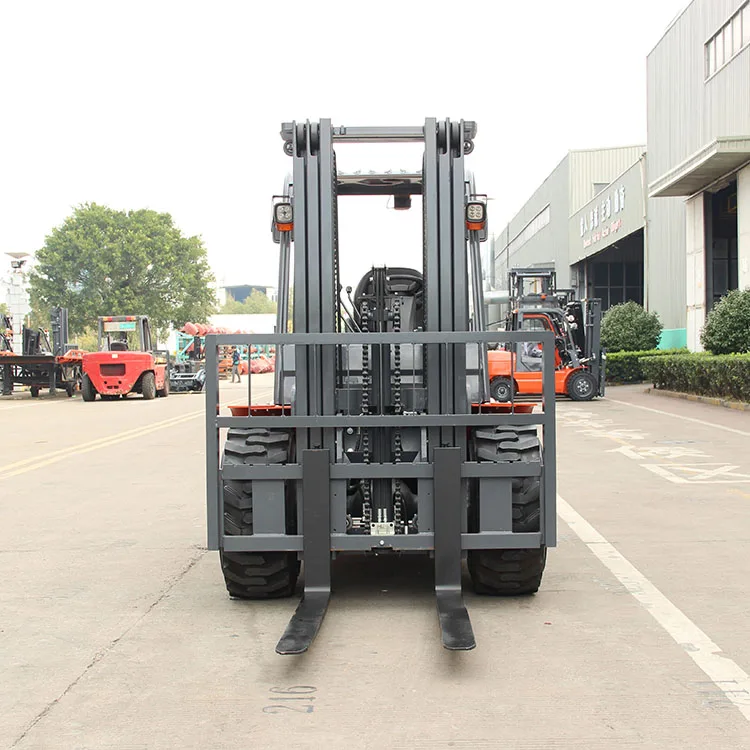

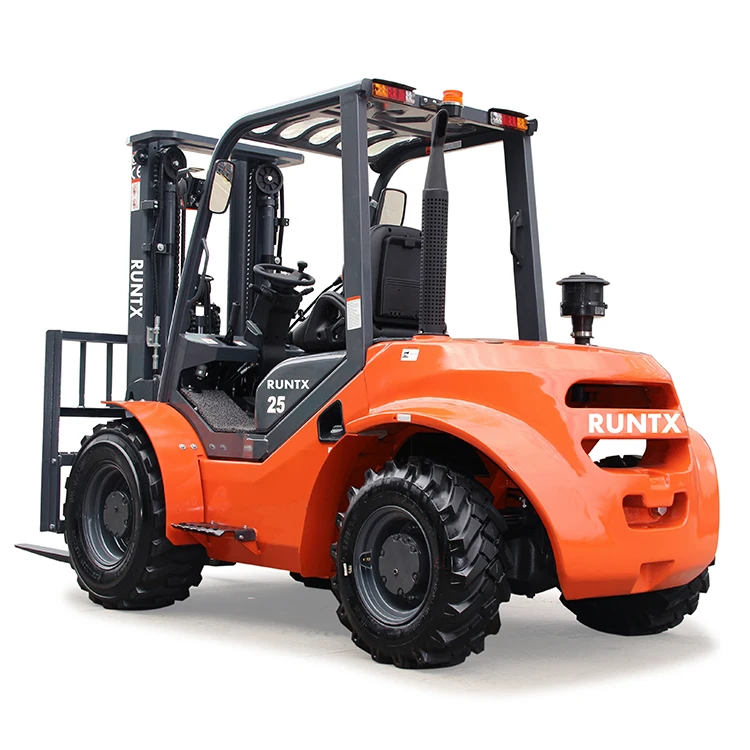

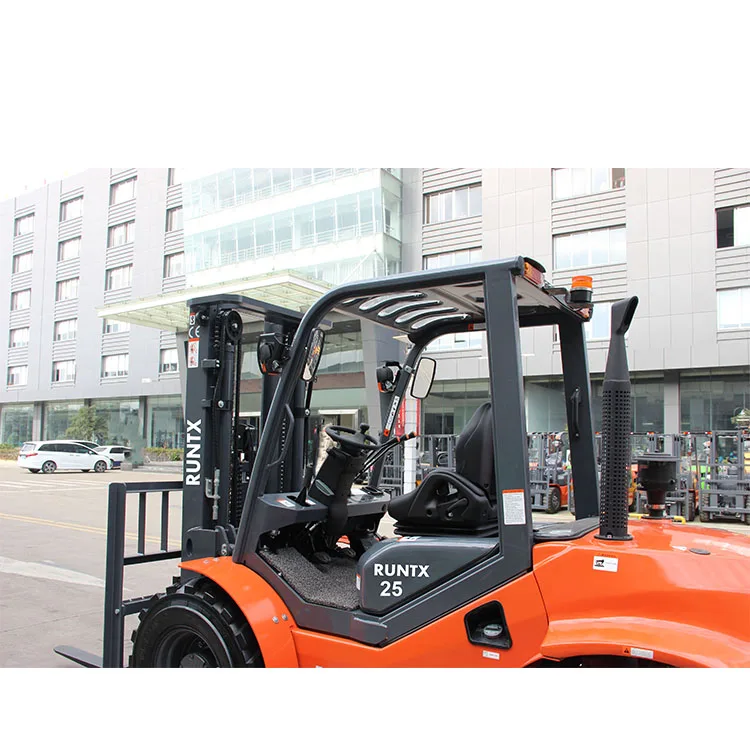

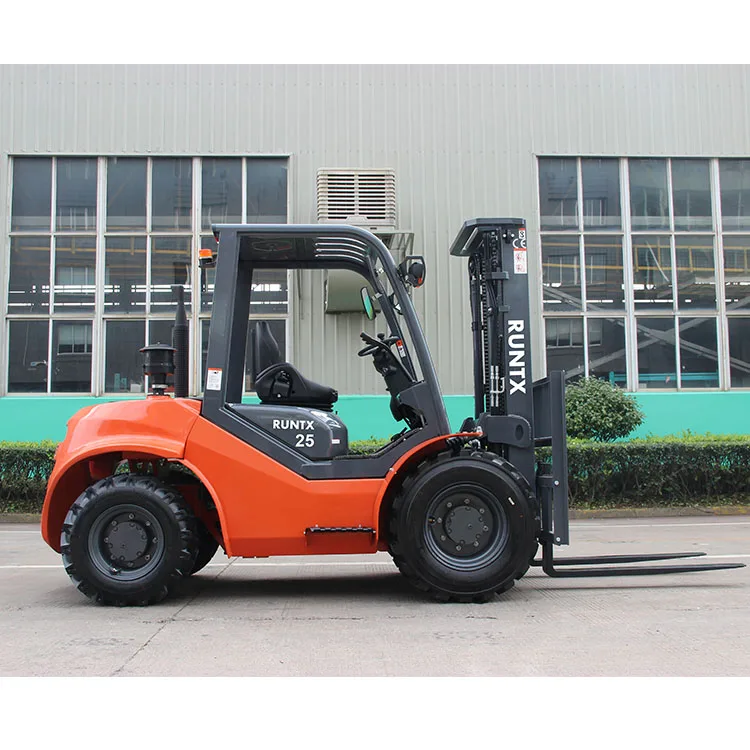

Runtx 3 ton 4WD all Rough Terrain forklift
Model | FD30RT2 | FD35RT2 | |||
Power Type | Diesel | Diesel | |||
Rated Capacity | kg | 3000 | 3500 | ||
Load Centre | mm | 500 | 500 | ||
Lift Height | mm | 3000 | 3000 | ||
Fork Size | L x W x T | mm | 1220x125x45 | 1220x125x50 | |
Mast Tilt Angle | F/R | Deg | 10/12 | 10/12 | |
Front Overhang(wheel centre to fork face) | mm | 700 | 705 | ||
Ground Clearance(bottom of mast) | mm | 135 | 135 | ||
Overall Dimension | Forklift length(without fork) | mm | 3252 | 3252 | |
Overall width | mm | 1835 | 1835 | ||
Mast Lowered height | mm | 2230 | 2260 | ||
Mast Extended Height(with backrest) | mm | 4245 | 4245 | ||
Overhead Guard Height | mm | 2250 | 2250 | ||
Turning Radius(outside) | mm | 4380 | 4380 | ||
Min intersecting aisle | mm | 3040 | 3040 | ||
Speed | Travel(empty/full load) | km/h | 24/25 | 24/25 | |
Lifting(empty/full load) | mm/s | 480/500 | 480/500 | ||
Max Gradeability | % | 30 | 30 | ||
Tire | Front | mm | 405/70-20-14PR | 14-17.5-14PR | |
Rear | mm | 10.0/75-15.3-12PR | 27x10-12-12PR | ||
Wheelbase | mm | 1835 | 1835 | ||
Service Weight | kg | 5700 | 5900 | ||
Battery | Voltage/Capacity | V/Ah | 12/120 | 12/120 | |
Engine | Model | 4H50TIC | |||
Manufacture | Hatz | ||||
Rated output/r.p.m. | kw | 54.9/2360 | |||
Rated torque/r.p.m. | N.m | 240/1600-1900 | |||
No.of Cylinder | 4 | 4 | |||
Bore x Store | mm | 84X88 | |||
Displacement | cc | 1.952 | 3059 | ||
Fuel Tank Capacity | L | 80 | 80 | ||
Transmission | Type | Hydraulic | |||
Stage FWD/RVS | 3/2 | 3/2 | |||
Operating Pressure for Attachment | Mpa | 18 | 18 | ||

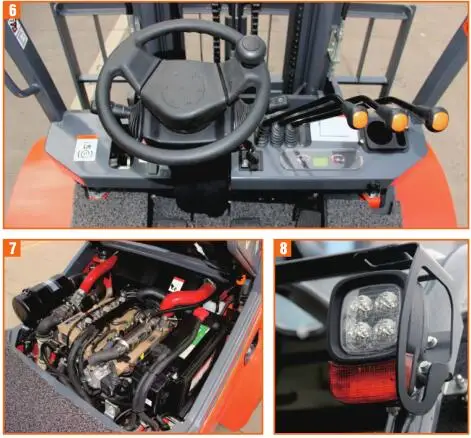

Details
What are the features of our products?
——Hight Strength Overhead Guard
——Reliable Lifting System
——Excellent Lighting System
——High Position Intake and Exhaust System
——High Efficent Transmission System
——Super High Ground Clearance
——Comfortable Driving Space
——Easy Maintenance
Test before delivery
After the assembly is completed, our engineers will conduct test operations to ensure that our equipment meets the standards and is perfect
Packaging and Shipping

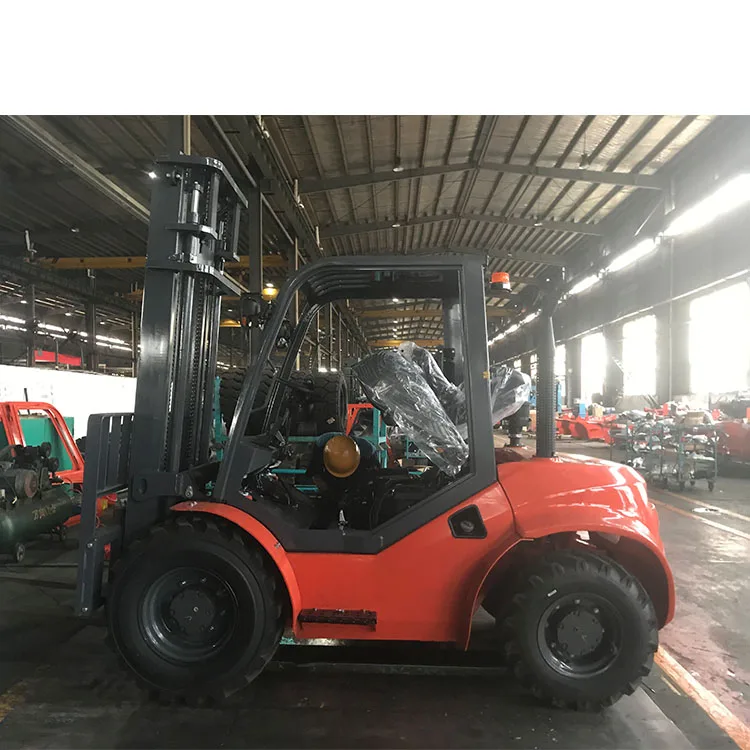

Production Workshop
Company Profile
RUNTX Machinery Group was established in 2006. We have small tonnage forklifts, heavy duty forklifts, port equipments, warehouse equipments factories in China. Which are specialized in the manufacturing, sale, after sales service and R&D of construction and engineering machinery.
We are one of the professional forklift manufacturers in China, which has 37,000 square meter area workshop and outputs 6000 sets forklifts annually. Since foundation, RUNTX has always kept its professional role in Chinese construction machinery industry. At present, it among Top 50 Chinese construction machine enterprises. Now our products include counter-balance diesel forklift, gas/lpg/cng forklift, warehouse equipments, heavy duty diesel forklift, port equipment etc. With first class technology and stable quality, Runtx products won the appreciation form majority of overseas customers. Our products have been exported to Europe, America, Canada, Australia, the Middle East, Southeast Asia, Africa and many other countries and regions.
RUNTX is committed to build parts system. Give our clients the best after sales parts service 7X24 hours. All the Products have been approved by the ISO 9001:2015 and CE certificate. The 1.0-35 ton diesel and 1.0-7 ton LPG and 1.0- 12 ton electric forklift series, meet with the Europe and USA EPA requirement.
We have different kinds of large blazing cutter, plasma cutter, large punch machine, CNC machining center, large painting machine and other high-class machines and testing equipment, which ensure perfect quality of each forklift from Runtx.
Our clients include U.S. General Motors, Volkswagen of Germany, Lafarge SA, Shell Oil, China Sinopec, China Petrolem Chemical Corporation, Carrefour, Sharp Electronics, China COSCO, Maersk Logistics. Provide top-class service with our clients.
Welcome to visit our factory!
We are one of the professional forklift manufacturers in China, which has 37,000 square meter area workshop and outputs 6000 sets forklifts annually. Since foundation, RUNTX has always kept its professional role in Chinese construction machinery industry. At present, it among Top 50 Chinese construction machine enterprises. Now our products include counter-balance diesel forklift, gas/lpg/cng forklift, warehouse equipments, heavy duty diesel forklift, port equipment etc. With first class technology and stable quality, Runtx products won the appreciation form majority of overseas customers. Our products have been exported to Europe, America, Canada, Australia, the Middle East, Southeast Asia, Africa and many other countries and regions.
RUNTX is committed to build parts system. Give our clients the best after sales parts service 7X24 hours. All the Products have been approved by the ISO 9001:2015 and CE certificate. The 1.0-35 ton diesel and 1.0-7 ton LPG and 1.0- 12 ton electric forklift series, meet with the Europe and USA EPA requirement.
We have different kinds of large blazing cutter, plasma cutter, large punch machine, CNC machining center, large painting machine and other high-class machines and testing equipment, which ensure perfect quality of each forklift from Runtx.
Our clients include U.S. General Motors, Volkswagen of Germany, Lafarge SA, Shell Oil, China Sinopec, China Petrolem Chemical Corporation, Carrefour, Sharp Electronics, China COSCO, Maersk Logistics. Provide top-class service with our clients.
Welcome to visit our factory!
Company history
The permit of sale: June, 2006
The date of conerstone:July, 2006
The permit of completion:October, 2006
The permit of manufacturing:December, 2006
ISO9001:2008 Quality Management System Certificate: March, 2007
