Product Overview
Description

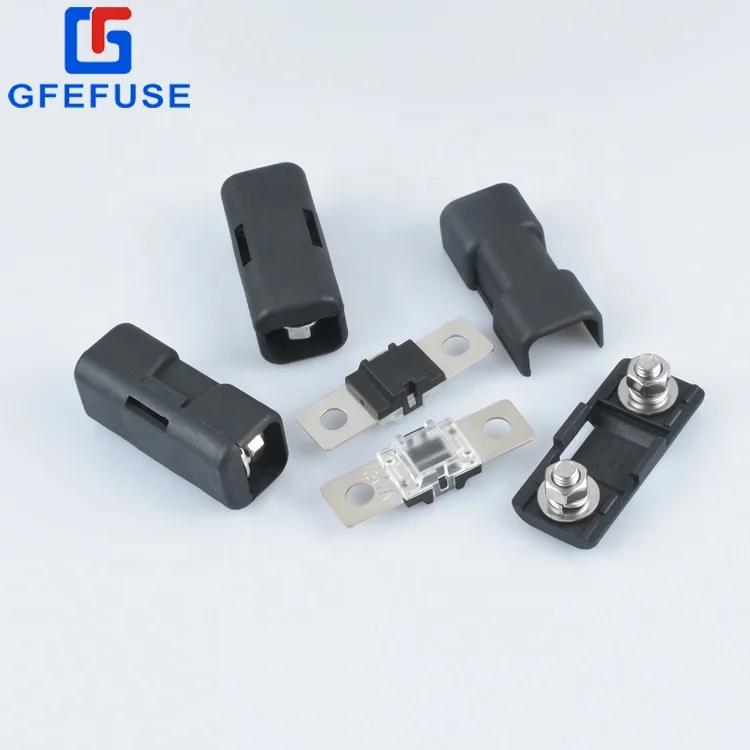

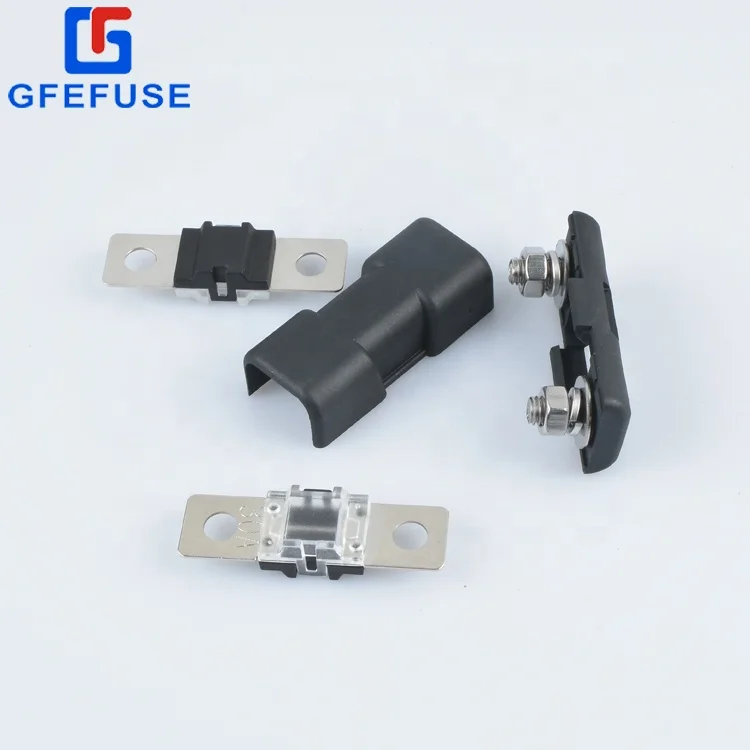

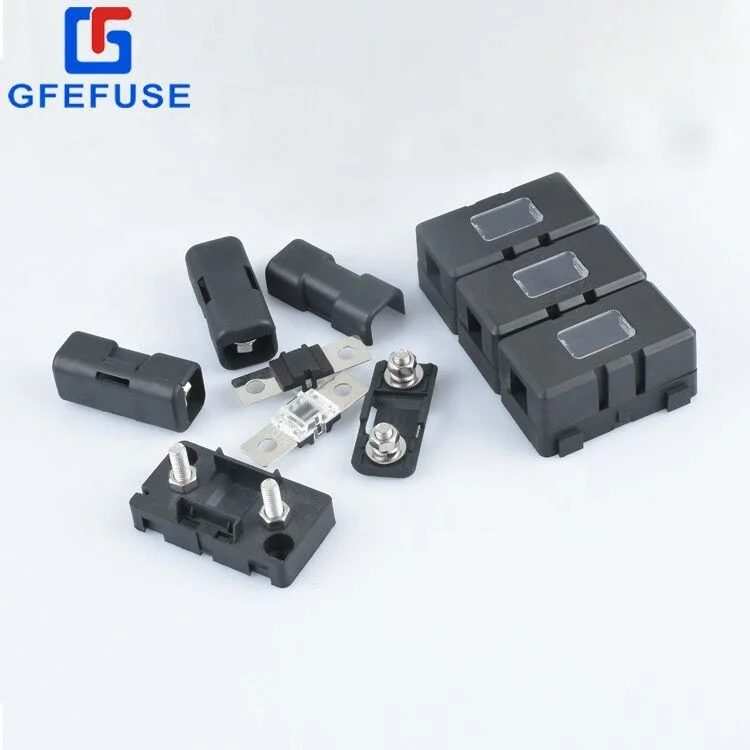

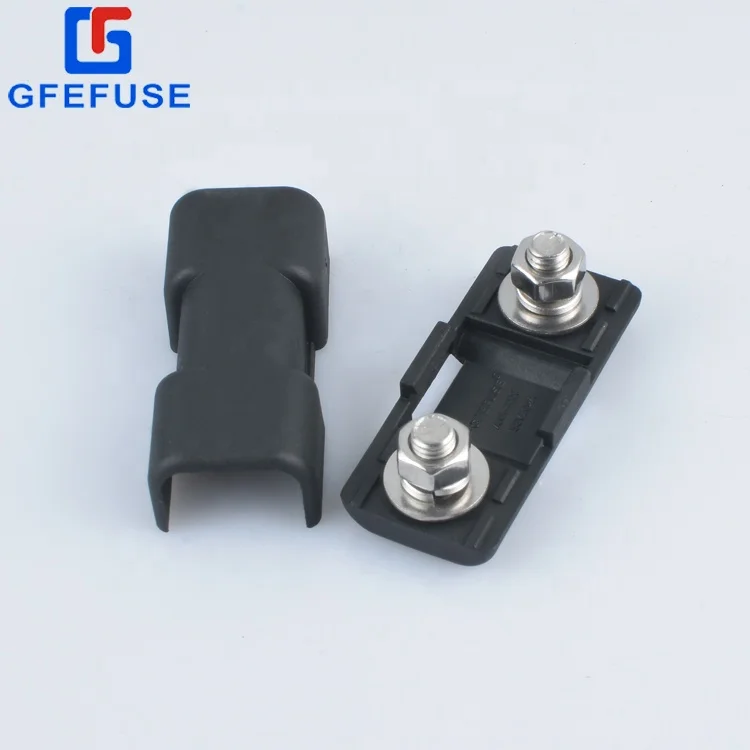

function of electrical cutout free lead smd miniature s automotive bolt-on fuse
Product Description
| Housing | Transparent Nylon Composite |
| Terminal | Tin plated Copper |
| Mounting Torque | 4.5 Nm +/- 1Nm |
| Interrupting Rating | 1000A , 32VDC |
| Voltage Rating | 32V-58V /DC |
| Operating Temperature Range | -40℃ to + 125℃ |
| Complies with | TS16949:2009 |
| Medium Current | 40A 30A 50A 60A 80A 100A 125A 150A 200A |
Time-Current Characteristics
| Rated Current(%) | Melting Time 30A-125A | Melting Time 150A-200A | ||
| Min | Max | Min | Max | |
| 75 | – | – | – | |
| 100 | – | – | – | |
| 110 | – | – | ||
| 150 | 90 s | 3600 s | – | – |
| 200 | 3 s | 100 s | 1 s | 15 s |
| 300 | 0.3 s | 3 s | – | – |
| 350 | – | – | 0.3 s | 5 s |
| 500 | 0.1 s | 1 s | – | – |
| 600 | – | – | 0.1 s | 1 s |
Current Models
| Part Number | Current Rating | Typ.Voltage drop | Clod Resistance | I2t |
| ANL-C030 | 30A | 65mV | 2.06mΩ | 4200 |
| ANL-C040 | 40A | 65mV | 1.398mΩ | 10000 |
| ANL-C050 | 50A | 65mV | 1.025mΩ | 13000 |
| ANL-C060 | 60A | 68mV | 0.865mΩ | 21700 |
| ANL-C070 | 70A | 70mV | 0.72mΩ | 24000 |
| ANL-C080 | 80A | 58mV | 0.541mΩ | 24600 |
| ANL-C100 | 100A | 60mV | 0.457mΩ | 51300 |
| ANL-C125 | 125A | 71mV | 0.394mΩ | 73200 |
| ANL-C150 | 150A | 77mV | 0.323mΩ | 81900 |
| ANL-C175 | 175A | 77mV | 0.285mΩ | 100000 |
| ANL-C200 | 200A | 77mV | 0.261mΩ | 125000 |
