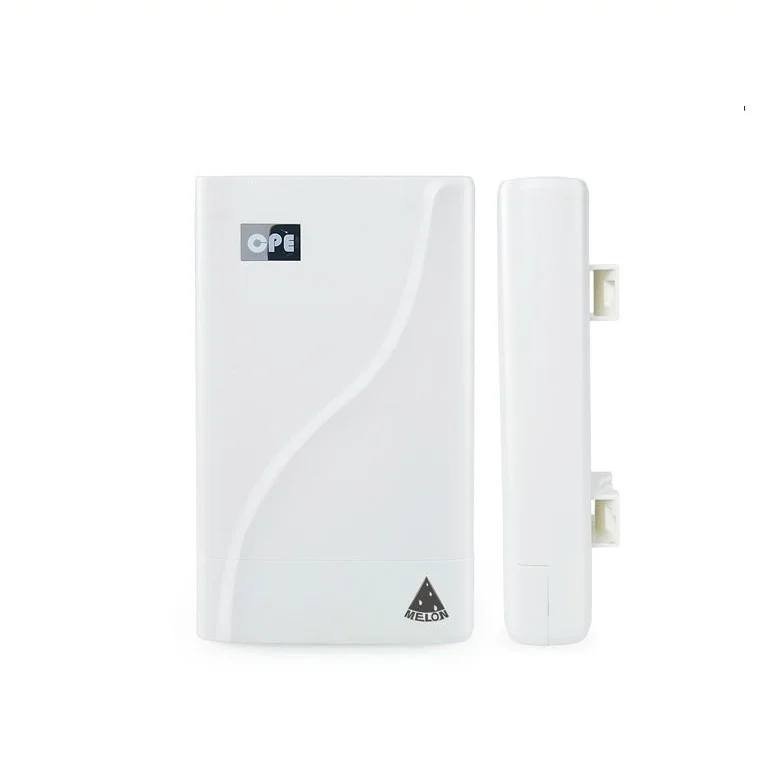

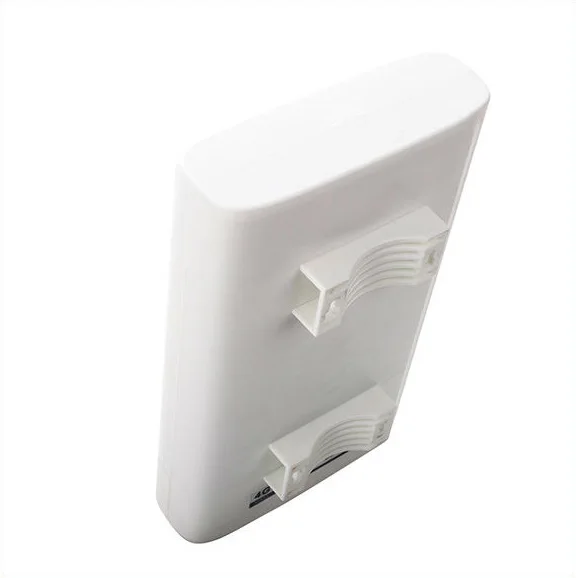

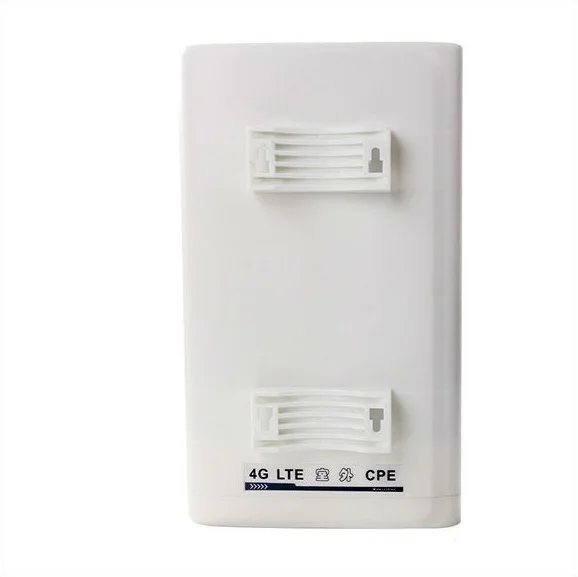

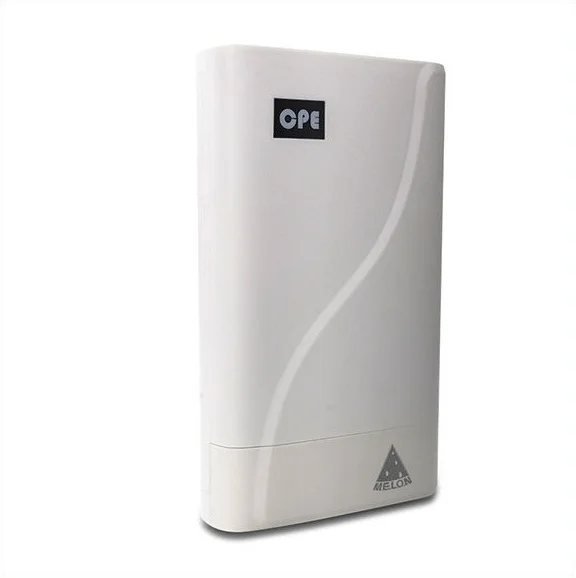

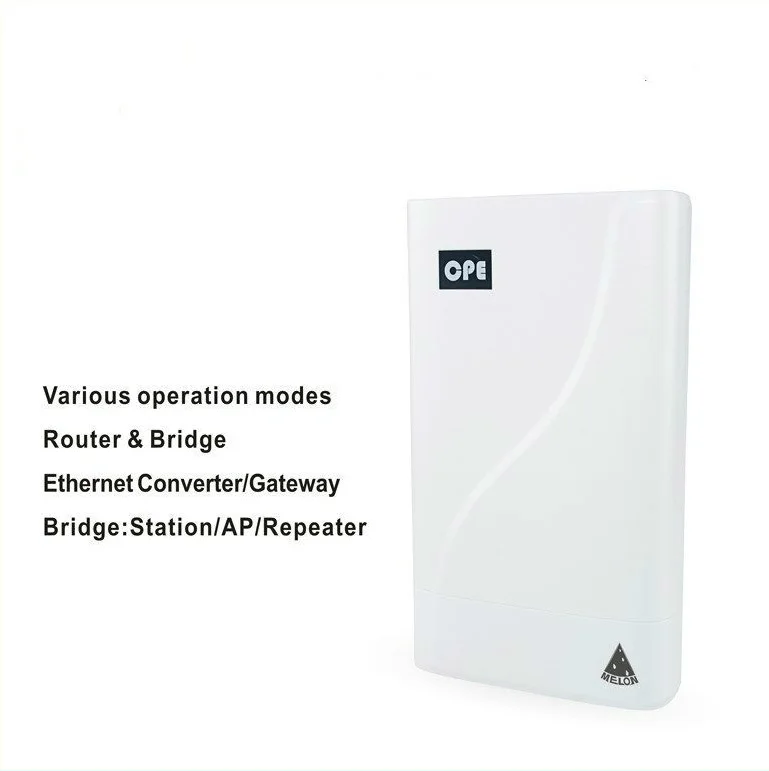

4G LTE wireless outdoor cpe , long distance 4G reception LT18
- Category: Wireless Networking >>>
- Supplier: Shenzhen Tuoshi Technology Co. Ltd.
Share on (60580746194):
Product Overview
Description
4G LTE wireless outdoor cpe , long distance 4G reception LT18
Product Description
4G LTE wireless outdoor cpe , outdoor long range wirelss 4G router ,outdoor router with sim card slot, factory OEM,32 users,Cat 4, LT18
Simply insert the local sim card,the CPE sent out wifi and share to the terminal users,max 32.Where there is mobile network,there is WiFi.
Fit for outdoor used,free from cable,plug and play.
Support both wifi and wired way to connect the terminal devices.
Directional 4g antenna it can receive long distance 4G signal, suitable for CCTV camera project, people living suburb who need good internet conncetion etc.
![4G-CPE[en]_01.jpg](http://sc01.alicdn.com/kf/HTB1bX_2RVXXXXaoapXXq6xXFXXXR/200495758/HTB1bX_2RVXXXXaoapXXq6xXFXXXR.jpg)
![4G-CPE[en]_02.jpg](http://sc02.alicdn.com/kf/HTB1dh29RVXXXXXOapXXq6xXFXXXS/200495758/HTB1dh29RVXXXXXOapXXq6xXFXXXS.jpg)
![4G-CPE[en]_03.jpg](http://sc02.alicdn.com/kf/HTB1mEsjRVXXXXcwXVXXq6xXFXXXB/200495758/HTB1mEsjRVXXXXcwXVXXq6xXFXXXB.jpg)
![4G-CPE[en]_04.jpg](http://sc01.alicdn.com/kf/HTB14I7BRVXXXXXdXFXXq6xXFXXXw/200495758/HTB14I7BRVXXXXXdXFXXq6xXFXXXw.jpg)
![4G-CPE[en]_05.jpg](http://sc02.alicdn.com/kf/HTB12QwdRVXXXXXbaXXXq6xXFXXXX/200495758/HTB12QwdRVXXXXXbaXXXq6xXFXXXX.jpg)
![4G-CPE[en]_07.jpg](http://sc01.alicdn.com/kf/HTB1ZhwcRVXXXXazaXXXq6xXFXXX5/200495758/HTB1ZhwcRVXXXXazaXXXq6xXFXXX5.jpg)
![4G-CPE[en]_08.jpg](http://sc01.alicdn.com/kf/HTB1JWj7RVXXXXXnapXXq6xXFXXXB/200495758/HTB1JWj7RVXXXXXnapXXq6xXFXXXB.jpg)
![4G-CPE[en]_09.jpg](http://sc02.alicdn.com/kf/HTB1.k24RVXXXXX3apXXq6xXFXXXr/200495758/HTB1.k24RVXXXXX3apXXq6xXFXXXr.jpg)

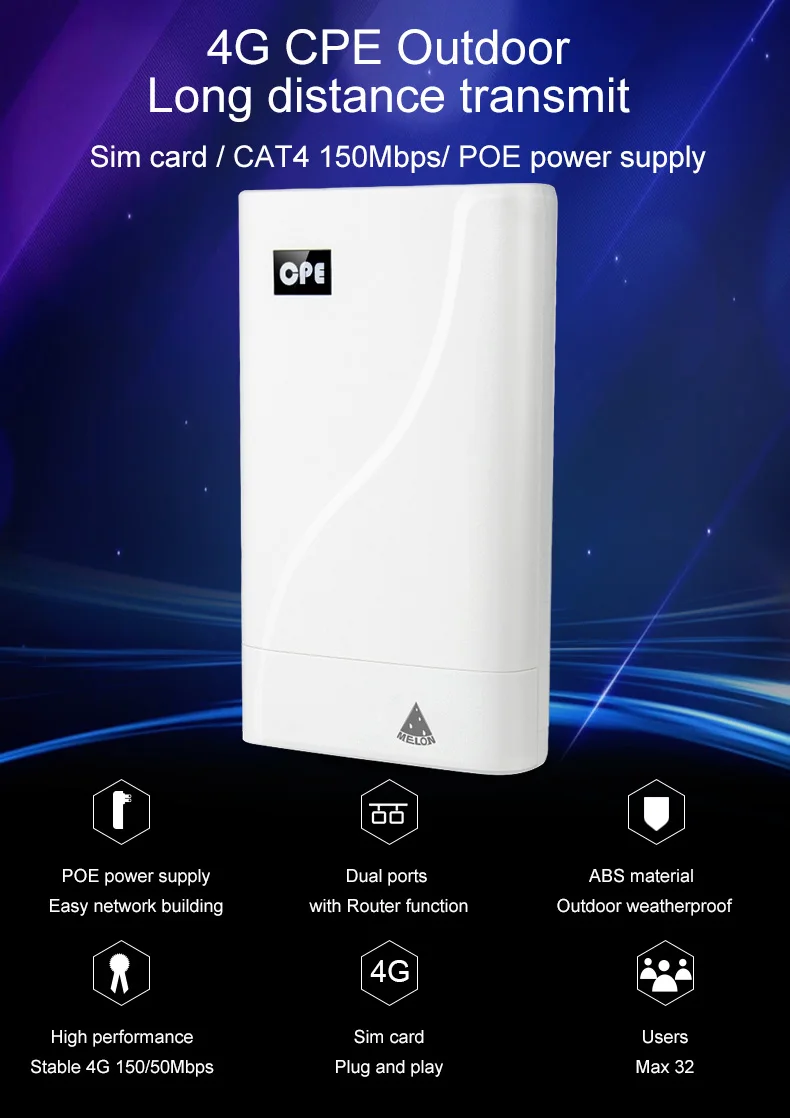

Features:
* 32 users supported
* FDD up to 150Mbps DL/50Mbps UL,support 3G/2G
* Built-in directional antenna
* Outdoor waterproof case
* 2 Lan ports
*POE power supply 24V
Specifications:
| Form Factor | LTE CPE | |
| Interface | Network | 2*lan |
| SIM | 2FF mini sim | |
| Button | reset | |
| POE | Input voltage: 24V-1A | |
| Solution | Routing and WiFi chipset supplier | MTK |
| BASE | Routing and WiFi chipset model | MT7628NN |
| Routing and WiFi processor info | IEEE 80 2.11 /b/g/n | |
| DDR/SPI | 64MBytes/16MBytes | |
| Software | Language | Chinese&English |
| APN Setting | Supported | |
| Device Settings | Supported | |
| Routing Settings | Supported | |
| Firewall Settings | Supported | |
| LED | Supported | |
| Technical standard | OS | Windows XP |
| Windows Vista | ||
| Windows 7 | ||
| MAC | ||
| Linux | ||
| Browser | IE (7.0 and later) | |
| Firefox (3.0 and later) | ||
| Safari (4.0 and later) | ||
| Opera (10.0 and later) | ||
| Chrome (10.0 and later) | ||
| Envionment | Operating temperature | -10 to 60° C |
| Storage temperature | -20 to 70° C | |
| Humidity | 5% to 95% | |
| Feature | Description | |
| Form Factor | Module | |
| ID | Interface | Compliant with PCI Express Mini Card |
| SIZE | 51*30*5mm | |
| Base | ||
| Wireless processor info | CAT4 | |
| USIM/SIM slot | Standard 6 PIN SIM card interface 3V SIM card and 1.8V SIM card | |
| RF | Main antenna | Internal antenna |
| Receive diversity antenna | Internal antenna | |
| GSM band | Band 2/3/5/8 (CUSTOMIZABLE) | |
| UMTS band | Band 1/2/5/8 ( CUSTOMIZABLE) | |
| LTE FDD band | Band 1/2/3/4/5/7/8/28 (CUSTOMIZABLE) | |
| MIMO for wireless | 2 × 2 DL SU-MIMO for LTE and HSPA | |
| Max. transmitter power for wireless | LTE: +23dBm WCDMA: +24dBm (Power Class 3) | |
| Technical standard | UMTS/LTE | WCDMA: HSDP DL 7.2Mbps FDD LTE :UL 50Mbps;DL150Mbps |
| 3GPP release | FDD-LTE 3GPP Release 9 WCDMA Rel 4 | |
| Operating temperature | -10°C to 55°C | |
| Storage temperature | -20°C to 70°C | |
| Humidity | 5% to 95% | |
| Storage temperature | -40 to 85° C | |
| Humidity | 5% to 95% |
