LED Lattice Backlight Strips for Sign Box Lighting Whose Depth is 35mm~120mm 10 Year Warranty Powered by Nichia757 SMD LED CE
- Category: >>>
- Supplier: Ledels Lighting Co (Shenzhen) Ltd
Share on (60581010775):
Product Overview
Description
10-Year-Warranty 24VDC 7.2Watt 720 lm Nichia757 SMD Lattice Backlight for Sign Light Box whose depth is 35mm~120mm:
Parameter:
| Product name: LED bar to sign box with 35mm+ depth | Application:Backlite to sign boxes with depth from 35~100mm | |
| LED type: Nichia 3030 led | LED quantity: 6 leds each 50cm | |
| Physical dimension: 500x19x8mm | Operating voltage: 24VDC | |
| Power consumption: 7.2Watt per 50cm | Operating temperature: -20℃~70℃ | |
| Emitting color: White, Warm White | Luminous output each color:720 lumens per 50cm | |
| Beam angle: 175° | Life span: 50000 hours (10 year warranty) | |
| Defend grade: IP65 | Driven mode: Constant current | |
| Weight: 120kg/1000pcs light bar | Package: 240pcs per carton | |
| Quantity to illuminate each square meter evenly : 14pcs of led bars with 50cm | lumens persquare meter: 10080 | |
Product characteristics:
1.Powered by NICHIA 3030 led
2.Aluminium base for good heat sinking
3.Brightness:720lm
4.Driven by constant current
5.If powered maximun 12 hours a day,5 years warranty

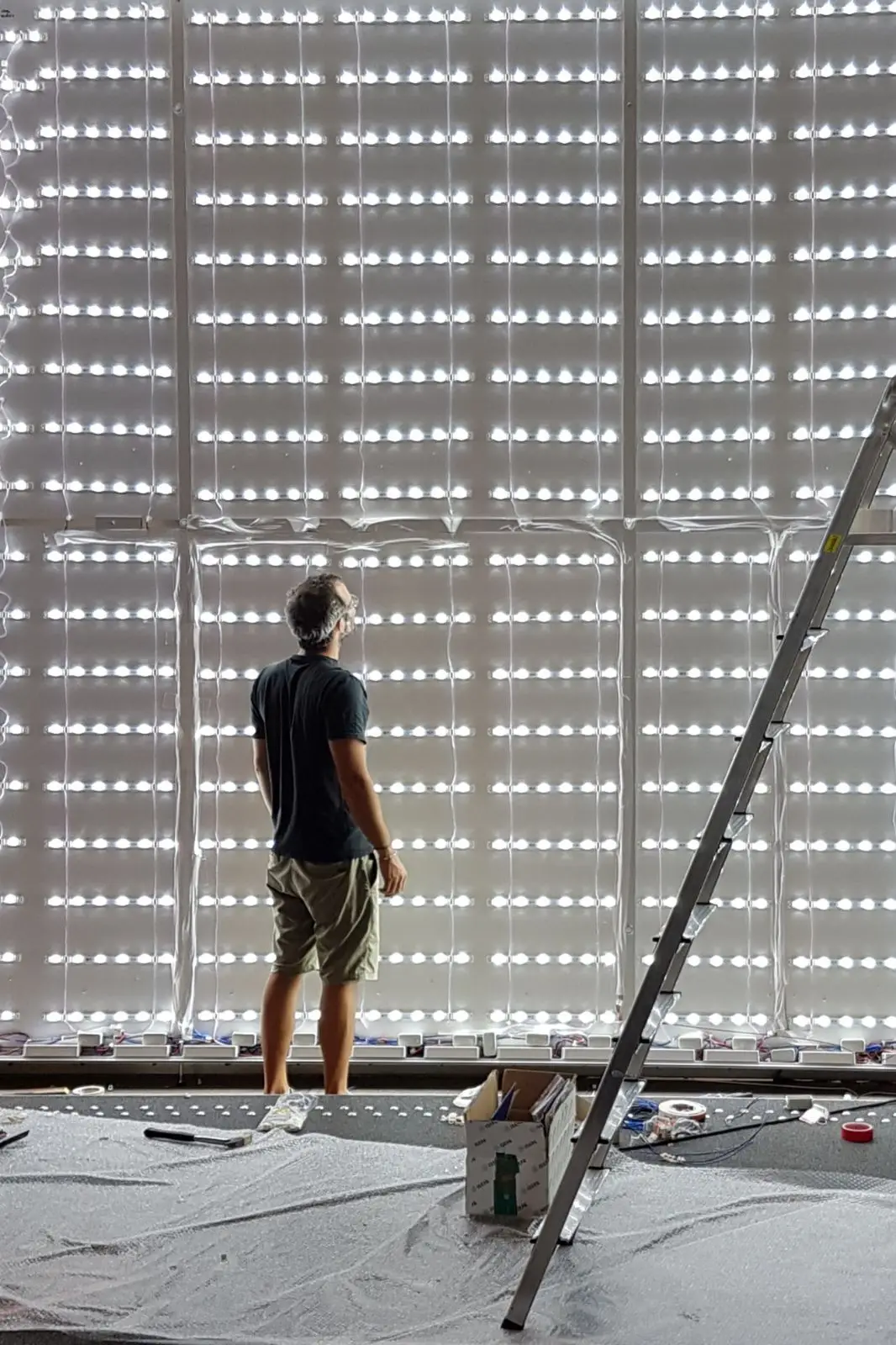

6.Application:Backlighting for single sided light box whose depth is 35-100mm
Application

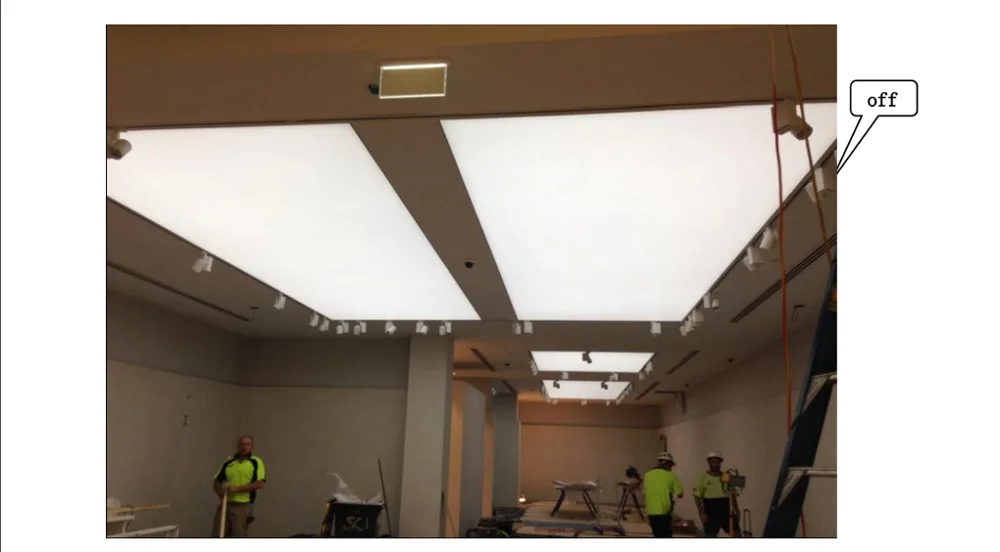

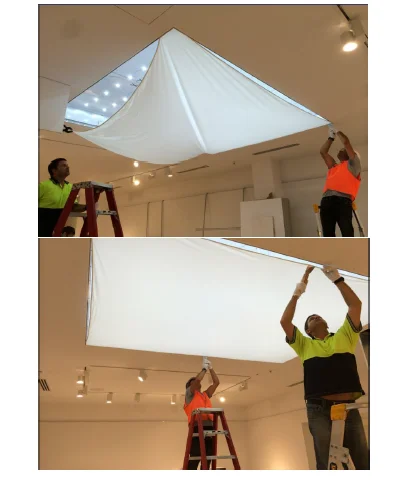

a. Widely Used in Soft Film Ceiling Lighting.

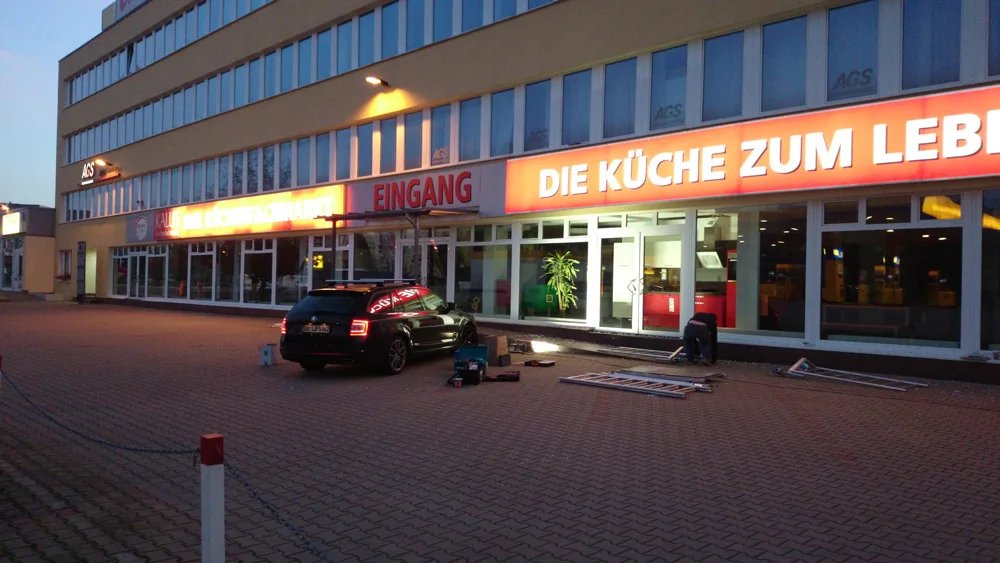

b. Backlighting for Advertising Sign Box,Signboard and Billboard.

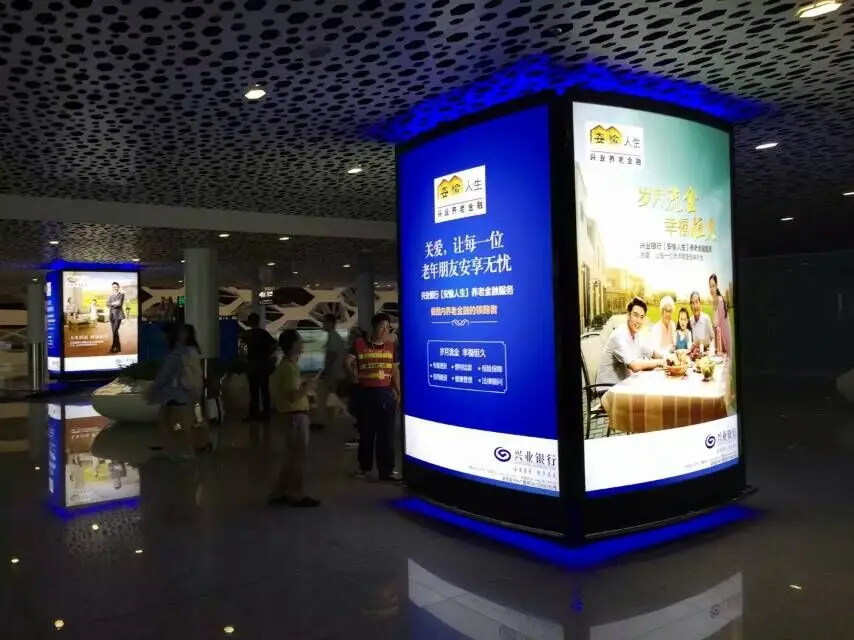

c. Backlighting for Lightingbox Signage.
Why Choose LEDELS Lighting Co.,ltd ?
Quality Control: 100% of the lamps will be tested and keep lighting for 24 hours to test its quality reliability , and we will also test its temperature after 24 hours’ lighting.
Then after it is cool we again test 100% of the lamps to see if it still work well . Each lamp should pass all these QC procedures before shipping to customer.
Over 14 years experience in this industry,own lots of customer in home and abroad.good quality and innovation win good reputation.if you are looking for led module for lightbox or channel letter,we are your best choice~
Feature:
1. Has wide viewing angle :175 degree
2. High intensity of each module, suitable for big & medium-sized LOGO & signage
3. Quick heat diffusion could prolong chips' lifespan
4. each strip is not more than 30 pieces if series connection is adopted
5. with hole on both ends, can be fixed by screw
6. Input: DC24V
7. IP rate: IP65
8. lifespan: 50,000hrs
9.Excellent Design:Graceful appearance. All Electronic components fully covered by high transparency PC are protected against terrible outdoor environments
Order infomation:
MOQ: 300pcs
Trade term: FOB Shenzhen,EXW(SEND BY EXPRESS)
Delivery time: 3-5 working days for sample order, 7-10 working days for mass order
Warranty:Five years since the date of purchase
Sample policy : Samples are always availble for each model . Samples can be ready in 3~7 days once payment received .
Discounts : We offer discount for mass quantity .
Our services:
1. For all your inquires about us or our products, we will reply you in detail within 24 hours
2. We own well-tranied and passional sales & after- sale services who can speak fluent Engligh language
3. We have very experienced R&D engineers and we have strong ability to do ODM projects.
Quality control
1) All the led sign lighting modules delivered from LEDELS LIGHTING are 100% aging-tested before release and CE-certified, RoHS compliant, and UL-listed.
2) The ratio of defectiveness of LEDELS leds is to be less than 0.1%. If powered 10 to 12 hours a day, the warranty of
LEDELS leds is 5 years since delivery (or its lifespan is supposed to be more than 50000 hours).
Delivery detail:
We ship goods by UPS/DHL/FEDEX/TNT express which takes 3~ 5 days to arrive, or by air cargo which takes about one week to arrive , or by sea which takes about one month to arrive , depending on your actual requirements.
