TIMING automatic spreading machine

Product Overview

Description

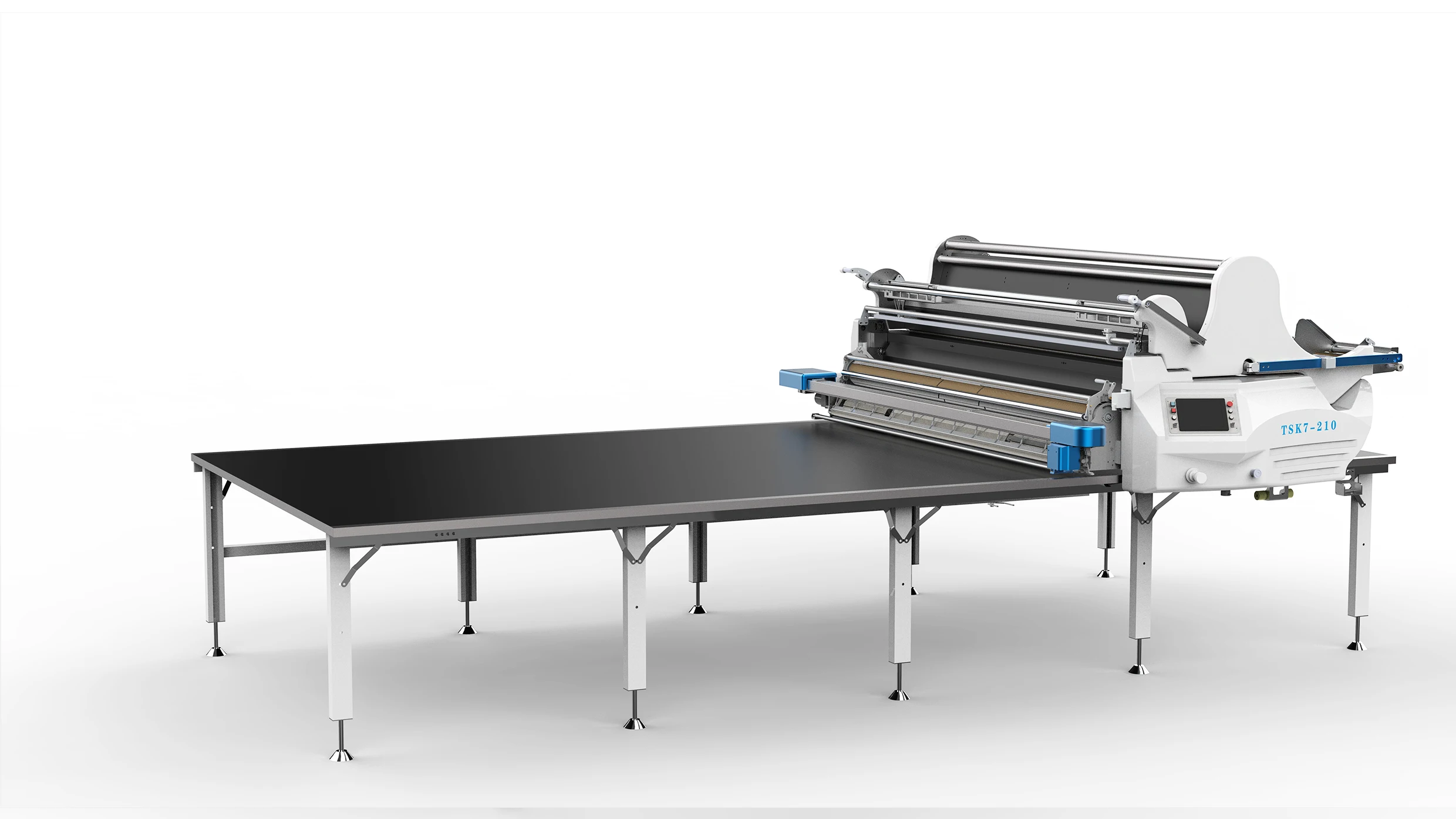

Y3 Series  Fabric Spreading Machine for Rolls up to 80KG

Trousers, Jacket, Shirt, Hat, Tie Spreading Machine



What is Automatic Fabric Spreading Machine

Automatic fabric spreading means the smooth laying out of various types of fabric according to specific length. Fabric Spreading Machine is one type of machine by which the smooth laying out of various types of fabric according to specific length automatically instead of pulled by workers. The objective of spreading is to place a number of plies of fabric that the production planning process has dictated, to the length of the marker plan, in the colors required, correctly aligned to length and width, and without tension. Although in certain sections, it remains necessary to cut single garments, in most of the cases rejects is the cause of single piece cutting.

Application of Fabric Spreading

1. To keep the number of plies of fabric to the length according to the length of the marker plan perfectly aligned as to the length and width and without tension.

2. To make every ply plain and flat.

3. To cut many plies at a time.



Advantage Spreading Machine

Basic Features
1. Machine returns back to original position once fabric runs empty
2. The machine power will automatically shut off upon 5 minutes
3. The spread laid fabric is not pulled when the emergency stop triggers
4. The streamline shape can reduce the wind disturbance, noise and vibration
5. Automatic extension system
6. Microcomputer integrated control system
7. To operate by means of man-machine communications
8. Computer intelligent control non-tension spreading
9. User-friendly, iconic and simple operation which can enhance production efficiency and ensure quality



Special Function
1. Apply to trousers, jackets, hat, shirt fabrics
2. Tightness can be adjusted intelligently and automatically with servo control system
3. Edge precision can achieve within 0.25cm
4. 8000 - 15000 meters of fabric spreading can be done in 8 hours
5. One man operation, easy and simple
6. Suitable for spreading length above 5m







Parts of Automatic Spreading Machine

· Fabric setting bar

· Bucket for roll fabric

· Manual Handle for fabric feeding

· Edge control sensor

· Expander roller

· Wind protection curtain

· Cutter rail

· Cutter device

· Fabric sliding plate

· Operation panel or cutter

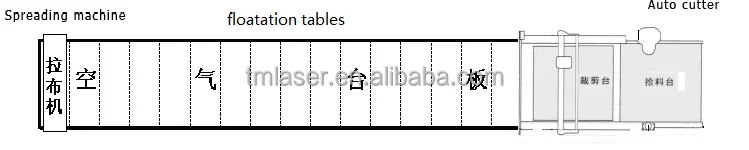

Fabric Spreading Table Feature

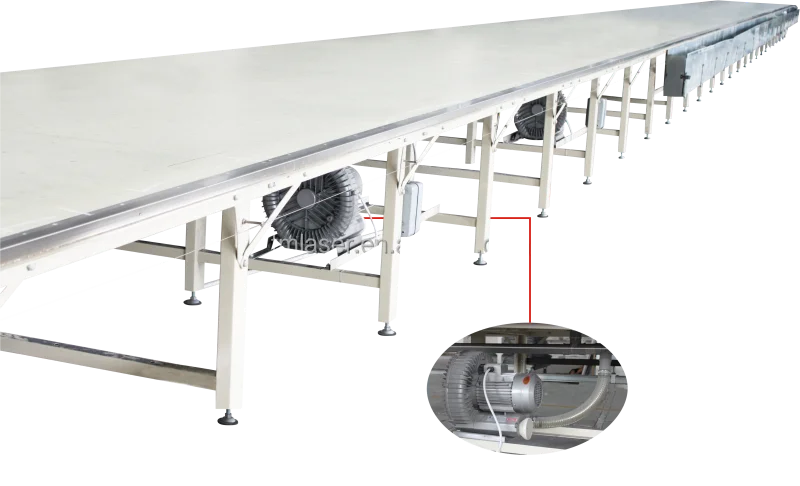

Standard and air flotation spreading table feature are

· To easily pull spread fabrics by blowing device, pulling and cutting fabrics at the same time, largely raising work efficiency.

· Thickness of spreading table is 28cm with several boards. Surface is stuck imported strong material.

· Two sides of spreading table are installed stainless steel. Linking between two boards is flat.

· Holes on the spreading table are especial holes, which are not the same others and can not jam holes when gas beads are left.

· Stand is made of cold rolling 4cm*8cm No. C tube and welded through after pickling with powder painting coating. There is screw under the stand, which may adjust height freely to support flat spreading table and well spreading fabrics.

· To adopt module design, it is convenient installing, transportation. Length of section is 1.20m. It is wide to use with all kinds of brands spreaders and automatic cutting bed.

· Width of spreading table is depended on specification of spreader. Widths are usually 1.83m, 2.13m, 2.33m and so forth. Height of stand is 80-90cm.
