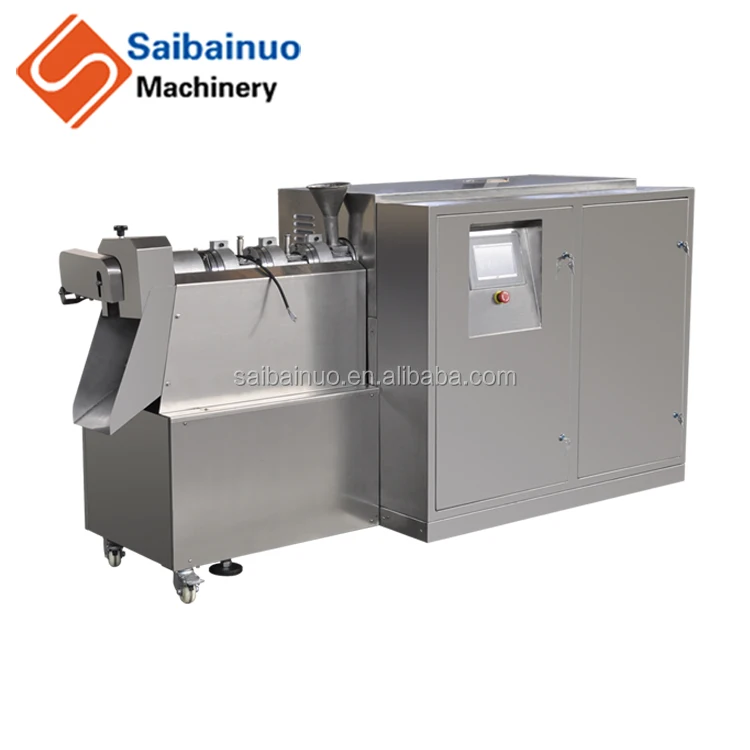

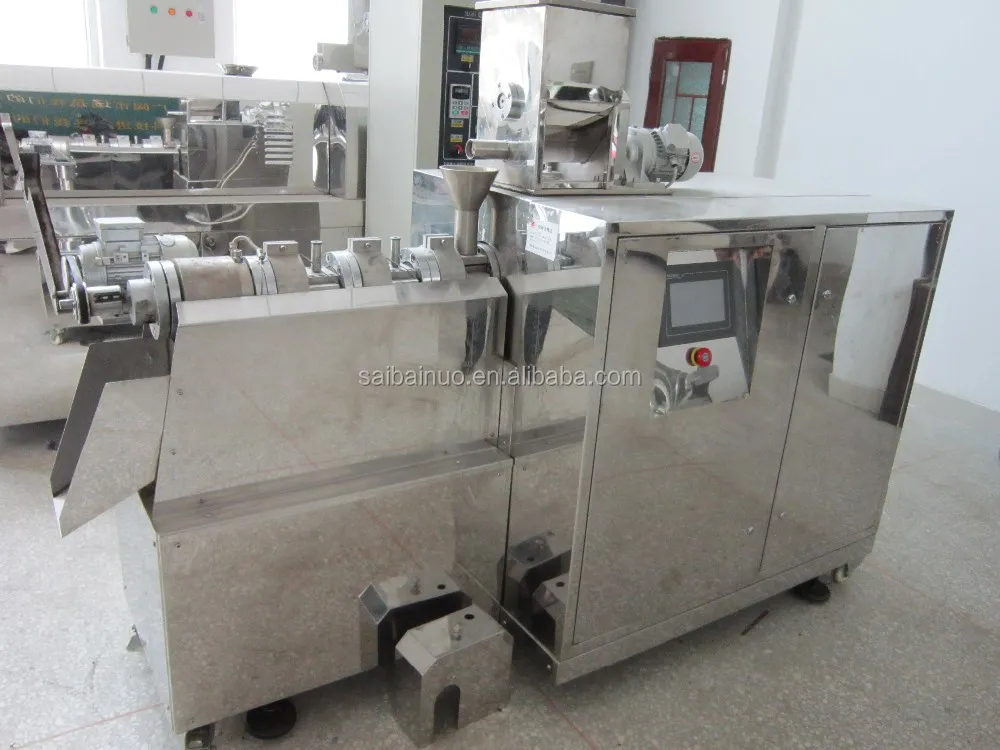

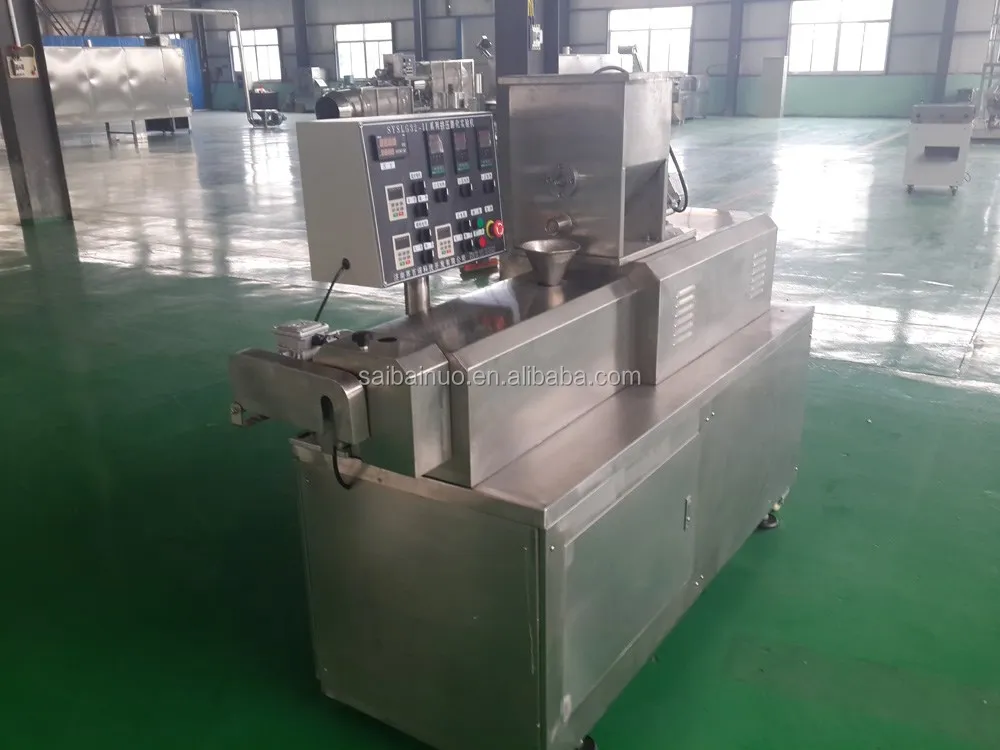

The brief description of snacks food extruder laboratory twin screw food extruder:
(1). Lab twin-screw extruder is our company research for universities, research institutes and large and medium-sized enterprises engaged in various extrusion, extruded maturation, extruded variability study omnipotent models.
(2). It has gone through four generations of improvements to adapt to cereals, potato starch, protein, chemicals, plastics, rubber and other raw materials are vastly different for a variety of experiments. Powerful, easy to operate and simplely of parameters adjustment, test data accurate, easy maintenance .
Name:
Parameters
Name:
parameters
Engine power
4-5.5KW
Feeding speed control
Inverter speed-control
Engine speed-control
Inverter speed-control
Heating way
Electric heating band
Screw diameter
∮30mm
Cooling way
Water cooling
Screw central distance
26mm
Temperature scope
20℃-300℃
Screw Speed range
0-500rpm
Temperature precision
±1.0℃
Screw mode
Building block-combined type
Temperature measuring
4 points
First series L/D
11.6 12.7 23
Output
5-10KG/H
Material of screw
38CrMoAl Nitriding
Material of cover
Mirror finishing S.S.304
Pressure scope
0-30MPa
Control system
PLC, Touch screen
Pressure precision
0.1MPa
Motor Brand
Siemens
Cutting speed control
Inverter speed-control
Inverter Brand
Delta
Extruder:

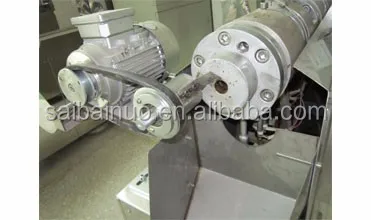

Name: Cutting system
Motor:Siemens 0.37kw
Speed control: Inverter
Speed range: 0-1440rpm
Blade Material: Alloy steel
Totally it can fix four blades, this system will cut down the product from the mould.
Name: Touch Screen PLC Control System
Touch screen: Siemens
1. Set all parameters by this screen(speed of screw, speed of raw material feeding, speed of cutting, temperature of the barrel, control the pressure)
2.Display all parameters
3.Download the testing data by USB
Name: Main Motor and Gear box
Motor: Siemens 4-5.5kw
1.This is main motor, Connect to gear box input shaft directly.
2.The speed is controlled by Inverter
3.The gear box have recycle oil lubrication system suitable for long time work.
Name: Raw Material Feeder
Motor: Siemens 0.37KW
Raw material: S.S.304
Speed: Controlled by Inverter
Volume: 10L (store 4-5kg raw material)
It uses the screw to feed the raw material into Extruder.
Name:Heating and Cooling System of Barrel
Heating: electricity heating
Cooling: water cooling
Temperature range: 20-300℃
Heating power: 6KW
Heating and cooling are controlled by the PLC automatically. The temperature accuracy is ±1℃
Name: Electric Devices
Inverter: Delta
Breaker: Siemens
PLC: Siemens
Switch: Siemens
All parts we use world famous Brand
Name: Double Screw
Type: Building block combined type screw
Material: 38CrMoAl nitriding
Hardness:60HRC
Diameter: 30mm
It is combined by pieces screw, we can adjust the pieces screw to change the pressure and pushing speed of the screw. It is very convenient for Lab to test various raw material
Main Feature: 1).High strength screw, the screw material crmoal, 38 senior nitride is wear-resisting, high temperature resistant steel; 2). Segmented barrel, effectively guarantee the experimental materials from entering extrusion machine temperature rises gradually, nutrient retention rate is high; 3). Intelligent temperature control, adjustment range, high precision, automation, PLC in one machine, LED hd display clearly shows that the experimental data, the data read intuitive and convenient; 4). Mold opening pressure measurement display directly on the screen, measurement data with high precision; 5). The screw rotation speed adjustment range, use frequency control of motor speed, convenient accurate;

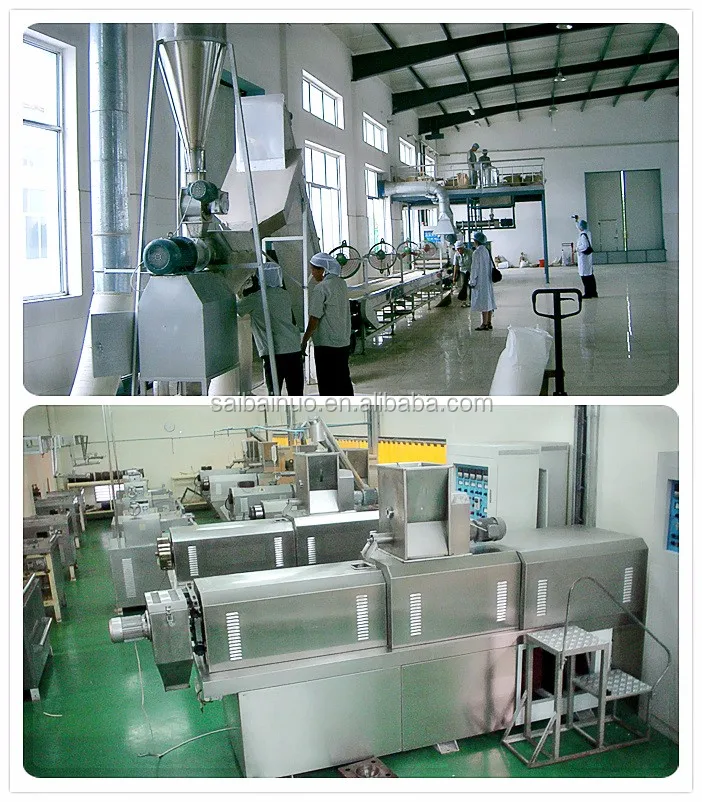

Together with our customer: Talk about the details of the machine, show our factory to customers:
Certifications
Our Service
Our Services: EACH CLIENT CAN ENJOY THE FOLLOWING 7 SERVICES 1. Free consultation service before, during, and after sales; 2. Free project planning and design services; 3. Free debugging of equipment until everything is functional; 4. Free management of equipments' long distance shipping; 5. Free training of equipment maintenance and operating personally; 6. Free new production techniques and formulas; 7. Provide 1 year complete warrantee and lifetime maintenance service
Packing & Delivery
Packaging & Shipping: 1).Packaging: daub coal oil on the surface to protect the machine from moisture, Then cover with plastic film.Finaly pack them with wooden case. 2).If you want to know the transportation cost: by air-please tell me your airport name; by express-please tell me your detailed address(including zip code,house number,street,city,country); by ship-pls tell me your delivery port.
