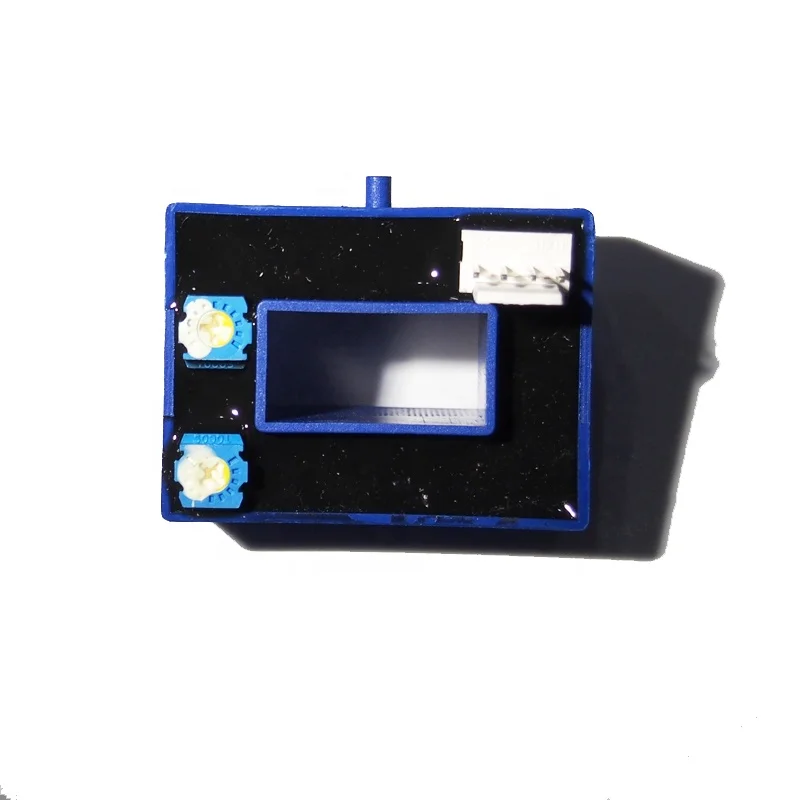

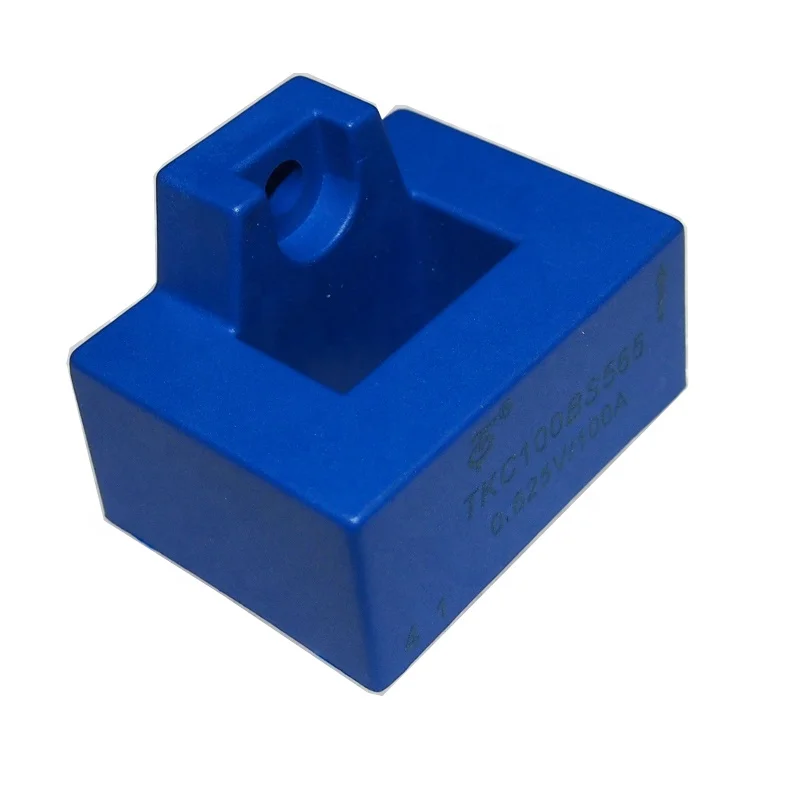

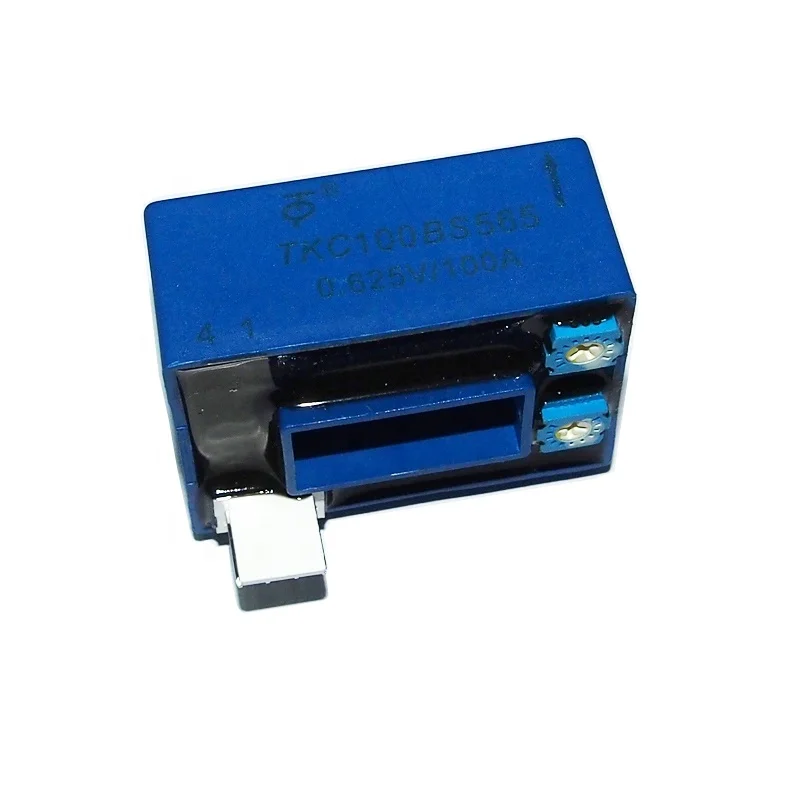

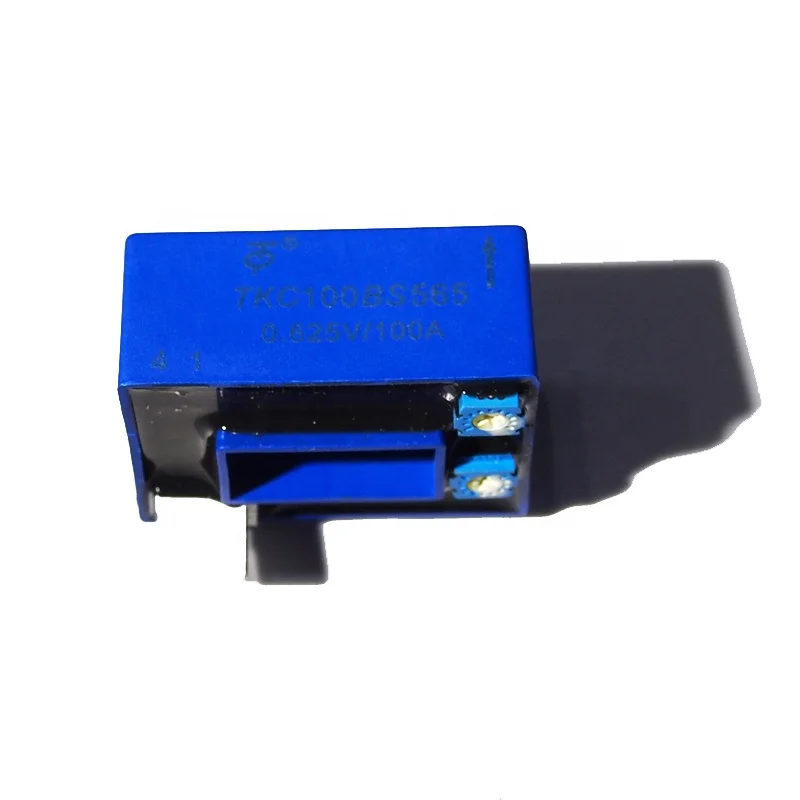

TKC600BS565 Series 600A 0.625V Hall Effect Current Sensor HASS600 S

Product Overview

Description

TKC-BS565 Series  altertive to LEM HASS-S/SP50 HASS-S series TKC50BS565 TKC100BS565 TKC200BS565 TKC300BS565 TKC400BS565 TKC500BS565 TKC600BS565

600A Hall Effect Current Sensor

 50~600A  Hall Effect Currect Sensor

TKC-BS565 series current sensor is a open loop device based on the measuring principle of the hall effect, with a galvanic isolation between primary and secondary circuit. It provides accurate electronic measurement of DC,AC or pulsed currents.

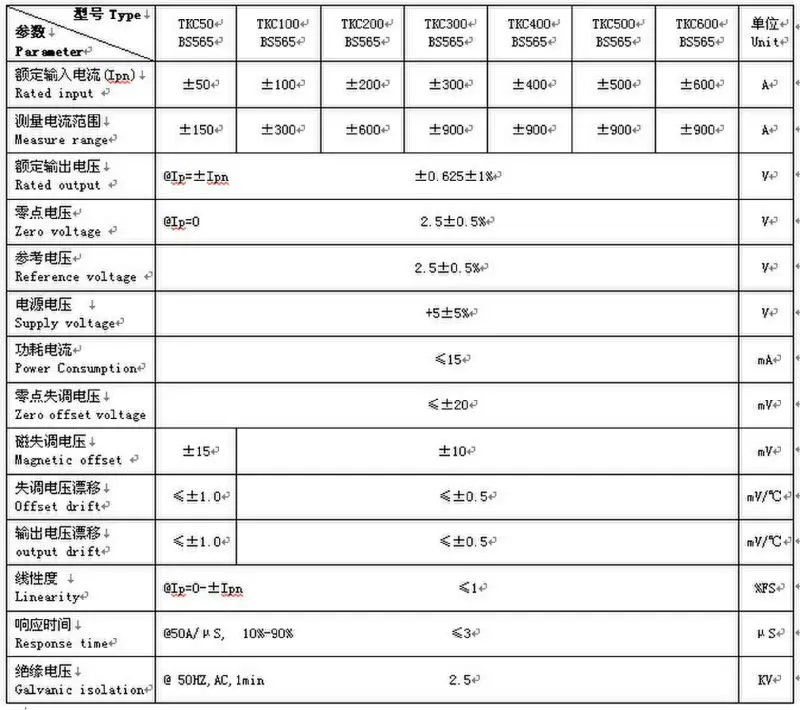

Electrical data

 Applications

AC variable speed drives

Static converters for DC motor drives

Variable speed drives

Power supplies for welding applications

Battery supplied applications

Uninterruptible Power Supplies (UPS)

Switched Mode Power Supplies(SMPS)

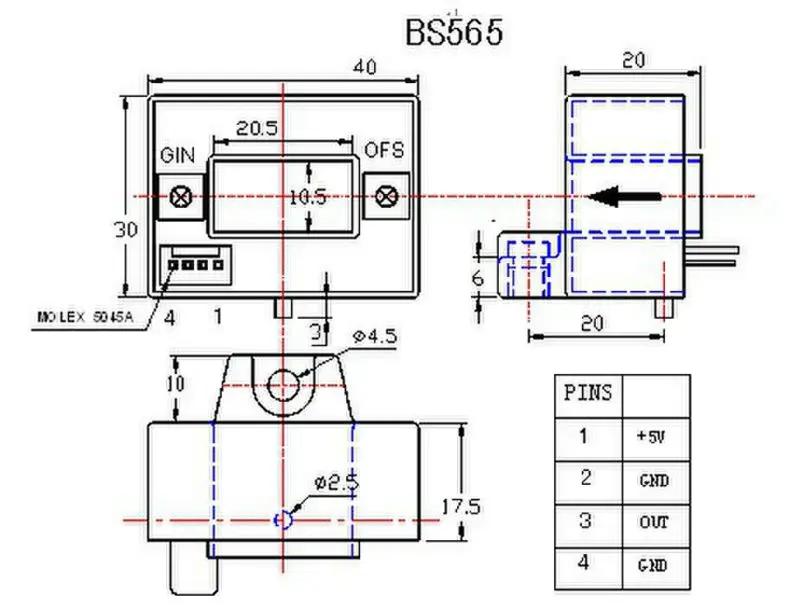

Mechanical dimension(for reference only)

 Remarks:

all dimensions are in mm.

general tolerance  ± 1mm.

Directions for use

When the current will be measured goes through a sensor, the voltage will be measured at the output end.

(Note: The false wiring may result in the damage of the sensor)

Customs can adjust output amplitude of the sensorby needs.

Custom design in the different rated input current and the output voltage are available.
