Saffron Seed Grain Specific Gravity Separator Wheat Oats Quinoa Teff Grain Density Sorting Separator
- Category: >>>
- Supplier: Kaifeng Hyde Machinery Co. Ltd.
Share on (60581143281):
Product Overview
Description
KAIFENG HYDE MACHINERY CO., LTD.
MAOSHENG GROUP
u 50 YEARS MANUFACTURING EXPERIENCE SINCE 1976.
u CHINA TOP 10 GRAIN PROCESSING MACHINERY MANUFACTURING COMPANY.
u MEMBER OF 13 CHINA NATIONAL STANDARDS DRAFTER IN GRAIN PROCESSING INDUSTRY.
u 75 PATENTED TECHNOLOGIES AND PRODUCTS.
u 600,000 SQUARE METER PRODUCTION AREA.
u OVER 100 EXPERIENCED ENGINEERS, RESEARCH STAFF AND TECHNICIANS.
u STATE-OF-THE-ART FACILITIES. ADVANCED IMPORTED CNC MACHINES FOR FUNCTION PARTS.
u FULL RANGE OF SERVICE, FROM SINGLE MACHINE TO TURNKEY SYSTEMS IN GRAIN AND FLOUR INDUSTRY.
u MACHINERY AND EQUIPMENT QUALITY TESTED BY DOMESTIC AND GLOBAL MARKET, RICH INSTALLATION AND TROUBLE-SHOOTING EXPERIENCE.

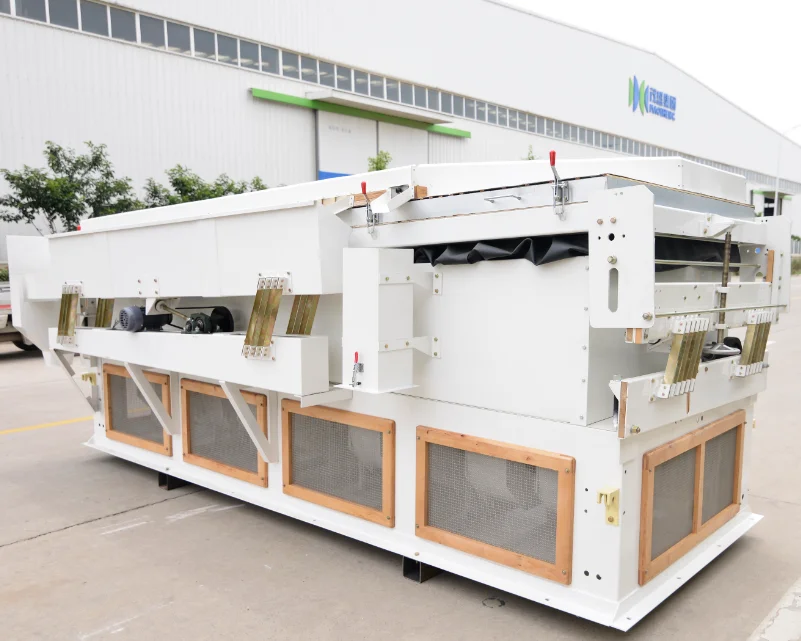

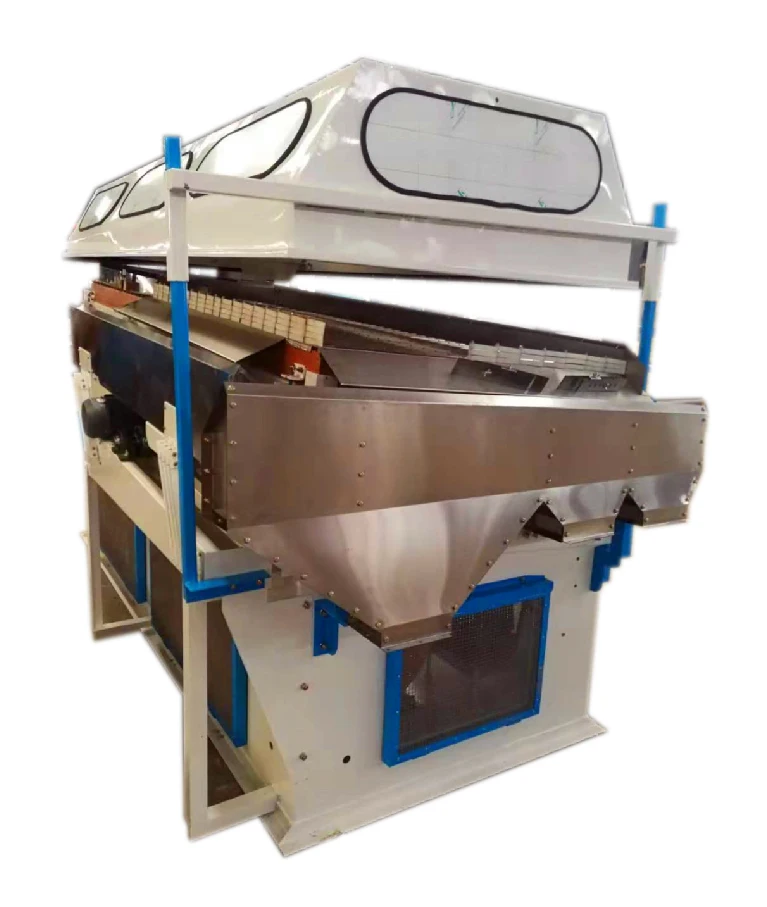

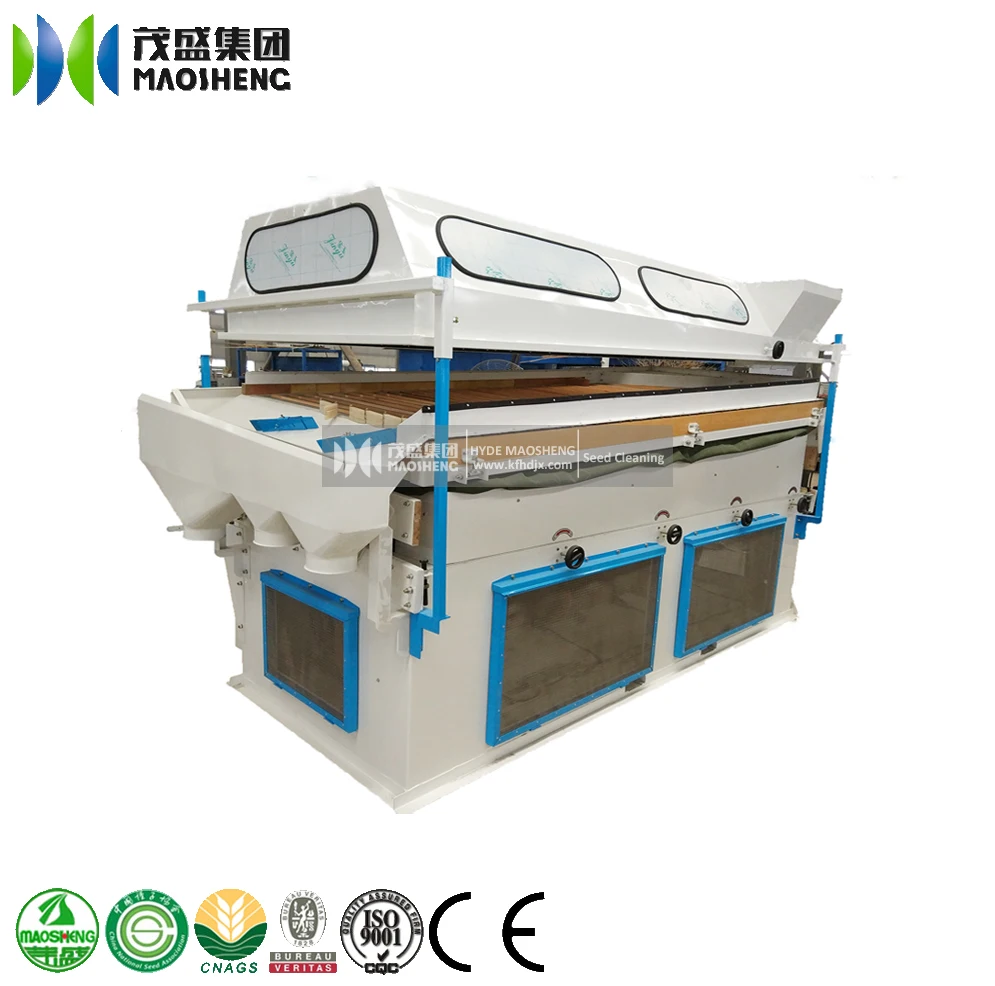

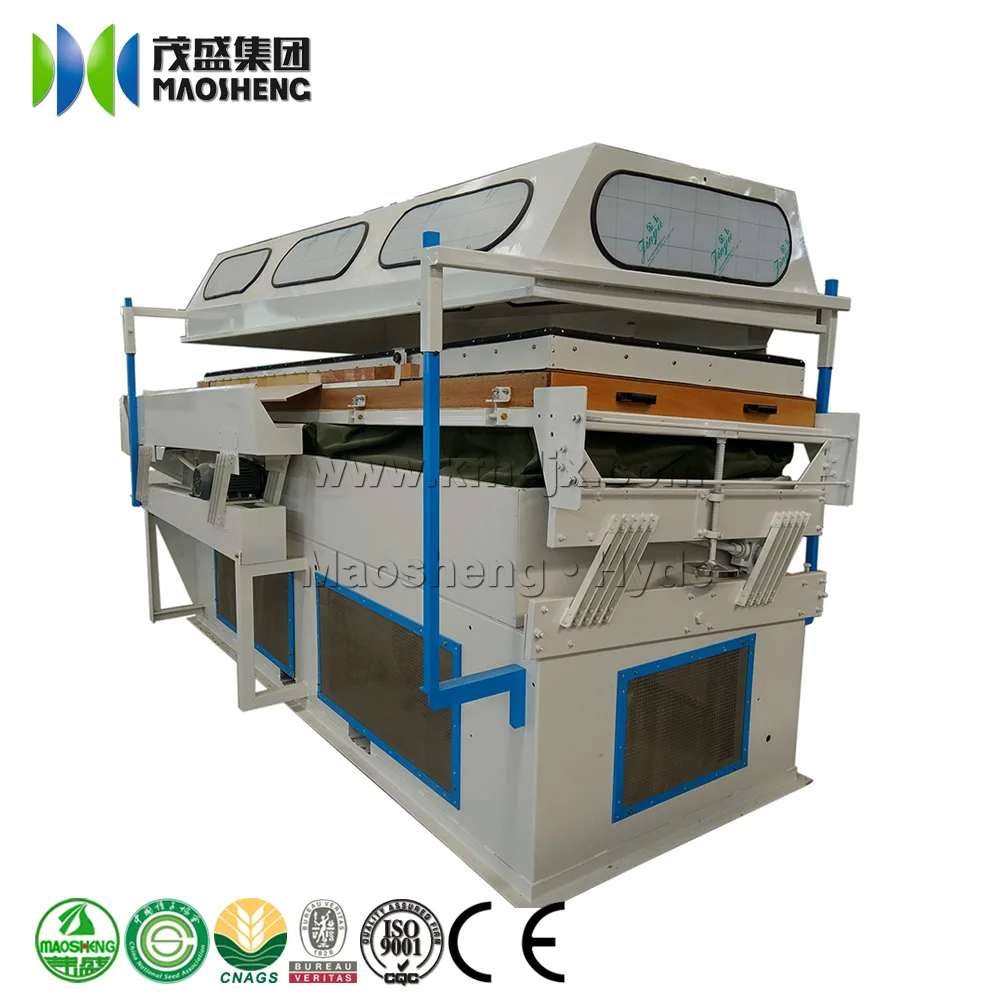

5XZ Gravity Separator:
1. Function: Fine Cleaning, Sorting, Separating To Remove Bad, Immature,
Insect Damaged, Moldy And Germinated Seeds, Impurities, And Admixtures Such As Same-size Stones But With Different Specific Weight.
2. Application: Granular Grains And Seeds.
3. Capacity: 3t/h, 5t/h, 10t/h, 15~20t/h (Based On Wheat Seed).
Working Principle Of 5 XZ Gravity Separator:
Seeds Flow Over The Inclined Vibrating Screen Covered Rectangular Deck,
In Which Pressurized Air Is Forced Through Causing The Material To Be Suspended And Stratify According To Its Specific Weight.
The Heavy Particles Float Uphill While The Light Particles Travel Downhill.
Rectangular Deck Makes The Particles Travel A Longer Distance,
Ensuring The Cleaner Separation Of Light And Heavy Particles And The Lowest Percentage Of Middlings, Improving The Quality Of The End Product.
Structural Features:
1). Heavy Duty And Robust Steel Structural Frame To Absorb The Vibrations.
2). Fans Are Dynamically Balanced With Individual Adjustable Controller For Each Fan For Precise Control Of Air Flow And Easy Maintenance.
3). Cellular Vertical Air Distribution Device Mounted Under The Deck Make The Air Lifting Evenly.
4). Square Woven Mesh Screen Made Of Steel Wire With No Bottom Fabric Ensures Air Passing Through No Dead Band.
5). Variable Feed Speed, Deck Inclination, Vibration Speed And Air Volume By Individual Control Units.
6). Safe Guards To All Moving Parts Ensure The Safe Operation.
7). Environmentally Friendly With Screen Dedusting Cover, Low Noise.
Special Features:
1). Built-in Fans Are Air-conditioner Fans With Lower Noise, Higher Pressure And Larger Amount Of Wind.
2). Larger Motor For Heavy Seed.
3). Self-lubrication System Can Be Added.
4). Stainless Steel Available For Edible Products.
Technical Parameters
Technical Specification of 5XZ Seed Gravity Separator:
| Item | Unit | Specification | ||||
| Model | 5XZ-3 | 5XZ-5 | 5XZ-10 | 5XZ-15/20 | ||
| Dimension (L x W x H) | mm | 2050×1350×1200 | 3840×2110×1710 | 4300×2300×2500 | 5100×2300×2700 | |
| Total Weight | kg | 1650 | 1900 | 2150 | 3500 | |
| Rated Capacity | t/h | 3.0 | 5.0 | 10.0 | 15~20 | |
| Total Power | kW | 7.45 | 9.55 | 14.7 | 21.3 | |
| Screen Area | m2 | 2.24 | 3.4 | 5.36 | 8 | |
| Selection Efficiency | % | ≥98.5 | ≥98.5 | ≥98.5 | ≥98.5 | |
| Cleaning Efficiency | Light | % | ≥95 | ≥95 | ≥95 | ≥95 |
| Heavy | % | ≥90 | ≥90 | ≥90 | ≥90 | |
Related Products
Other Seed Cleaning Machines:
5XZ Gravity Table 5X Air Screen Seed Cleaner TQSF De-stoner
HZZD Large Rotary Cleaner TQLZ Vibration Cleaner 5XW Indented Cylinder
Company Information
Whole Cleaning Processing Plant:
Whole Plant Drawings:
Manufacture Facility
Factory & Workshop:
With 50 Years' Growth, MAOSHENG GROUP Company Has Become One Of China Top 1 Grain Processing Machinery Manufacturer.
In Addition, MAOSHENG Is The Host Of CHINA National Grain Processing Technology Research Center.
Our Partners And Clients in China:
Honors of Maosheng Group Hyde Machinery:
With Decades Of Our Effort, Our Machines Have Obtained China Top 1.
China Famous Brand And Enjoyed High Reputation In Domestic And Oversea Markets.
State Leaders Visit to Maosheng Group:
Pre-sales Service:
1. Technical Consulting Service:
Our Wide Product Range Enables Us To Provide Most Flexible,
Efficient And Reliable Equipment Configurations Or Complete Solutions For Customers According To Different Requests And Budgets.
2. Company And Production Line Visit:
Before Placing Orders, Customers Are Warmly Welcome To Visit Hyde And Our Facility.
In-sales Service:
1. Reliable Delivery Time.
2. Strict Quality Control By In-production 100% Check And Test.
3. User Manual And Spare Parts Provided For Free.
After-sales Service:
1. Fast Technical Guidance For Construction, Installation And Commissioning.
2. Necessary Training For Daily Maintenance On Site.
3. 3 YEARS Warranty.
4. Lifelong Regular Technical Service.
5. Timely Solutions To Problems.
FAQ
Any Questions?
Q: What Do You Need To Know For Fast Communication And Quotation?
A: It Would Be Highly Appreciated If You Can Provide Details Of Your Processing Material Specs, Capacity And Efficiency Request, Screen Specification, Motor Power Supply Voltage And Special Brand Needed, And Other Working Conditions.
Q: Can You Make The Machines As Per Our Special Requirement?
A: Yes, OEM/ODM Service Available.
Q: What About The Lead Time?
A: 10~30 Workdays, Depending On The Type Of Machine And Parts Availability.
Q: What Is Your Payment Terms?
A: T/T, L/C, Western Union, Cash Accepted.
30% Deposit With Purchase Order, 70% Balance Paid Before Shipment.
Q: How Can You Guarantee The Quality?
A: Quality Control By Incoming Material Inspection, 100% In-production Check And Random Check After Packaging.
Spare Parts And Technical Solutions Provided Timely For Machine Failure.
Q: How Do We Visit Your Company?
A: Hyde Machinery Is Located In Kaifeng City, Henan Province, China.
One Hour Drive From Nearest Zhengzhou Airport.
