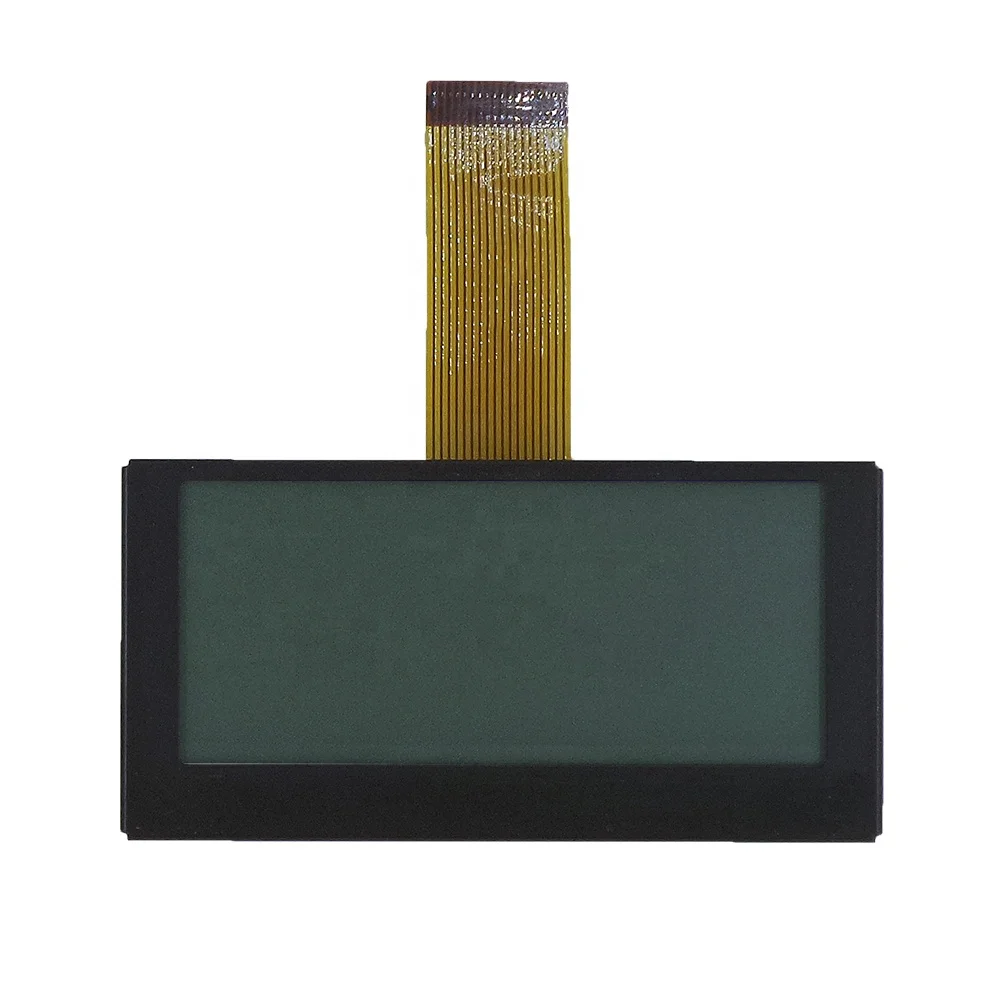

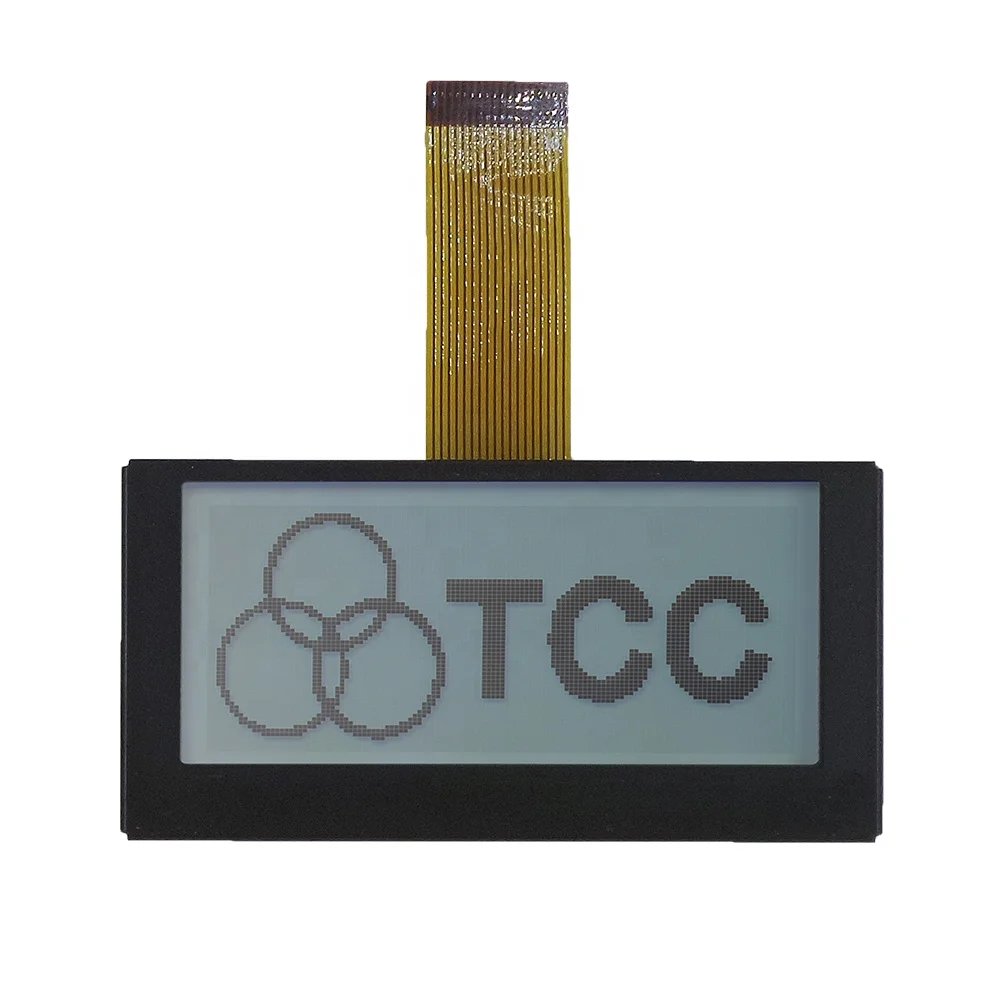

3.5 inch 264x112 lcd screen ST7592 driver 18 pin 8 bit parallel interface cog lcd
- Category: >>>
- Supplier: Shenzhen TCC LCD Hi-Tech Co. Ltd.
Share on (60581264878):
Product Overview
Description
Products Description
Resolution | 264*112 |
Viewing Direction | 12 O'clock |

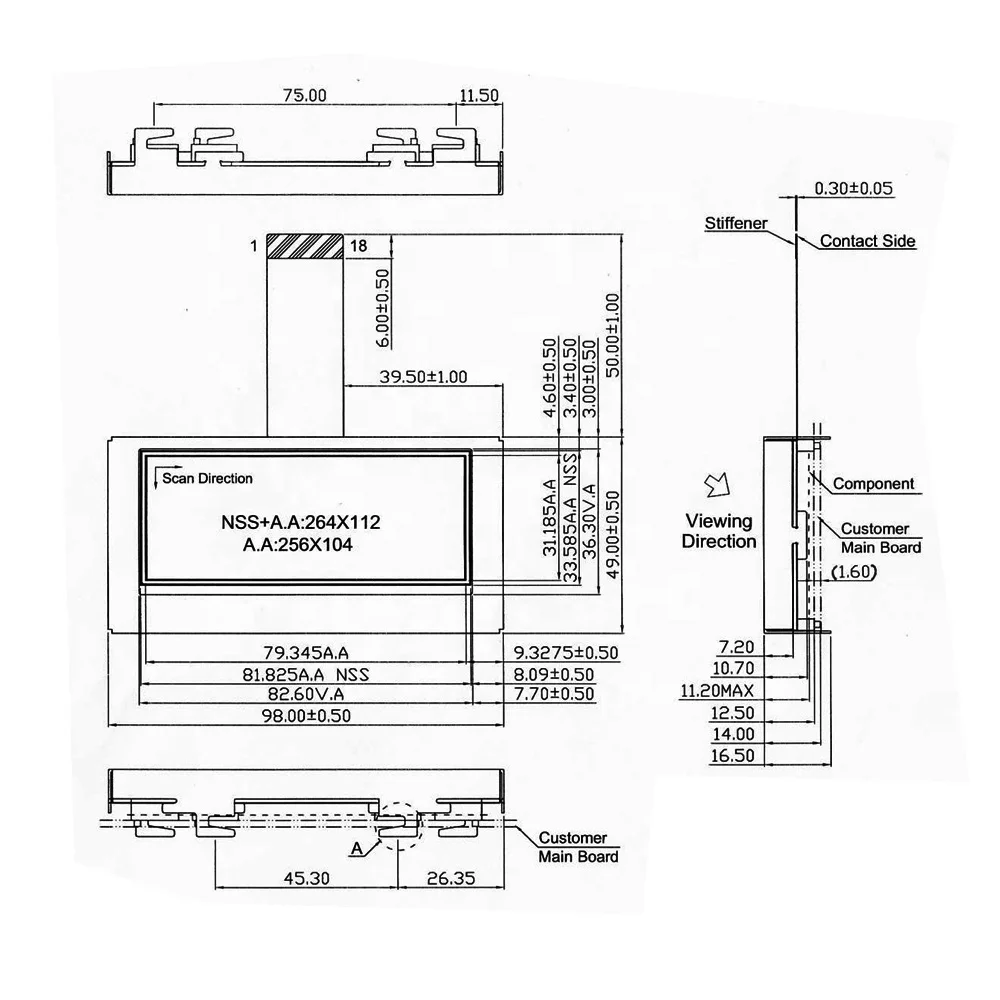

External dimensions | 98.0*49.0*16.5mm |
Visual area | 82.6*36.3mm |
Active Area | 79.345*31.185mm |
Display mode | FSTN/White-black/Positive/Transflcetive |
Backlight | White LED |
Driver IC | ST7592 |
interface | 8-bit parallel |
Operating Temp. | -30°C~+75°C |
Storage Temp. | -30°C~+80°C |

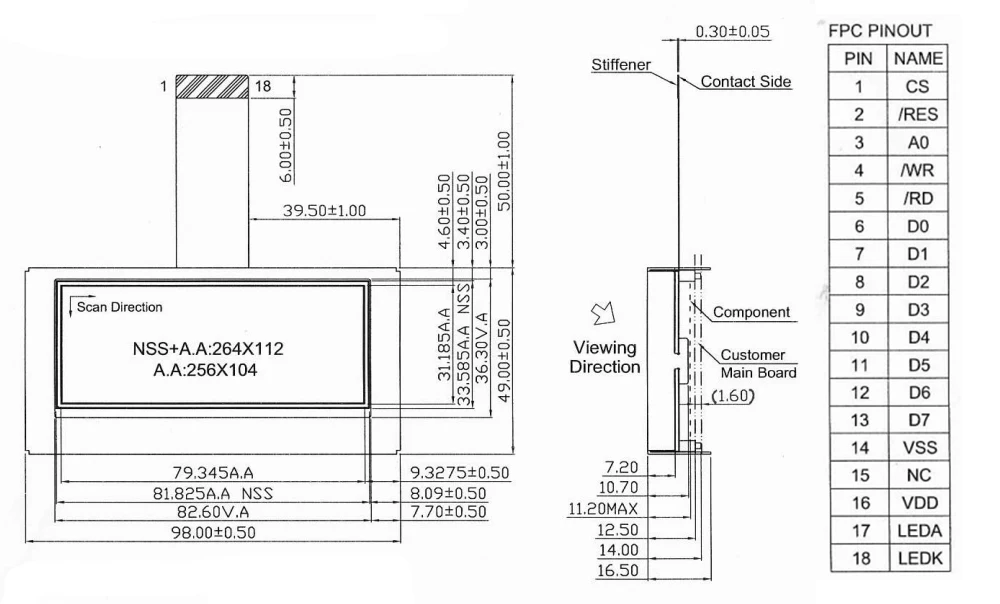

Number of pins | 18 pin |

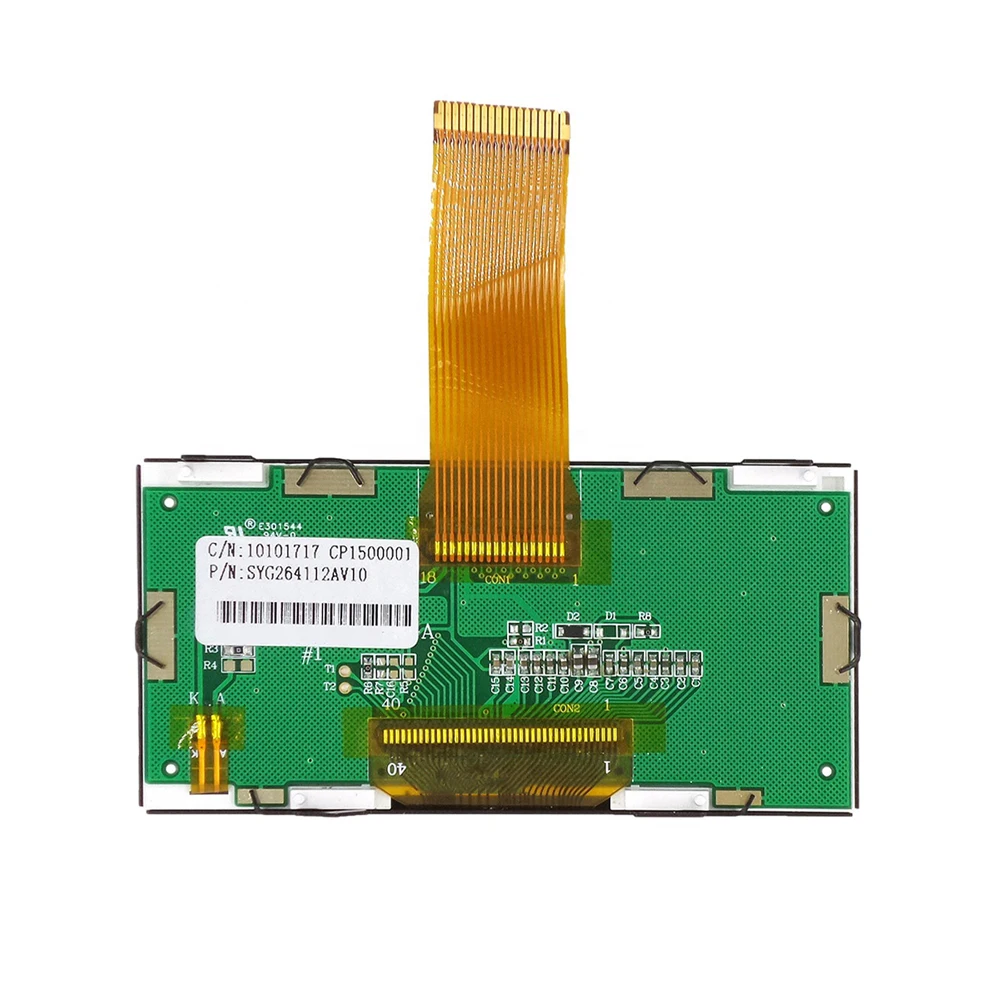

SYG264112AV10
8-bit parallel interface
Product packaging
Choose a suitable electrostatic packaging bag according to the size of the product, and use an airplane box with foam to ensure that the product is not damaged during transportation.
More products
Product application
Our products are used in a wide range of applications, such as electronic equipment, medical equipment, industrial equipment and smart home.
Certifications
We have a complete quality management system and have passed ISO9001:2015, SGS, TUV,BV, RoHS, and other certifications.
Manufacturing Technique
The company has advanced manufacturing equipment to provide customers with a strong guarantee for fast service and delivery.
TCC always adhere to the "Quality First" and strictly control the production process, the product after high temperature aging 100% inspection of qualified shipments.
