static and kinetic friction coefficient tester of plastic film

Product Overview

Description

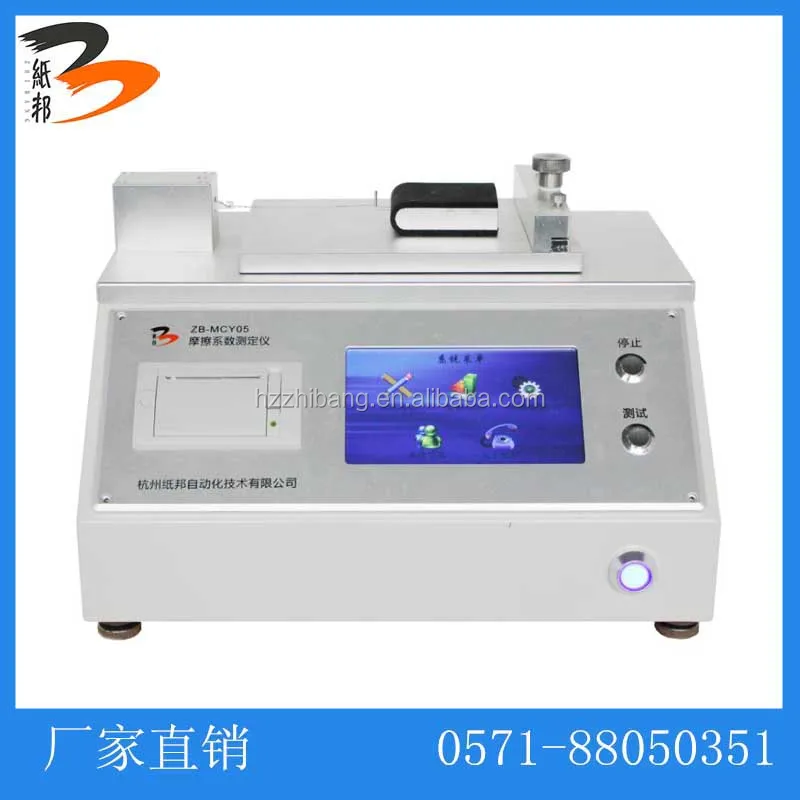

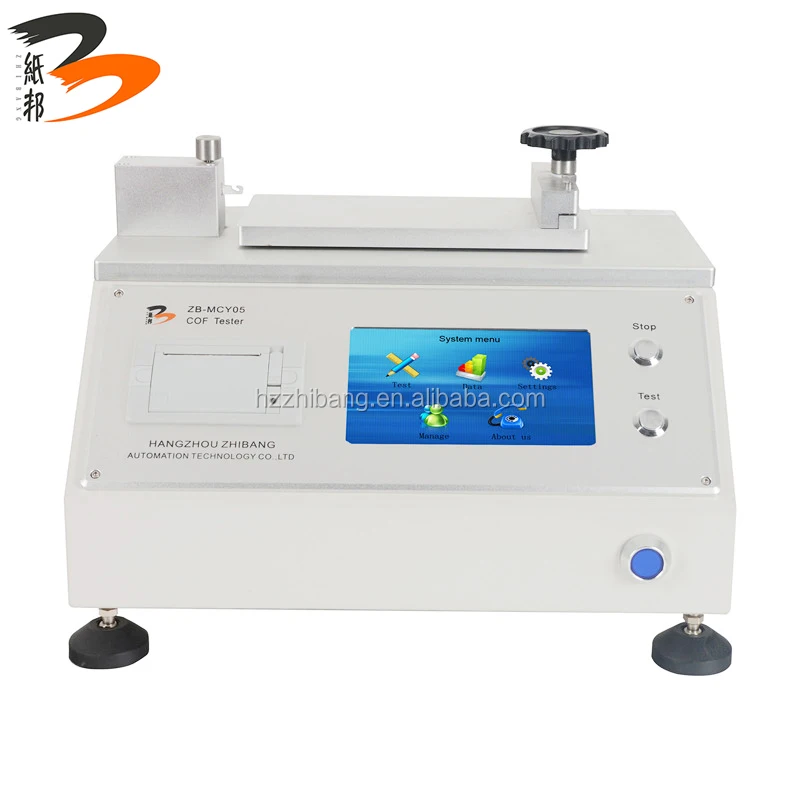

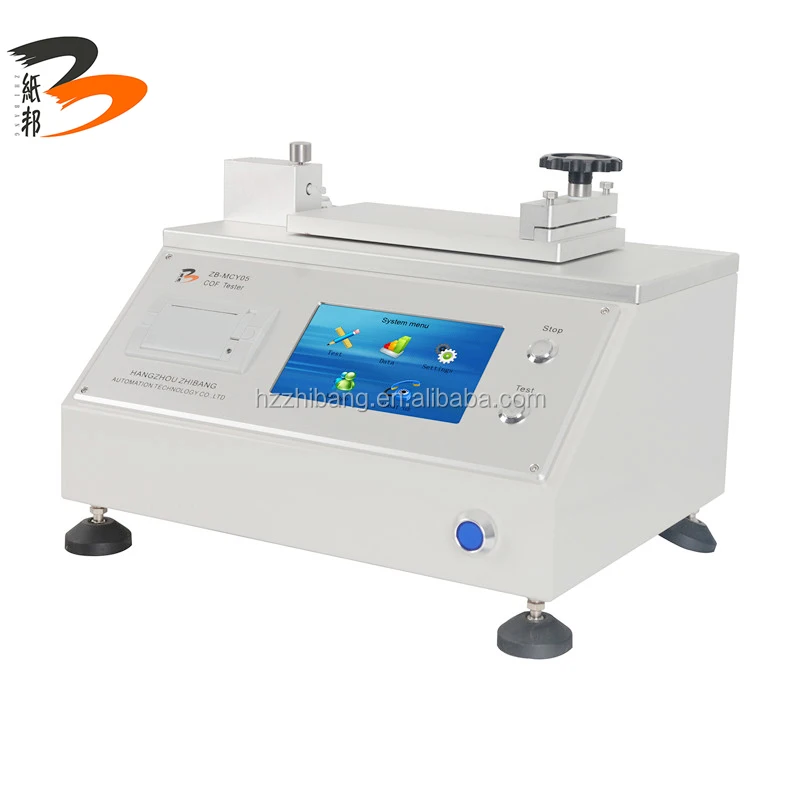

static and kinetic friction coefficient tester of plastic film

it is applicable in testing the static and kinetic friction coefficient of plastic film and sheet.

It is designed according to the standard ASTM D1894, ISO 8295.



It is applicable in testing the static and kinetic friction coefficient of plastic film and sheet or other similar material.

Main features

1.       Adopted the imported motor, low noise, control precisely.

2.       Large screen, real-time display various data.

3.       Setting parameters simply, testing conveniently and reliably.

4.       The measured results can be obtained directly,including averagevalue,standard deviation.

5.       High automation with the advanced parts,has the function of testing message processing data and motion control,besides it can reset automatically ,remember data,and protect and diagnose error.

6.       Equipped with RS232 interface and can communicate with the computer software.

Main technical parameters

Power supply	AC220V±10%   50HZ  2A
Measurement range	(0.01~10)N
Resolution ratio	0.01 N
Accuracy	Indication error±2%
Sample thickness	≤0.2mm
Slider size	63mm×63mm
Slider weight	200g±2g
Dimension of working plate	170mm×225mm
Slider speed	(100±10) mm/min
