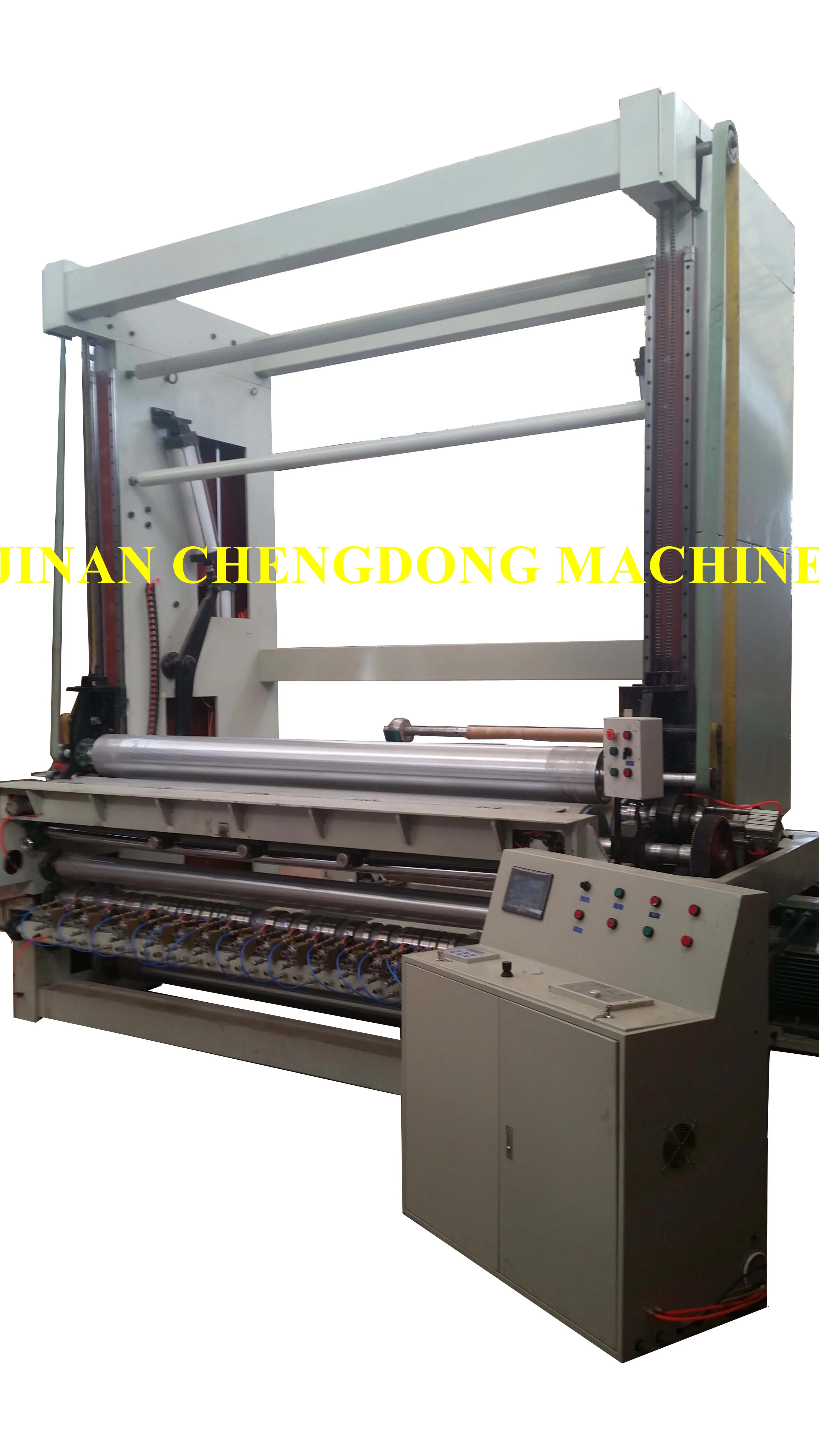

PAPER ROLL SLITTING AND REWINDING MACHINE MODEL ZWSJ-2500

Usage and Features:
This machine is specially used for processing of auto filter paper, wallpaper, bobbin paper, cardboard paper and white cardboard roll. It could slit narrow paper reel from 50mm, rewind diameter 1500mm, jumbo roll width 1600~2640mm.

This machine could slit narrow width roll and rewind to big diameter with good tightness, and no overlap problem, and very popular in paper mill and processing industry.

Parameter/Model	ZWSJ-1880	ZWSJ-2200	ZWSJ-2400	ZWSJ-2640
Jumbo roll width	Max.1900mm	Max.2200mm	Max.2400mm	Max.2640mm
Jumbo roll diameter	Max.1800mm	Max.1800mm	Max.1800mm	Max.1800mm
Brake type	Pneumatic or Motor	Pneumatic or motor	Pneumatic or motor	Pneumatic or motor
Tension Control	Automatic	Automatic	Automatic	Automatic
Slitting Width	70~1900mm	70~2200mm	70~2400mm	70~2600mm
Rewinding diameter	Max.1500mm	Max.1500mm	Max.1500mm	Max.1500mm
Cutting Blade	Pneumatic blade	Pneumatic Blade	Pneumatic blade	Pneumatic blade
Working speed	400~600m/min	400~600m/min	400~600m/min	400~600m/min

Detailed Images

Introduction of product advantages or application effect or application mode

Unwind Stand

The unwind section can use the tension control with drive device or pneumatic control, which is decided by working speed. The under reel can be adjusted by hydraulic control or manual operation, which is decided by web width and diameter.

Can equipped with Motor or pneumatic as brake system

With coupling as customer steel shaft for paper machine

Tension Detect and Control

Equipped With Tension Detect roller and Load cell which RE brand, it will detect the paper tension and feedback into tension controller, the signal will send into machine Frequency inverter control system

Cuttiing unit

Choose good brand pneumatic blade OD150mm

Choose multi-edged bottom ring OD200mm

With Semi-automatic blade positioning function

Transmission unit for backing roller

Choose two backing roller diameter 420mm,there have torque difference between two backing roller, and the speed is controlled by two motor separately.

One backing roller surface plated Molybdenum, another backing roller surface coating Polyurethane

Product packaging

Certificate

Company Introduction

JINAN CHENGDONG MACHINERY MANUFACTURE CO.,LTD. was founded in 1993 and have more than 20 years for manufacturing experience of paper-processing equipment in China. There are a group of senior engineers and technicians and R&D department to ensure the producing capacity and high quality. The company successively develops a group of leading products in homeland based on the ideology of constant development and creation. The main products including Paper roll slitting and rewinding machine, Spiral paper tube/core winding machine, Fibre/Paper drum production line, Composite can production line, Paper tube/core cutting machine, High-speed rotary paper roll to sheet cutting machine, paper board laminating machine, paper corner protector machine, Paper tube polishing machine and other different paper processing machines.
