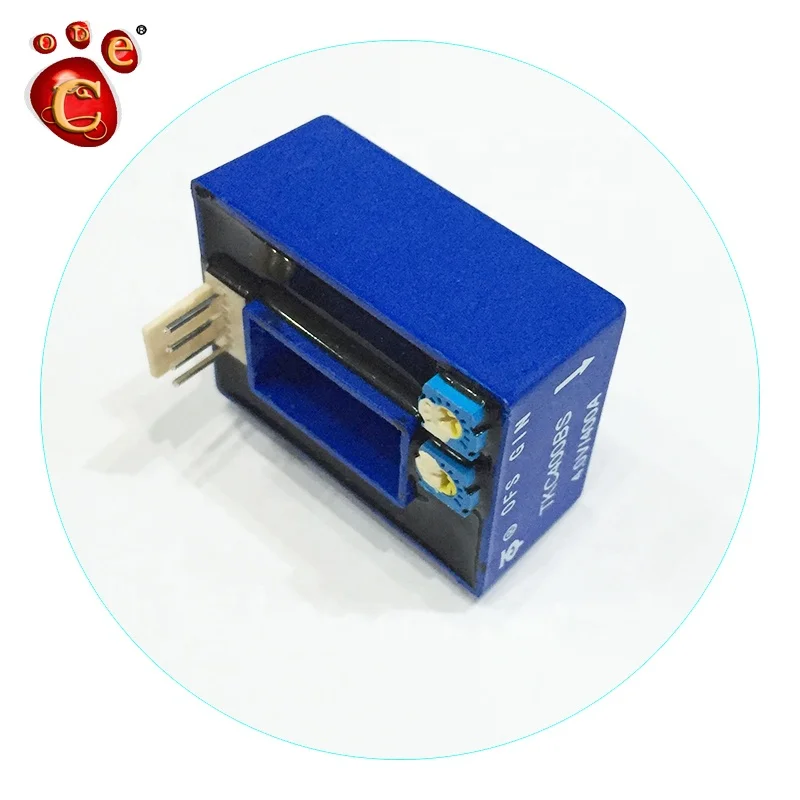

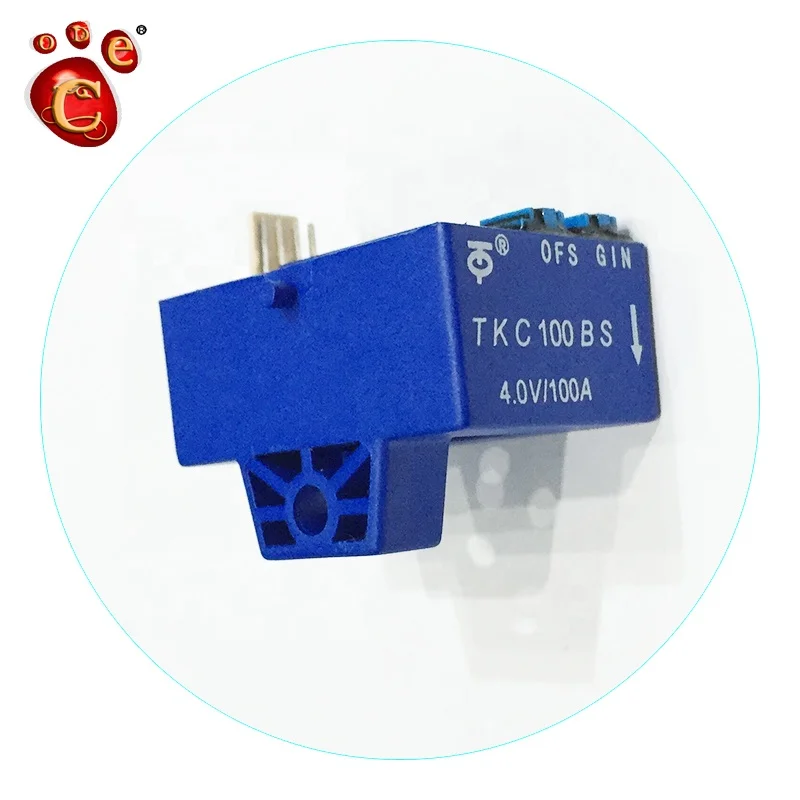

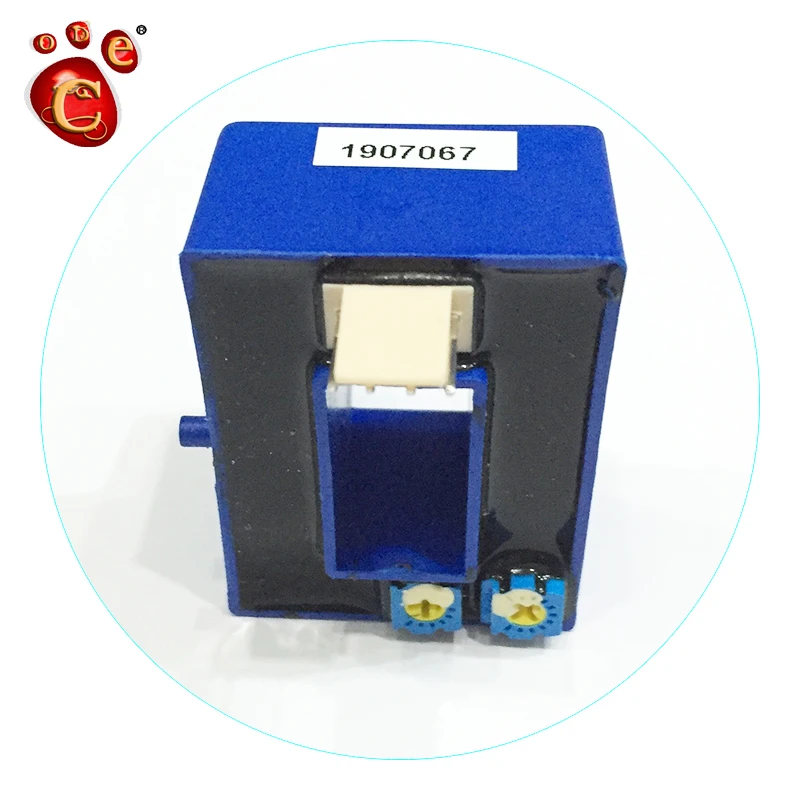

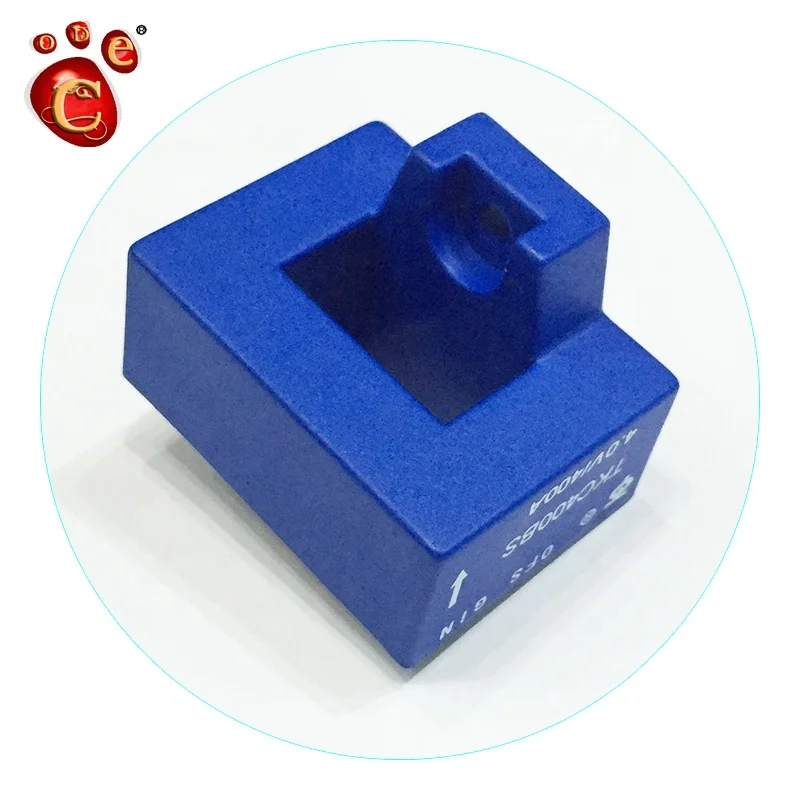

Sensor 50 600A TKC50BR TKC75BR TKC100BR TKC200BR TKC300BR TKC400BR TKC500BR TKC600BR

Product Overview

Description

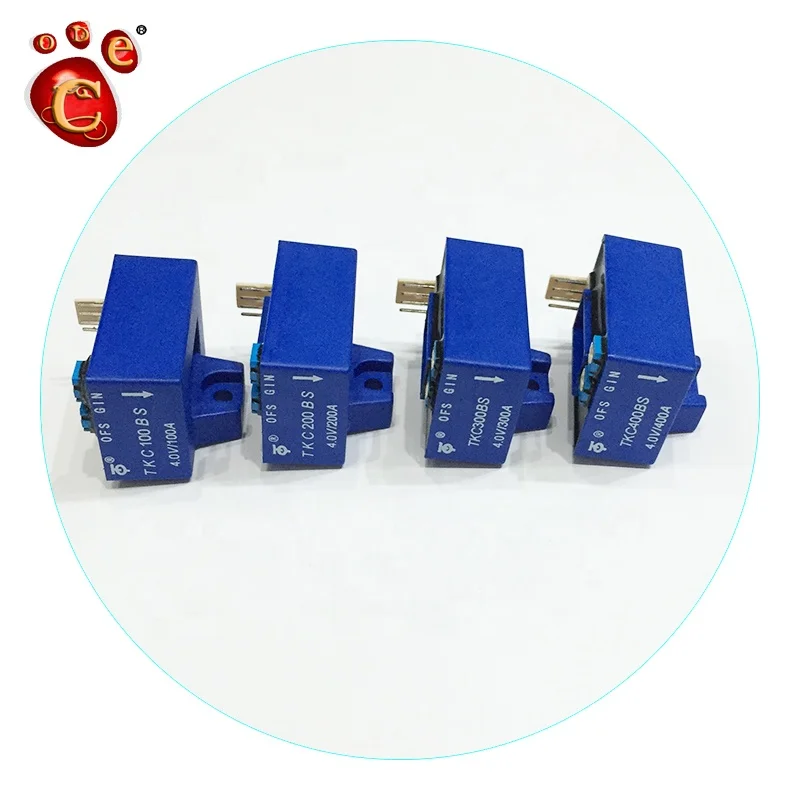

TKC-BS/BR Series (BR=cable connector; BS=Terminal connector)

made in china Current Sensor altertive to LEM sensor HAS-S and HAS-S/SP50 Series.

 50~600A  Hall Effect Currect Sensor

TKC-BS/BR series current sensor is a open loop device based on the measuring principle of the hall effect, with a galvanic isolation between primary and secondary circuit. It provides accurate electronic measurement of DC, AC or pulsed currents.

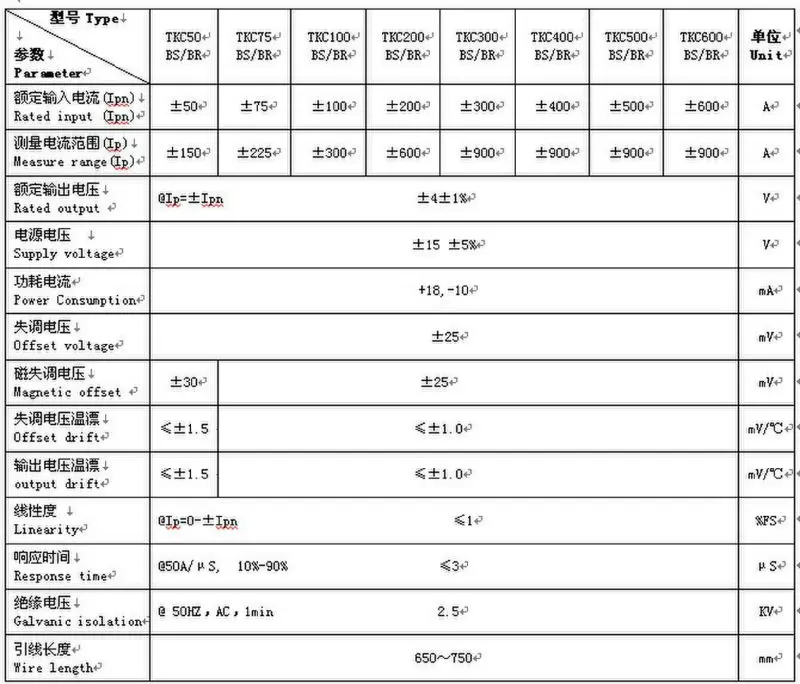

Electrical data



 Applications

AC variable speed drives

Static converters for DC motor drives

Variable speed drives

Power supplies for welding applications

Battery supplied applications

Uninterruptible Power Supplies (UPS)

Switched Mode Power Supplies(SMPS)

Mechanical dimension(for reference only)

 Remarks:

all dimensions are in mm.

general tolerance  ± 1mm.



Directions for use

When the current  will be measured goes through a sensor ,the voltage will be measured at the output end.

(Note: The false wiring may result in the damage of the sensor)

Custom design in the different rated input current and the output voltage are available.
