GROW R306 DC4.2 6V High Quality Biometric Fingerprint Sensor Scanner USB UART Interface
- Category: >>>
- Supplier: Hangzhou Grow Technology Co. Ltd.
Share on (60581546914):
Product Overview
Description
Product Description

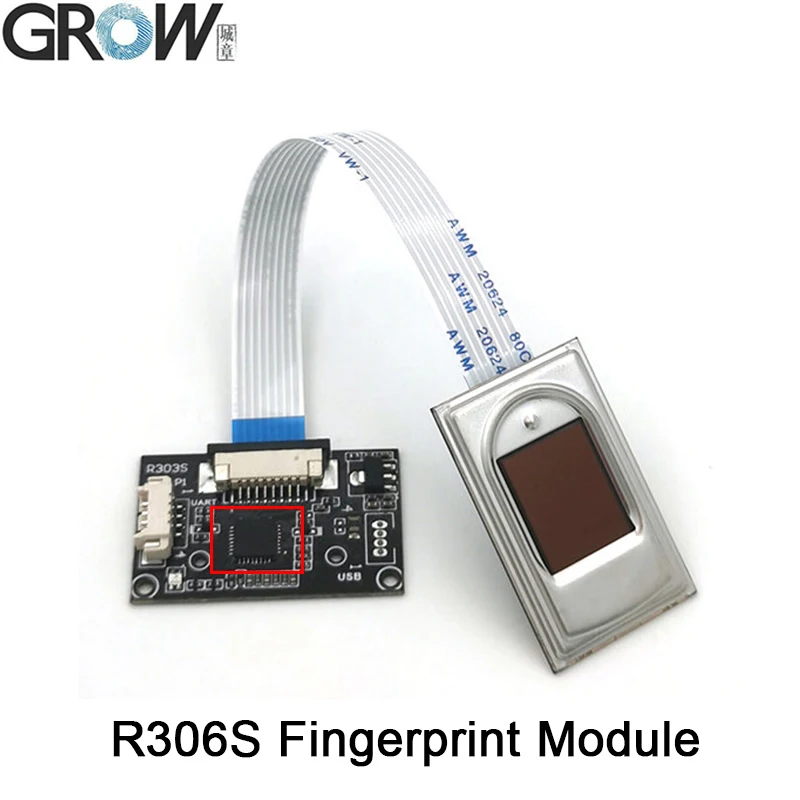

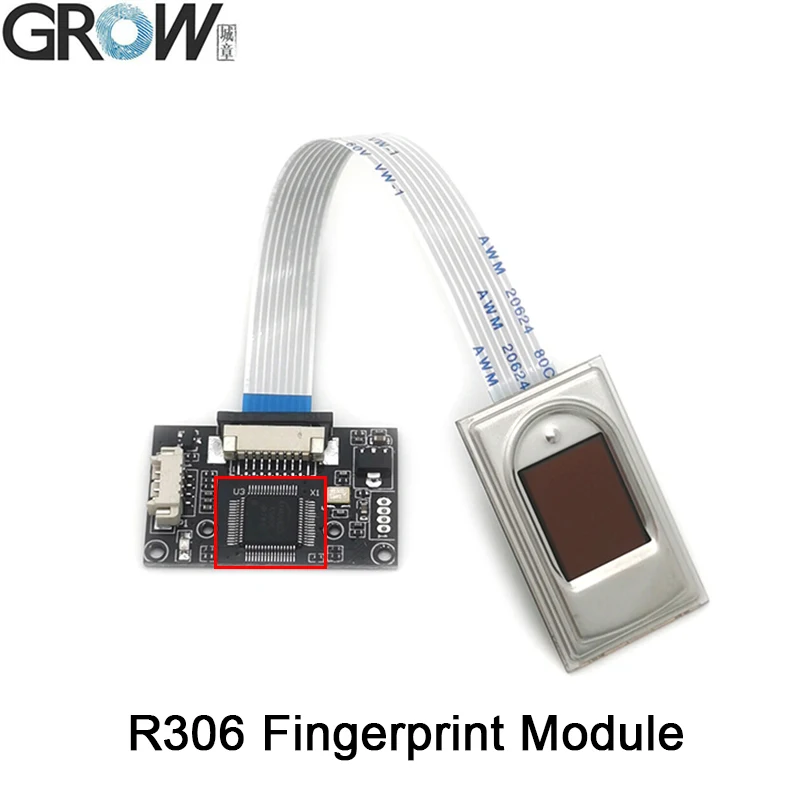

R306 Capacitive Fingerprint Module
Description

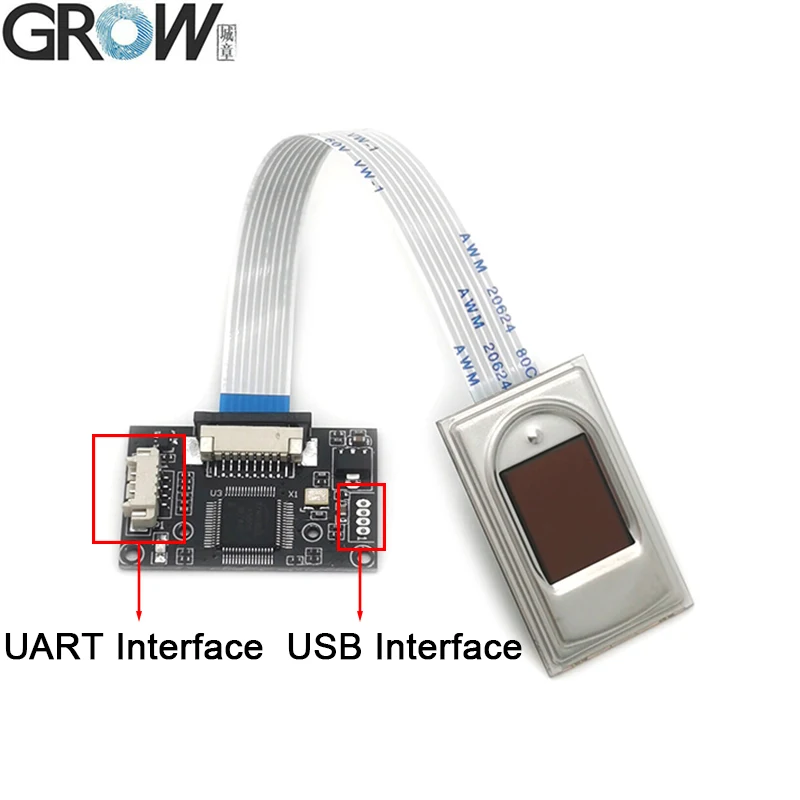

·Communication interface : USB and UART
·1:N Identification (One-to-Many)
·1:1 Verification (One-to-One)
·High speed fingerprint identification algorithm engine
·Self study function
·Fingerprint feature data read/write functions
·Get Feature Data of Captured fingerprint and Verify/Identify Downloaded Feature with Captured
·Fingerprint Identify Downloaded Feature with Captured fingerprint
·Security Level setting
·Able to set BaudRate/ Device ID/Device Password
·Operating system:Windows 98, Me, NT4.0, 2000, XP,WIN 7 or Android
·Communication interface : USB and UART
·1:N Identification (One-to-Many)
·1:1 Verification (One-to-One)
·High speed fingerprint identification algorithm engine
·Self study function
·Fingerprint feature data read/write functions
·Get Feature Data of Captured fingerprint and Verify/Identify Downloaded Feature with Captured
·Fingerprint Identify Downloaded Feature with Captured fingerprint
·Security Level setting
·Able to set BaudRate/ Device ID/Device Password
·Operating system:Windows 98, Me, NT4.0, 2000, XP,WIN 7 or Android
Specifications

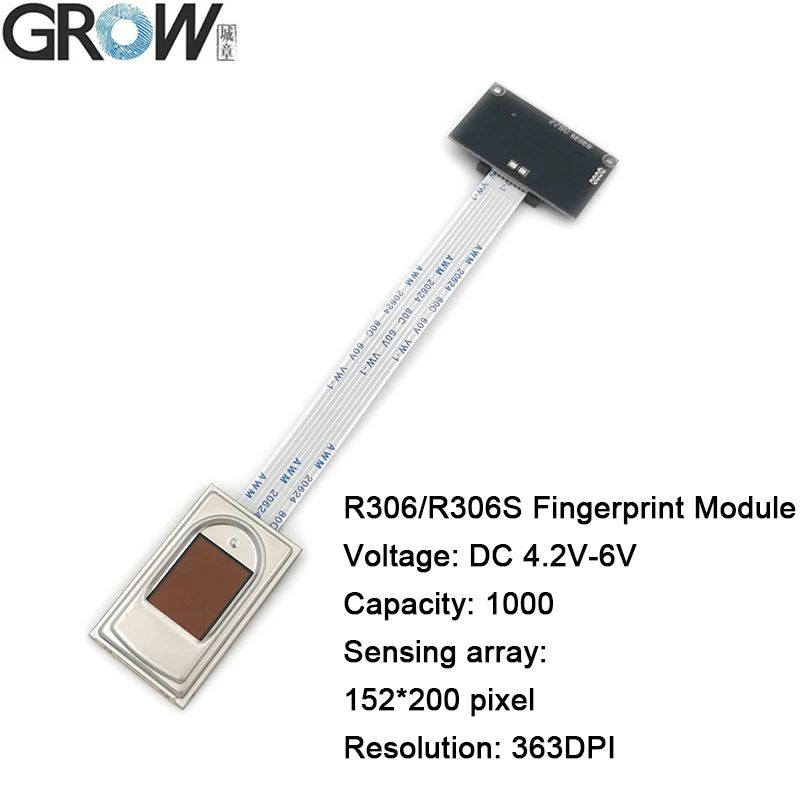

Power | DC 4.2V-6.0V | Interface | UART(TTL logical level)/ USB 2.0 |
Working current | 40mA | Matching Mode | 1:1 and 1:N |
Peak current | 55mA | Sensing Array | 152*200 pixels |
Resolution | 363 dpi | Average searching time | < 0.2s (1:1000) |
Baud rate | (9600*N)bps, N=1~12 (default N=6) | Character file size | 256 bytes |
Image store time | <0.1s | Template size | 512 bytes |
Storage capacity | 1000 | Security level | 5 (1, 2, 3, 4, 5(highest)) |
FAR | <0.0001% | FRR | <1% |
Working environment | Temp: -20℃- +45℃ | Storage environment | Temp: -40℃- +55℃ |
RH: 10%-85% | RH: <85% | ||

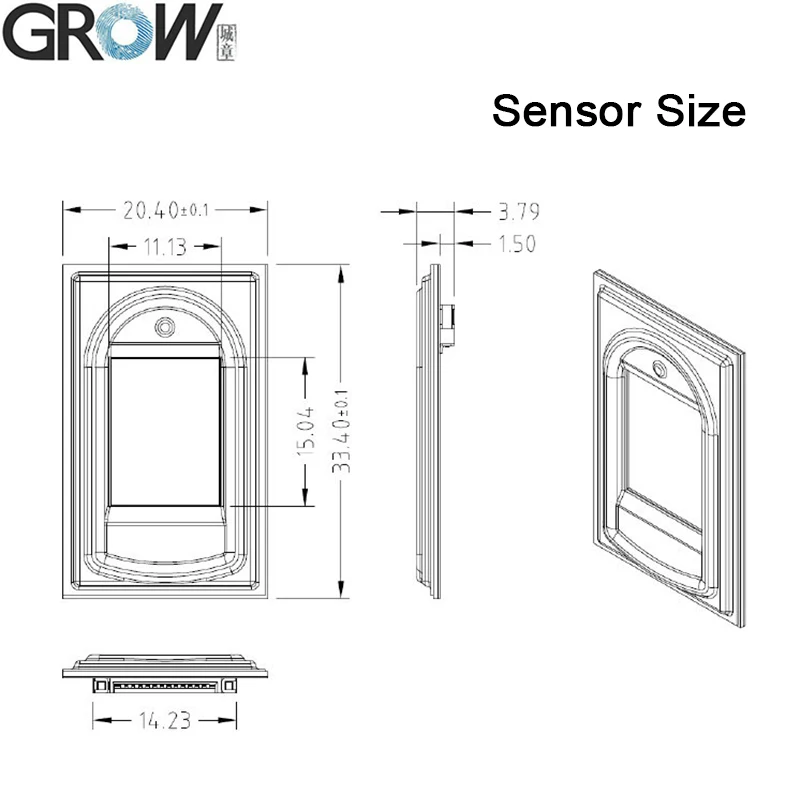

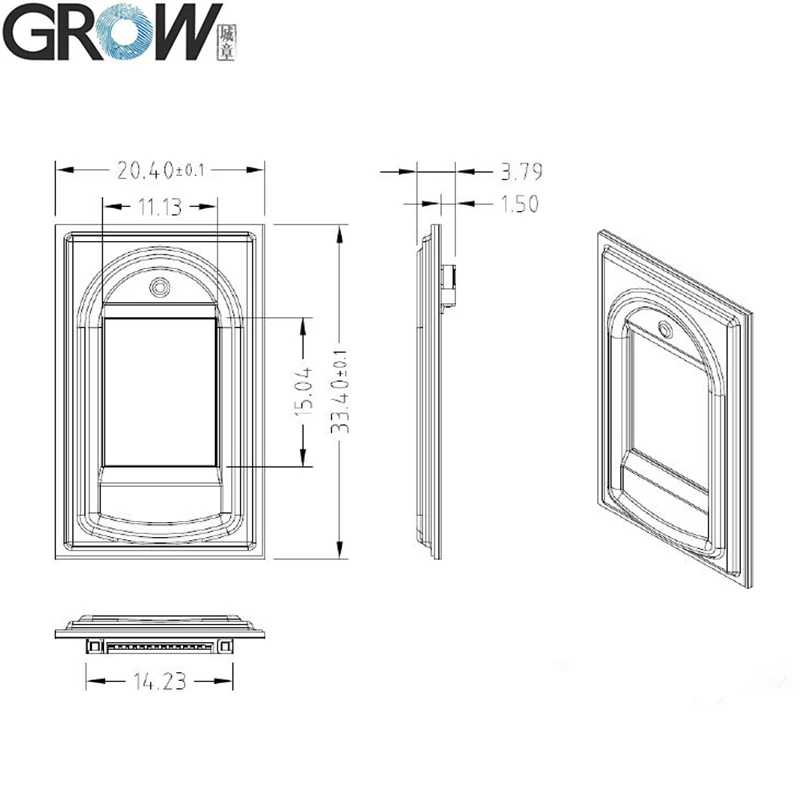

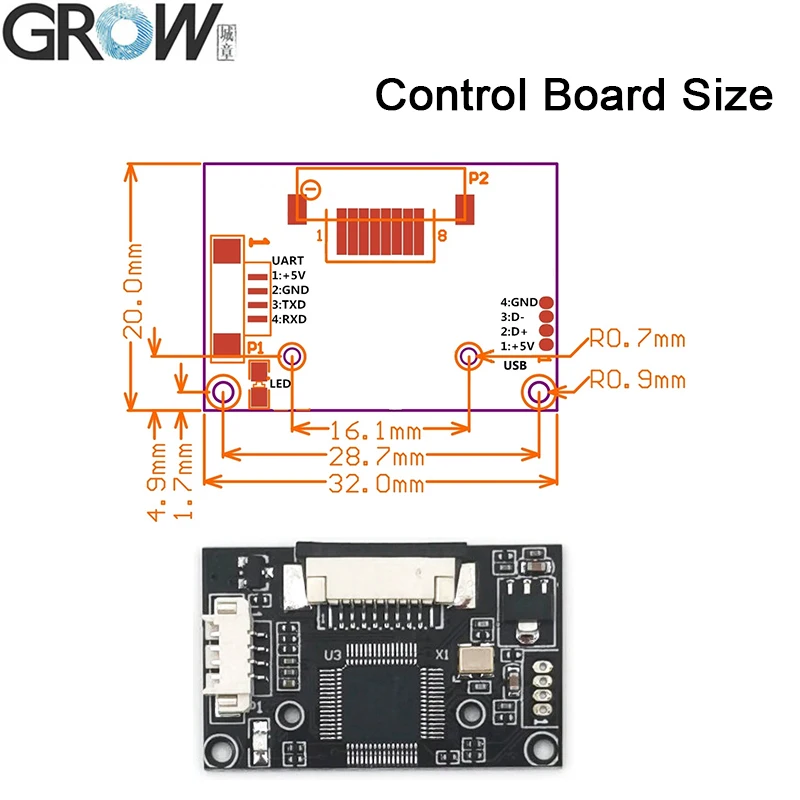

Window dimension | 11mm*15mm | Sensor Size | 33.4*20.4mm |
Files
·All fingerprint module support with Arduino, Android, Windows, Linux, .Net and so on.
·Provide Free SDK Files
·Provide User Manual
You can download the R306 R306S user manual from this website link:
https://www.dropbox.com/sh/epucei8lmoz7xpp/AAAmon04b1DiSOeh1q4nAhzAa?dl=0
·All fingerprint module support with Arduino, Android, Windows, Linux, .Net and so on.
·Provide Free SDK Files
·Provide User Manual
You can download the R306 R306S user manual from this website link:
https://www.dropbox.com/sh/epucei8lmoz7xpp/AAAmon04b1DiSOeh1q4nAhzAa?dl=0
Images

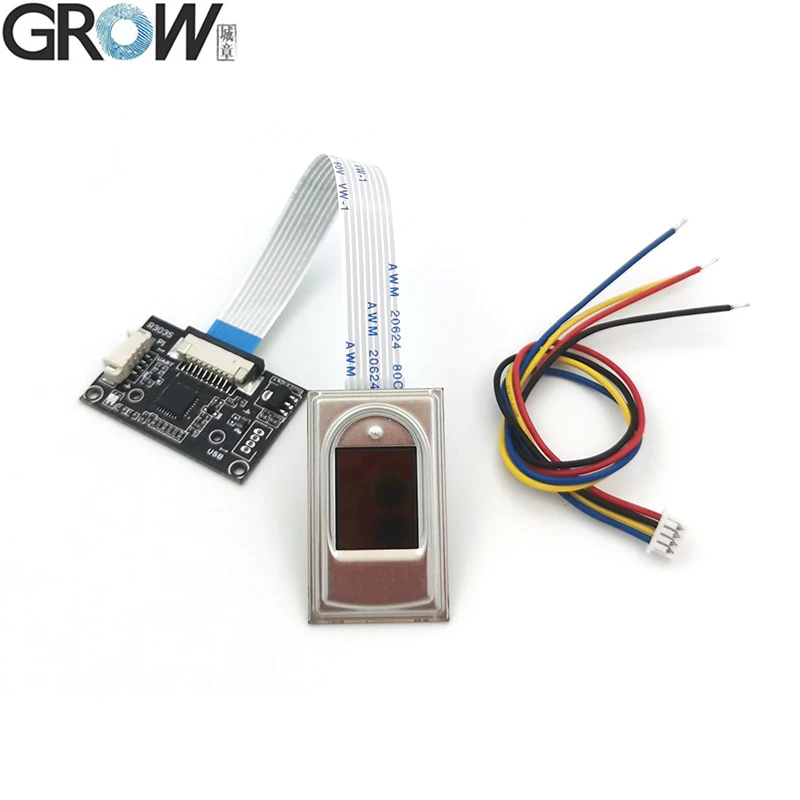

Package Listing
