TJ 1 Small sublimation machine hand heat press machine manual fabric foil printer hot stamping embossing machine

Product Overview

Description

TJ-1 Small sublimation machine hand heat press machine manual fabric foil printer hot stamping embossing machine

1.Product parameters:

Quality / safety certification ISO9001-2000



2.Technical parameters:

Stamping area	180*100 (mm)
Working stroke	40 (mm)
Stamping pressure	1000kg
Working table size	440*330 (mm)
Short-run speed	800-1000 per hour
Way of feeding	mechanical drive
Bronzing board area	120 * 240mm
Machine power	1kw
Weight	120kg
heating power	depending on the size of the heating plate
Dimensions	600 * 700 * 820mm



3.Advantages:

(1). Pressure strong, stable. the workbench can pull

(2). Stamping pressure, Temperature, transfer time ,adjustable

(3). adjustable mechanical paper feeding and receiving

(4) adjustable table height, lifting



4.Product Description

The machine applies to orders is not too large bronzing products, branded and paste, especially for stores, making greeting cards, tender, invitations and other products stamping, the mechanical stamping paper conveying manually stamping operation, have a strong flexibility.



5.Gilding area

Series	Species	Gilding area(mm)	Prices(RMB)
TJ-1	A	95*180	4200
	B	120*240
	C	100*300
	D	190*270	5000





6.The stamping process the matters needing attention:

 (1). According to the different varieties of scalded object, select the appropriate hot stamping foil.Good sized must master the temperature, pressure, stamping speed three party coordination, and according to the short-run printing materials, area of difference.



(2). The cutting knife should grasp the direction and speed of car;



(3). The anodized hot stamping foil should choose attributes suitable paper, ink (especially black ink), kerosene, composite glue, hot stamping parts must be kept dry, so as to avoid the bronzing layer oxidizing or injury;



(4). The general packaging: 0, 64 × 120m volumes, each volume 10: a box can be custom width of 0.64M, length of 240m or 360m rolls or other special specifications;



(5). When stored to prevent pressure, moisture, heat, sunscreen, placed in a cool ventilated place.



7. Hot stamping temperature reference

Paper	PVC:	soft soft plastic	Hard plastic artificial leather	Synthetic leather leather
85-120 °C	65-80 °C	75-85 °C	120-150 °C	160-180 °C

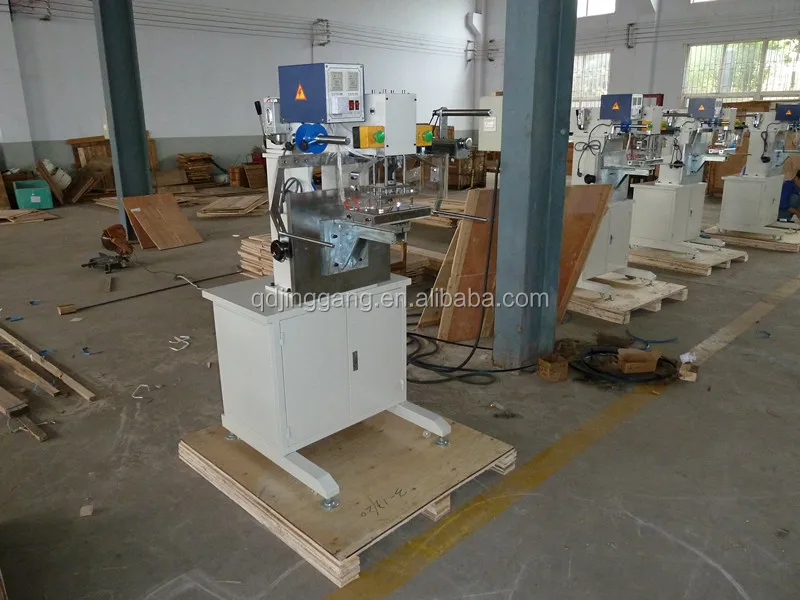

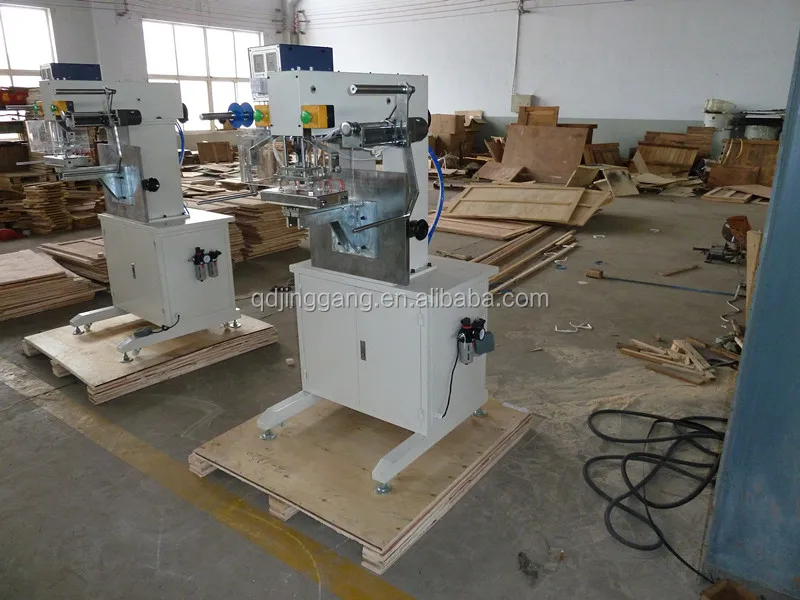

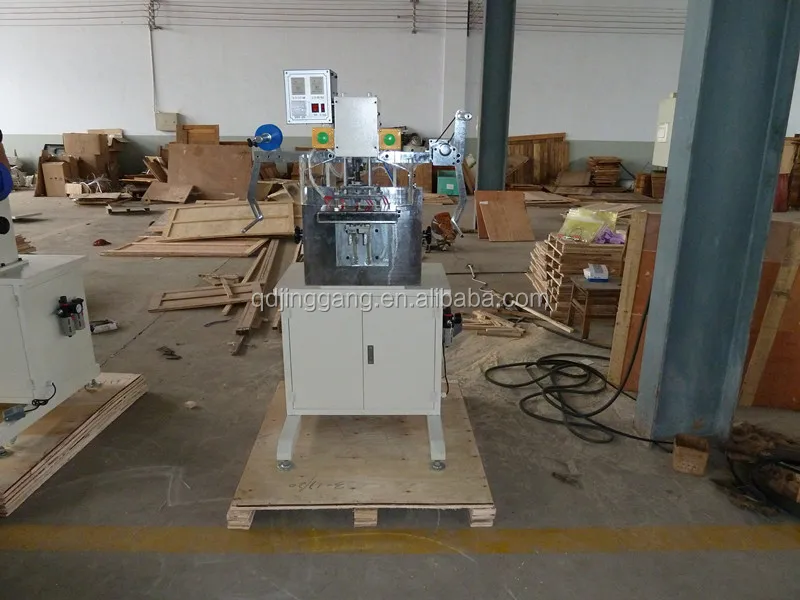

8.  Pictures



















Packaging



Note

 The stamping area, pressure, temperature and speed can be adjustable, and we can design semi-automatic and full automatic machines  according to your products and your requirements with our excellent Engineers.







 How to order ?





(1).Tell us the information(material, size and shapes) of the products you want to print on.

(2).Send us the samples for testing.

(3).We will offer a good solution according to the samples. Then it back to you.

(4).The customer evaluates if the machine is suitable.

(5).The agreement is achieved by two sides,and our factory begins to make it.

(6). Transport
