low rpm 1 kw permanent magnet generator price
Product Description
Features of low rpm 1 kw permanent magnet generator price:
1. NdFeB rare earth permanent magnet generator
2. Low startup torque, wind energy utilization high; small size, beautiful appearance, low vibration
3. Human friendly design, easy installation, maintenance and repair.
4. Permanent magnet generator rotor using patented alternator, together with the special stator design, effectively reduce the generation of resistance torque and enhance generation perfomance
5. Aluminum alloy body, anti-corrosion/rain, maintenance-free
Technical datas of low rpm 1 kw permanent magnet generator price
| Model | 1kw LP |
Rated Power(W): | 1kw |
Rated Speed(RPM): | 500r/m |
Rated Voltage(V): | AC 48v or as your request |
Insulation Class: | F |
Efficiency (%) | 93 |
Generator type | 3 -Phase Permanent Magnet AC Synchronous Generator |
Service Life: | over 20 years |
Working Environment | -35º C-60º C |
Speed Range | 0-800 rpm |
Mechanical specifications | |
Mounting Means | Horizontal/ Vertical |
Gross Weight(Kg) | 20 |
Start Torque(N*M) | 0.62 |
Rated Toque(N*M) | 19.1 |
Poles | 12 |
Material specifications | |
Shaft Material | Iron with quenching and tempering Treatment |
Bearing | HRB or as your request |
Lubrication | Lubrication Grease |
Shell Material | Casting Aluminum Alloy |
Winding Temperature Class | 150 Centigrade |
Permanent Magnet Material | Rare Earth NdFeB |
Permanent Magnet Material Temperature Class | 150 Centigrade |
Core | High Grade Cold Rolling Silicon Sheet 50WW470 |
Protection Grade | IP54 |

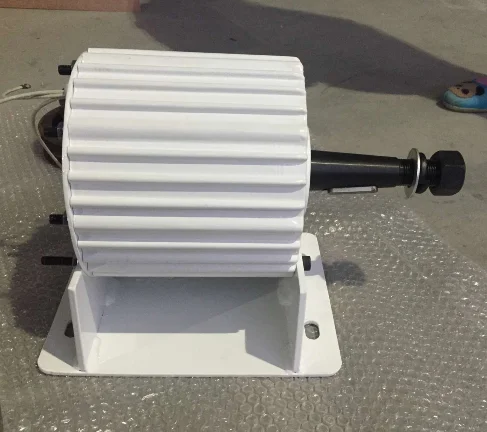

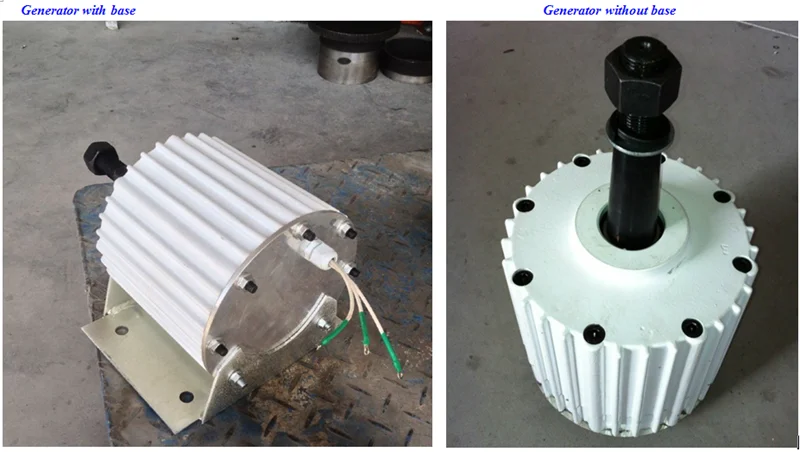

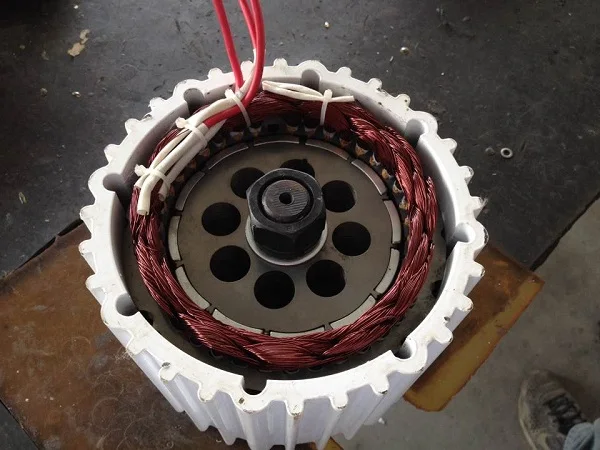

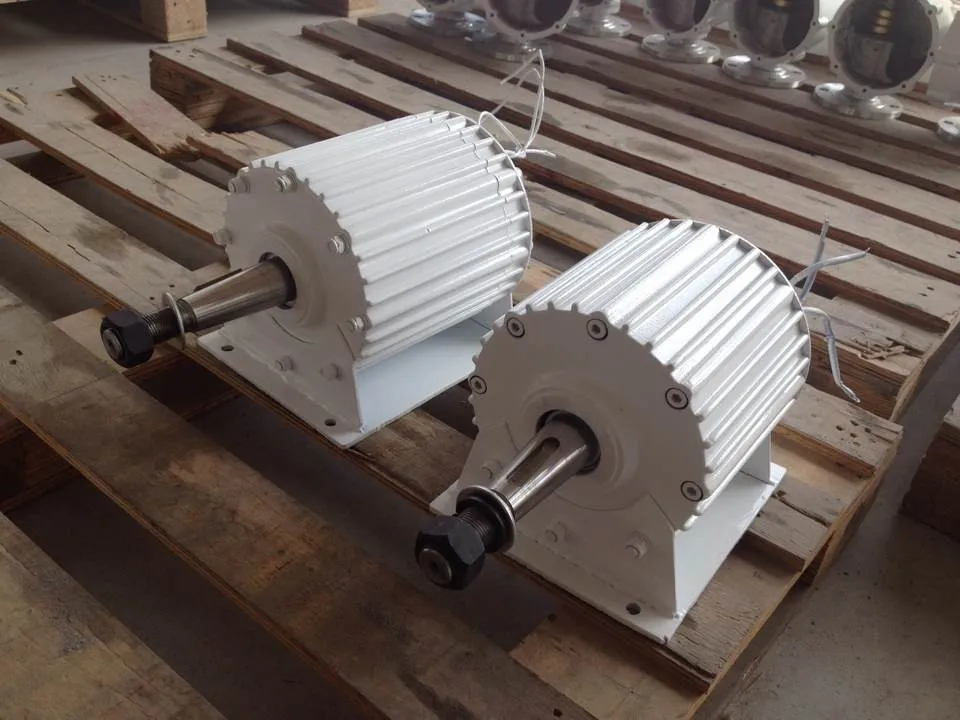

Detail parts of low rpm 1 kw permanent magnet generator price
Our Services
We are professional manufacturer of wind turbine system and wind solar system for 7 years. If you need offer of the low rpm 1 kw permanent magnet generator price as above, contact Lareina Ling for more information.
Packaging & Shipping

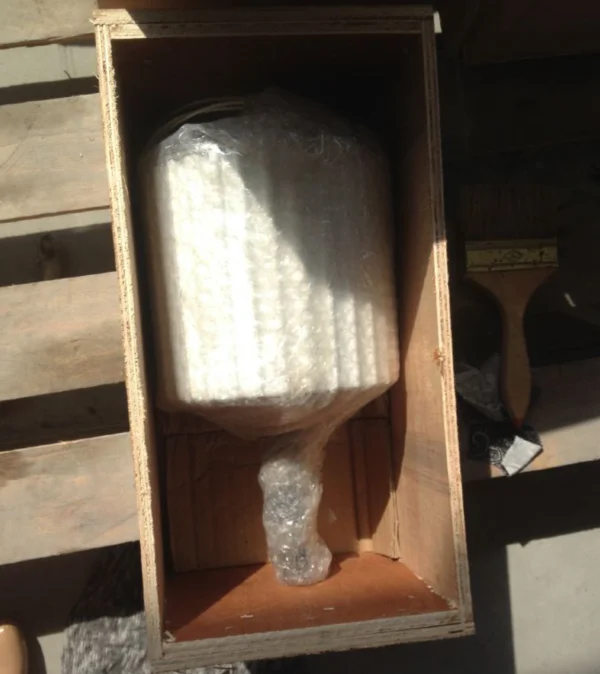

Packed in cartons with inner foam protection.
Please contact us for the latest price of low rpm 1 kw permanent magnet generator price, including wind turbine, controller, invert er, pole and battery.
