Product Overview

Description

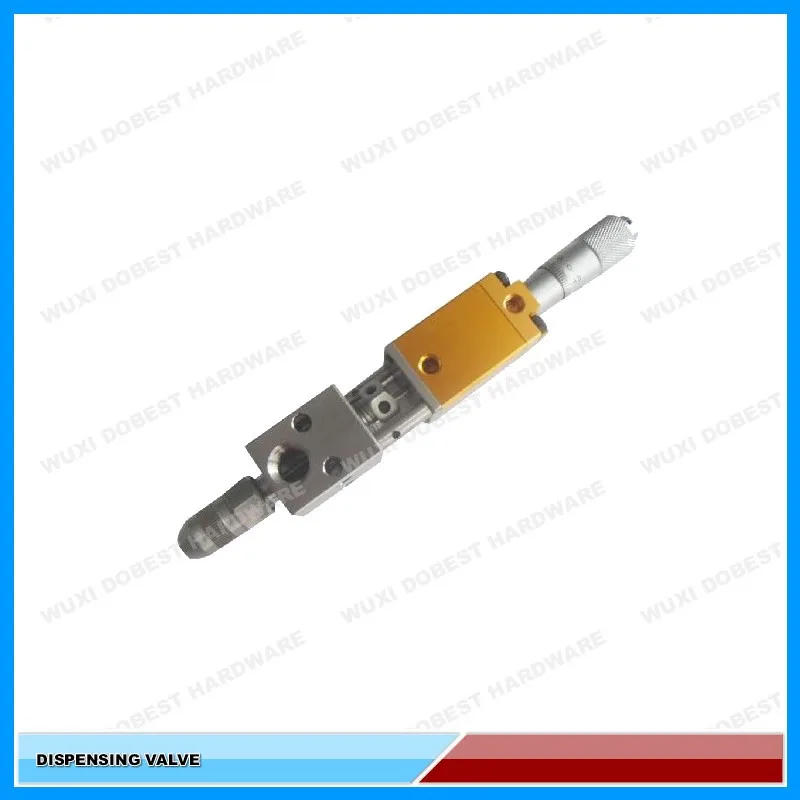

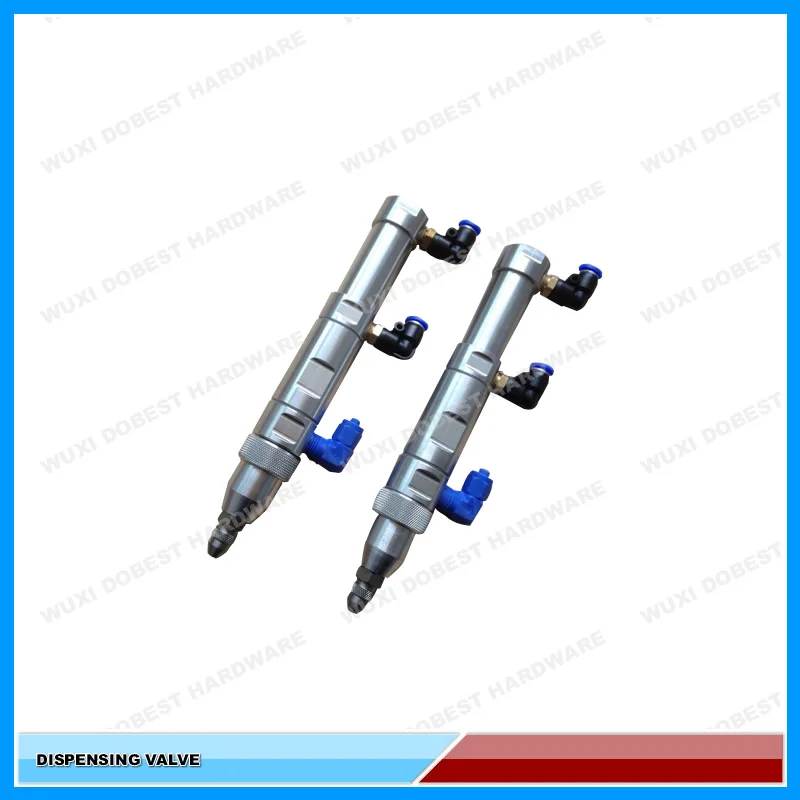

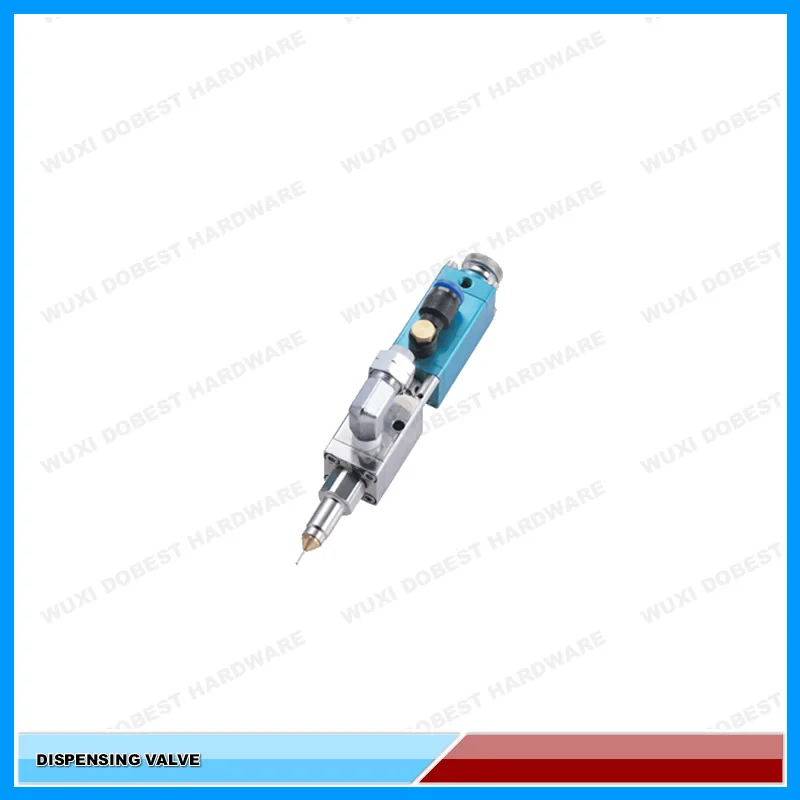

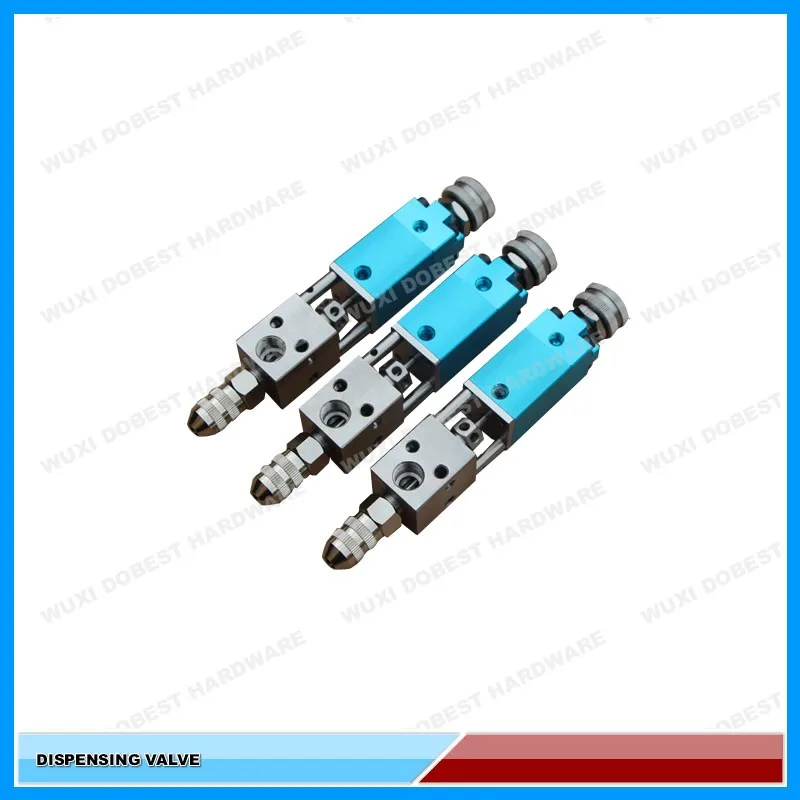

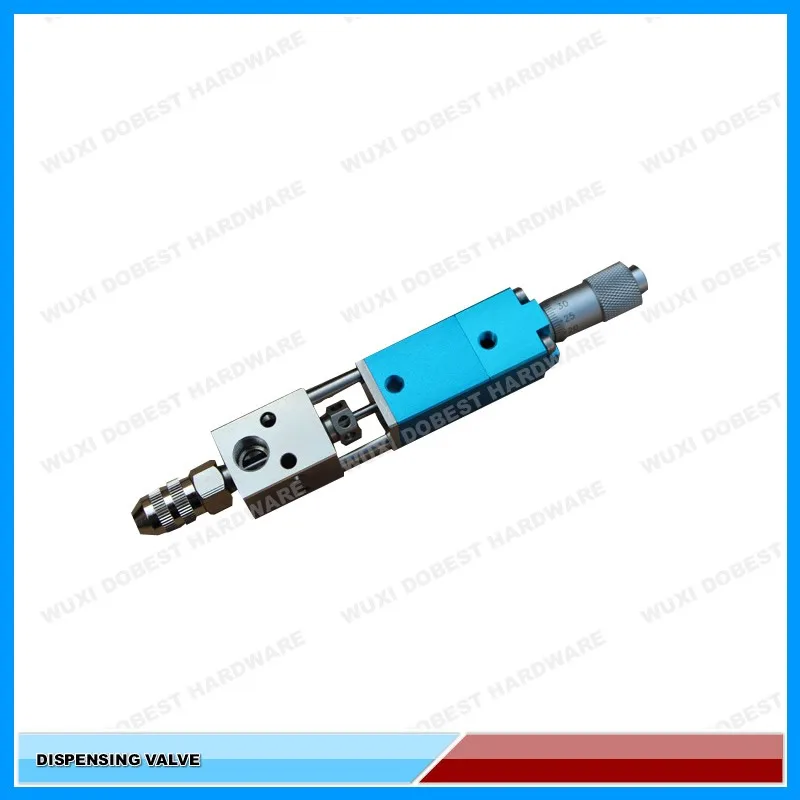

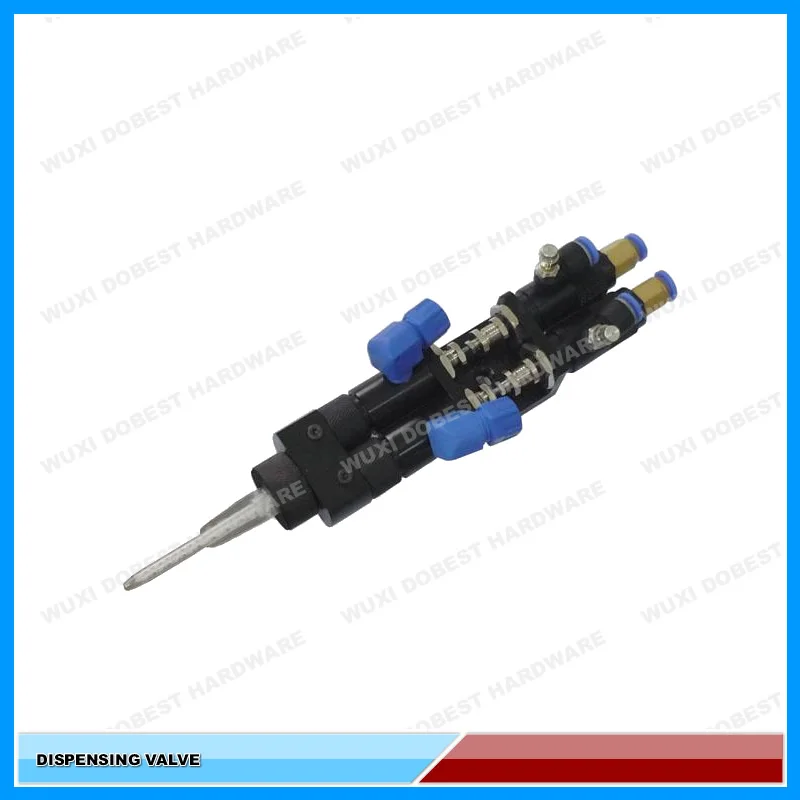

High Precision Type epoxy Glue Needle off glue Dispensing Valve Dispenser



Main Parameter:



Type	micrometer and Needle-off
Operating Air Source(kgf/cm)	4-7
Min.Shot Volume(ml)	0.01
Operation Viscosity(cps)	1-1.000.000
Wet Body Material	SUS304 Stainless Steel
Operating Cycle	<600/min
Material Inlet Size	1/8’’npt(f)
Feeding Pressure	<60kg
Overall Dimensions(mm)	21*21*165
Weight(g)	200



Product description:

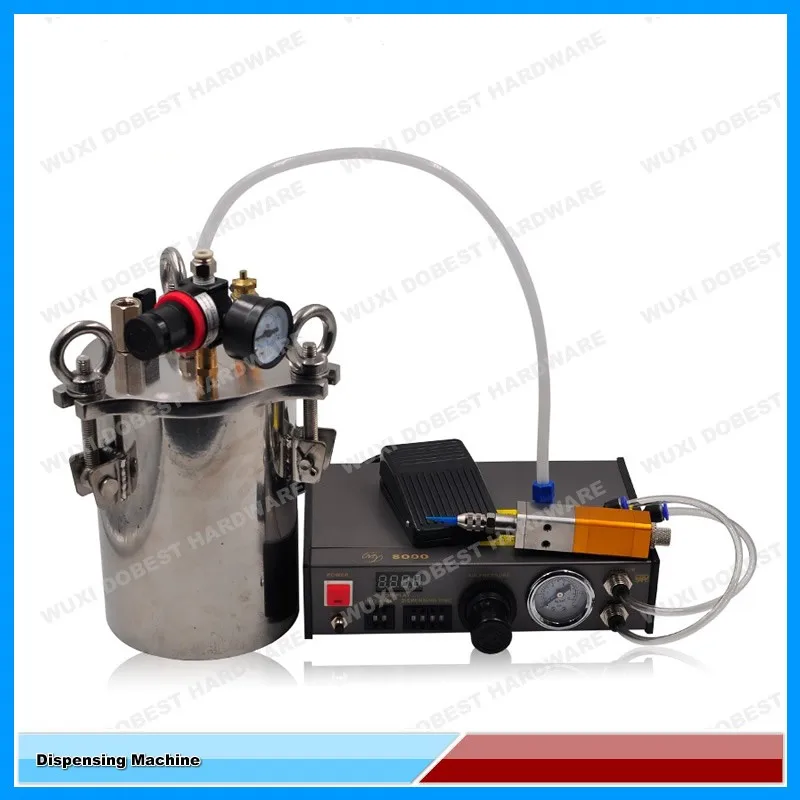

can be connected with charging pump or pressure tank. Suit for any liquids,adjustable  barrel vacuum suck back ensures control of low viscosity materials to avoid dripping.

Maintenance cleaning:

Turn on the air cylinder and material cylinder, will obviously find a septa at connects the air cylinder part, clean the septa then clean the material cylinder

cleaning fluid (water, alcohol, acetone), high pressure cleaning fluid from rubber valve type, valve can remove residual glue.
