Automatic Liquor / Red Wine / Alcohol / Glass Bottle Filling Line / Bottling Machine

Product Overview

Description

Automatic Liquor / Red Wine / Alcohol / Glass Bottle FillingLine / Bottling Machine









1.carbonated drinks filling line for soft drinks ,cola
2. Suitable for PET bottles
3.Capacity:2000-28000BPH





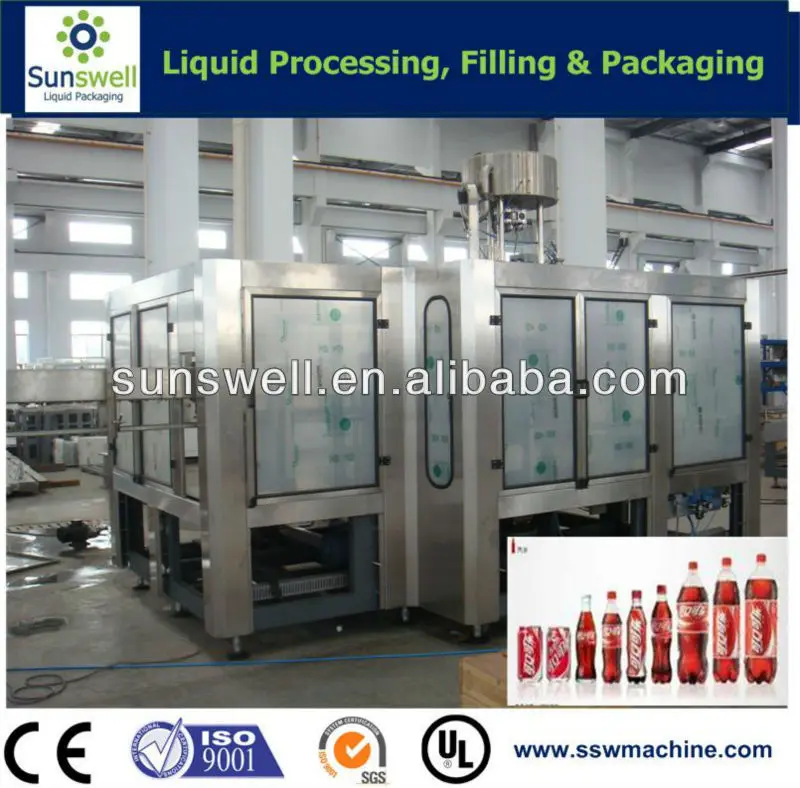

carbonated drinks filling line general description

soft drinks filler 3-in-1 filling monoblock, combined with rinsing, filling and capping. It is innovated and designed in the requirement of carbonated soft drinks and soda water, on the basis of introducing, digesting and absorbing advanced technology from Germany and Italy.





carbonated drinks filling line main features



1. Bottle infeed



Air conveyor, star-wheel cooperate input the bottle, the suitable bottle is 250ml-2000ml.

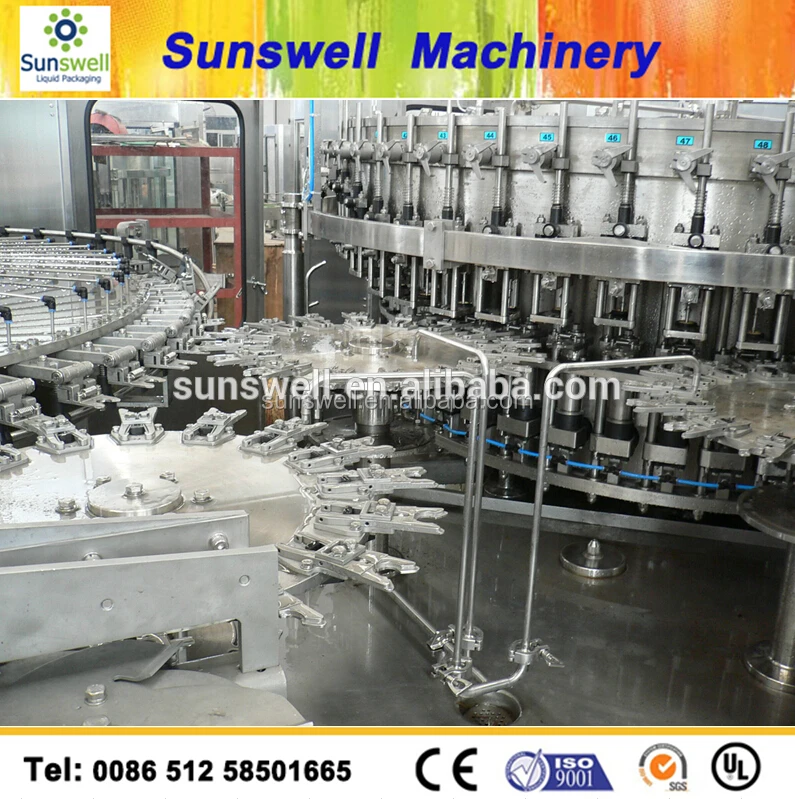

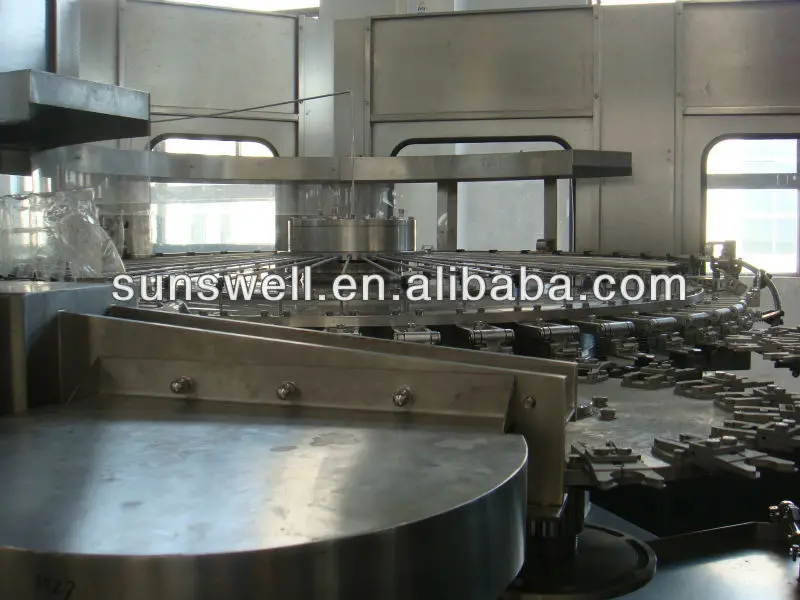

2. Carbonated drinks filling line rinser



Carbonated drinks filling machinery is rotary washing machine, which mainly use for beverage such as mineral water or carbonated drink, new bottle enter the equipment by star wheel, through clip and overturn mechanism make bottle down, after washing, it overturn bottle up automatically, then convey to the filling part by star steel, the main material and washing clip is stainless steel .





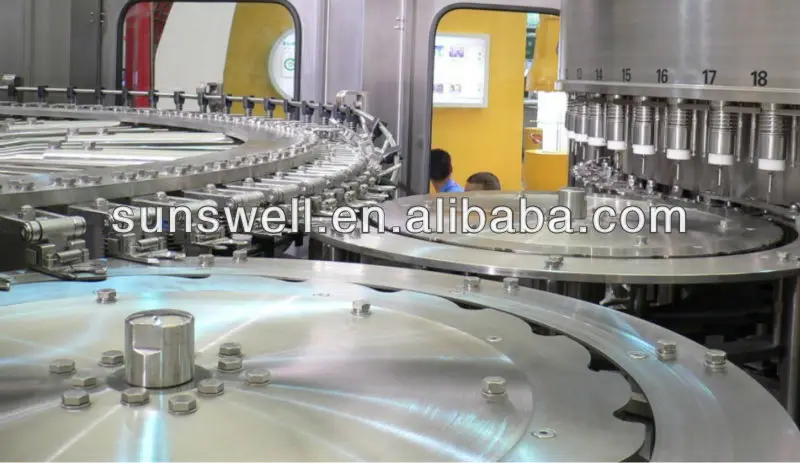

3. Transfer starwheel



Carbonated drinks filling line material is super-corrosion stainless steel ,the wheel has block bottle protect device.

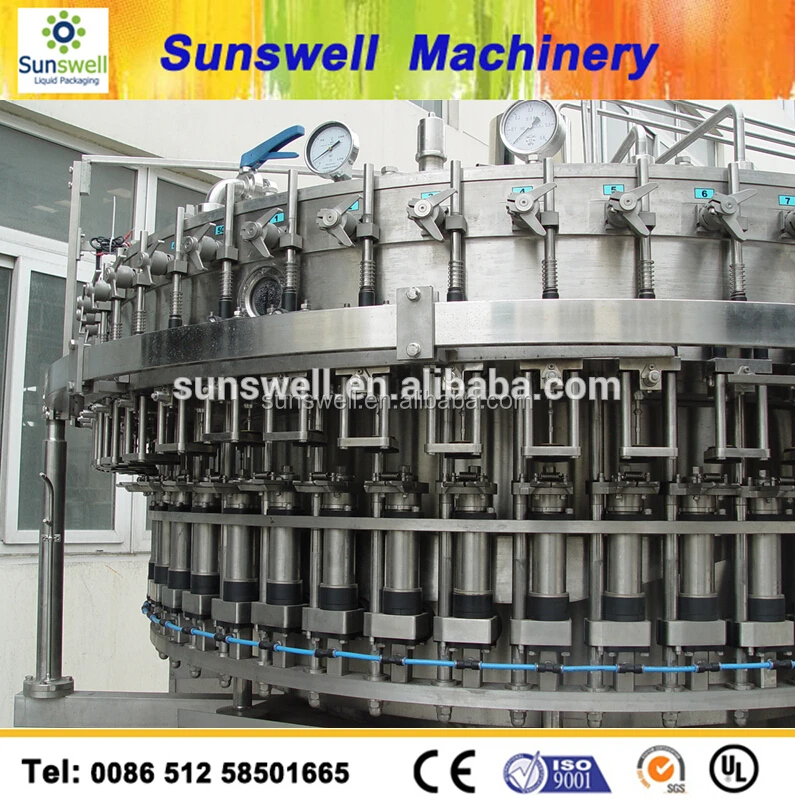

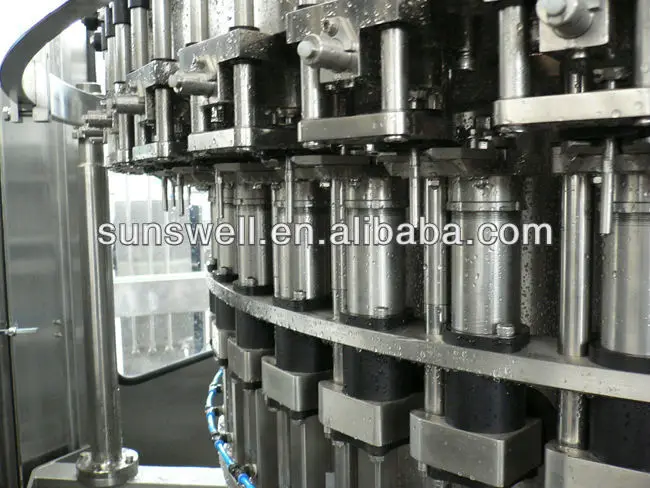

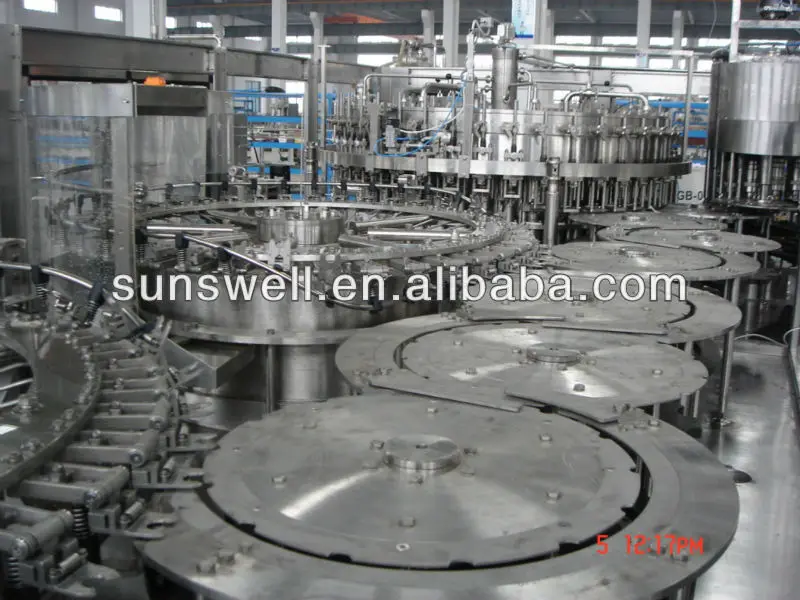

4. Carbonated drinks filling line

A. Filling valve use isobar machinery valve, High speed and big flow, the high accuracy filling valve, filling speed fast, the liquid level is stable.



B. Main drive adopt gear drive independent, high efficiency, small noise, long life, maintenance-free, transducer can control the main motor speed, the machine adopt Variable-frequency variable speed, whole operations area ,engine base is stainless steel contain carbon steel.



C. Guide bottle system, simple structure, according to bottle style, can change



D. The whole machine can be controlled automatically by PLC



E. Filling hydraulic material liquid level height adopts liquid level probe control, liquid level steady, filling reliable



F. The machine important parts and electrical elements is import production



G. Filling hydraulic material can be controlled automatically and have CIP washing connector.

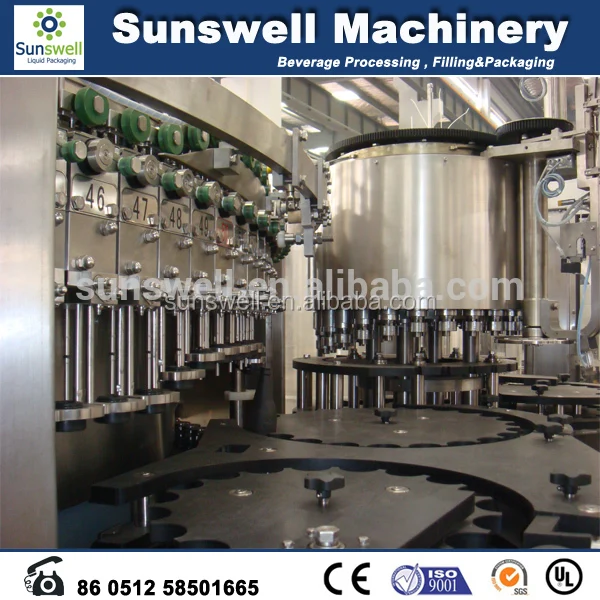

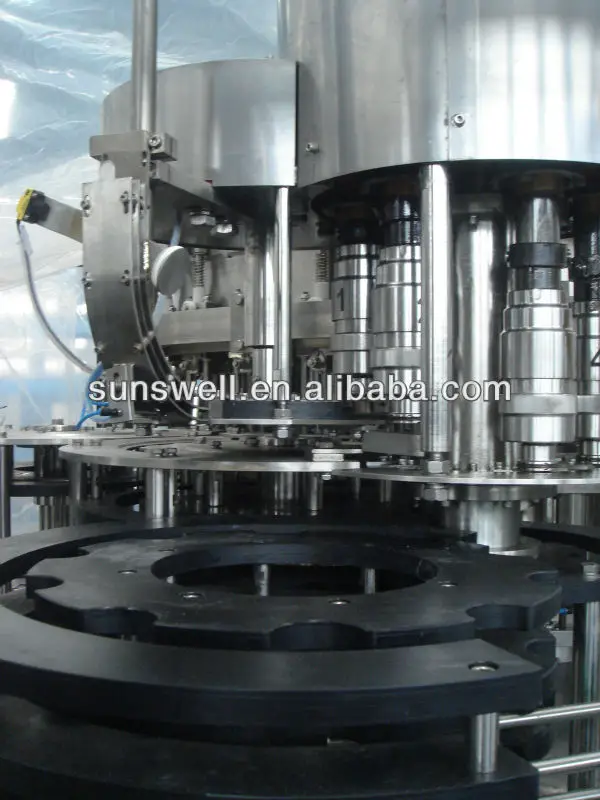

5. carbonated drinks filling line  capper

<img



The bottle into the click wheel through the transition card bottleneck Capping Machine. Rotary Capping Machine knife stuck on the only bottleneck location, keeping the bottle upright and prevent rotation. Capping Machine Capping head to remain in the revolution and rotation, under the action of the cam to achieve grasping cap, capping, screw cap, cap off action, complete the capping process. Management Capping Machine is located in the top cover, through drop-cap rail and cover plate connected Capping Machine allocated. Finished bottle through the bottle capping machine sent from the click wheel to the bottle conveyor chains, conveyor chains send out the triple play by the filling machine, into the next process.





Output bottle star wheel part



Nylon wheel and conveyor belt cooperate output the bottle.



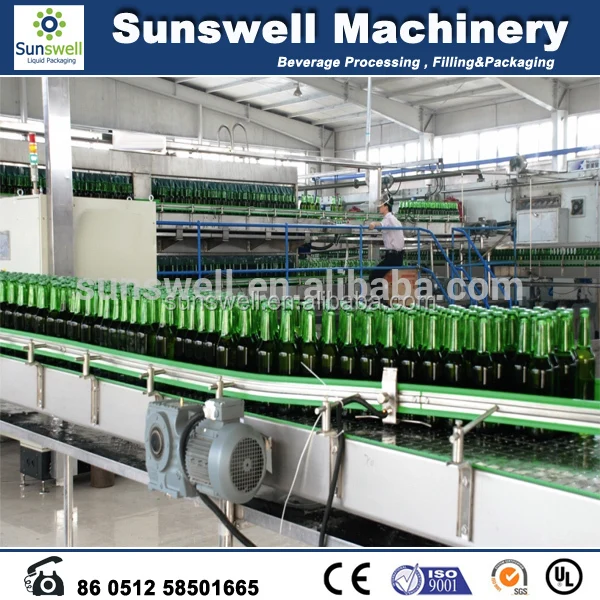

Output bottle conveyor belt part



Conveyor motor uses frequency control of motor speed, which keeps pace with the 3-1 machine. Prevent overturned bottle.



Rack part



Rack is welded by high quality carbon steel, Antirust processing and spray surface. The surface is covered by the SUS304.







Electronic control system part



The electronic components like PLC and transducer are from Mitsubishi, Omron, etc., The pneumatic devices are also from international famous brand.







4. Equipment structure



l  Rack



l  Rotary rinser



l  Rotary filler



l  Rotary capper



l  Bottle infeed and outfeed system



l  Control







5. Main configuration



l  Touch screen: Thinget or Weinview



l  PLC program controller: Mitsubishi or Omron



l  Inverter: Mitsubishi or Omron



l  Photoelectrical controller: Omron or Autonics



l  Proximity switch: Omron



l  Other electrical components: Schneider



l  Pneumatic component: Airtac



l  Water pump: Nanfang



l  Main motor: Siemens



l  Bearing: Harbin



 Carbonated drinks filling line model :

Model	Filling Heads	Capacity @ 500ml	Bottle Size	Power	Dimension(mm)	Weight(KG)
DCGF14-12-5	12	2500BPH	200-2000ml	1.8KW	2200×1800×2000	2500
DCGF18-18-6	18	3000BPH	200-2000ml	2.6KW	2500×1800×2300	3000
DCGF24-24-8	24	6500BPH	200-2000ml	3.8KW	2800×2100×2300	5000
DCGF32-32-10	32	8000BPH	200-2000ml	4.2KW	3500×2200×2300	6000
DCGF40-40-10	40	10000BPH	200-2000ml	7KW	4760×2080×2300	7000
DCGF50-50-12	50	13000BPH	200-2000ml	9KW	5150×3820×2700	10000
DCGF60-6015	60	17000BPH	200-2000ml	13KW	5300×3950×2700	8500
DCGF72-72-18	72	19000BPH	200-2000ml	16KW	6250×4773×2700	8500



Sunswell company view:

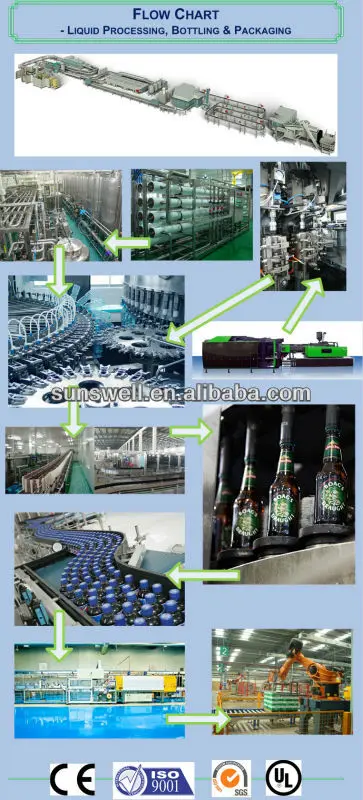

Carbonated drinks filling  line flow chat:
