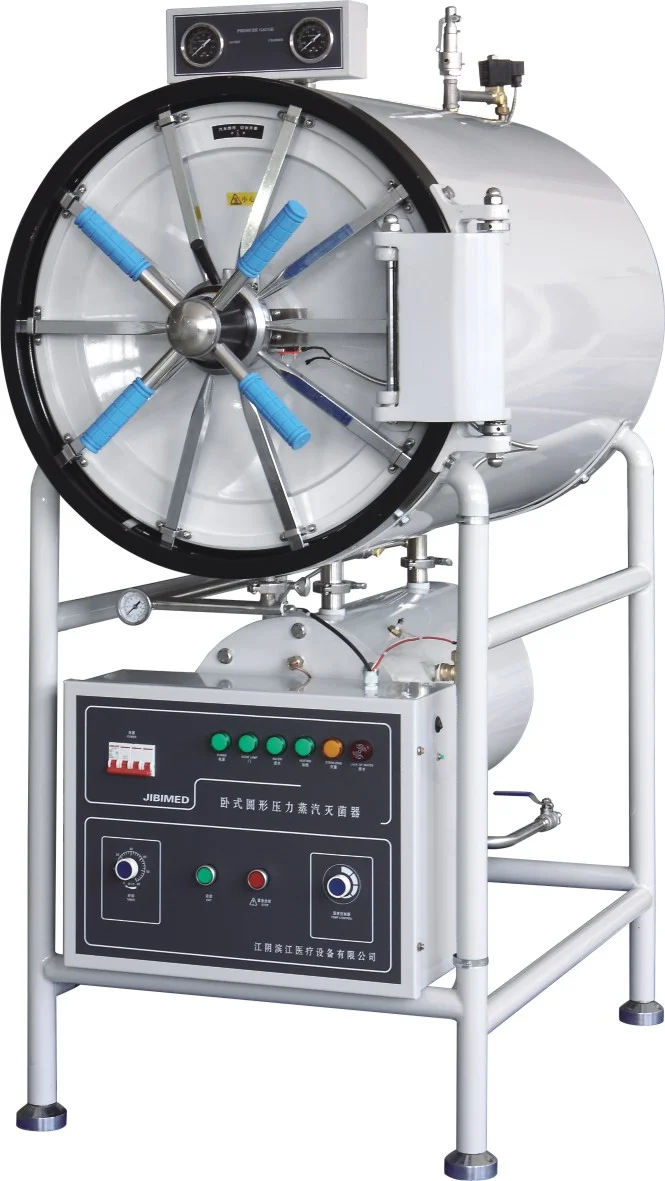

AJ 9280A 280 liters horizontal steam sterilizer autoclave

Product Overview

Description

AJ - 9280A 280 liters horizontal steam sterilizer autoclave







Feature



1. Sterilizing course automatic sterilization controlled, easy to operate.

2. With drying function, suitable dressing drying.

3. With over-temperature, over-pressure auto-protect device.

4. The door opening mechanism cannot be operated until the pressure in the chamber is reduced to 0.027MPa.It can't be start on if the door doesn't close well.

5.The safety value will be open automatically when the inner pressure over 0.24MPa,and the steam be exhausting to the water tank.

6. The power will be cut-off automatically, cut-off the water and alarm when the machine lacking water.

7. The chamber of the sterilizer is made of stainless steel.



Specification



	150L	200L	280L	400L	500L
Valid volume	150L(Φ440×1000) mm	200L( Φ515×1000) mm	280L(Φ600×1000) mm	400L(Φ700×1100) mm	500L(Φ700×1300) mm
Working pressure	0.22MPa
Working temperature	134℃
Adjustment of temperature	40℃-134℃
Time for sterilization	0~60min
Time for drying	0~60min
Heat average	≤±2℃
Power	9KW/AC380V.50Hz		12KW/AC380V.50Hz	18KW/AC380V.50Hz
Overall dimension	1400×600×1300(mm)	1400×670×1650(mm)	1400×770×1780(mm)	1430×880×1830(mm)	1800×900×1820(mm)
Transport dimension	1550×750×1850(mm)	1560×820×1850(mm)	1680×920×2100(mm)	1600×1050×2100(mm)	1850×1050×2100(mm)
Net/Gross Weight	240Kg/ 320Kg	260Kg/ 350Kg	365Kg/ 465Kg	420Kg/ 530Kg	470Kg/ 580Kg

Certificate



Why choose us?



1.Key parts of our products are made of imported equipments. Some key parts are made in Germany and Japan.

2.We offer one year warranty, Provide spare parts with shipping for free within one year and just Charge the cost of accessories once after the warranty period.

3.Our company is certified company by SGS.

4.Our company is senior member of China Medical Device Industry Association.
