Instant Type 2200w Heating Element for Espresso Coffee Machine
- Category: Water Heater Parts >>>
- Supplier: Xinxiang Jieda Precision Electronics Co. Ltd. [Henan China]Xinxiang
Share on (60581795873):
Product Overview
Description
Product Category
PRODUCT CATEGORIES
Main Product
Product Description

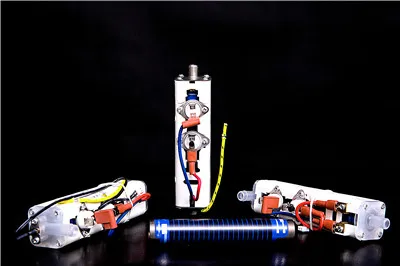

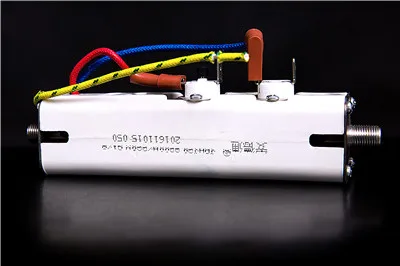

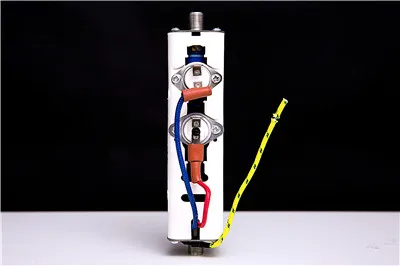

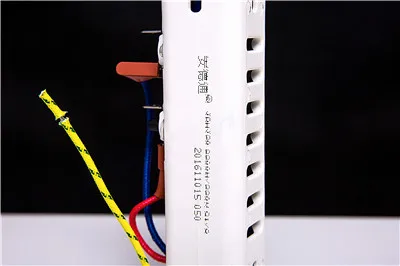

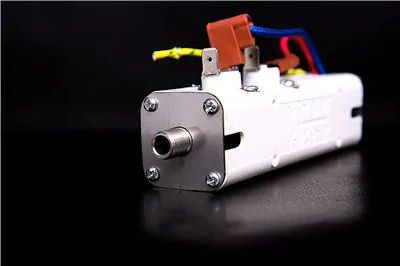

Instant Type 2200w Heating Element for Espresso Coffee Machine
| Dimension | 161mm*48mm*33mm | Heat Density | >60W/cm² |
| Ramp-Up Rate | 80℃/s | Thermal Efficiency | >96% |
| Heating Power | 2,200W | Service Life | >10,000 hours |
| Rated Voltage | 220v | Certificate | CQC, RoHS |
| Dielectric Strength | 1,500V/5mA/60s | Power Deviation | -10% - +5% |
| Leakage Current | ≤0.25mA | Insulation Resistance | ≥200MΩ |
| Type | PA66+ glass fibre, temperature resistance≥250℃ | Snap Action Thermostat | 16A, installed close to the heating tube’s heating circuit |
| Shield Thermistor | PTC | Grounding Type | Spot-Weld |
| Water Inlet & Outlet | Φ10mm | Heating Tube Dimention | Φ20mm*120mm |
Instant Heating Water Flow inside the tube, bearing 20kg pressureThis Instant Water Heating Elements is tubular structure. which makes water flowing inside tube, and electric heating on tube surface. Equipped with manual/auto thermostats.
Features:
This Instant Water Heating Elements is tubular structure. which makes water flowing inside tube, and electric heating on tube surface. Equipped with manual/auto thermostats.
It is advanced in power density(>60W/cm2), quick temperature ramp-up rate(80℃/S) and high thermal transfer(96%). You can get boiling water(≥95℃) in 3 seconds around. You can get boiling water (above 95℃) in 3 seconds. 500-600mL/Minute.
For applications where space is limited, this simple profile heater offers high thermal power density and fast response times to heat up or cool down (due to low thermal mass). Instant Coffee Maker just require such a electric heating element in simple& compact profile and instant temperature response
The available power is 2.2kw and 3kw.
Features:
1. Electric Circuit printed on stainless steel tube surface, to heating the water flow inside. 5 isolation layers sintered on the surface.
2. Large heat transfer area on tube surface; Ramp up and Cool down quickly; High utilization rate up to 93% or above.
3. Fast temperature response, power density is as high as 60W/cm² and heating circuit’s temperature raising rate exceeds 80℃/s.
4. Simple structure, compact profile, various applications.
Thick Film Stainless Steel Tube:
1). Electric Circuit printed on tube surface, to heating the water flow inside. Complete isolation and safety.
2). Compact size, high heat utilization
3). Available Power 2.2KW,3KW or Customized
4). SUS430 Stainless Steel
Our Advantages
Experience
Founded in 2012, 5 years experience in Thick Film Electric Heating Tube Design & Research.
ADVANTAGES
Equipments
10000 Grade Purification Workshop
Self-Design Screen Print Machine & Sinering Furnaces
Key Materials
Silver Conductor
Pd Ag Alloy Resistor
Micro Crystalline Glass Insulation
Quality Control
Electric Strength Test(1500V)
Power Deviation Measuring(-10% ~ 5%)
Visual Inspection
Certifications
CQC
RoSH
Related Products
2.2KW Thick Film Electric Water Heating Tube
PTC Instant Heating Element for Water Dispenser
Electric Boiling Water Heating Element
Electric Heating Element with Temperature and Water Flow Control
Tube Diameter,Length,Power,Voltage,Thermostat,PCB board,Inlet & Outlet port,etc are available for customer design
Standard Power:2,2kw,3kw,3.5kw,3.8kw,4kw,5.5kw,6kw
We supply heating element kit with temperature and flow control, to quickly test on thick film heating element/tube
Packaging & Shipping
Shipping
INTERNATIONAL AIR MAIL
Payment
Fast Delivery
Different amount of time will be required for differentContact Us
Applications
The most compact instant type heating element is the ideal heating element for novel and fashionable home appliances such as Water Dispenser, Water Purifier, Coffee Maker, Milk Machine, etc.
Some of our Thick Film Electric Heating Tubes are individual customer solutions which are designed to match our customers’ individual and specific requirements. During the development and application stages we work closely together with our customers in a partnership based on trust and mutual confidence.
 |  |
 |  |
