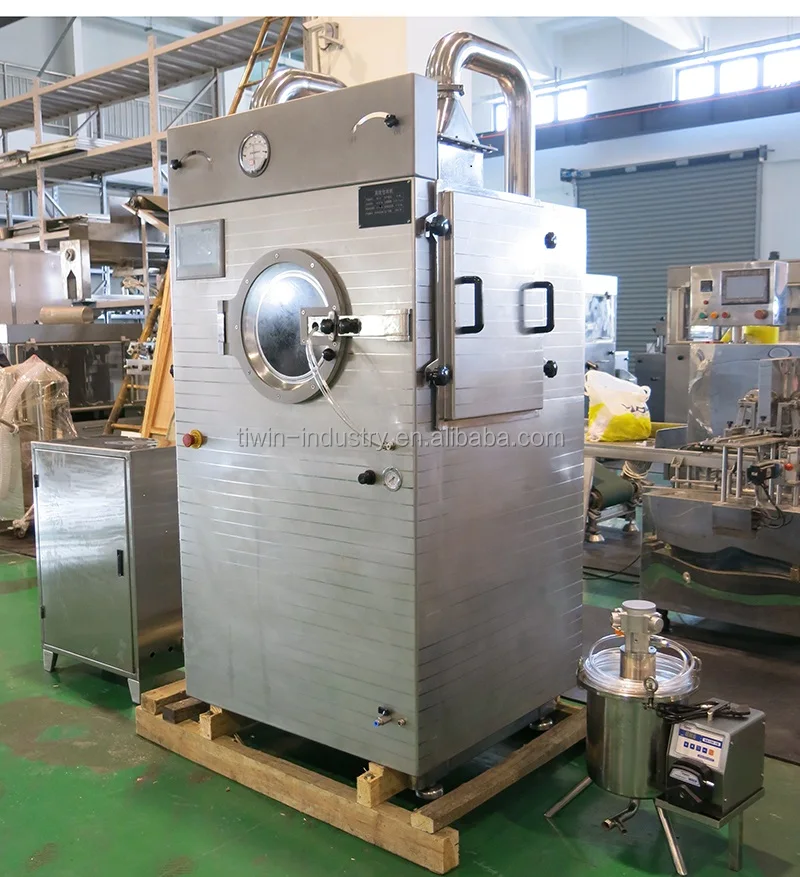

BG40 high quality coating machine best price

Product Overview

Description

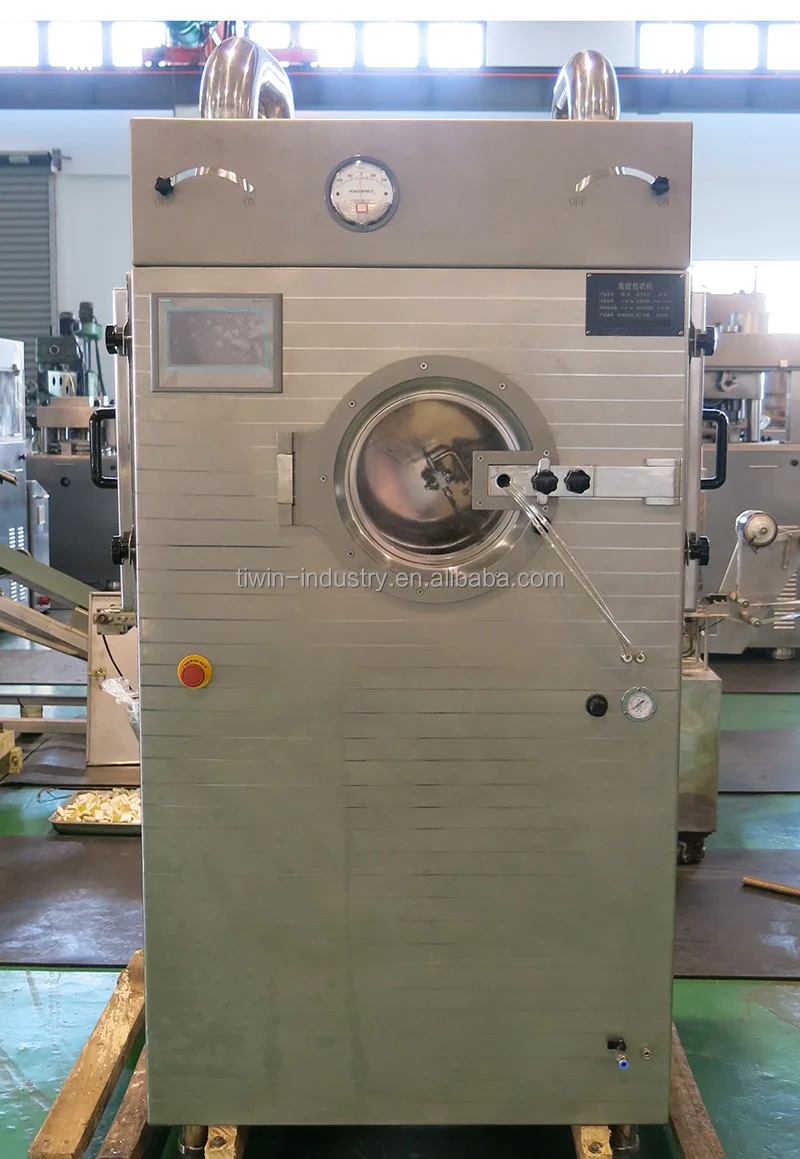

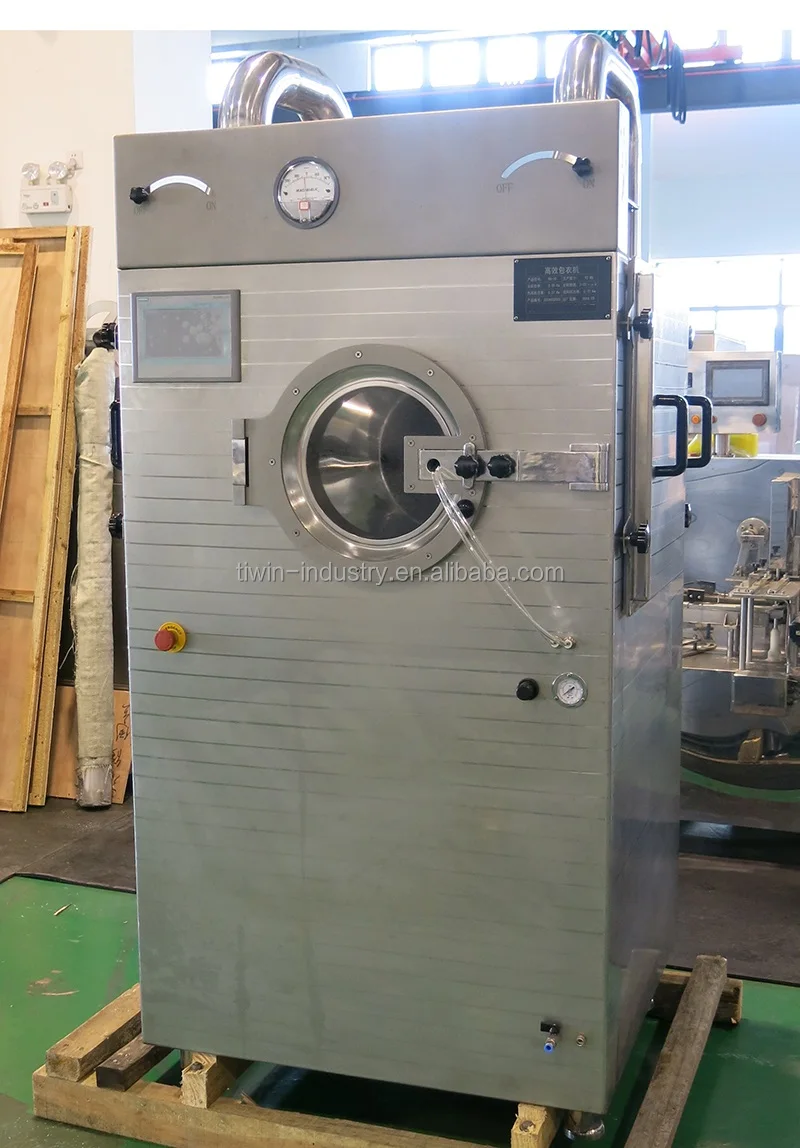

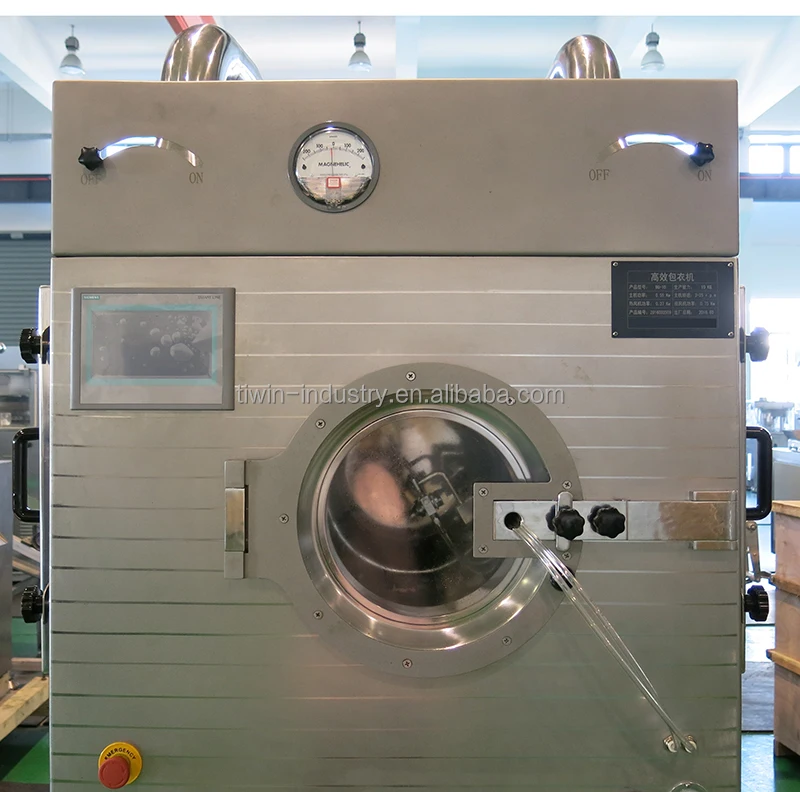

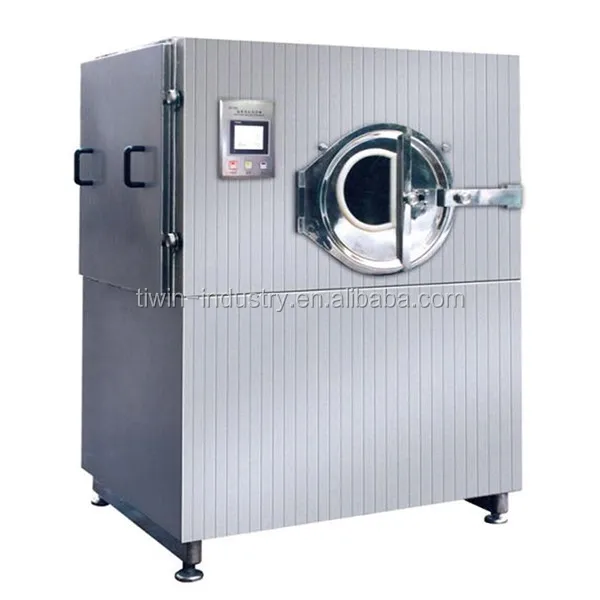

BG40 high quality coating machine best price







Model	10	40	80	150	300	400
Max.Production capacity(kg/time)	10	40	80	150	300	400
Diameter of Coating Drum(mm)	580	780	930	1200	1350	1580
speed range of Coating Drum(rpm)	1-25	1-21		1-16	1-15	1-13
Range of Hot Air Cabinet(℃)	ordinary temperature-80
Power of Hot air Cabinet Motor(kw)	0.55	1.1	1.5	2.2	3
Power of Air Exhaust Cabinet Motor(kw)	0.75	2.2	3	5.5		7.5
Machine overall size(mm)	900*840*2000	1000*800*1900	1200*1000*1750	1550*1250*2000	1750*1500*2150	2050*1650*2350
Machine weight(kg)	220	300	400	600	800	1000





Applications





It is kind of equipment integrating elegance, high efficiency, energy-saving, safety, easy to clean, which is applied for coating traditional Chinese and Western tablets and pills(including micro-pills, small pills, water-bindered pills, drip pills and granulated pills)with sugar, organic film, water soluble film, slow and controlled release film in the fields of pharmacy, food and biology etc. The machine is equipped with the programmable PLC(machine and person interface), with which its operation process and process parameters such as negative pressure and temperature can be automatically controlled. It is easy to operate, with reasonable and advanced process during run of the machine.

Main machine, cleaning system, hot-air cabinet, exhaust cabinet and the thermostatic mixing drum are all made of imported high quality, stainless steel, which conforms to GMP requirement.



Features

•  Long life


• Low cost


• 24H-7D customer service and technical support by email


• Full-automatic, easy to use


• Suitable for small batch production of many varieties


• Stainless steel heating element,Simple exchange


• Vibration type feeding device, feeding uniform

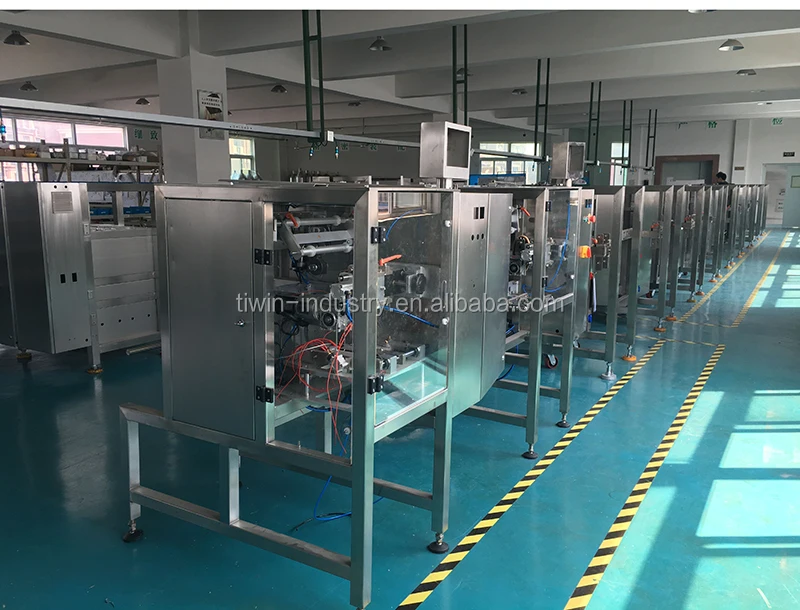

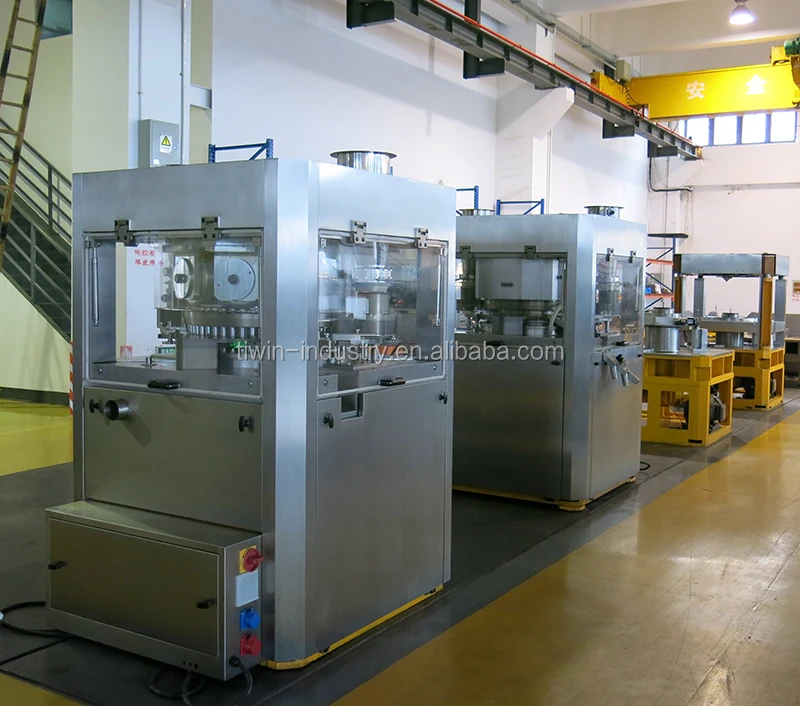

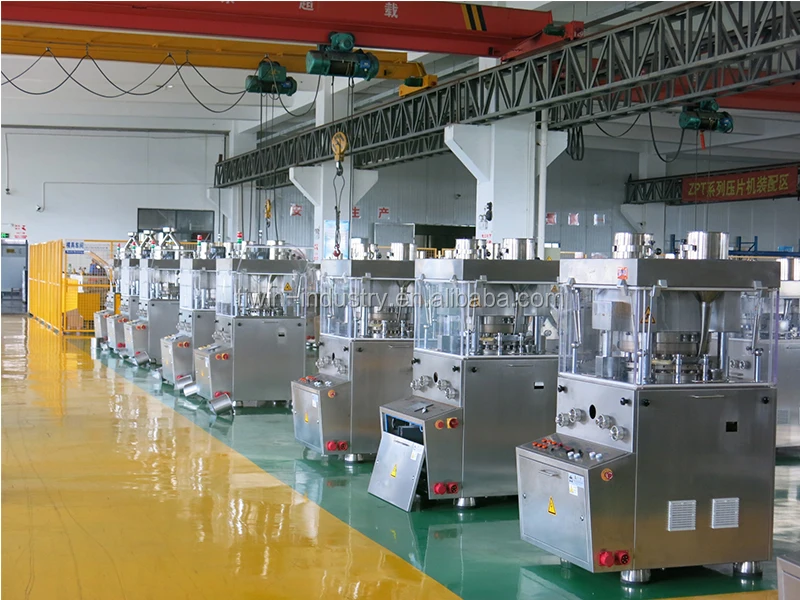

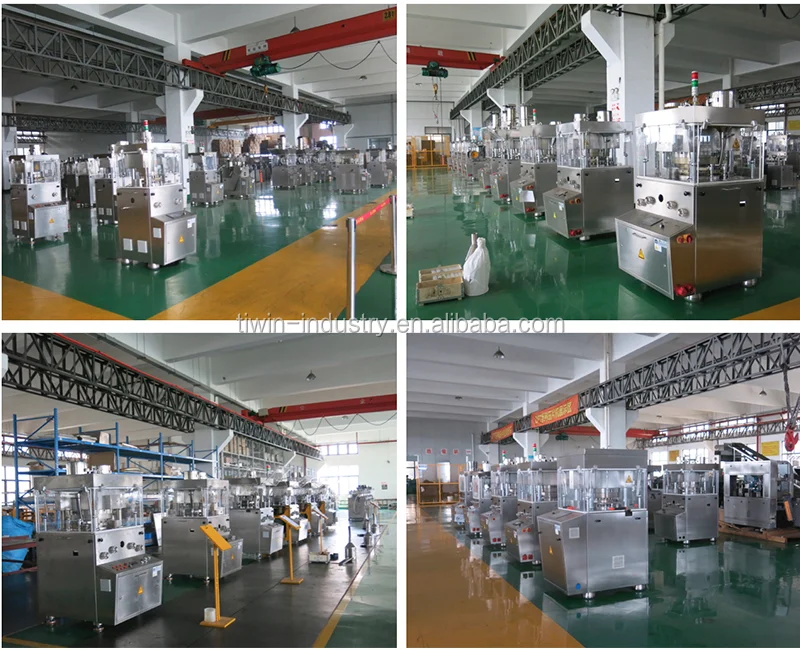

 Showroom
