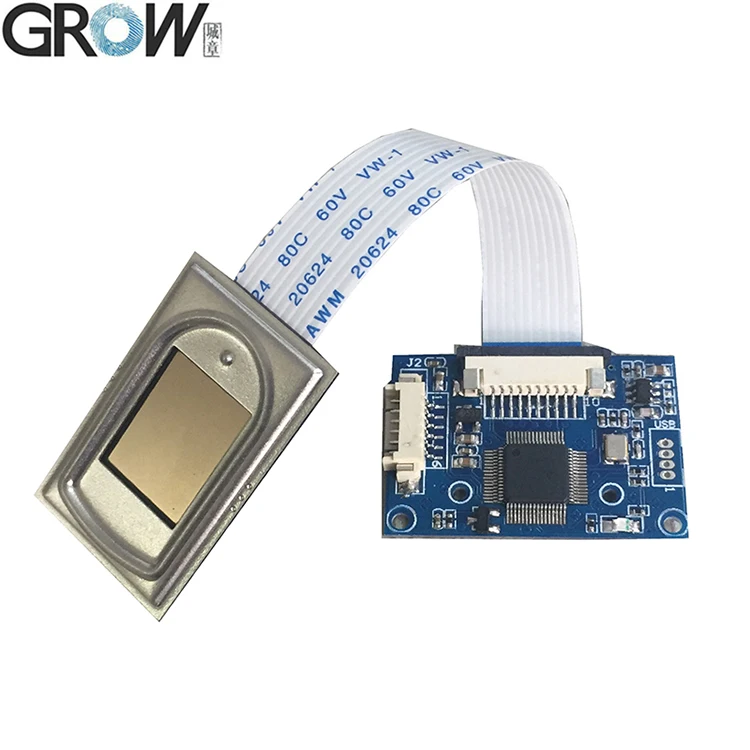

R303T Capacitive Fingerprint Module





Description




·Communication interface : USB and UART

·1:N Identification (One-to-Many)

·1:1 Verification (One-to-One)

·High speed fingerprint identification algorithm engine

·Self study function

·Fingerprint feature data read/write functions

·Get Feature Data of Captured fingerprint and Verify/Identify Downloaded Feature with Captured

·Fingerprint Identify Downloaded Feature with Captured fingerprint

·Security Level setting

·Able to set BaudRate/ Device ID/Device Password

·Operating system:Windows 98, Me, NT4.0, 2000, XP,WIN 7 or Android





Specifications



·Interface: USB 2.0 and UART(3.3V-TTL logic)

·Resolution: 508 DPI

·Work Current: <55mA

·Voltage: DC 4.2-6.0V

·Fingerprint capacity:1000

·Security Level: 1-5, default is 3

·Sensor Array: 208*288 pixel

·Fingerprint reader module size: 20.4 * 33.4 (mm)

·Effective collection area: 11 * 15 (mm)

·ScanningSpeed: < 0.2 second

·Verification Speed: < 0.3 second

·Matching Method: 1:1; 1:N

·FRR (False Rejection Ratio): ≤0.01%

·FAR (False Acceptance Ratio): ≤0.00001%

·Work environment: -20°C ---55°C

·Work Humidity: 20-80%

·Communications baud rate (UART): (9600 × N) bps where N = 1 ~ 12(default N = 6, ie 57600bps)






Files


·All fingerprint module support with Arduino, Android, Windows, Linux, .Net and so on.
·Provide Free SDK Files
·Provide User Manual


You can download the R303T user manual from this website link:






Images

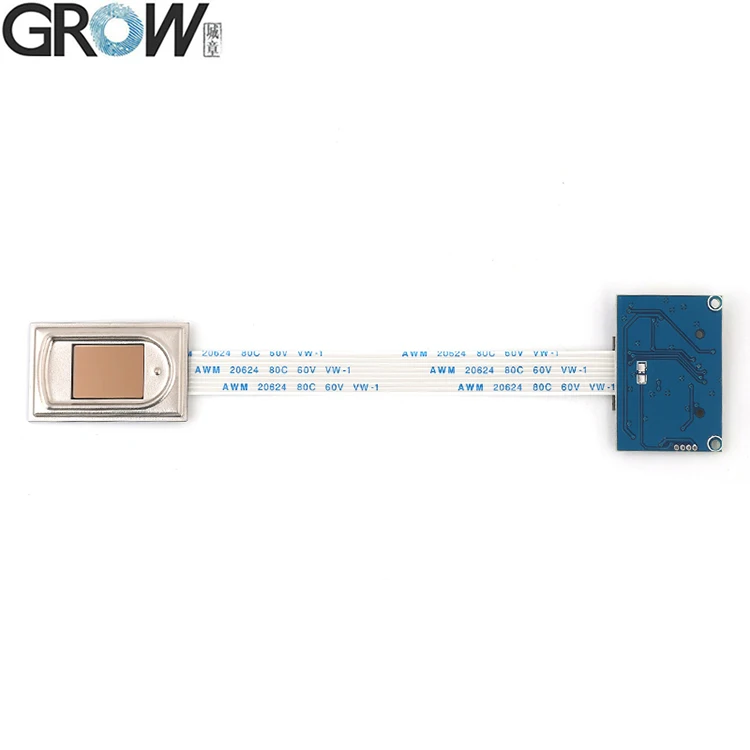

R303S-C

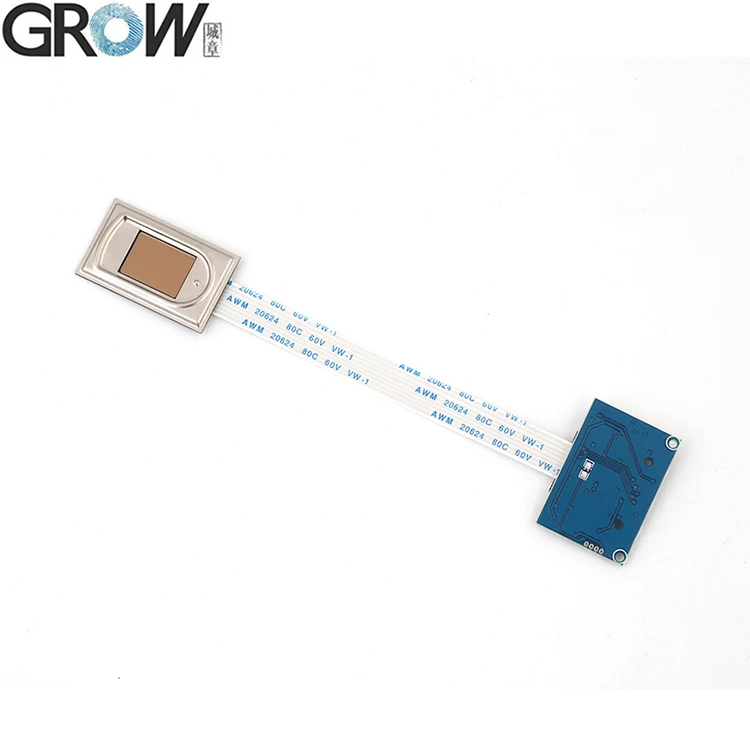

R303S-F

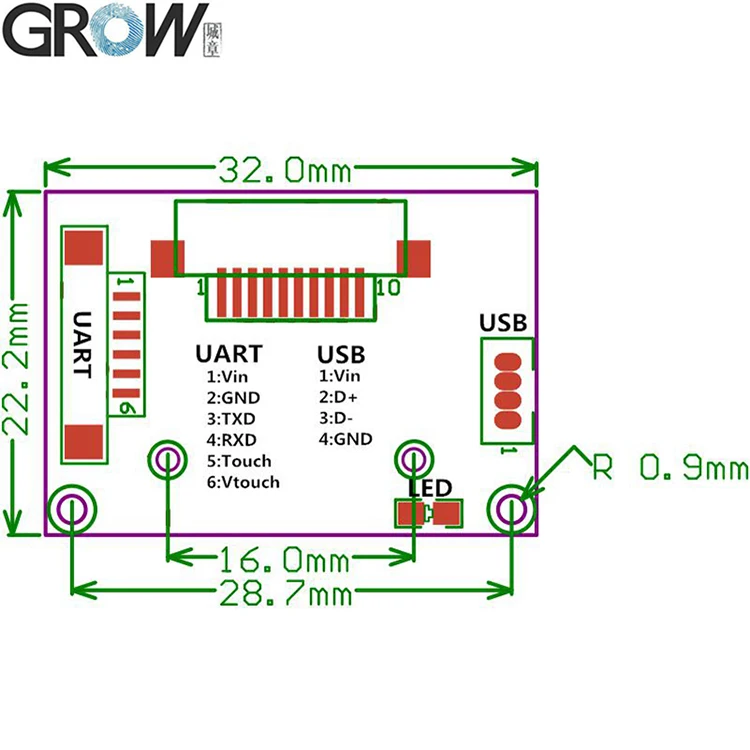

R303T fingerprint module circuit board diagram

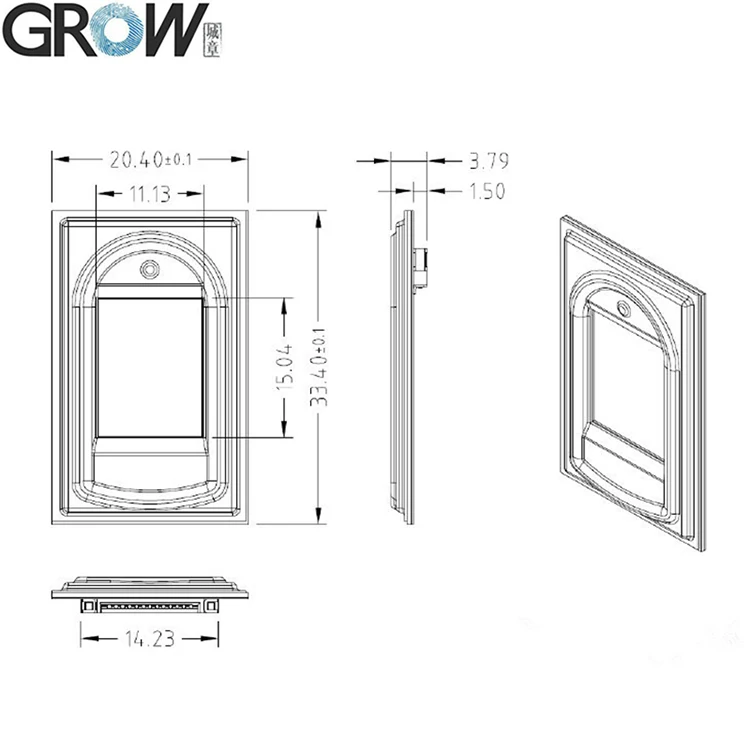

R303S-E


Package Listing


R303-B





If need to install the enclosure, please click here:


https://www.alibaba.com/product-detail/GROW-Enclosure-of-R301T-R302-R303S_60540437378.html?spm=a2700.icbuShop.prewdfa4cf.19.1a1b5ab2Gq5mvU

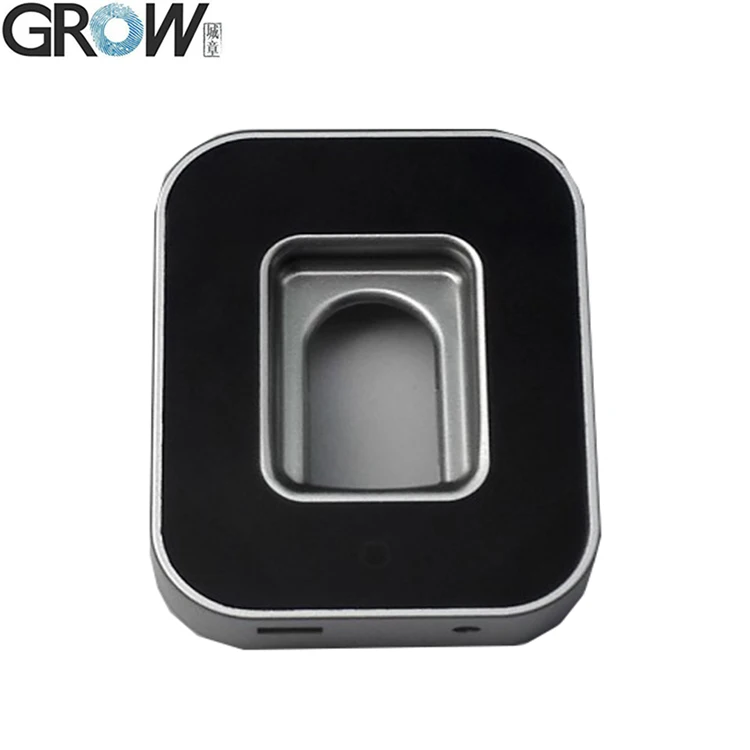

R301T R302 R303S-P-A.jpg
