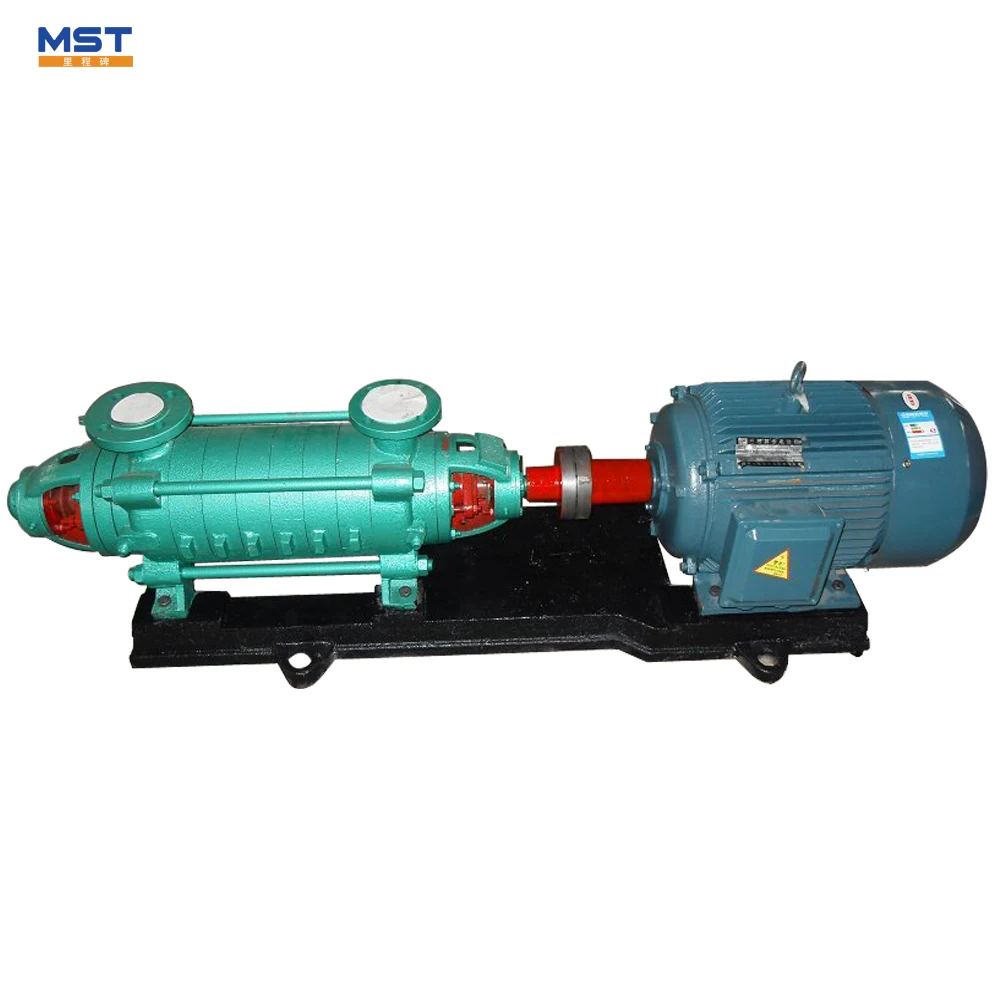

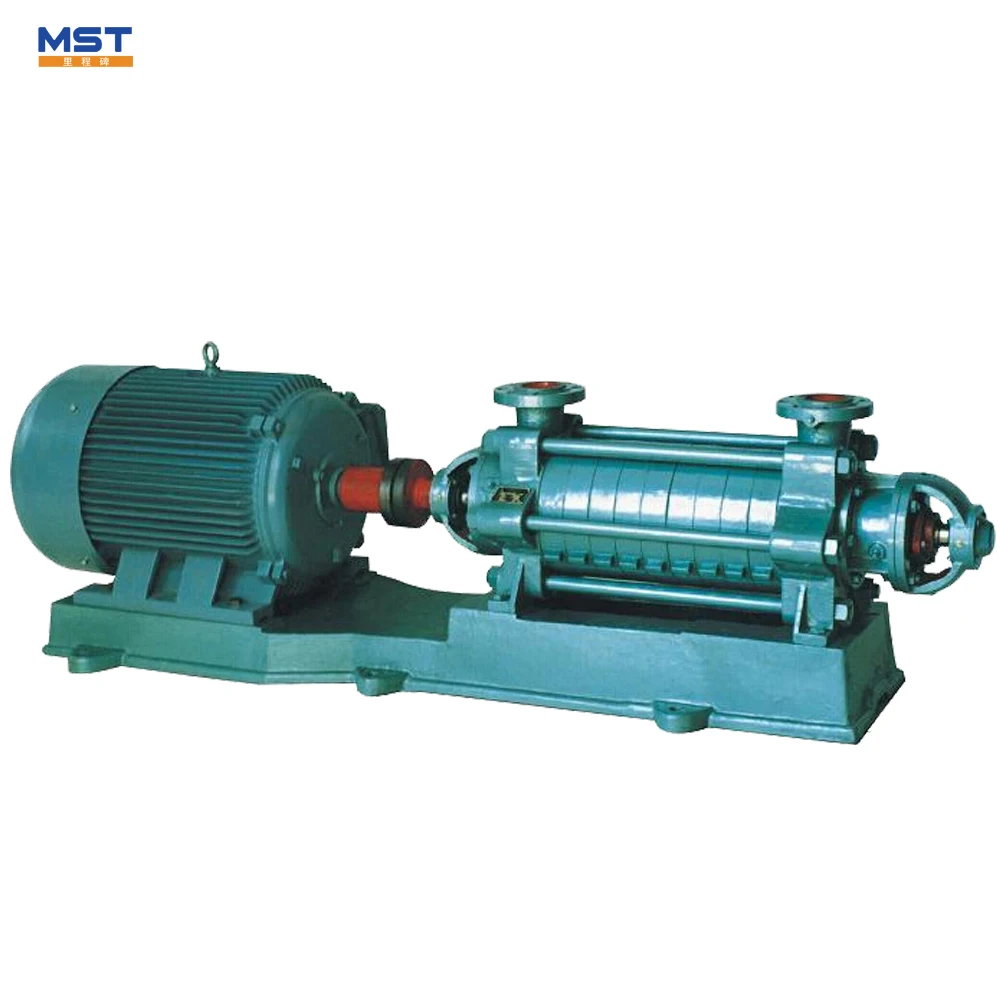

500hp 50 meters head water pump with motor

Product Overview

Description

500hp water pump with motor

1. Type D pump can deliver water without solid particle or the liquid which the chemical and physical feature are similar with water and tempreture is ≤ 80℃,it is suitable for delivering water in mine and urban water project etc.



2. Type DG pump can deliver clean water without solid particle or the liquid which chemical and physical feature are similar with water,and tempreture is ≤ 105℃,it is suitable for delivering boiler feed water or heat water.



3. The DM pump can deliver the neuter mineral water which solid particles percent ≤ 1.5%(solids Dia < 0.5mm)and other similar sewage,the tempreture of liquids is ≤80℃.It is suitable for steel works,mines,cities projects etc.



4. The DF pump can deliver the corrisive liquid without solid particle,which tempreture is from -20℃~150℃



5. The DY pump deliver oil or oil products with solid grain,viscosity ≤120ct,range of tempreture is from  -20℃~150℃

Model meaning of high head water pump:

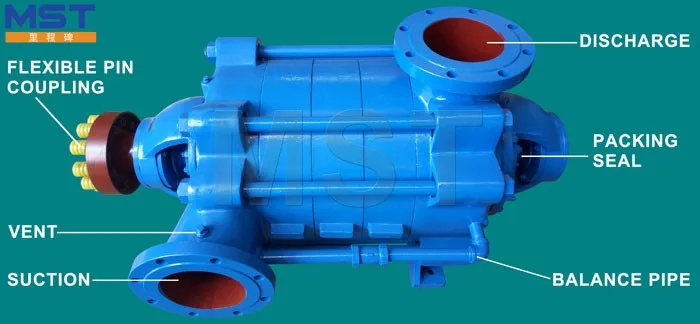

• D(DG,DM,DF,DY)450-60x4


• D-- Multi-stage horizonatl centrifugal pump


• DM--Multi-stage wearable centrifugal pump


• DF--Multi-stage anti-corrosivecentrifugal pump


• DY--Multi-stage centrifugal oil pump


• 450--The flow is 450m3/h at design point


• 60--The single stage head is 60m at design point


• 4--The number stage is 4 stages

Pump Application:

• long distance water transferring


• boiling water feeding and transferring


• water system boosting


• agricultural irrigation


• mining water supply


• fire fighting


• offshore projects



Clean Water performance of high rise water pump:



Model	Capacity (m³/h)	Head     (m)	Speed  (rpm)	Motor Power (kw)	Impeller Dia (mm)
6-25*4	6.3	100	2950	7.5	139
6-25*5	6.3	125	2950	7.5	139
6-50*4	6.3	200	2950	18.5	198
12-25*4	12.5	100	2950	11	146
6-80*3	6	240	2950	18.5	235
12-80*4	12.5	320	2950	45	235
25-30*3	25	90	2950	15	160
46-30*5	46	150	2950	37	162
85-67*4	85	268	2950	110	235
120-50*5	120	250	2950	132	213
150-30*8	150	240	2950	160	172
150-100*6	150	600	2950	400	289
200-100*6	200	600	2950	560	290
280-65*6	280	390	1480	500	430
300-45*4	300	180	1480	200	360
150D30*6	155	180	1480	132	305

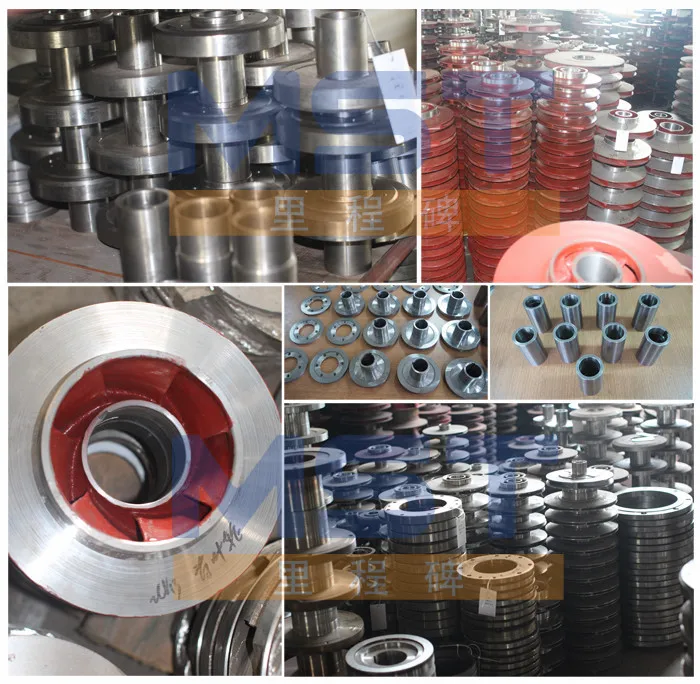

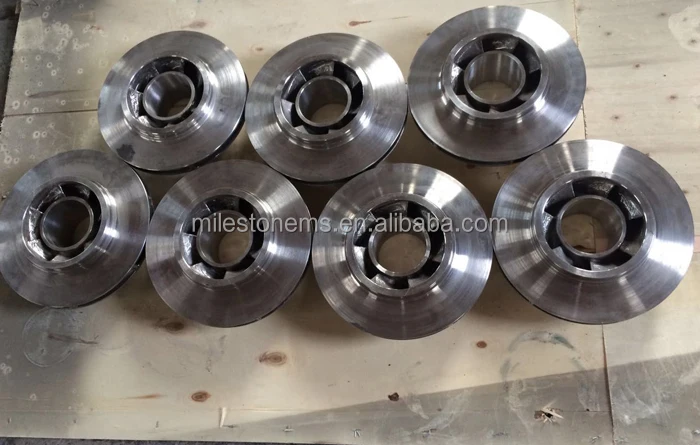

Spare parts:
