GROW R305 USB UART Biometric Optical Fingerprint Recognition Module Scanner
- Category: >>>
- Supplier: Hangzhou Grow Technology Co. Ltd.
Share on (60581923949):
Product Overview
Description
Product Description
R305 Optical Fingerprint Sensor
Description
We are manufacture of R305 Optical Fingerprint Module
1. Integrated image collecting and algorithm chip together, ALL-in-One
2. Fingerprint reader can conduct secondary development, can be embedded into a variety of end products
3. Users can conduct secondary development, can be embedded into a variety of end products, such as: access control, attendance, safety deposit box, car door locks
4. Low power consumption, low cost, small size, excellent performance
5. Professional optical technology, precise module manufacturing technics
6. Good image processing capabilities, can successfully capture image up to resolution 500 dpi
7. Connect to any microcontroller or system with TTL serial, and send packets of data to take photos, detect prints, hash and search.
Specifications
·Interface: USB1.1/UART(TTL logical level)
·Resolution: 500 DPI
·Work Current: Typical ≤90 mA, Peak 150mA
·Voltage: DC 4.2-6.0V
·Fingerprint capacity: 980

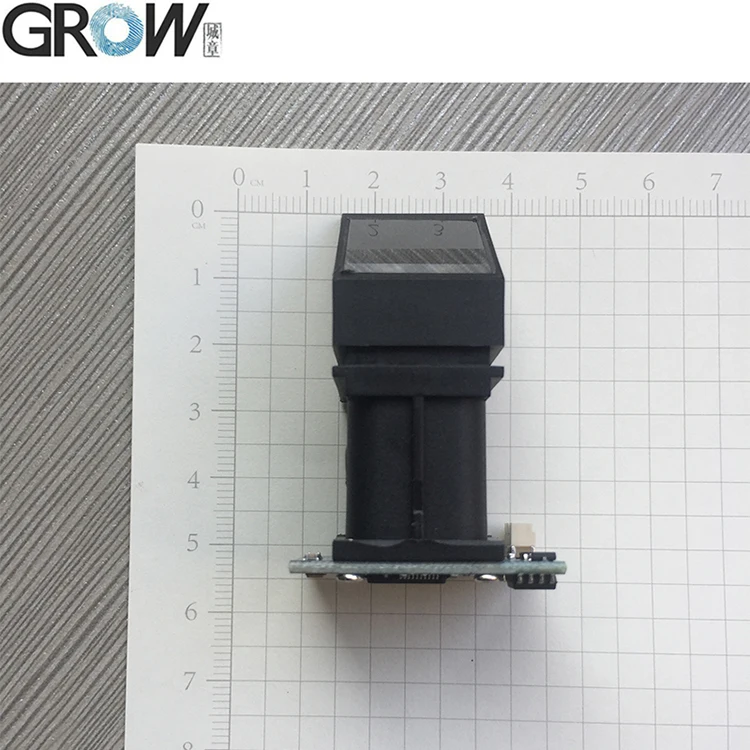

·Dimension: 55 *32*21.5 (mm)
·Image Capture Surface: 15*18 (mm)
·Backlight: Bright Red
·Sensor Life: 100 million times
·Static Indications: 15KV
·Character file Size: 256 bytes
·Template Size: 512 bytes
·Security Level: 5 (1,2,3,4,5(highest))
·Scanning Speed: < 0.5 second
·Verification Speed: < 0.3 second
·Matching Method: 1:N
·FRR (False Rejection Ratio): ≤0.1%
·FAR (False Acceptance Ratio): ≤0.0001%
·Work environment: -20°C ---55°C
·Work Humidity: 20-80%
·RS232 communications baud rate: 4800BPS~115200BPS changeable
Files
·All fingerprint module support with Arduino, Android, Windows, Linux, .Net and so on.
·Provide Free SDK Files
·Provide User Manual
You can download the R305 user manual from this website link:
Images

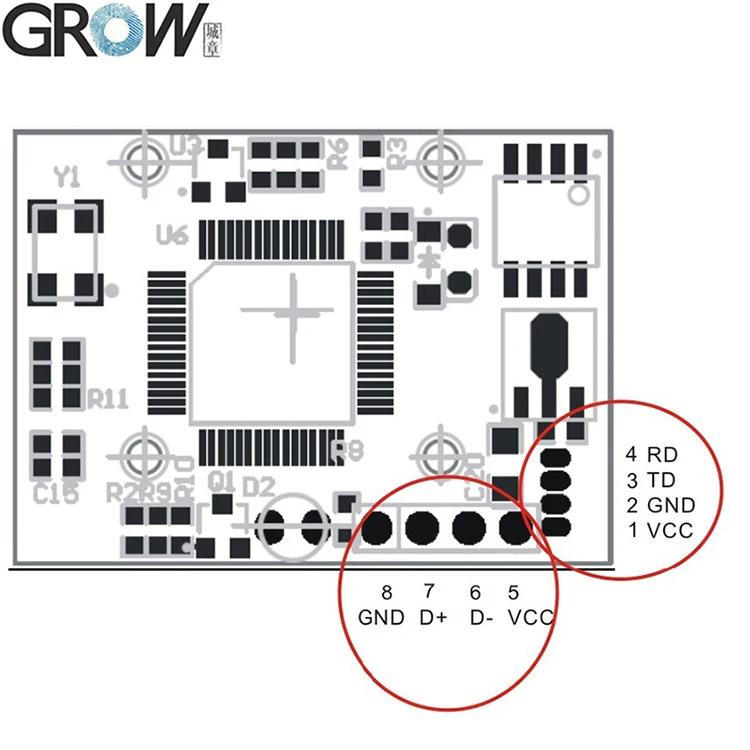

R305 fingerprint module circuit board diagram
