High Power Density Coffee Maker Water Heater Low Power Instant Electric Water Heater
to get 95℃ boiling water in flowing rate 480ml/minute
Descriptiom
As a new type instant water heating element for Instant Espresso Coffee Machine, Thick Film Heating Element is in tubular structure. It can quick heat water flow inside tube, by circuit sintered between 5 isolation layers on tube surface.

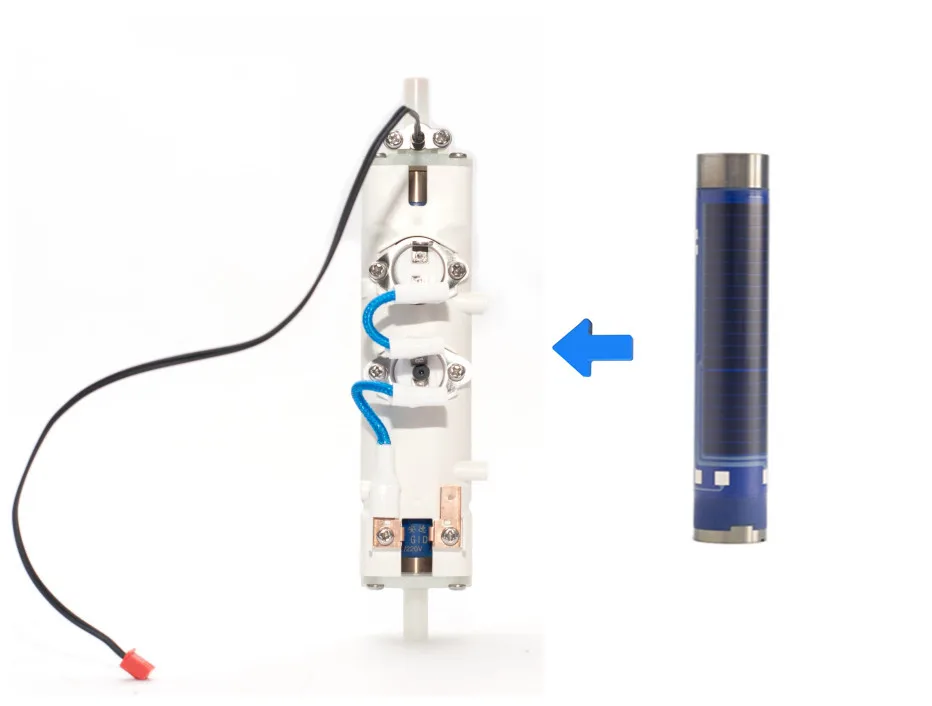

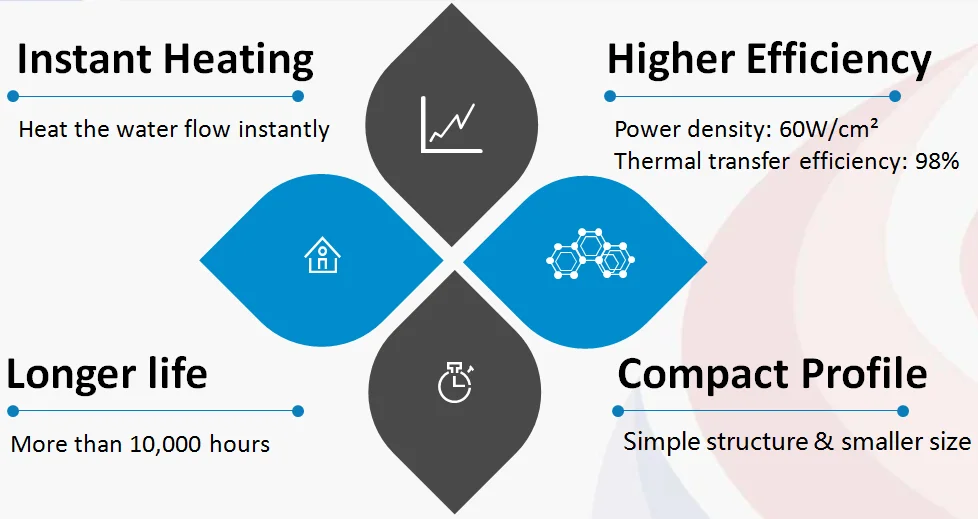

Compared with traditional Espresso Machine immersional water heating element, Thick Film Water Instant Heating Element is advanced in larger heating area (Tubular Structure), higher power density(60W/cm²), faster temperature response (up to 150℃/S), longer life time (>10,000 hours) and better thermal transfer(>96%). It bears 20KG water pressure.
For applications where space is limited, this simple profile heater offers high thermal power density and fast response times to heat up or cool down (due to low thermal mass)
It's called "the most impact electric heating element", the ideal heating element to replace traditional Aluminium Die Casting or other immersion Heating Element.
Instant Electric Thick Film Water Heating Element is special designed for Instant Espresso Machine.
With its tubular structure, it can heat water flow inside tube, by thick film electric heating circuit sintered on tube surface. Its profile is simple and compact, it's easy to install and save lots space.
It’s equipped with automatic and one shot thermostats to prevent over heating.
You can get boiling water in 3 seconds, in the rate 480ml per minutes (2,200w).

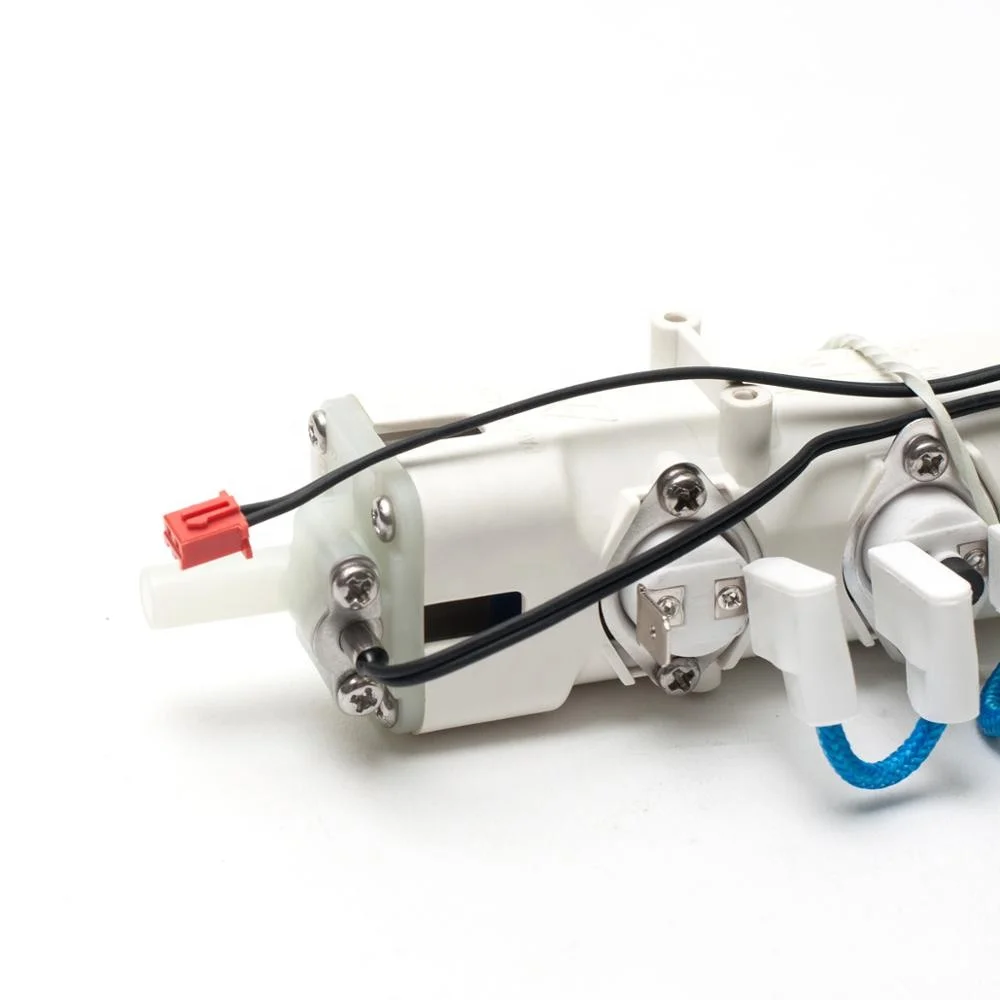

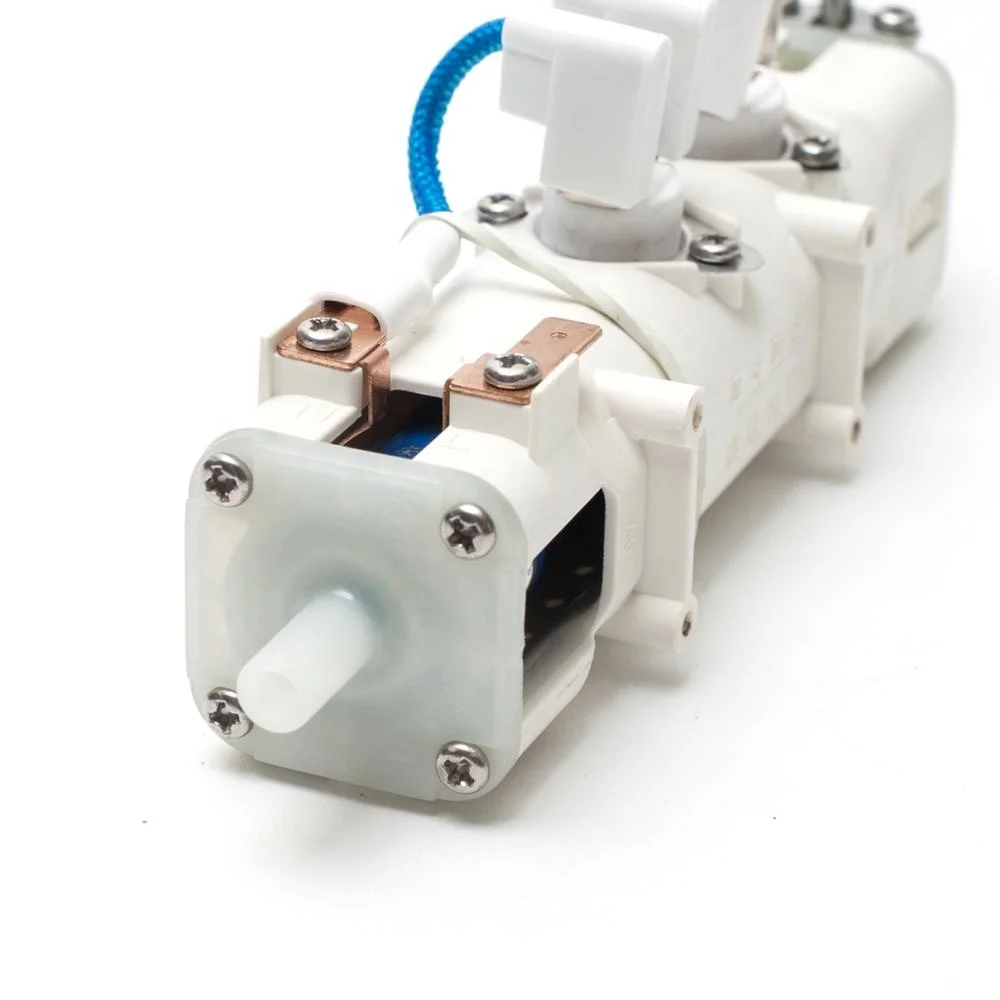

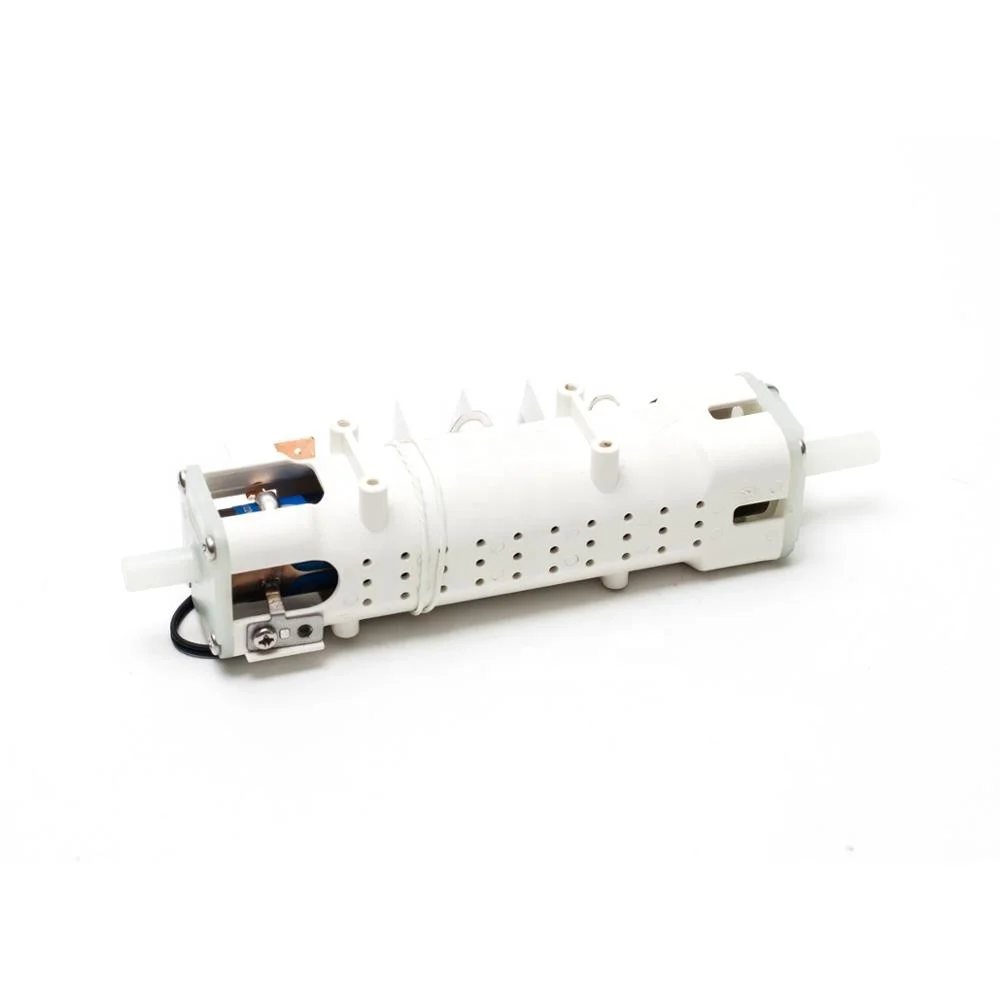

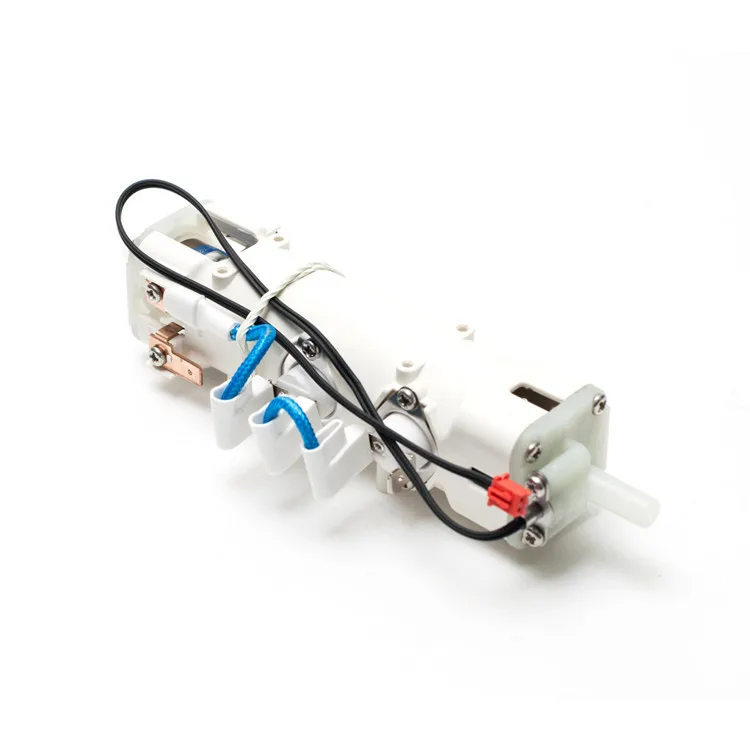

Product Images
Specification
Dimension
161mm*48mm*33mm
Heat Density
>60W/cm²
Ramp-Up Rate
150℃/s
Thermal Efficiency
>96%
Heating Power
2,200W
Service Life
>10,000 hours
Rated Voltage
220v
Certificate
CQC, RoHS
Dielectric Strength
1,500V/5mA/60s
Power Deviation
-10% - +5%
Leakage Current
≤0.25mA
Insulation Resistance
≥200MΩ
Type
PA66+ glass fibre, temperature resistance≥250℃
Snap Action Thermostat
16A, installed close to the heating tube’s heating circuit
Some clients have successfully applied UL/CE certificates for their finished products.
Company Information
Jieda locates in Xinxiang, Henan Provience, is founded in 2010, is a high-tech manufacturer that specializes in design, research, produce and sales rare-earth metal thick film electric heating tubes/elements.
What is Jieda advanced in? 1. More than 10 years experiences in thick film electric heating tubes. 2. Fully mastery of thick film tube surface screen printing and sintering. 3. Main Process Flow in 10000+ Grade Air Purification Workshop. 4. First manufacturer to mass produce Thick Film Electric Heating Tube/Element in China 5. Available various Solutions for fluid heating, especially for Instant Water Heating Home Appliances, House Floor Heating and Industrial water flow heating. 6. Monthly production capacity is up to 300,000 pcs.
FAQ
FAQ
Q: What's Thick Film Heating Element?
A: -Thick Film Heater is a new technical art which is use screen printing technology and new thick film material.
It is printed with isolation dielectric, heating element and glass prevent on a substrate that is made by stainless steel,
amd through drying firing process with 800°C. Thick Film Heater has become a new type of heater.
Q: What’s the advantages of Jieda Thick Film Heating Element? A: We fully master screen printing and sintering technology on curved surface stainless steel tubes, which makes it possible to heat continuous water flow without water tank.
60W/CM² POWER DENSITY
>80℃/S TEMPERATURE RANP UP
Q: What's the lifespan of Thick Film Heating Tube / Thick Film Heating Element? A: It can work more than 10,000 hours, in case of no DRY HEATING.
Q: What's the inlet and outlet diameter? A: Thick Film Heating Tube : Ø18, Ø20, Ø30, Ø35, Ø40, Ø50mm
Thick Film Heating Element : Available with Ø10mm, Ø16mm and G1/2 OD20.9mm
Q: Can I DIY it for personal use by myself?
A: Our Products are mainly used as heating spare parts for water heaters in mass production,
not recommended for Personal DIY.
Q: Can the Thick Film be applied to Copper Pipe or Aluminum Pipe?
A: It can not be applied on Copper pipe, but can work on Aluminum pipe.
Q: How to get the suitable model for our application? A: We need to know the water temperature in inlet and outlet port, water flow rate, connection port details
and other special requirements, to recommend the suitable Thick Film Heating Elements
Q: What's the operation attentions? A:1. The temperature ramp-up above 80°C/s, please make sure the tube fulfilled with water before use.
2. Please install it vertically, make sure water flow direction from bottom to top, to prevent DRY HEATING in partial area of heating tube.
3. Set the minimum flow rate according to tubes' power watts, ensure smooth flowing of water, to prevent vaporizing and dry heating
