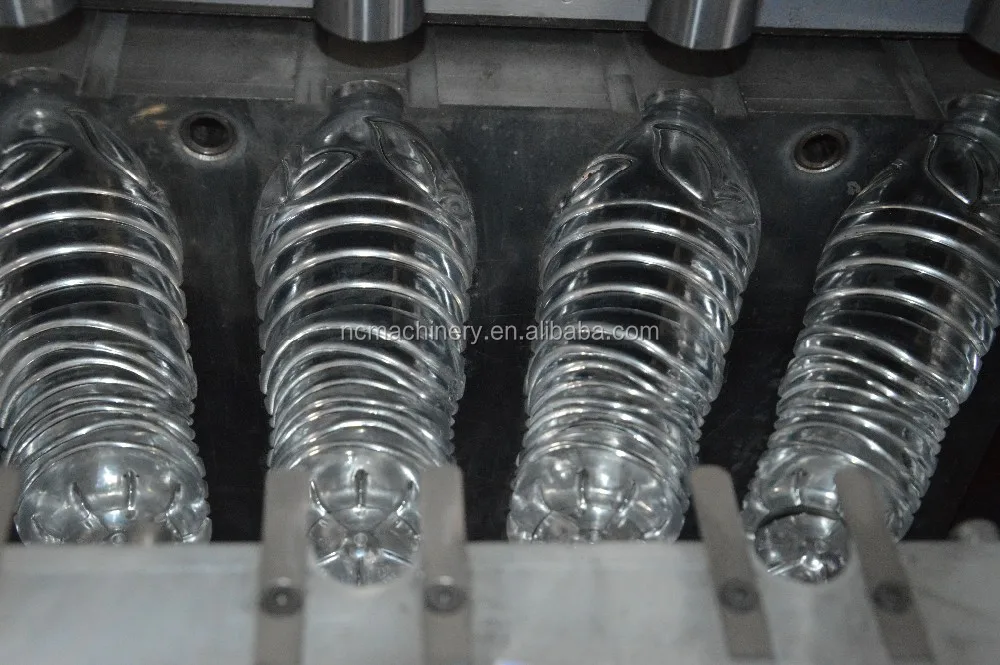

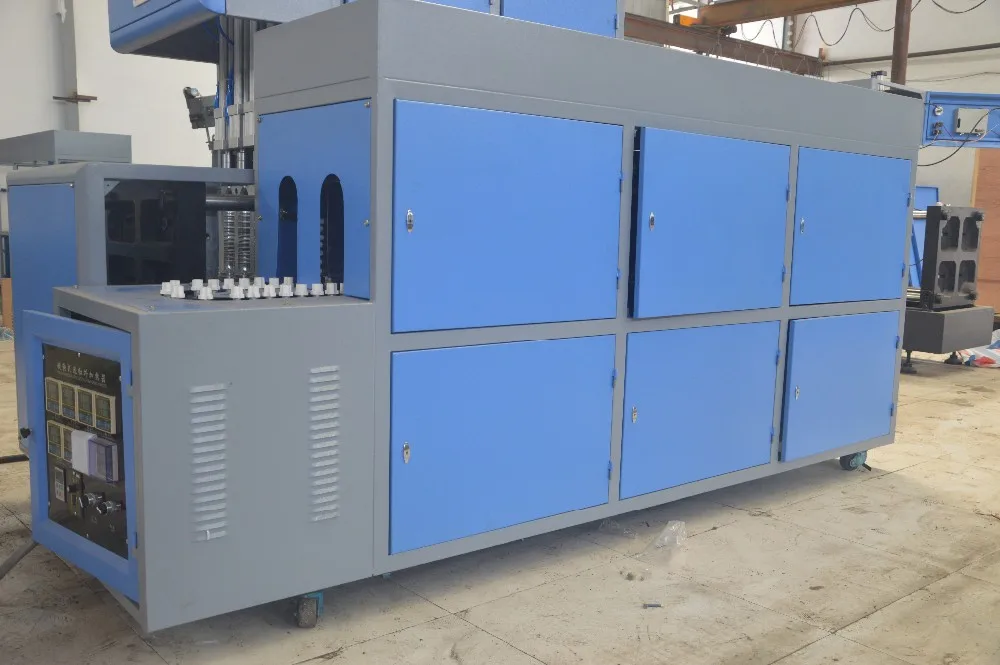

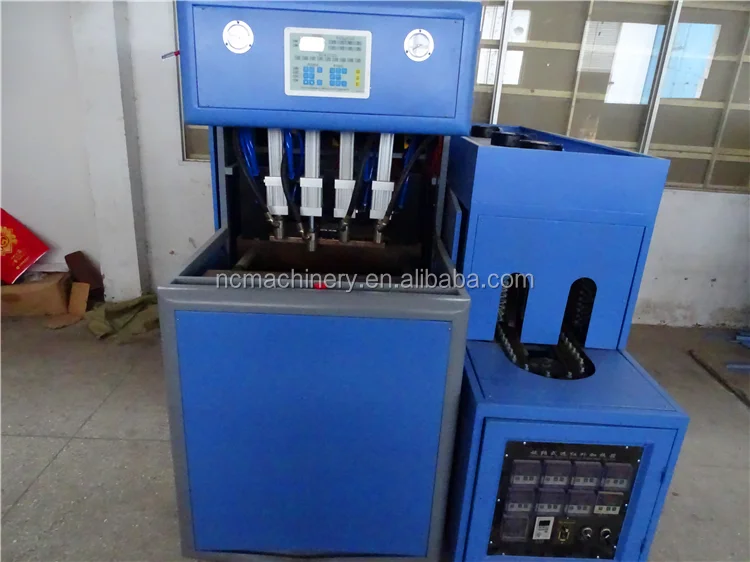

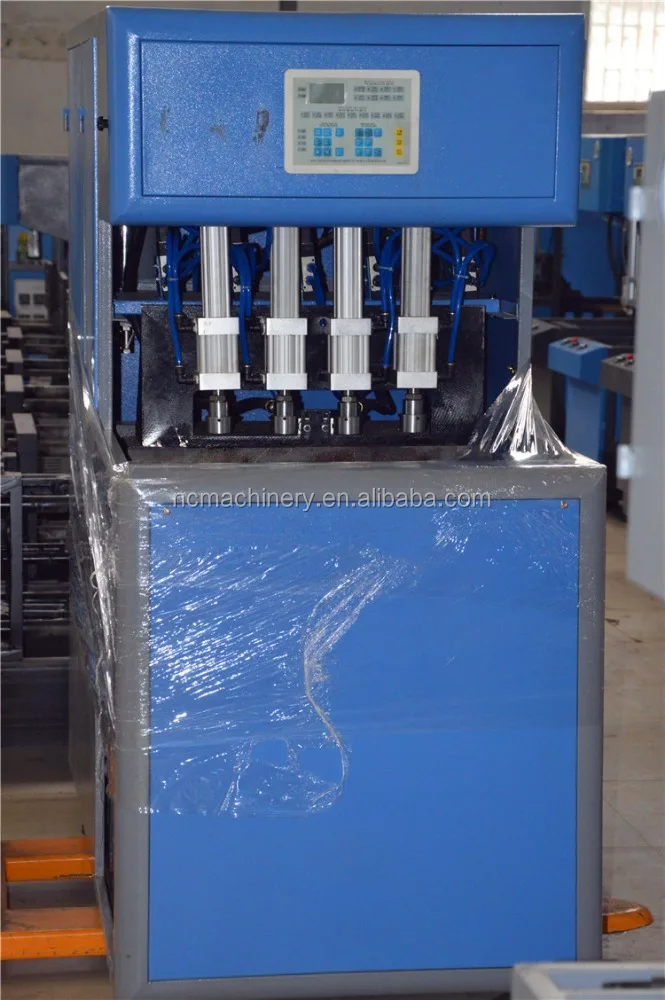

Auto Dropping Semi Automatic 4 Cavity Soda Water Bottle Blow Molding Machine

Product Overview

Description

Auto Dropping Semi Automatic 4 Cavity Soda Water Bottle Blow Molding Machine

Blow Moulding Machine Price -------Feature

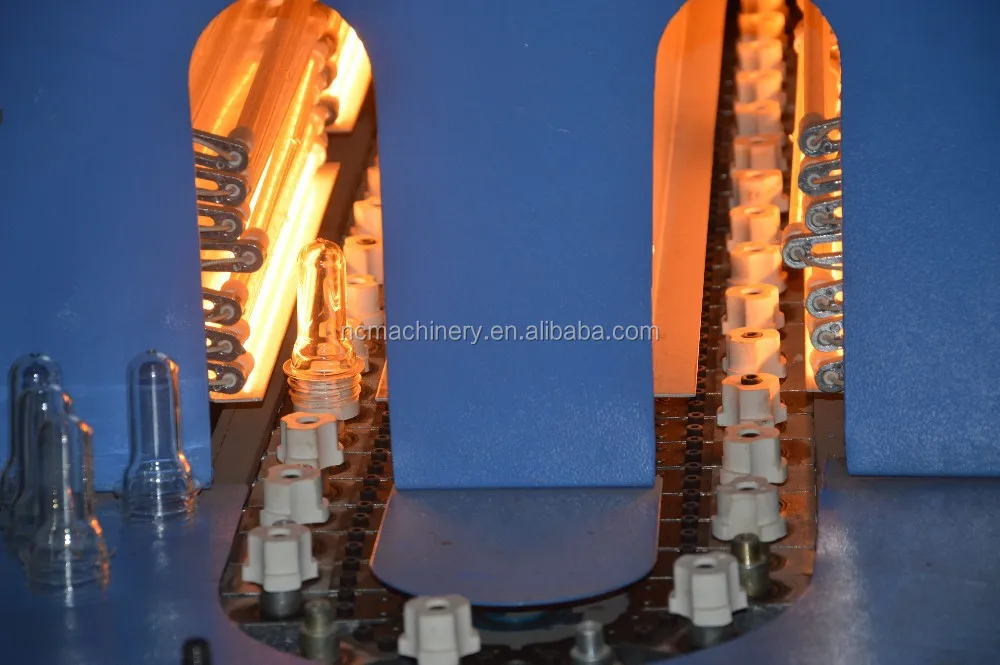

• Adopting double crank to adjust mould ,heavy locking mould, stable and fast ,Adopt infrared oven to heat the perform ,the perform rotated and heated equally.


• The air system has been divided into two parts: pneumatic action part and bottle blow part to meet the different requirements for the action and blow .It can provide sufficient and steady high pressure for blowing large irregular shaped bottles.


• The Blow Moulding Machine Price is also equipped with muffler and oiling system to lubricate the mechanical part of the machine.


• The Blow Moulding Machine Price can be operated in the step-by-step mode and the semi-auto mode.


• The Blow Moulding Machine Price is small with low investment, easy and safe to operate.

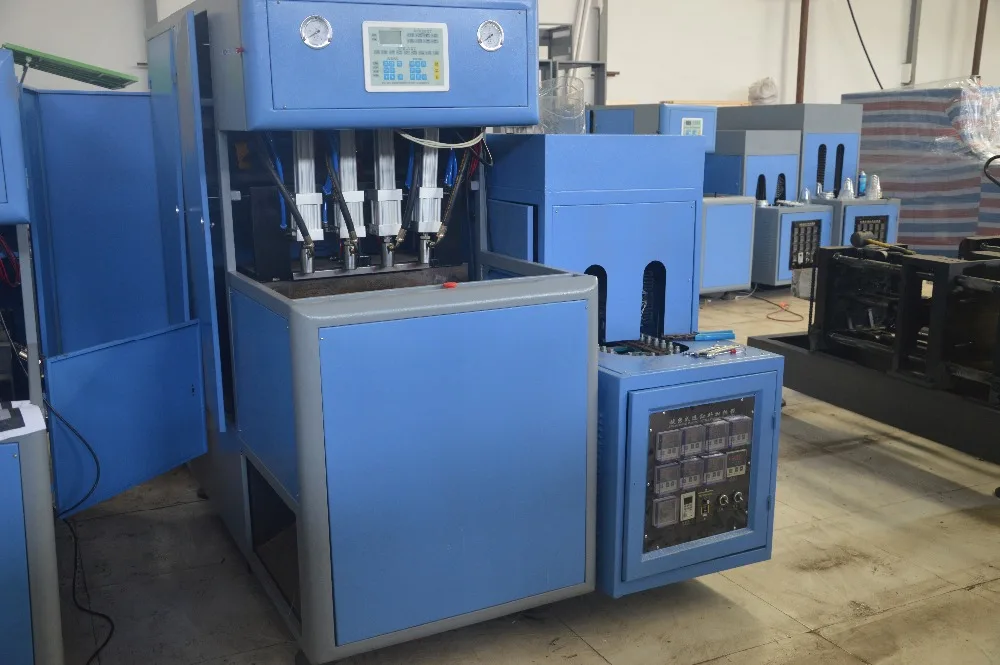

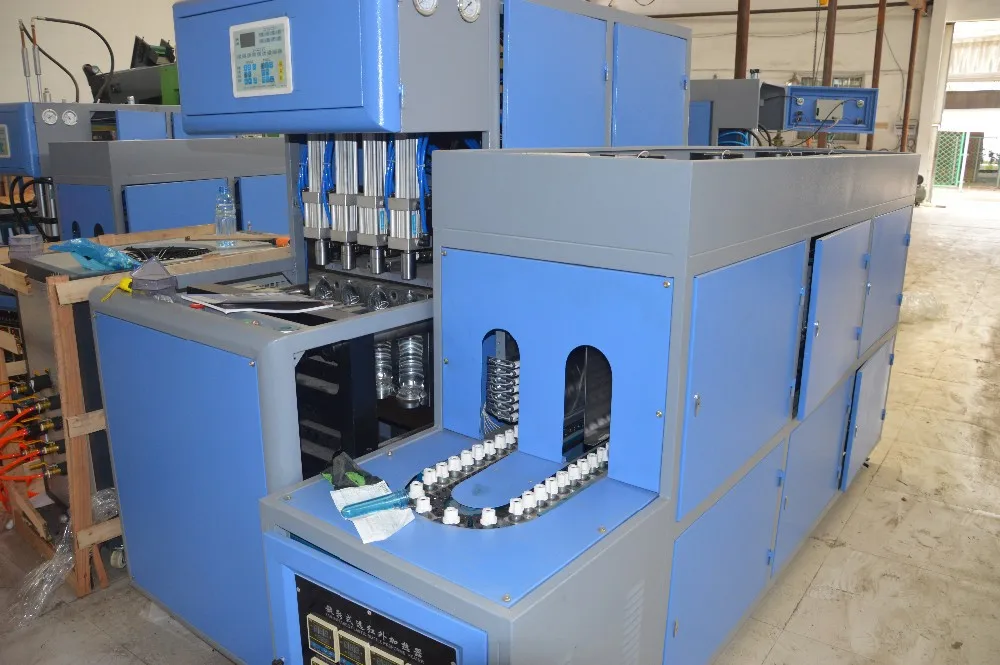

NC-2000A Water Bottle Making Machine

Blow Moulding Machine Price ---Technical Parametre



Main parameter:
Model	NC-2000A
Container	Product material	PET
	Volume	0.1L-2L
	Theoretical output	1800-2000PCS/H
	Preform length	15mm-400mm
	Preform inner diameter	Φ10mm-160mm
Moulding	Max.mould Plate Dimenstion(L x W)	400x460mm
	Max.mould thickness	300mm
	Clamping force	65KN
	Mould opening stroke	28mm
Machine size and weight	Main machine (L x W x H)	175*67*186cm
	Main machine weight	850Kg
	Heater (L x W x H)	187*63*145cm
	Heater weight	250Kg
	Power	17.5kw









Our company has rich experience to help customers to establish the different production lines for different use, for example. we can arrange technical staff to help customer set up whole production line for mineral water, pure water,cola, milk, juice and vinegar,oil, we are profession for making it. If anyone who is interested in such field wants to buy the whole equipments and machines, pls contact us freely.





We warmly welcome customer to visit our factory at any time,you will see the machine working and running

conditon in our factory!
