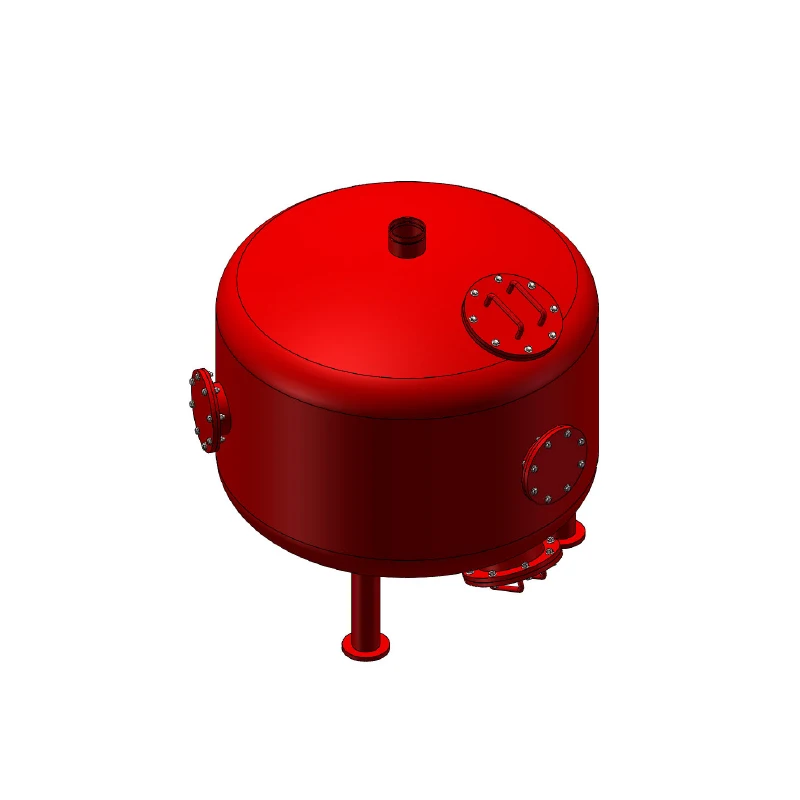

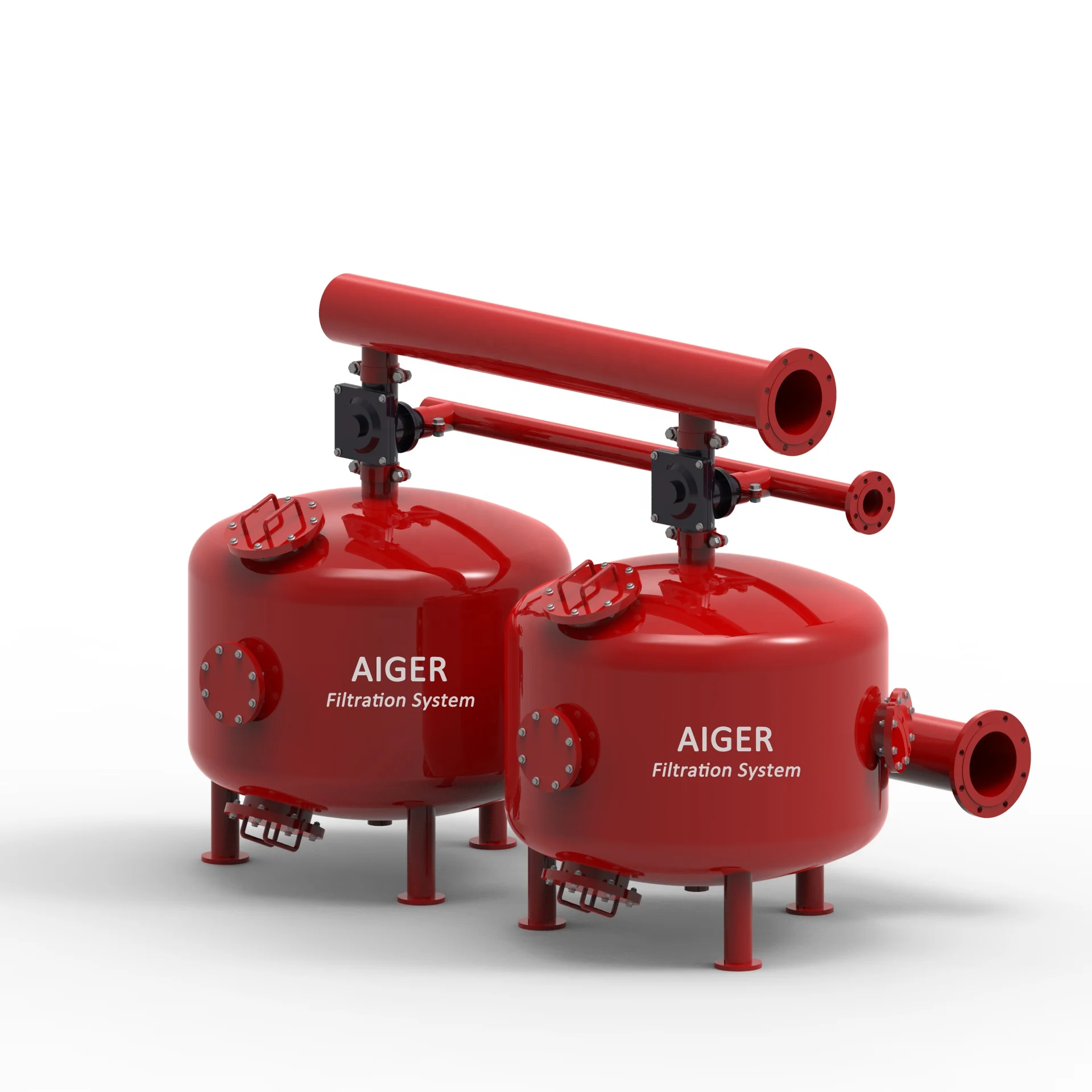

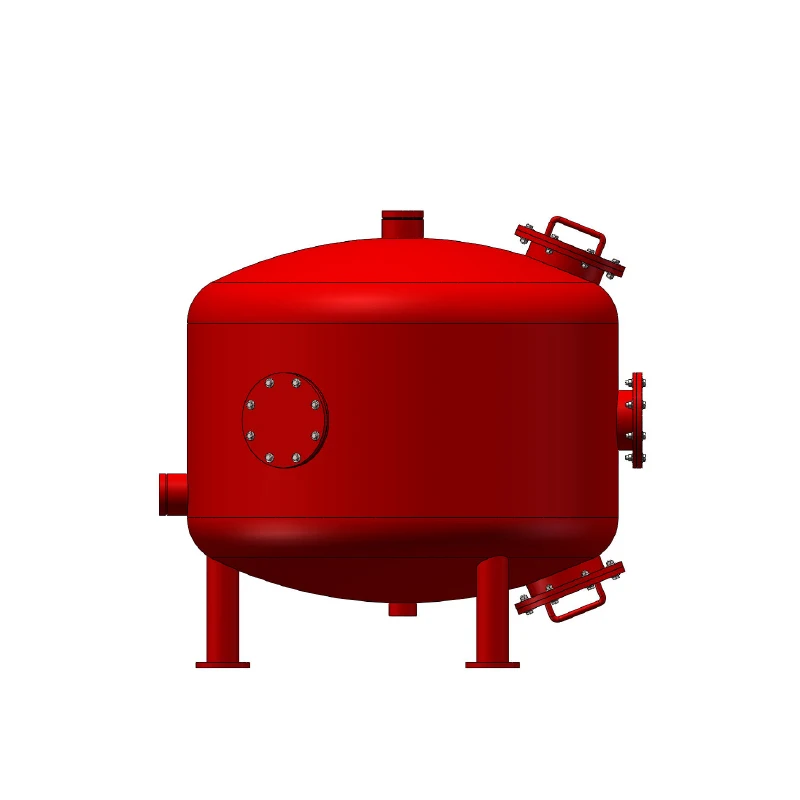

AIGER Quartz Sand Media Sand Filter for Agriculture Drip Irrigation

Single filter water flow

2-50m³/h

Pressure rating

2.5-10bar

Water temperature range

0-65℃

Effluent turbidity

NTU<3

Inlet and outlet connection

Backwash water

for total filtered water 1 to 3%

Control mode

DP/Timer/Manual

Rated operation voltage

1ph/220V/50HZ

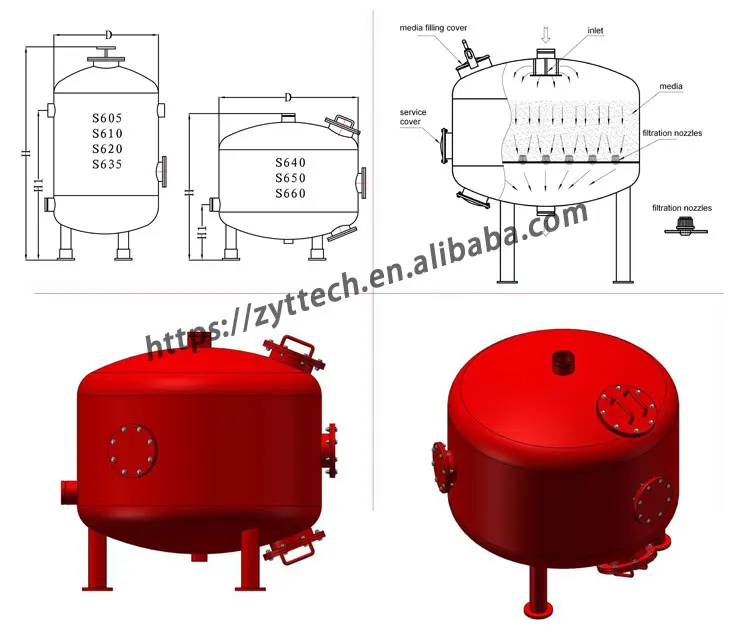

Model

D

Filtration  Area

Flow

Water flow under different filtration rate

5m/h

8m/h

10m/h

15m/h

20m/h

25m/h

35m/h

inch

mm

m2

m3/h

m3/h

S605

12

300

0.07

2-5.6

0.35

0.6

0.7

1

1.4

1.8

2.5

S610

16

400

0.12

4-9.6

0.6

1

1.2

1.8

2.4

3

4.2

S620

20

500

0.2

8-16

1

1.6

2

3

4

5

7

S635

25

625

0.3

12-24

1.5

2.4

3

4.5

6

7.5

10.5

S640

30

750

0.44

17-35

2.3

3.5

4.5

2.2

8.8

11

15.4

S650

36

900

0.63

25-50

3.2

5

6.3

9.45

12.6

15.8

22

S660

48

1200

1.13

45-90

5.7

9

11.3

17

22.6

28.3

39.6

S690

96

2400

4.5

85-165

25

36

45

68

89

113

152
