Product Overview
Description
Product Description
Brief introduction
The aeration process is fundamental in a municipal or industrial sewage treatment plant as it allows the supply of the oxygen required for the metabolic activity of the activated sludge. Many are moreover the applications of different types and speeds of mixers in biological and/or chemical-physical plants.

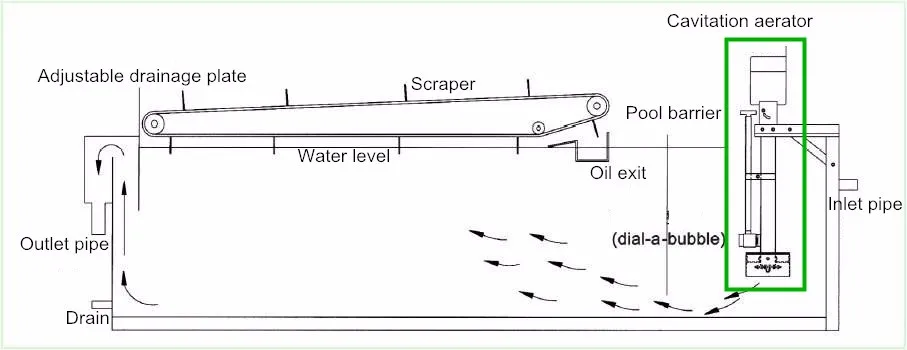

Cavitation aerator is a sewage treatment aeration equipment. The device is installed in the aeration chamber.It use the high speed rotary of impeller in the bottom water to form a vacuum region.The air in the surface will enter into the water through the aerator to become microbubble.As the strong agitation of impeller,the bubbles will rise to the surface.
When rising up to the surface,the Microbubbles will completely mix with the sewage.This process will make the solid-liquid separation.
When rising up to the surface,the Microbubbles will completely mix with the sewage.This process will make the solid-liquid separation.
Description:
Air bubble forming:motor rotate in high speed and stir water, produce negative pressure and inhale air by air intake, then air will be inhaled into water by center rotation axis , then forming into small air bubble by impeller rotating cutting in the water, the micro air bubble diameter between 5um---15um, micro bubble lifting the water suspended solids slowly rising to the upper surface form scum, the micro air bubble will stay in water about 50-60s.
Structure:

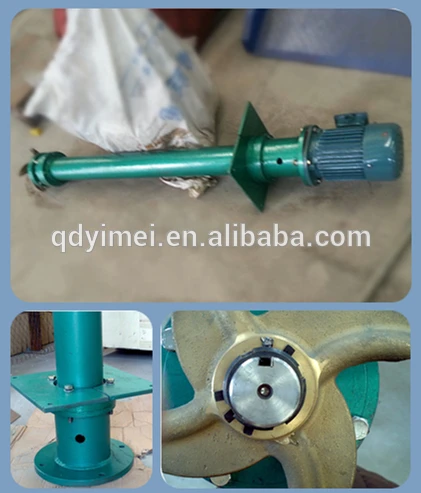

The nano bubble generator is composed of motor,motor base,coupling,air intake drive shaft,aerator tank,oil seal,mechanical water seal ,air outlet impeller etc.
Technical data:
model | power(KW) | water depth(mm) | tank height(mm) | Unit treatment capacitym3/h |
YMSB930 | 1.1 | 800 | 1000 | 50 |
YMSB1130 | 1.1 | 100 | 1200 | 50 |
YMSB1430 | 1.5 | 1300 | 1500 | 50 |
YMSB1730 | 2.2 | 1600 | 1800 | 50 |
YMSB1930 | 2.2 | 1800 | 2000 | 50 |
YMSB2130 | 3.0 | 2000 | 2200 | 50 |
YMSB2330 | 3.0 | 2200 | 2400 | 50 |
YMSB2530 | 3.0 | 2400 | 2600 | 80 |
Advantage:
- Big aeration volume
- Micro air bubble with fast rise speed
- Simple maintenance
- Low energy consumption
- Low noise, long service life
- Unit aeration volume is big and enough,no need air compressor and dissolved air tank
Petroleum,petrifaction,textile,food, papermaking, printing and dyeing,fermented,tannery,slaughter etc industrial sewage treatment and city domestic sewage treatment.

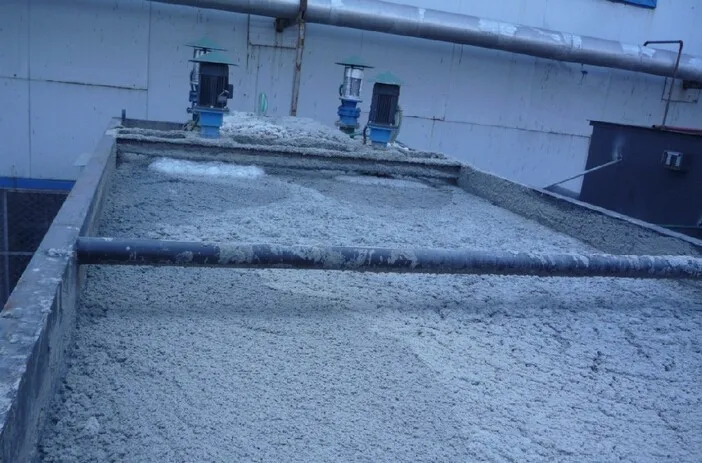

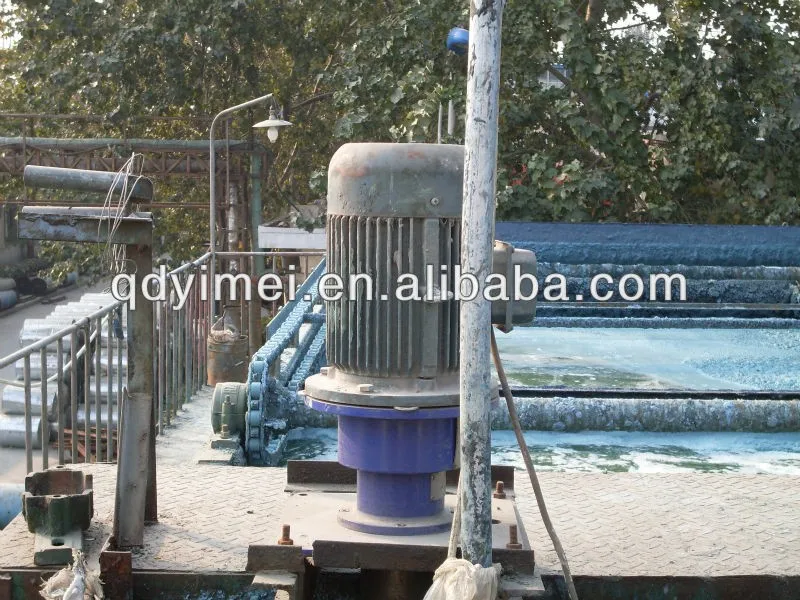

Working site

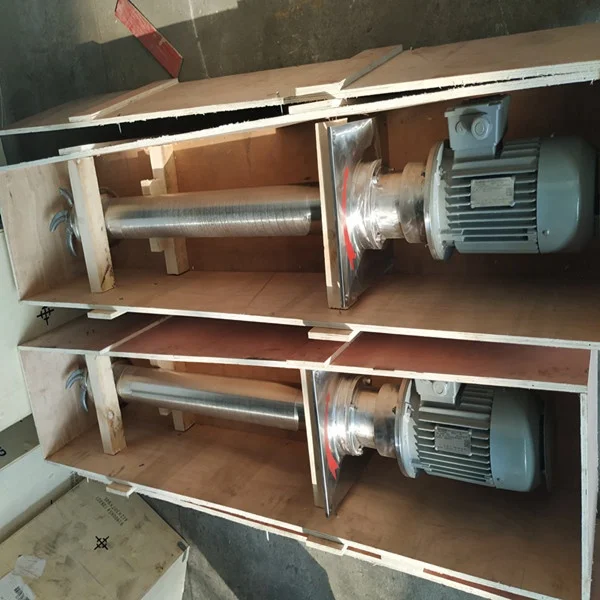

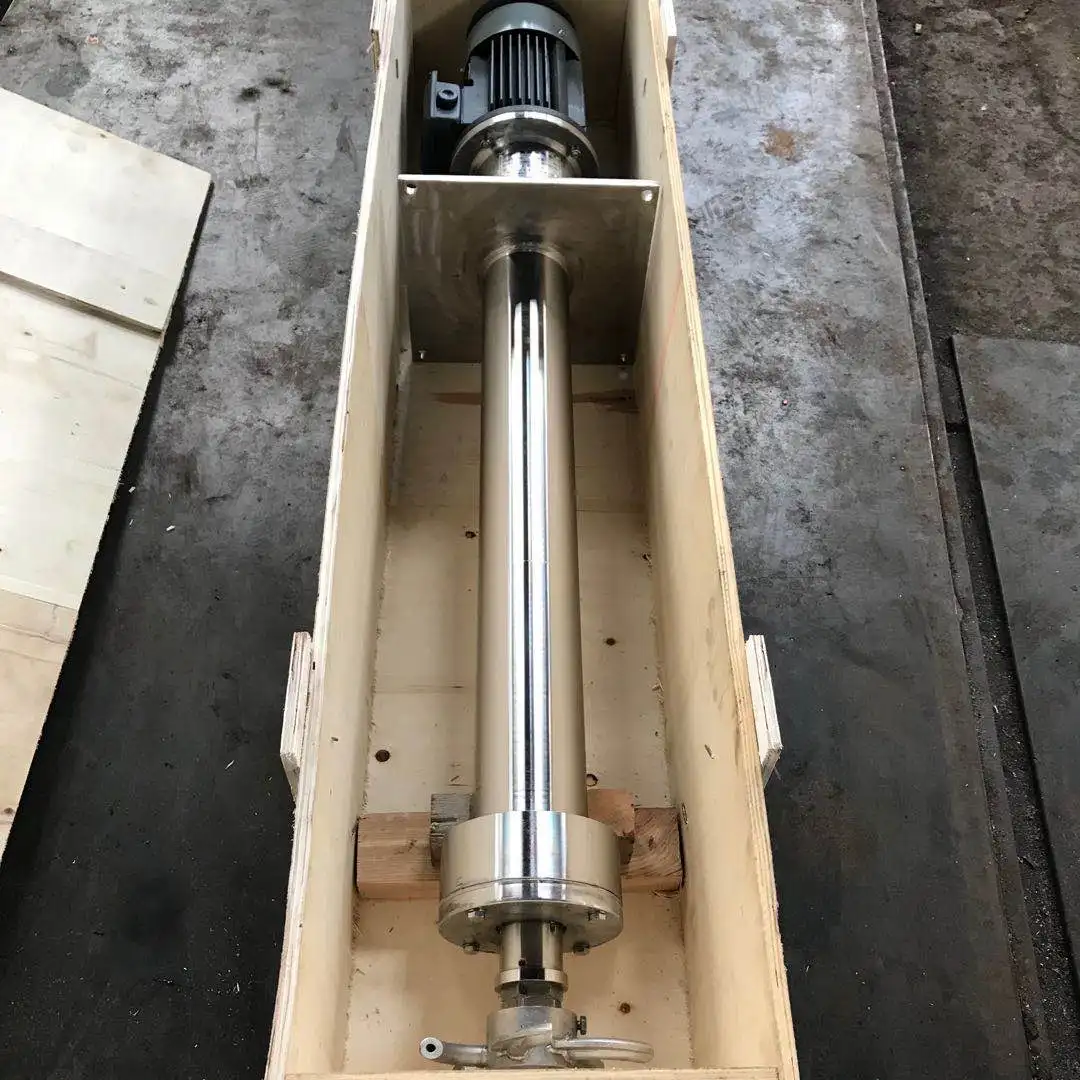

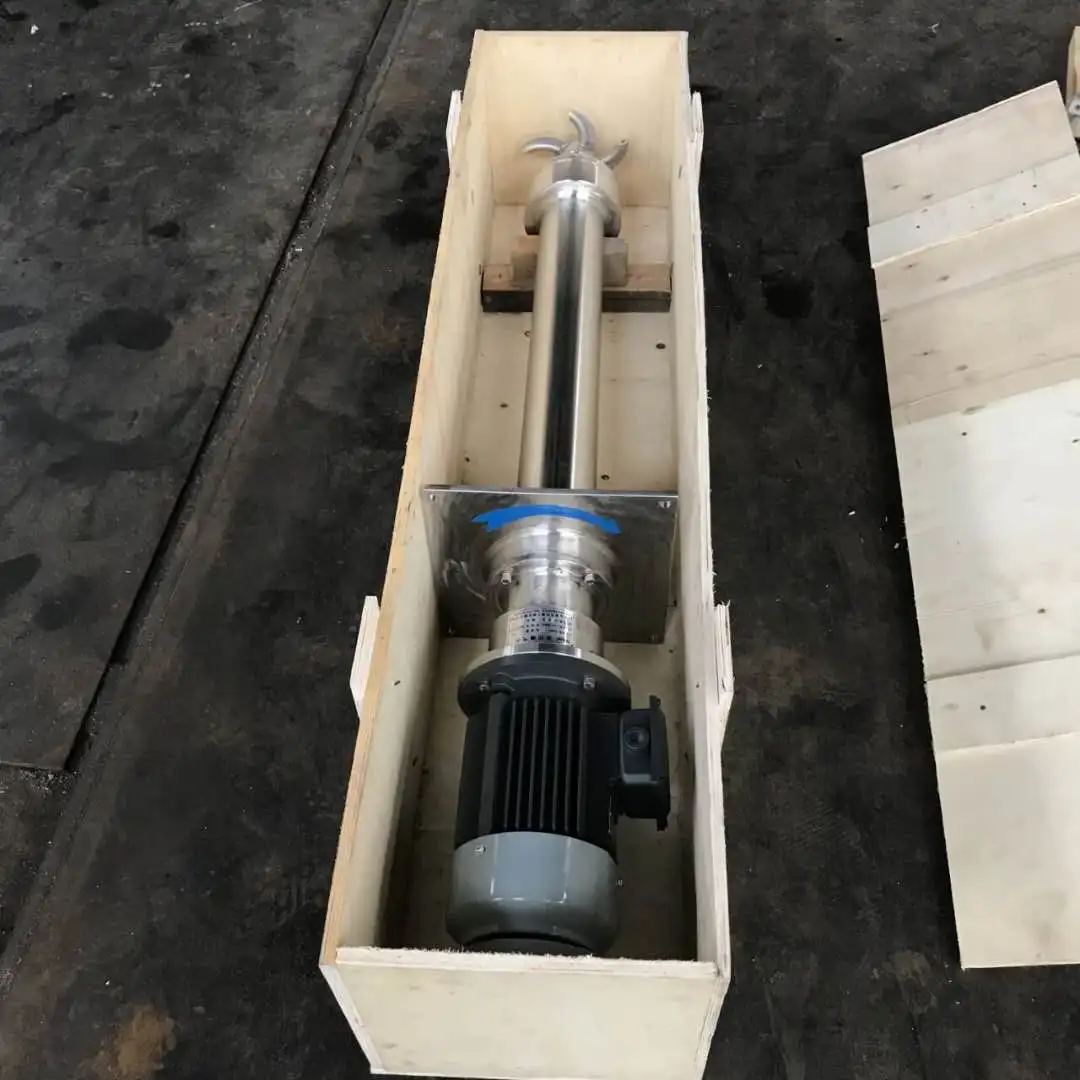

Packaging & Shipping
