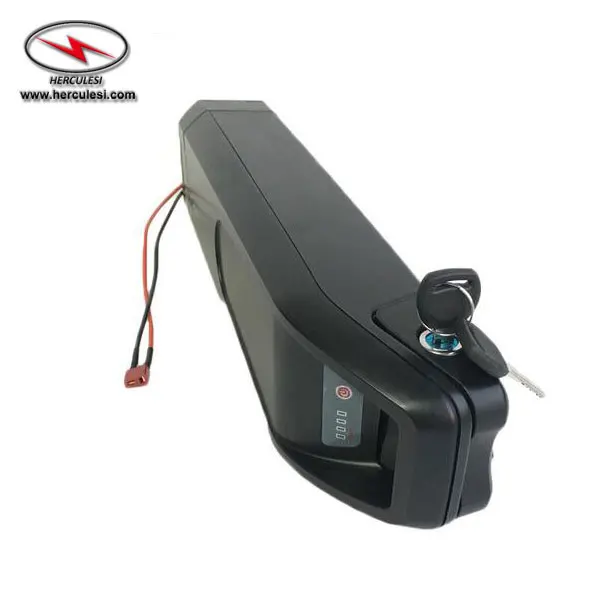

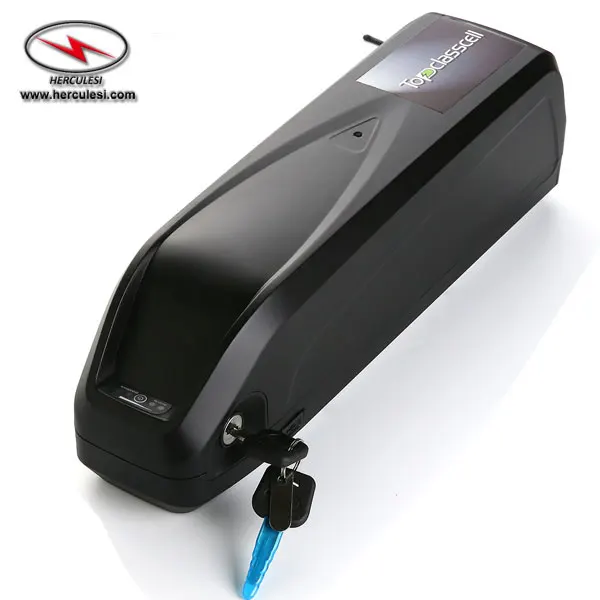

Fiets Accu 36V E Bike Battery 36V 10Ah Electric Bike Battery with Hailong Bateria Case
- Category: >>>
- Supplier: Shenzhen Herculesi Technology Co. Ltd.
Share on (60582726316):
Product Overview
Description
Bateria litio 36v 10Ah Electric Bike fiets Accu with Akku Hailong case
Product Description
For this akku 36v 10Ah
Recommend to use 36v 100W -36v 540w Motor.
The charger applys to 100V-240V Voltag .

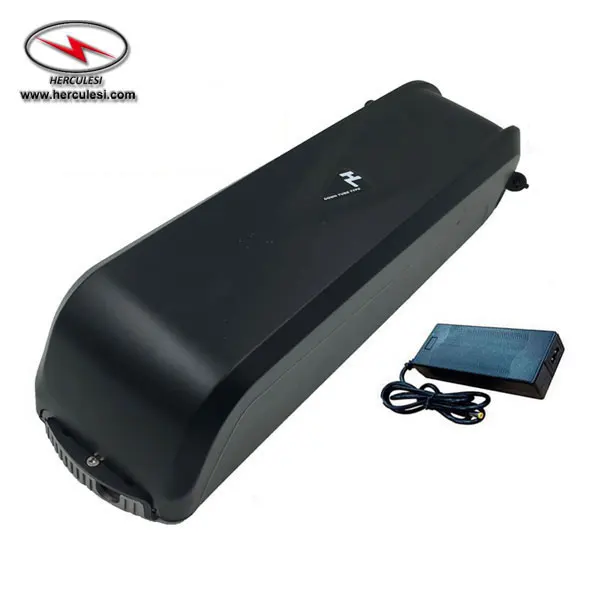

Parts included : Fiets Accu 36v 10Ah + shark case + 15A bms board + 2a charger
Specifications of shark type E bike Battery 36V 10Ah
| Battery Nominal | 36V 10Ah |
| Nominal Capacity (Ah) | 10Ah |
| Nominal Voltage (V) | 36V |
| Source Resistance (mΩ) | about 40 |
| Cell Specification | 3.7V 2500mAh 18650 Cell |
| Cell Combination | 10S5P |
| Cell Quantity (parallel*series) | 50 PCS |
| Discharge Cutoff Voltage (V) | 28 + /- 1V |
| Charge Cutoff Voltage (V) | 42V |
| Rated Discharge Current (A) | 15A |
| Instantaneous Maximum Discharge Current (A) | 30A |
| Maximum Continuous Charge Current (A) | 5A |
| Charge Mode | CC/CV |
| Standard Charge Current (A) | 2A |
| Charge Time under Standard Charge Current | 5 Hours |
| Fast Charge Current (A) | 5A |
| Charge Time under Fast Charge Current | 2 Hours |
| Charge Temperature Range | -20-60℃ |
| Battery Size | 370*90*90 mm |
| Chargeing Cycles | 1000 times |
| Recommender for Moto | within 720W |
| Battery Net Weight | around 3.5 Kgs |

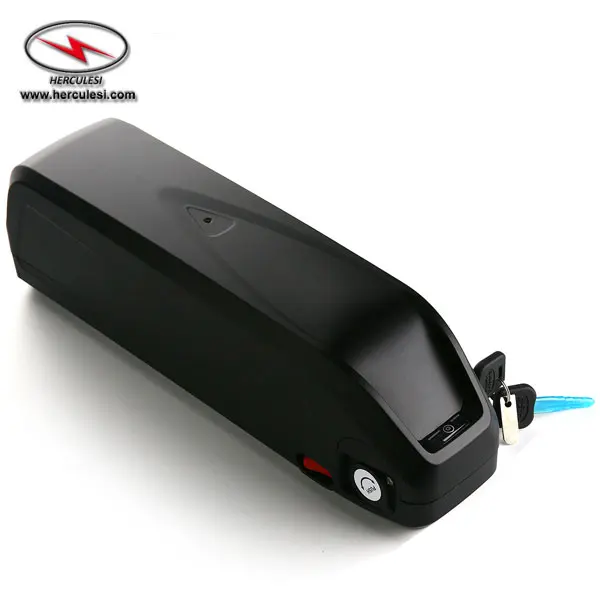

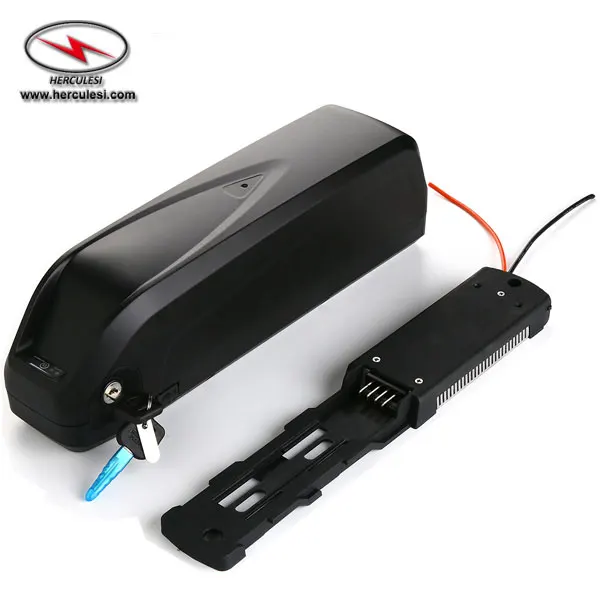

Detail picture
Detail picture of li-ion battery pack 36V 10Ah
Applications
1. Emergency power supply, LED light & flashlight: headlamp, emergency light, solar flashlight, searchlight, lantern, bicycle light, bright flashlight, high-end lamp, military flashlight and so on.
2. Home appliance products: electric vacuum cleaner, eletric sweeper, water meter, gas meter, electrinc children toys, electric warm shoes, electric blancket, TV remote control (RC) and so forth.
3. Consumer applications, communicate & telephone equipment: MPS, tablet PC, laptop, Bluetooth earphone, power bank, portable DVD player, speaker, microphone, sound equipment, audio, digital camera and others
4. Outdoor sports products: camping light, mountain bike light, solar emergency light, self-defense flashlight and that .
5. Electronical tools & electric transportation vehicles: electric bike, electric car. e-scooter, electric motor and all that.
6. Solar lawm, remote control
7. Medical device
8. Backup power supply
9. Electrical and hobby
Advantages
Cells testing before making battery pack
Make battery pack as below steps
Packaging & Shipping
1. Orders processed timely after the payment verification.
2. We only ship to confirmed order addresses. Your order address MUST MATCH your Shipping address.
3. SERVICE TRANSIT TIME is provided by the carrier and excludes weekends and holidays. Transit times may vary, particularly during the holiday season.
4. Delivery time depends on destination and other factors, If you didn't received the item after 20 days, please contact us.
Company Information

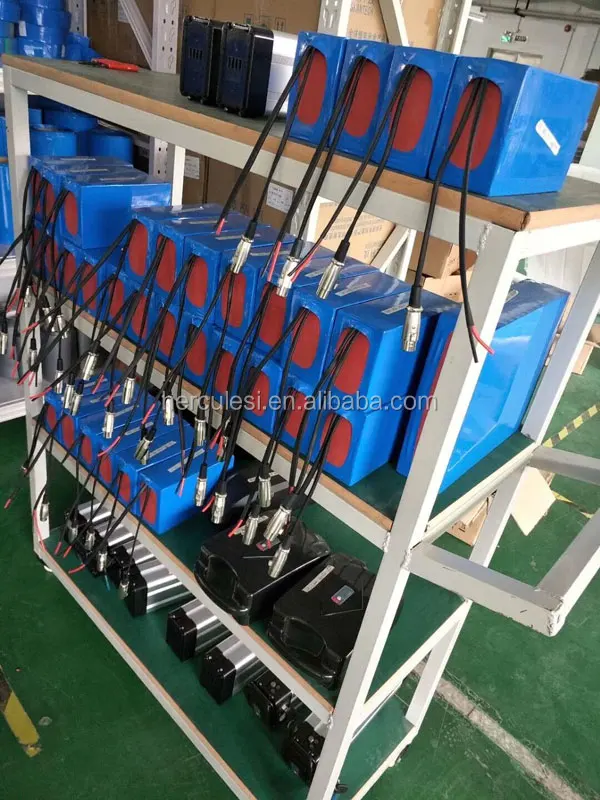

Our factory
We are specialized in Li ion battery, LiFePO4, Li-NiCoMn, LiCoO2, LiNiO2, and LiMn2O4 battery with 12 year experience.
We are not only sell batteries, but also provide expertise to help customer design their own custom batteries. Our sales and engineers have more than 10 years experience, if you have any design or inquiry, please just message us, our engineers will work with you to provide you best solutions.
How to select the correct battery pakc (General Knowledge) ?
- First of all, you must get to know your device:
- What is device's input voltage? ( V)
- What is its power consumption ( Wattage ) ?
- What is Maximum current drain ( A) ?
- What is your expected running time by a battery pack ?
- Decide battery pack voltage you will choose
- Battery pack voltage must be equal or a little higher than your device’s need.
- If you need a exact voltage, which battery pack can not provide, you may consider to use a DC-DC regulator
- Decide Battery pack's Capacity ( mAh or Ah)
- Battery capacity is depended on how long you need to run your device ( hours ), which can be calculated as the follow:
- ( Ah) = Device's Wattage (W) x Time to run ( Hours) / Battery Voltage (V)
For example, if using a 12V battery pack, and run 10W DC device for 10 hours, you need choose a battery pack with capacity > 8.3Ah, e.g (10x10)/12 = 8.3
- 1000 mAh = Ah, higher mAh will provide longer running time.
- Decide Battery pack’s Max. discharging current
- Before order battery pack, you must pay attention on battery pack’s Max. discharging rating on the specification or description. Please don’t think any battery can take any current drain.
- You shall know your device’s max. discharging current. If you don’t know , you must measure it by a multi-meter.
The battery pack’s Max. discharging rate of the chosen Battery must be higher than that device requires
How to Maintain Lithium Battery
Lithium batteries are presently the most commonly used energy storage devices on electric bike, electric scooter, golf car, mobile phones, laptops, digital cameras and other electric devices. Learning how to maintain lithium batteries can not only prolong battery lifetime but also protect your device from potential damage.
1. Charge new batteries. It's not necessary to charge over 12 hours when first used. When a device powered by batteries is purchased, sellers will usually tell us the batteries must first be charged 12 hours before using. Actually, this is unnecessary. Unlike common Ni-CD or Ni-MH batteries, most lithium ion batteries are activated before leaving the factory. Due to their low self-discharge, it’s unnecessary to charge lithium ion batteries for such a long time when new. Lithium ion batteries are ready for use when the charger indicates so, and they will reach their best capacity after 3 or 5 cycles.
2. Use appropriate chargers. Many people take great care with their electronic gadgets, but often neglect the consequences of bad chargers on their lithium ion batteries. When choosing a charger, the original charger is the best choice. If that's unavailable, a high quality charger that has an overcharge protection function, or a brand name charger will do. A low quality battery charger can lead to shorter run times, premature battery failure, or even fire or explosion.
3. Avoid frequently over charging. Over charging with a low quality charger may let the battery's interior rise to a high temperature, which is bad for the lithium ion battery and charger. Thus, simply fully charging is good enough - overcharging will make your lithium battery into a little bomb if overcharge protection function is missing.
4. Avoid touching metal contacts. All batteries' contacts need to be kept clean for best performance. When carrying batteries around, do not let the contacts touch metal objects such as keys; this could cause a short circuit, damaging the battery or potentially resulting in a fire or an explosion.
5. Avoid using often in high or low temperature environments. Lithium ion batteries have optimal working and storage temperatures. If they're continually used in extreme temperature environments, this will negatively affect battery use time and useful cycles.
6. Avoid long periods without using or recharging. If batteries will be left unused for 3 months or more, partially recharge them (to around 30-70% of capacity, depending on planned storage time), then store the device to prevent battery damage. You may need to take the device out of storage and charge again after a few month
