3D вращающаяся Форсунка для мытья емкости для IBC totes
- Category: >>>
- Supplier: Cleaning Intelligent Equipment Technology (guangzhou) Co. Ltd.
Share on (60582968943):
Product Overview
Description

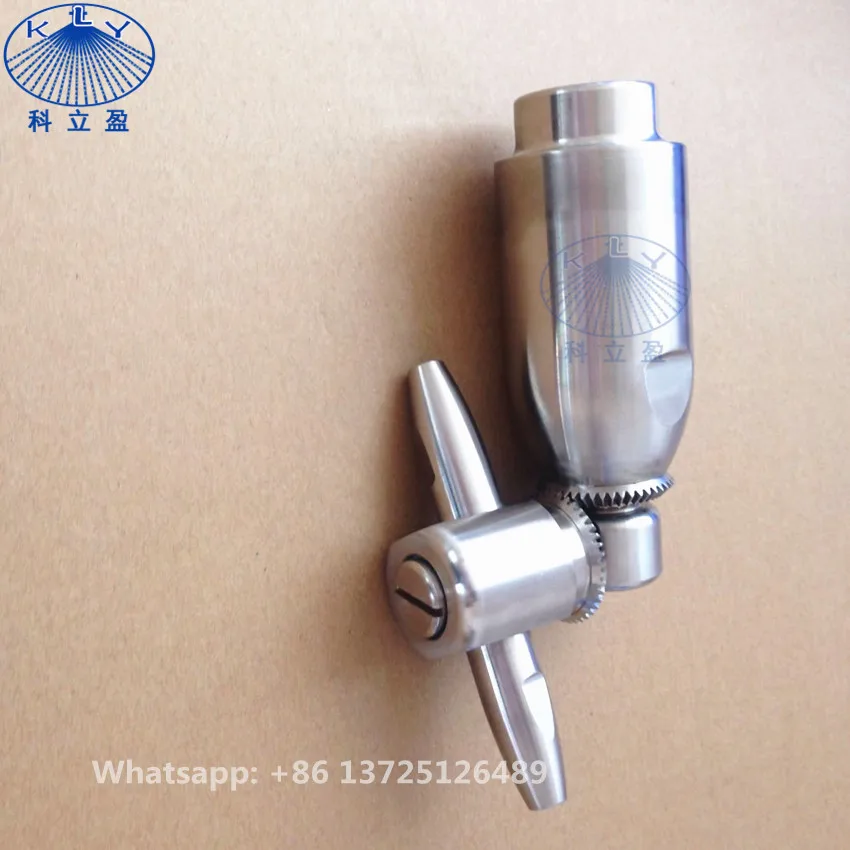

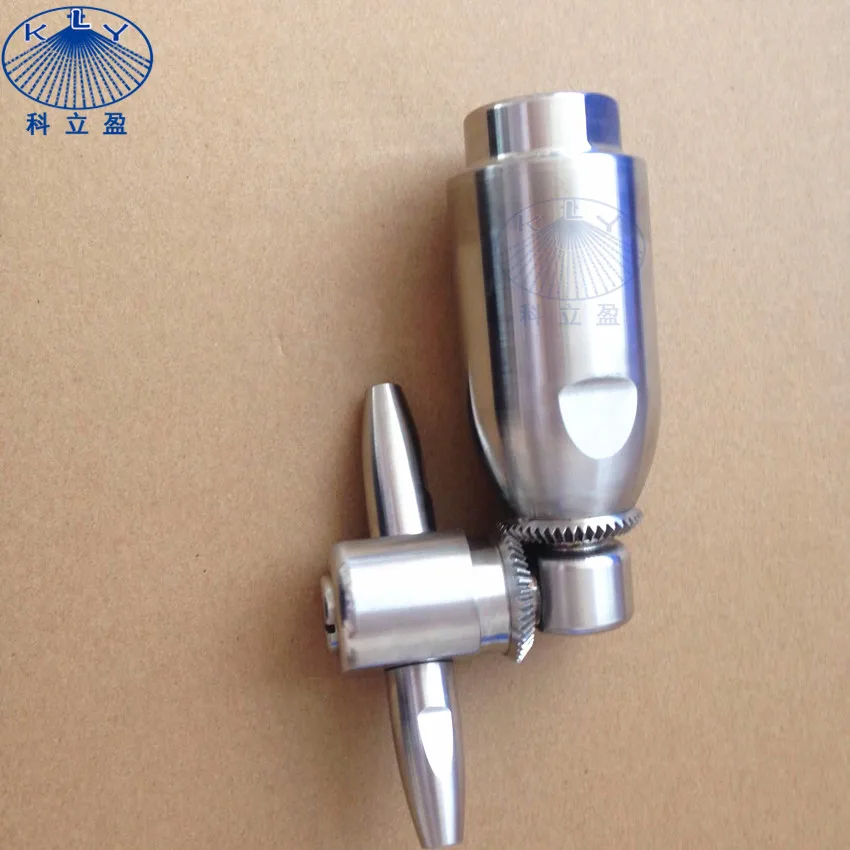

3D rotating tank washing nozzle for IBC totes
Model | tank washing nozzle |
Material | 316L stainless steel |
Temperature range | 95° |
Pressure | 3-20bar |
Application | medium to large tanks, such as Dairy , Food, Pharmaceutical |
Design feature | 3D rotating, gear driven, controlled rotation |
Spray angle | 360 |
Connection | Female thread 3/4" |
Lead time | 15-20 business days |
Max. tank diameter | 5m |

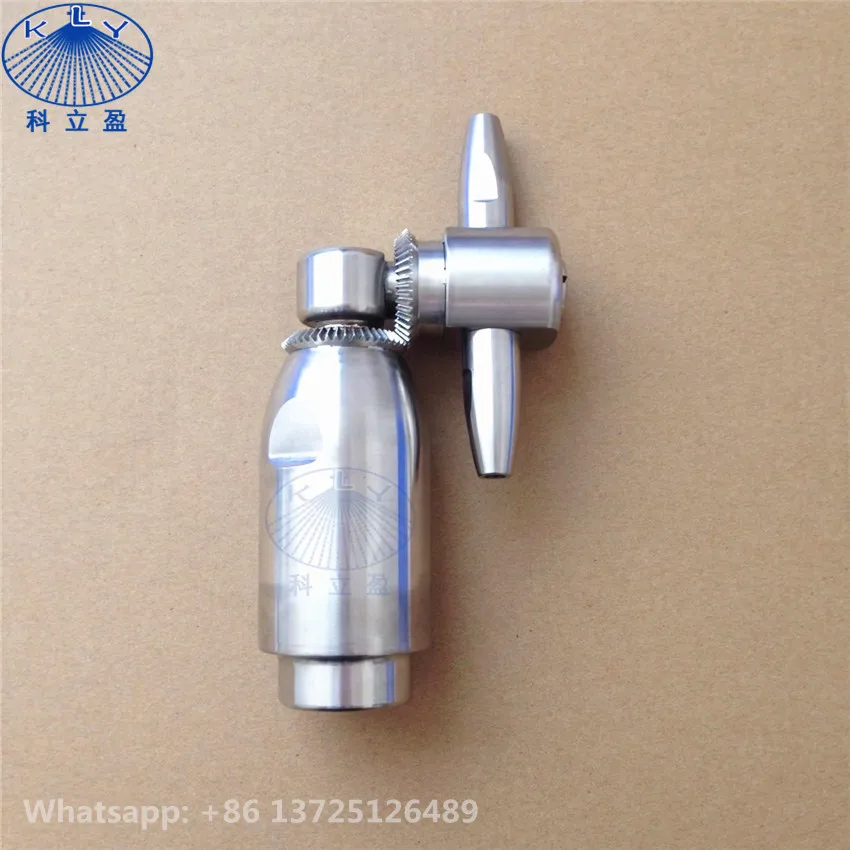

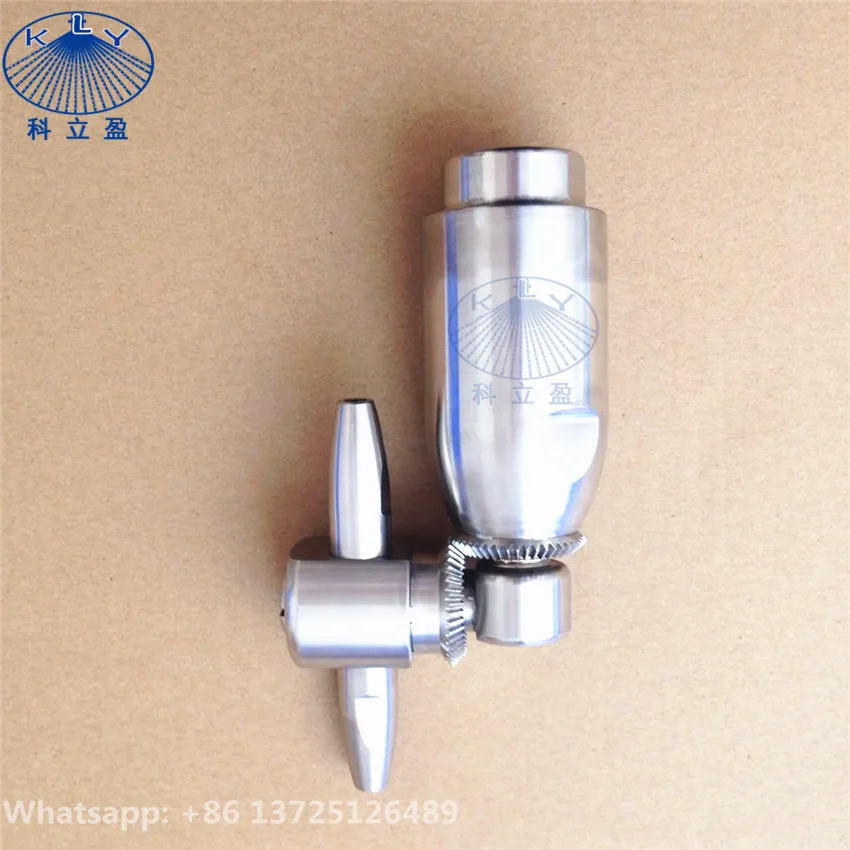

The MG5 rotating tank cleaning nozzle provides complete tank cleaning that is both thorough and cost-effective. It is fluid driven with external gears and was specifically designed to fit a 3″ (76.2 mm) opening, for cleaning of totes, IBCs and other limited access vessels.
This model also incorporates a set of bevel gears which provide a complete 360-degree indexing pattern every 45 revolutions and has an effective cleaning diameter of 5M.
It operates up to 300 psi (20.7 bar) and offers simplicity of design and ease of field maintenance.
Very high cleaning performance already at low pressure
Driven and lubricated by the cleaning fluid
Systematically cleans the entire tank interior(360°)
Robust, low-maintenance stainless steel construction
This model also incorporates a set of bevel gears which provide a complete 360-degree indexing pattern every 45 revolutions and has an effective cleaning diameter of 5M.
It operates up to 300 psi (20.7 bar) and offers simplicity of design and ease of field maintenance.
Very high cleaning performance already at low pressure
Driven and lubricated by the cleaning fluid
Systematically cleans the entire tank interior(360°)
Robust, low-maintenance stainless steel construction
Application:
MG5 rotating tank cleaning nozzles are suitable for medium to large tanks, such as Dairy , Food, Pharmaceutical, Beer, Chemical, industrial fermentation industries and many others.

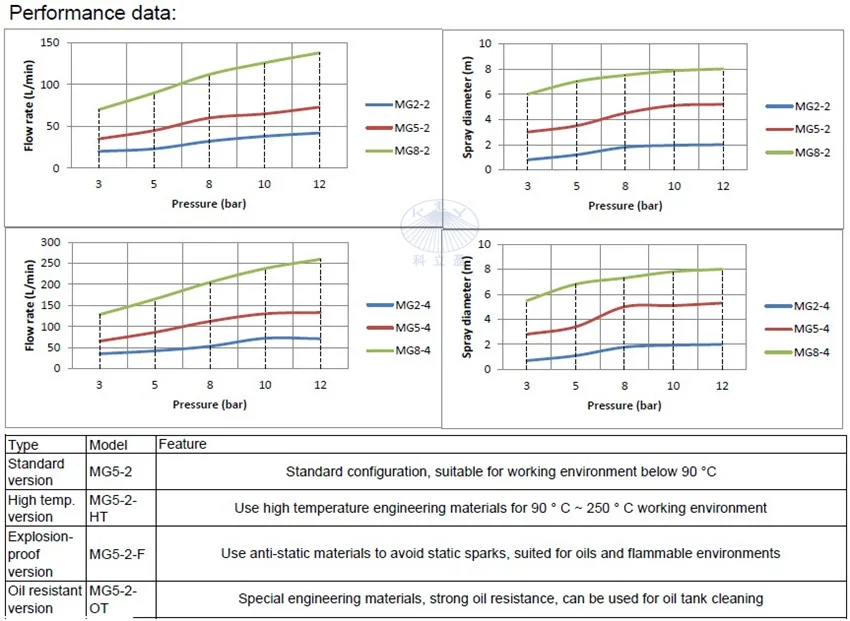

Performance data:

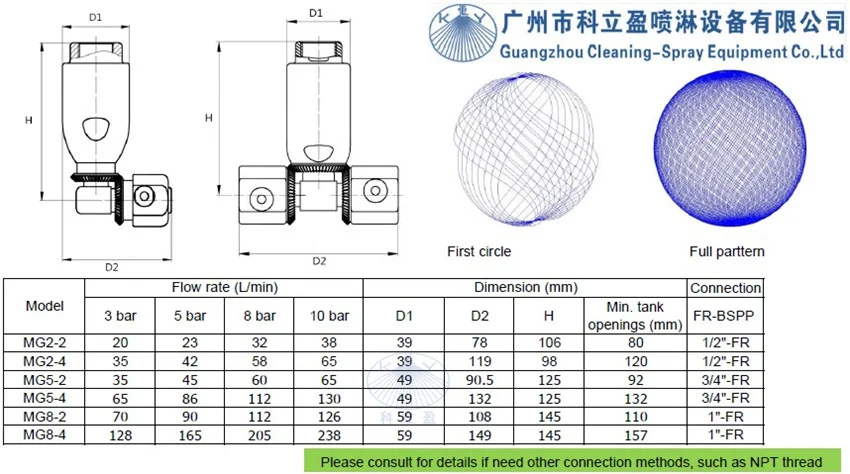

Dimensions of tank cleaning nozzle:

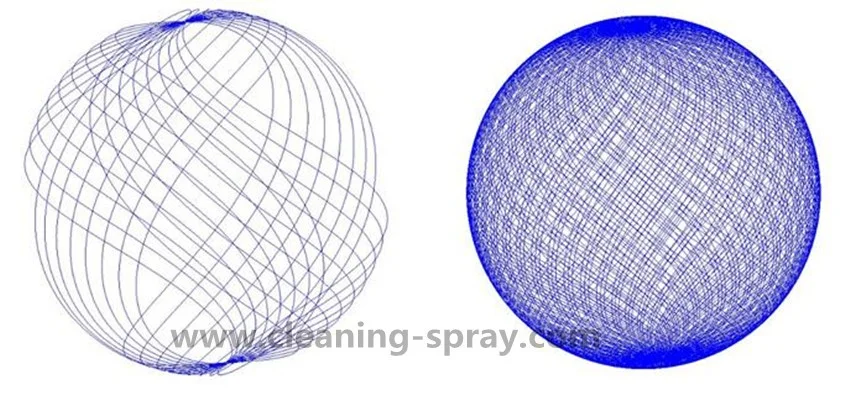

Cleaning process:

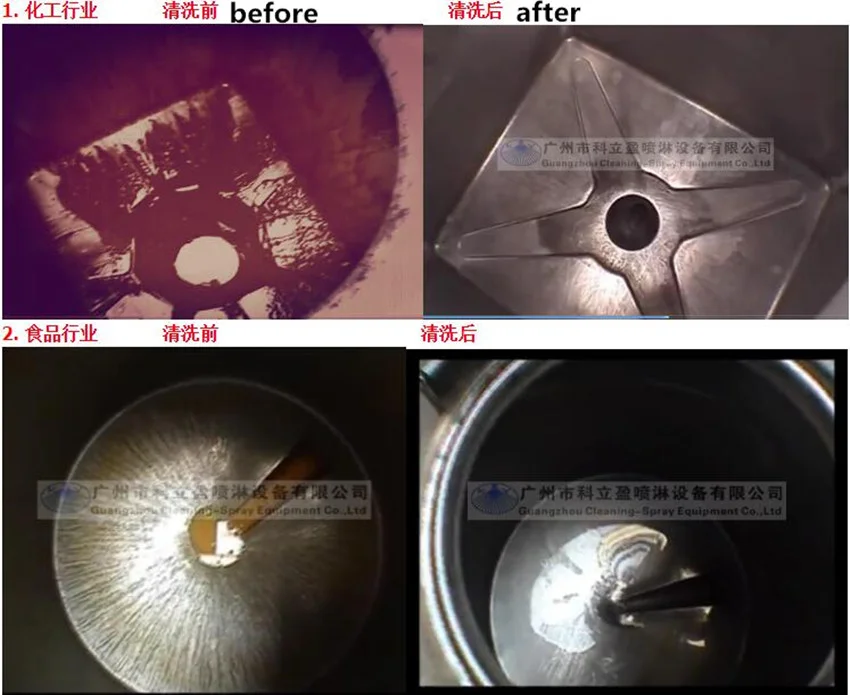

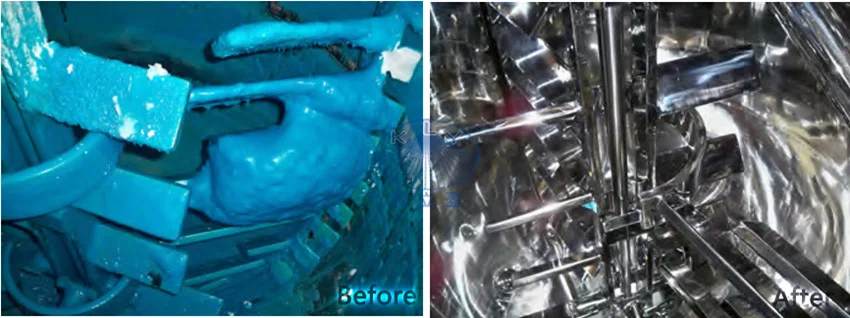

Cleaning effect:

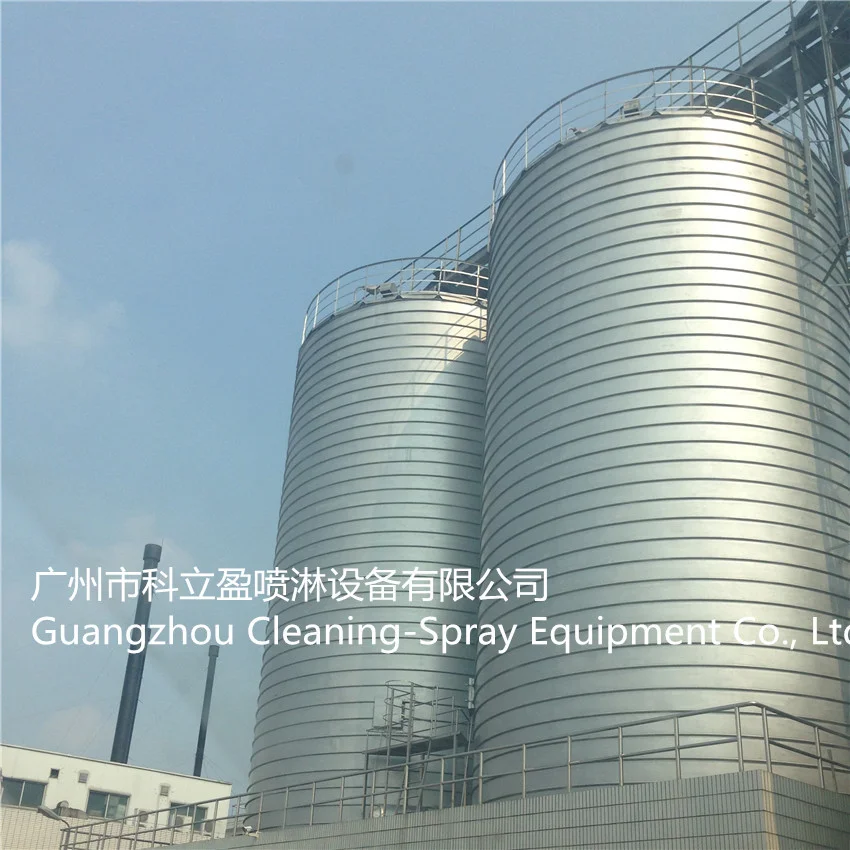

Application of 3D rotary tank cleaning nozzle:
1：Can the products be customized?
Yes, we accept OEM, just send us your layout or actual sample, we can arrange production according your design.
2:Is the MOQ fixed ?
For mass production orders,the MOQ cannot be lowered according to production requirements.For stock items,order quantity can be negotible.
3:How to order?
Please send one RFQ to us, our sales will confirm with you about the specification or other required things, then will send an official invoice to you via mail, which will be included the details of your order and bank information of our company.
4:How to pay?
We accept the payment via ESCROW, T/T (bank transfer) and Western Union, please inquire us about the details in advance.
5:How long about the production leadtime?
Different products and quantities have different procedures and different timing,normally it needs about 7-14 working days.
6: How to Deliver?
By air, by sea or by express(Fedex, DHL, UPS, TNT etc)
7:How to return?
Acceptable to the returns when you receive the products because of the following reasons.
1. Product was damaged, lost or missed
2. Different specification from required one.
Before ordering, please select a suitable product for you. As you know, all of us don't expect the return. If your return is the result of our error (you received an incorrect or defective item, etc.) we will cover the cost of return shipping. Please note that you are responsible for the cost of shipping for returns not due to our error.
Yes, we accept OEM, just send us your layout or actual sample, we can arrange production according your design.
2:Is the MOQ fixed ?
For mass production orders,the MOQ cannot be lowered according to production requirements.For stock items,order quantity can be negotible.
3:How to order?
Please send one RFQ to us, our sales will confirm with you about the specification or other required things, then will send an official invoice to you via mail, which will be included the details of your order and bank information of our company.
4:How to pay?
We accept the payment via ESCROW, T/T (bank transfer) and Western Union, please inquire us about the details in advance.
5:How long about the production leadtime?
Different products and quantities have different procedures and different timing,normally it needs about 7-14 working days.
6: How to Deliver?
By air, by sea or by express(Fedex, DHL, UPS, TNT etc)
7:How to return?
Acceptable to the returns when you receive the products because of the following reasons.
1. Product was damaged, lost or missed
2. Different specification from required one.
Before ordering, please select a suitable product for you. As you know, all of us don't expect the return. If your return is the result of our error (you received an incorrect or defective item, etc.) we will cover the cost of return shipping. Please note that you are responsible for the cost of shipping for returns not due to our error.
