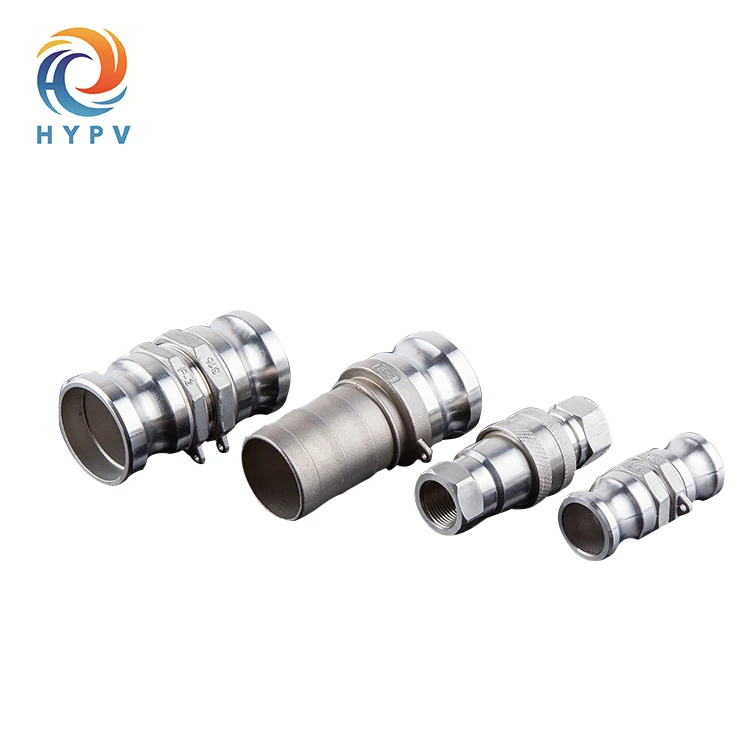

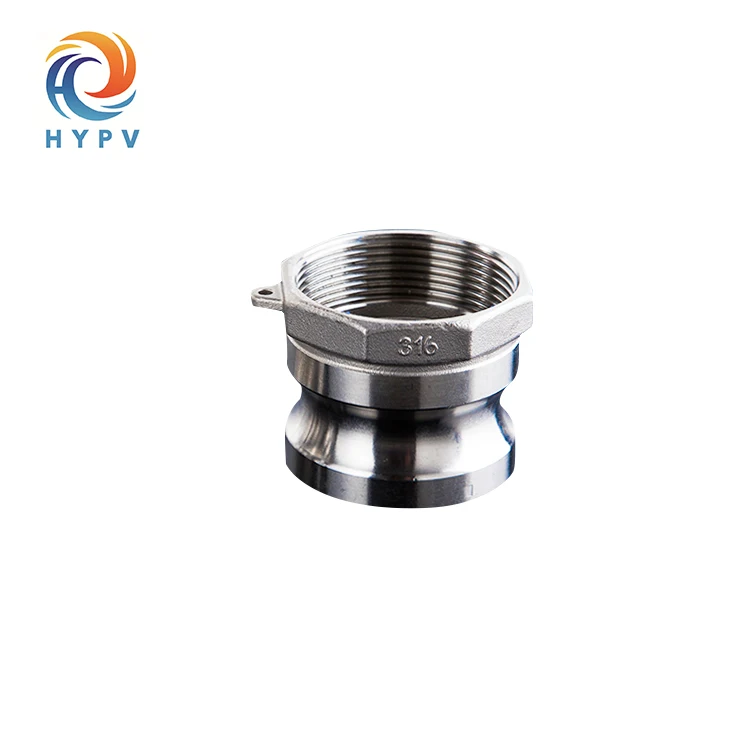

Top Quality Stainless Steel Camlock Quick Coupling
- Category: >>>
- Supplier: Shanghai Haoyang Pump Valve Manufacturing Co. Ltd.
Share on (60582993107):
Product Overview
Description
Top Quality Stainless Steel Camlock Quick Coupling
Product Fuction
PRODUCT FUNCTION
Save time and manpower
Easy to install, can quickly connect and disconnect
the pipe or hose without any other tools , help
to save time and manpower.
Save fluid
When the oil circuit has been broken, the one-way
valve of camlocks will close oil circuit,
no leaks and no waste.

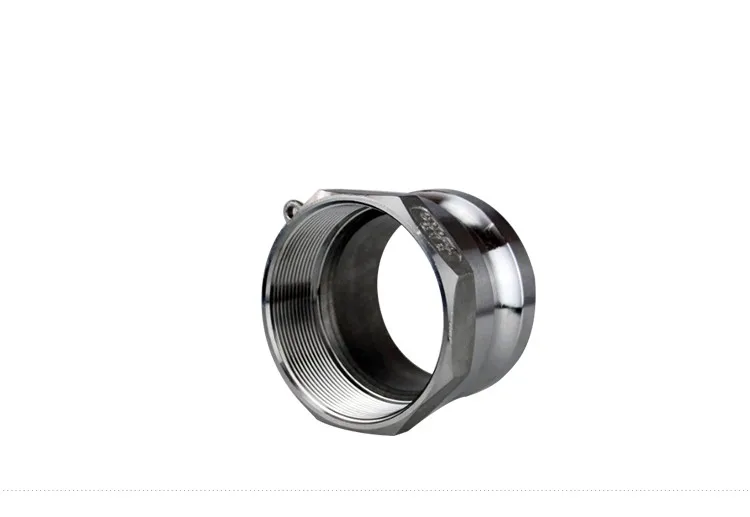

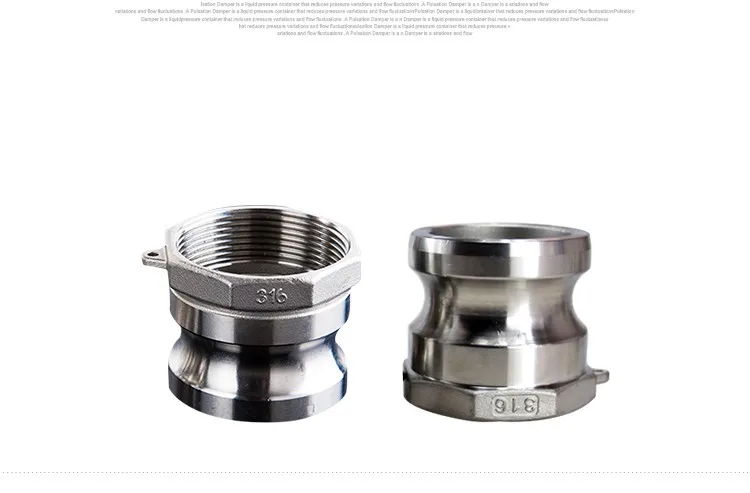

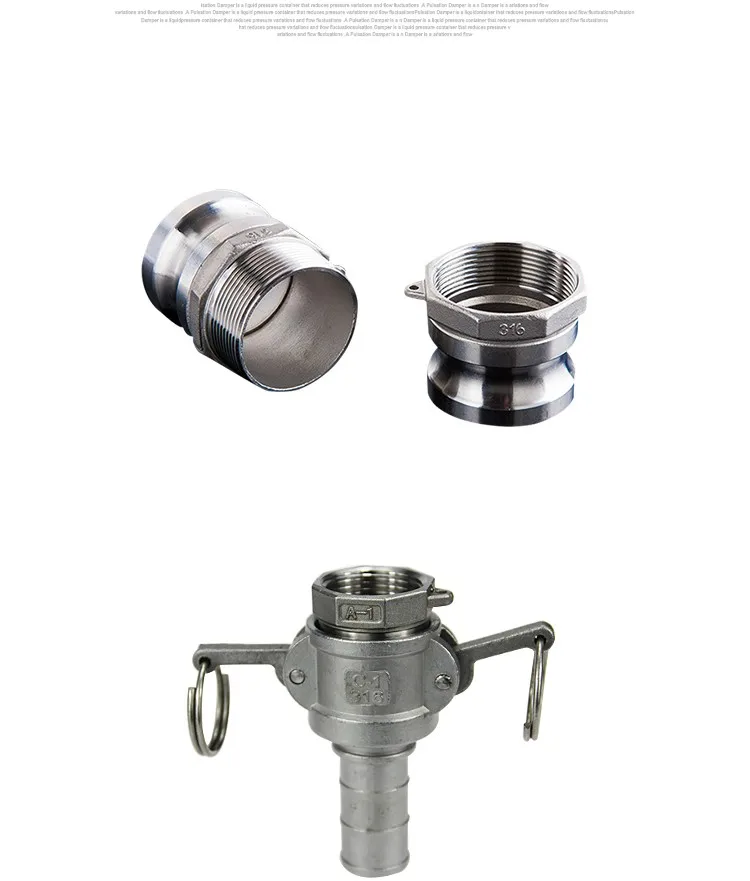

Product Show
PRODUCT SHOW
High quality stainless steel
High-hardness, not easy to deformation,
long service life.
Strong antioxidant ability
Corrosion resistance, can meet all kinds of
industrial demanding.

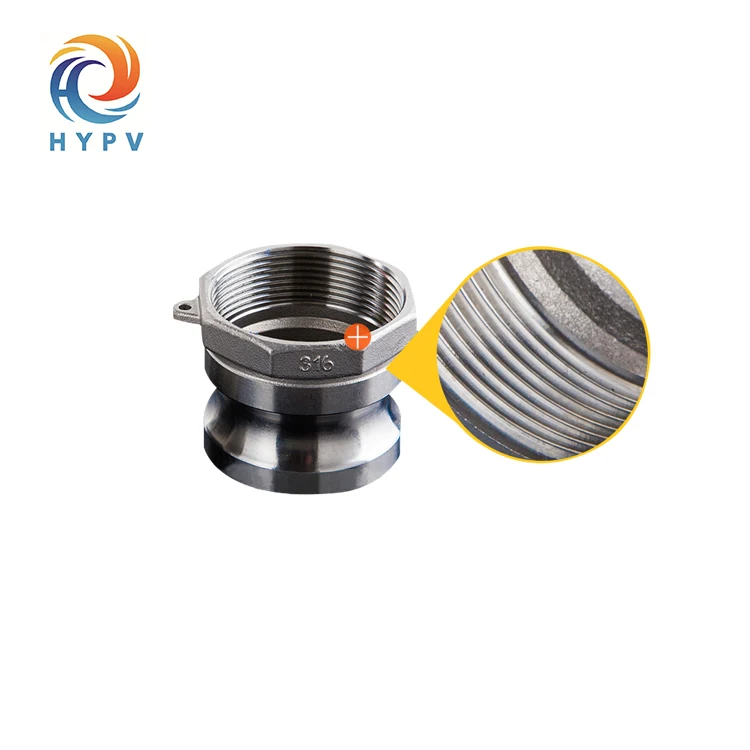

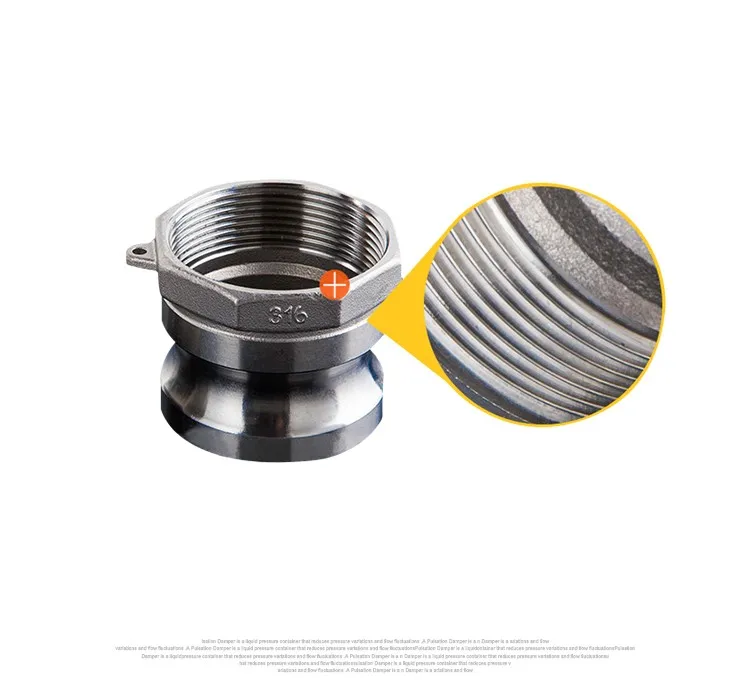

Precision polishing treatment
To meet the surface precision requirements.
PRODUCT PARAMETER
| Size | 1/2" to 6" |
| Material | NY , Stainless Steel ,Aluminium,Brass, etc |
| Gasket | NBR, EPDM, Viton,PTFE |
| Thread | BSP,BSPT,NPT |
| Coupling Type | A, B, C, D, E, F, DC, DP |
| Casting Method | Investment Casting |
| Application | Pipe Connection for water, petroleum, chemical, liquid etc |
| Working temperature | -20℃ to 230℃ |
| Working pressure | 1.6MPA |

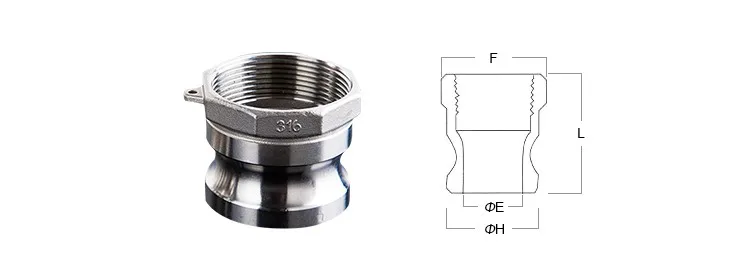

| SIZE | Inch | 1/2" | 3/4" | 1" | 1-1/4" | 2" | 2-1/2" | 3" | 4" | 6" |
| mm | 15 | 20 | 25 | 32 | 50 | 65 | 80 | 100 | 150 | |
| E | 14.3 | 21 | 23.8 | 30.8 | 46 | 58 | 73.2 | 98.2 | 149 | |
| F | 29.3 | 39.2 | 43.8 | 51.9 | 74.7 | 82.3 | 97.8 | 126.8 | 191 | |
| H | 24.3 | 32 | 36.6 | 45.5 | 63 | 75.9 | 91.5 | 119.5 | 175.9 | |
| L | 41.3 | 39 | 48.5 | 52.5 | 61.7 | 68 | 70 | 74.6 | 86 | |

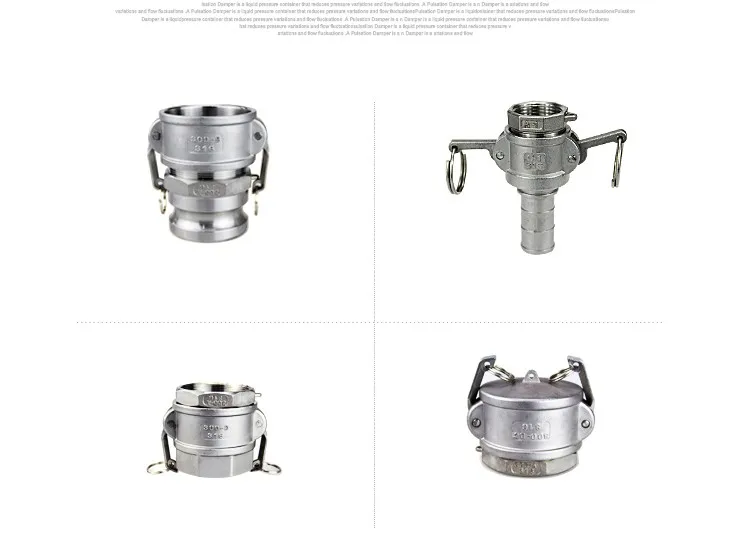

Related Product
RELATED PRODUCT
A+B A+C
A+D A+DC

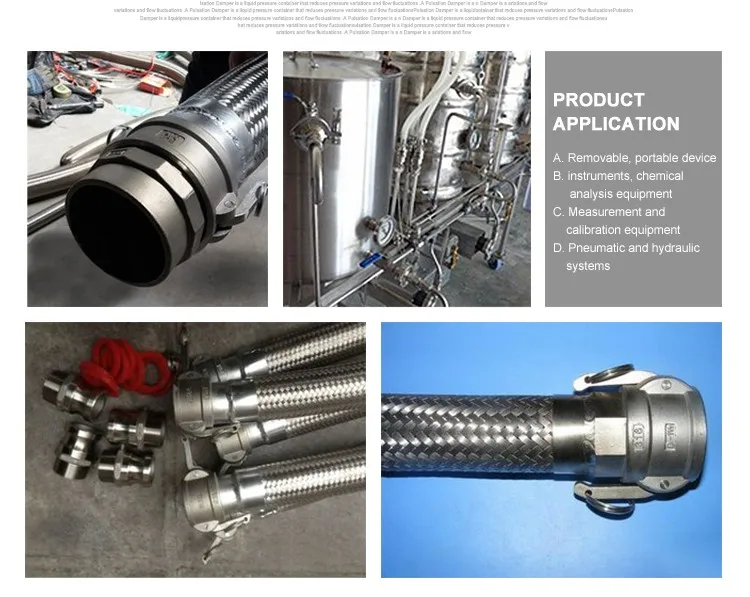

Product Application
PRODUCT APPLICATION
Application: beer, dairy, pharmaceutical, water and electricity engineering, petroleum,
chemical and machinery manufacturing and other fields
Company Information
COMPANY INFORMATION
Shanghai Haoyang Pump Valve Manufacturing Co., Ltd.designed and manufactured for over 10 years in Shanghai,China. We provide one-stop fluid solution, including AODD pumps, accessories and components suitable for different working condition. HaoYang have earned industry recognition for premium quality and innovative design.To ensure suitability for a variety of media, wetted parts are available in numerous optional materials.
Focus on customer satisfaction is supported with quality and reliability, validated by CE , ISO ,ATEX certifications.We specify only the most durable materials that are dependable and long-lasting. When we combine the highest-quality products with topnotch customer care, we get outstanding value.
